PVC Extrusion mold is a kind of molding mold, but his way of discharging is to achieve through the action of extrusion.It is widely used in aluminum shaped structure and also in plastic parts.In the front end of the extruder, used for making pipe, or profile. In short, the mold is used to shape the tool, this tool is composed of various parts

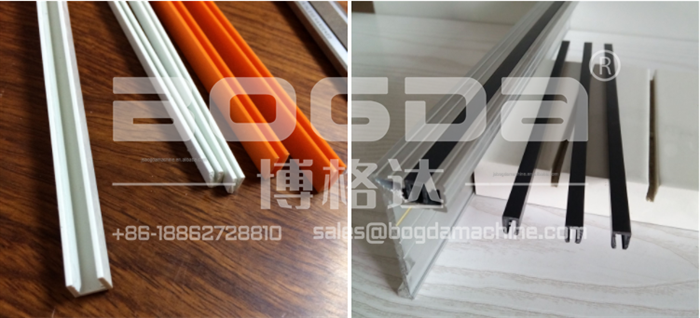

Production Application

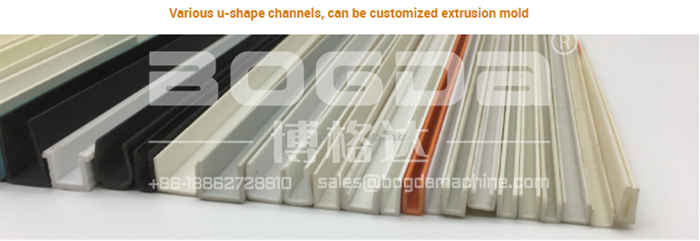

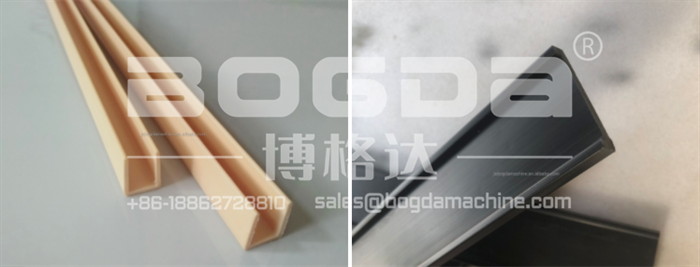

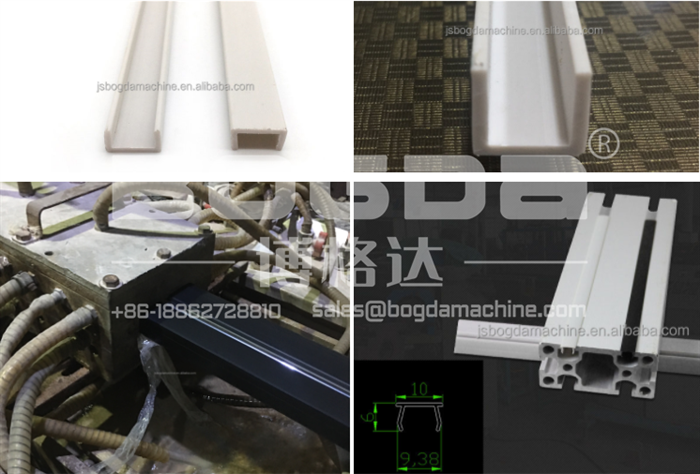

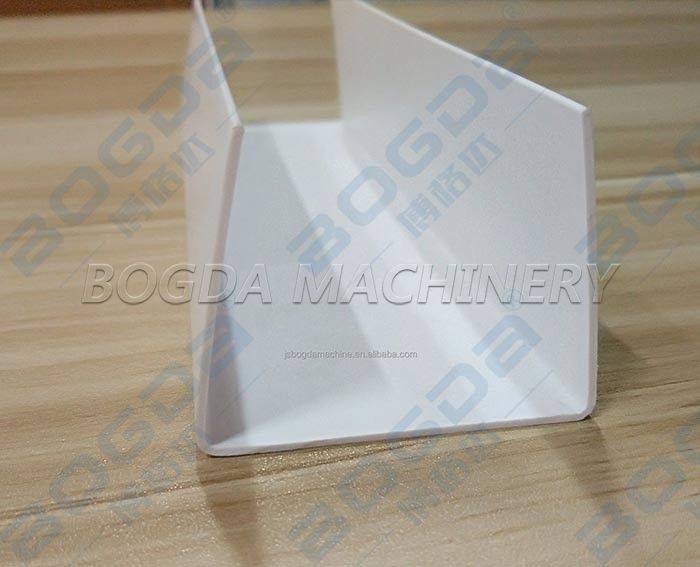

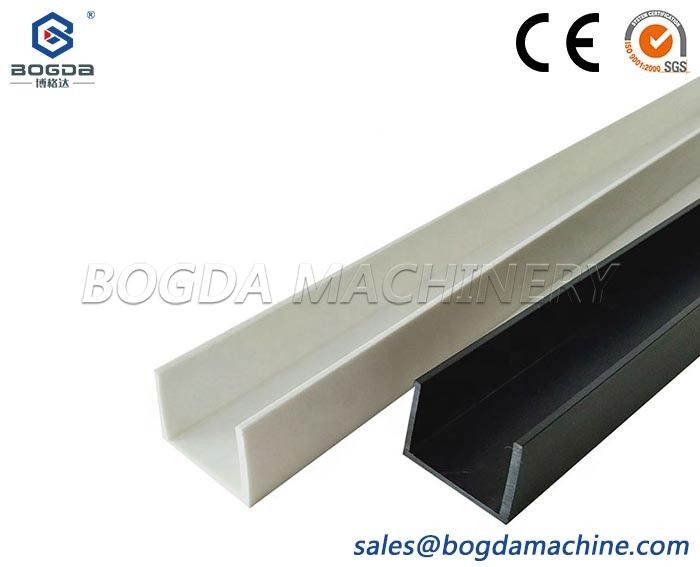

Design U Shape PVC Channel Profiles Extrusion Die Mould For Display Cabinets Glass Door Window Edge Trim Protection

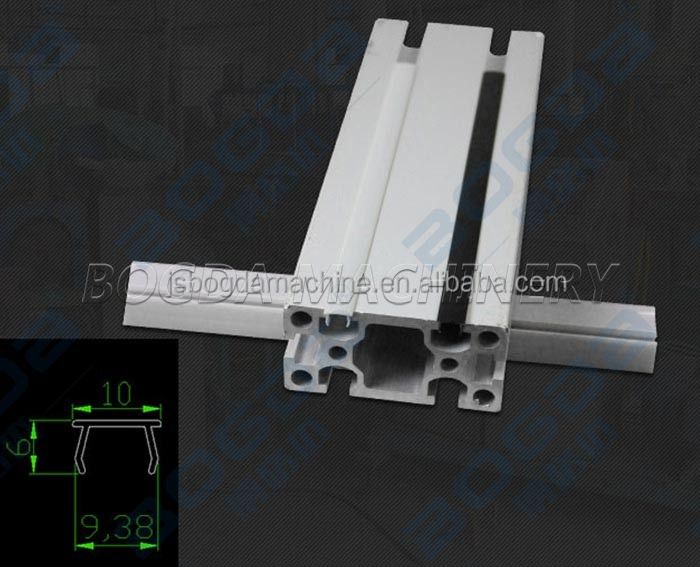

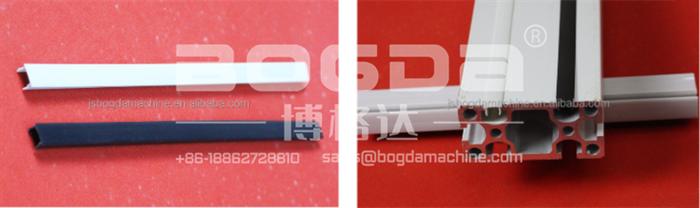

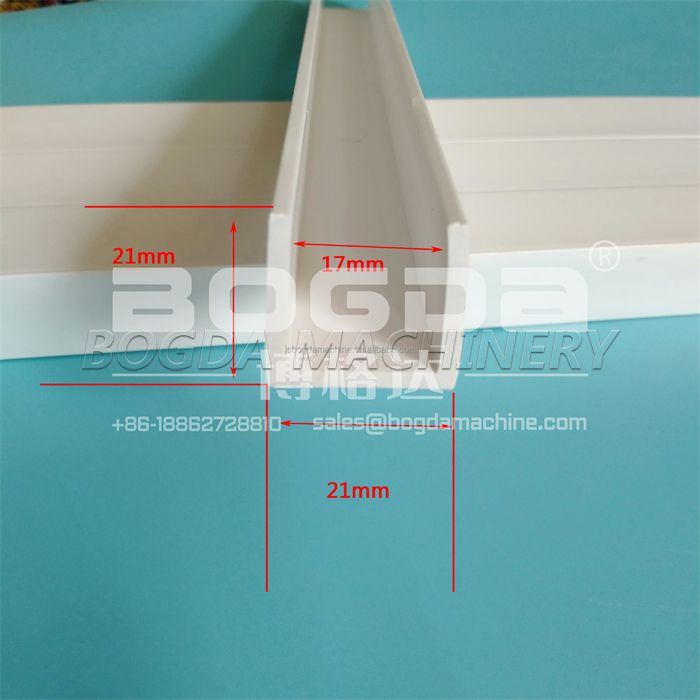

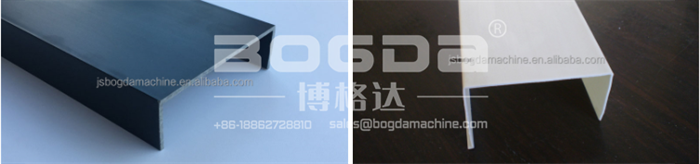

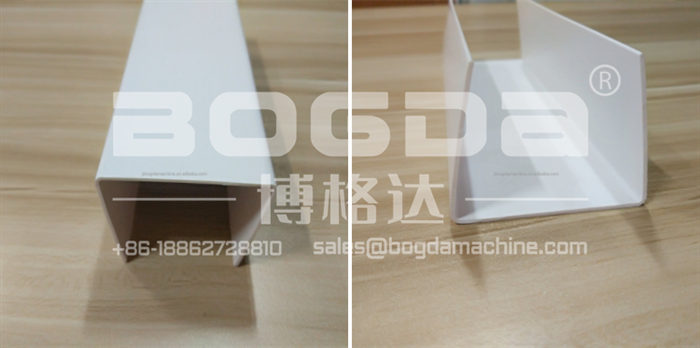

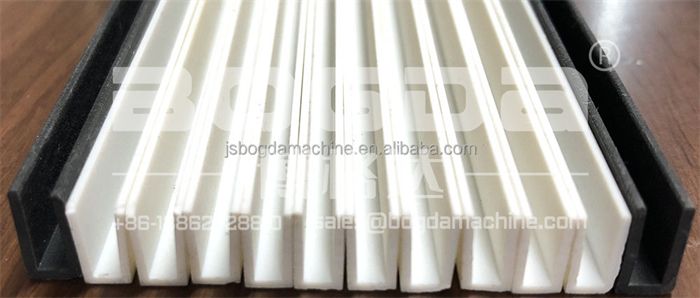

After the PVC U-shaped groove is put into the profile groove pit, the plexiglass and other plates can be inserted to play the role of buffer, protection and sealing. Corrosion resistance, high temperature resistance, high pressure resistance, wear resistance.
Product Description
Design U Shape PVC Channel Profiles Extrusion Die Mould For Display Cabinets Glass Door Window Edge Trim Protection
PVC Extrusion mold is a kind of molding mold, but his way of discharging is to achieve through the action of extrusion.It is
widely used in aluminum shaped structure and also in plastic parts.In the front end of the extruder, used for making pipe, or profile. In short, the mold is used to shape the tool, this tool is composed of various parts, different mold is composed of different parts, it mainly through the formation of material physical state change to achieve the shape of the object processing.
The mould is the main processing tool for manufacturing parts in industrial departments such as machinery manufacturing, radio instrument, motor and electric appliance.The quality of die directly affects the quality of pressure processing technology, the precision output of products and production cost. Besides rational structure design and machining accuracy, the quality and service life of molds are mainly affected by mold materials and heat treatment.
BOGDA can make variour pvc abs pc pp pe ps profiles extrusion mould and related plastic profiles extrusion equipment
Product Paramenters
Custom Design U Shape PVC Channel Profiles Extrusion Die Mould For Display Cabinets Glass Door Window Edge Trim Protection | |

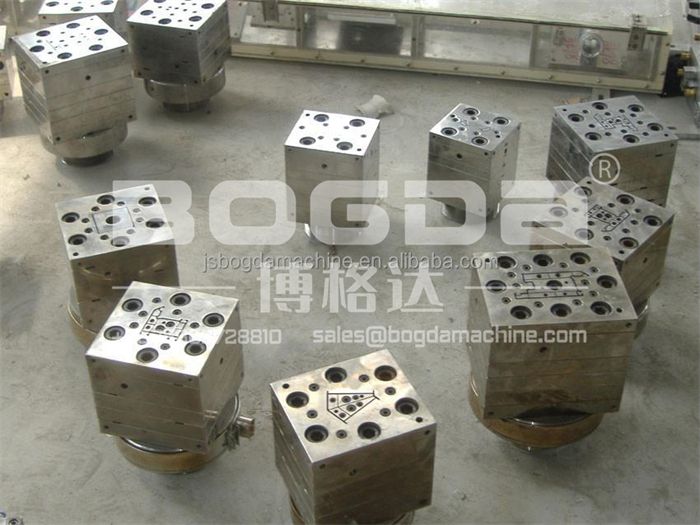

Extrusion Mould Include | Mould die + Calibrator + Heating Zones |
Width | according to your product |
Calibrator length | according to your product |
Mould material | 3Cr17 |
BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.
BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.
Fast response, good quality, best price and perfect service are our advantages and culture.
