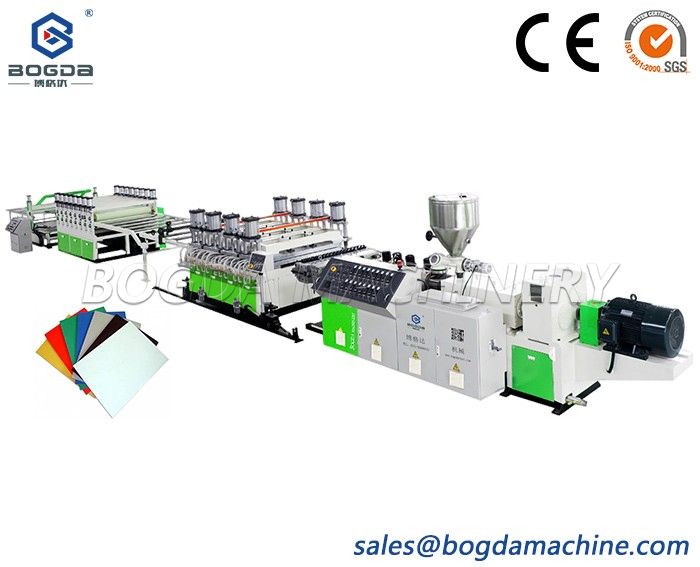

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

The conical twin-screw extruder has stable performance, which can make the melt plasticize well at a lower temperature. The cast aluminum heater is installed on the cylinder, which has high thermal efficiency, fast and uniform temperature rise, and is equipped with cooling fan.

Product Description

Production Application

PVC foamed board belongs to the new environmental protection material, called no defect board in foreign countries, and the double post, no oil leakage, no water seepage, scratch resistant, also called blister board, base material of density board, surface by vacuum blister or adopt a seamless and PVC film pressure molding process, green non-polluting, renewable, is the ideal alternative ambry materials, and the people life more convenient, the most suitable. Door plate in normal size without edge, waterproof, moisture-proof, hardness and flexibility.


PVC board has excellent chemical stability, corrosion resistance, high hardness, high strength, anti-uv (aging resistance), fire resistance and flame retardant (with self-extinguishing), reliable insulation performance, smooth surface, not water absorption and deformation, easy processing and other characteristics

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

Product Description

BOGDA PVC Celluka Foam Board Extrusion Line For Kitchen Cabinets Bathroom

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

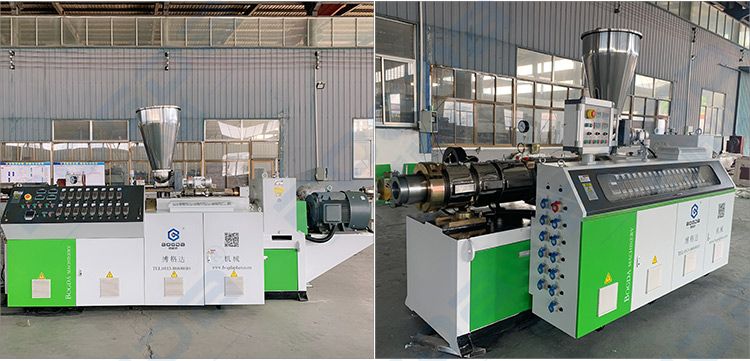

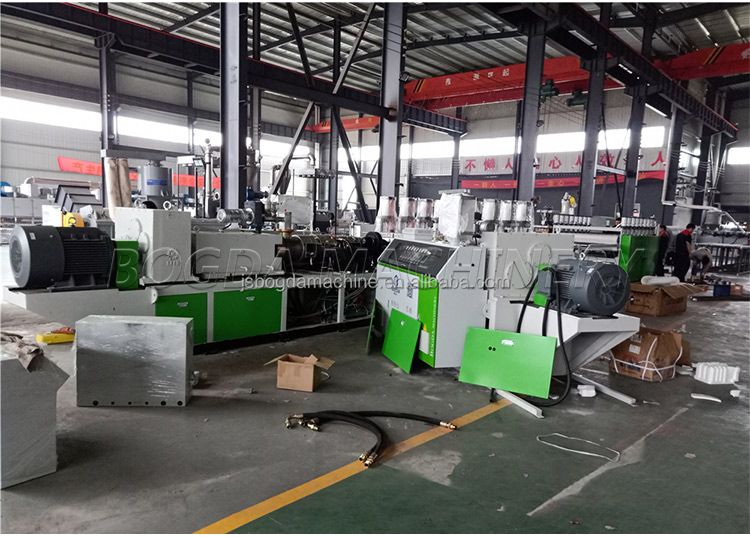

SJSZ80/156 Plastic extruder for pvc foam board

The conical twin-screw extruder has stable performance, which can make the melt plasticize well at a lower temperature. The cast aluminum heater is installed on the cylinder, which has high thermal efficiency, fast and uniform temperature rise, and is equipped with cooling fan.

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

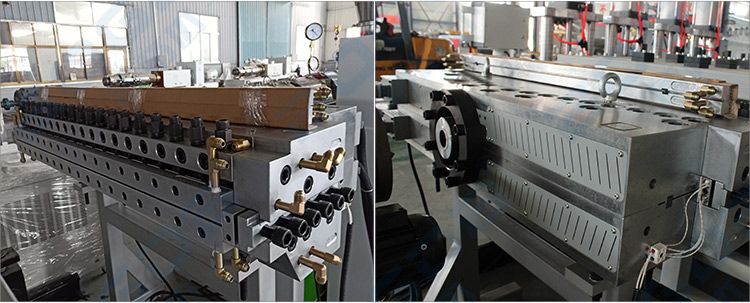

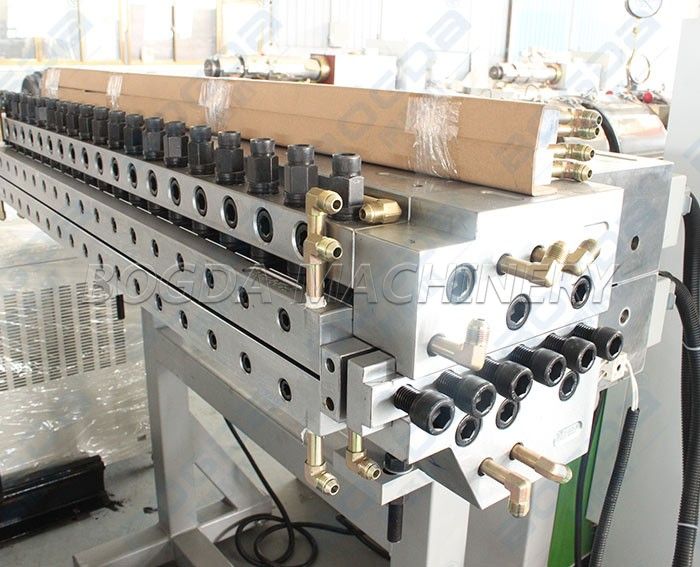

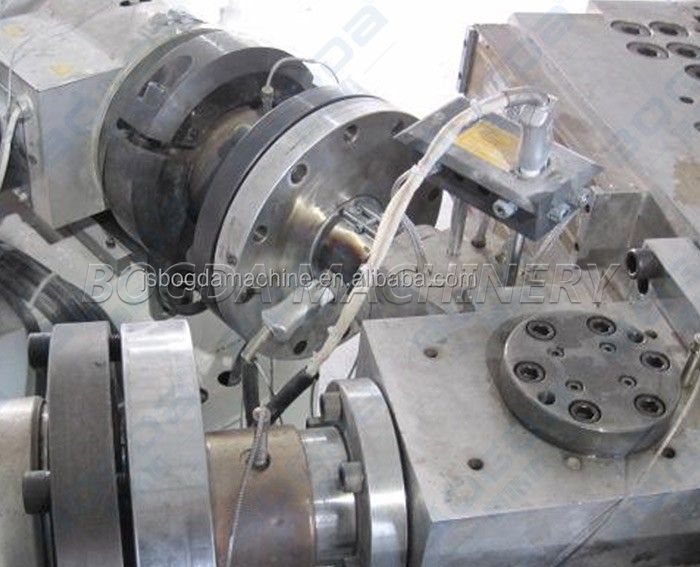

Extrusion mould for pvc foamed board

1. Die head with streamlined runner surface, two half mold body design, die head disassembly, easy to clean. 2. Manual fine tuning of elastic die lip or movable upper die lip design, extrusion thickness 0.2-1.22mm. Special for lace products and can be adjusted according to the thickness of products. 3. To adapt to the melt flow of different viscosity to get uniform distribution. 4. Die body adopts die steel or imported alloy steel to prolong the life of the die. 5. All the surface of the runner is plated with hard chromium, the average thickness is 25μm~50μm, and mirror polished. 6. Die head fasteners with high strength bolts of class 12.9. 7. The heating element adopts durable stainless steel heating rod and heating ring

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

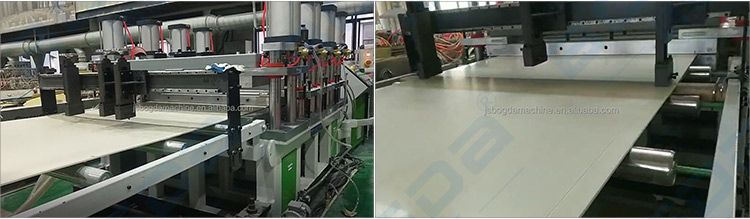

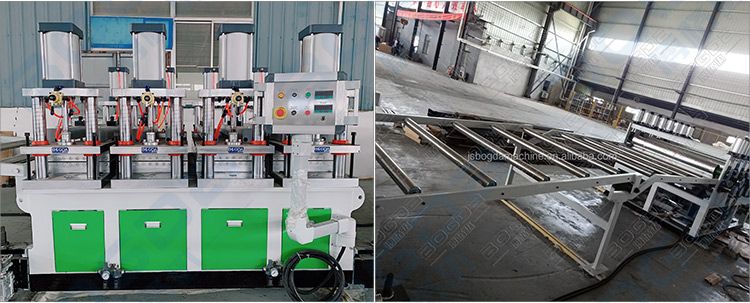

Calibration Forming Machine For PVC Foam Board

Number of set boards: four pairs. Width of shaping board: 1500mm Finalize plate closure: cylinder drive, independent up and down control Plate cooling: water cooling, optimize the design of flow channel Longitudinal movement of setting machine: 0.75 kW reducer motor drive

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

Cooling stacker with edge side cutting device

Length: 5 m Transition roller: stainless steel, surface polished, hardening treatment

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

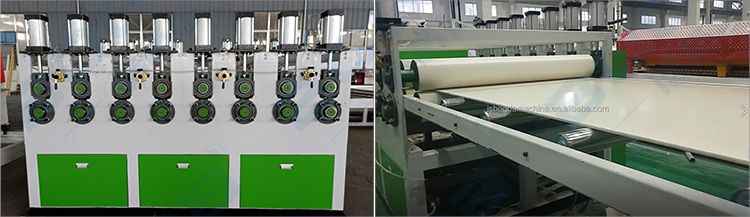

Haul-off machine for pvc foam board

Rubber roller material: polyurethane adhesive Clamping mode: each pair of rollers is pressed by independent cylinder Drive: reducer motor Motor power: 5.5KW, 2 sets synchronous traction Control: Swiss ABB frequency converter

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

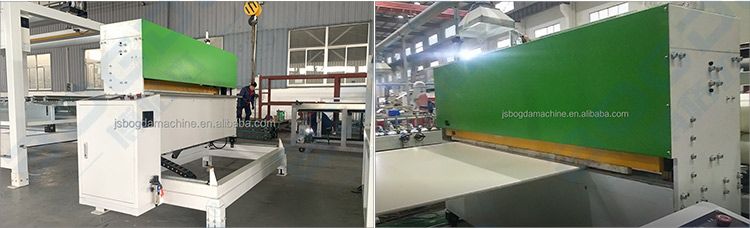

Non-dust cutting machine for pvc foaming board

Effective cutting width: 1500mm Cutting method: dust-free blade Transverse cutting: linear guide rail movement Lateral movement: driven by reducer motor, power 0.75KW Longitudinal follow-up: linear guide follow, cylinder control

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

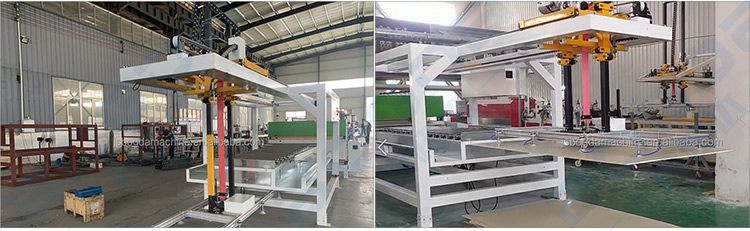

Automatic lift machine for pvc foam board

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

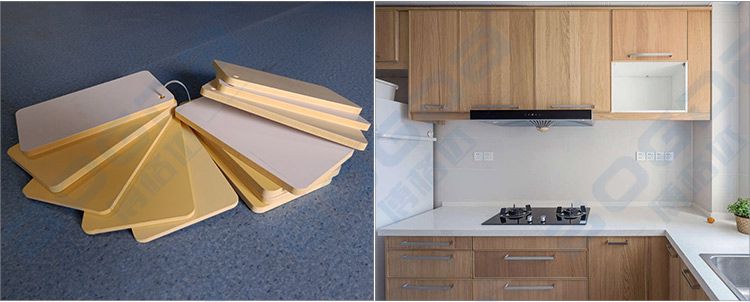

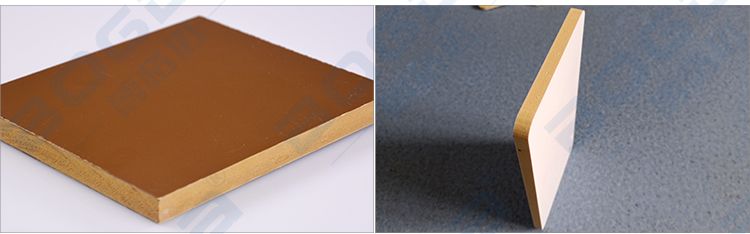

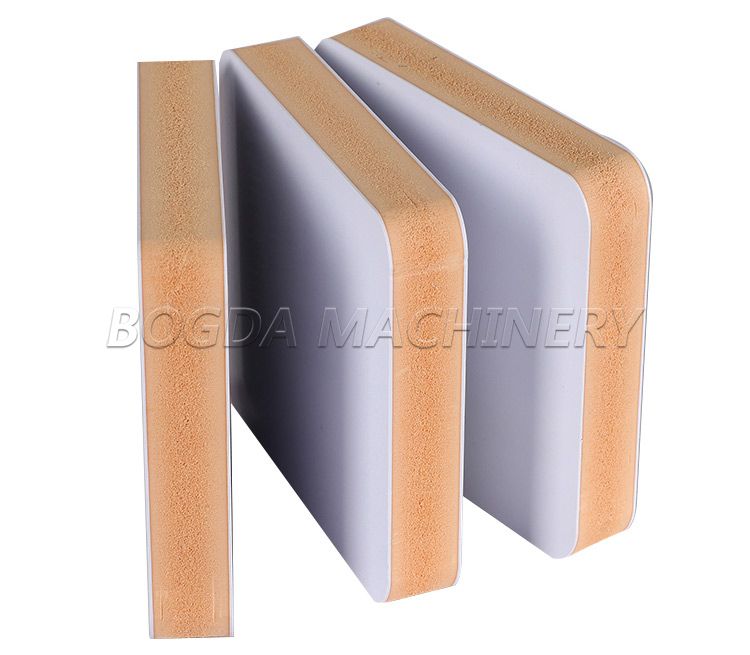

Final WPC PVC Foam Board

Product Paramenters

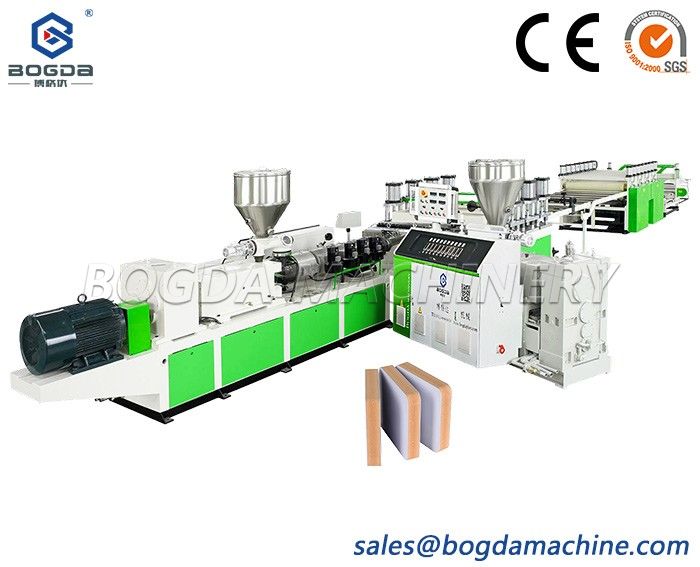

PVC Foam Board Extrusion Line
ModelProduct WidthProduct ThicknessCapacityMain Motor Power
SJSZ80/156 + SJSZ65/1321220mm5-20mm500kg/h(75 +37) kw


Product Video

Packaging and Shipping

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

Customer Review

Waterproof Three Layers Co-extrusion WPC PVC Furniture Foam Board Extrusion Line

FAQ

Q: Where can we get spare part?

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

Q: How can I help you when face some technical problem?

A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

Q: How long is the guarantee?

A: 12 months since the first day customer operates (except wear parts).

Q: Any quality checking before shipment?

A: 100% confirm, run and test machines before shipment with quality certificate.

Q: Can I operate machine if don’t have experienced engineers?

A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements

Q: How many electric, water, air need for the machines?

A: Technical department supply the whole layout for workshop details.

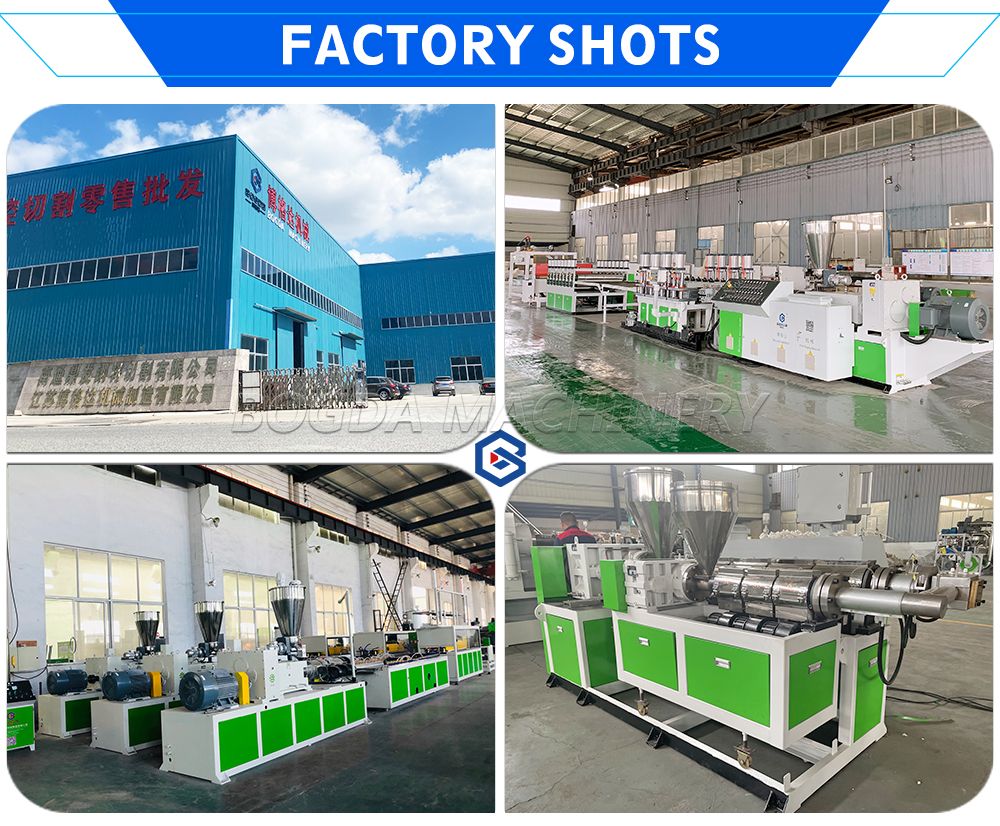

Company Introduction
