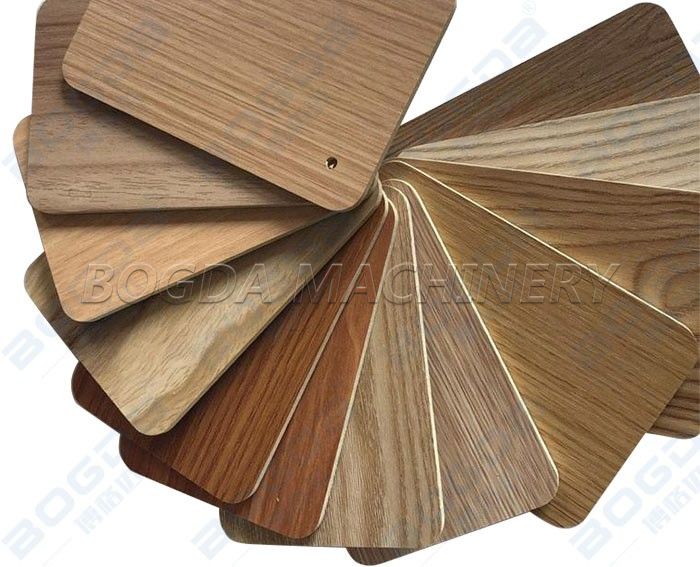

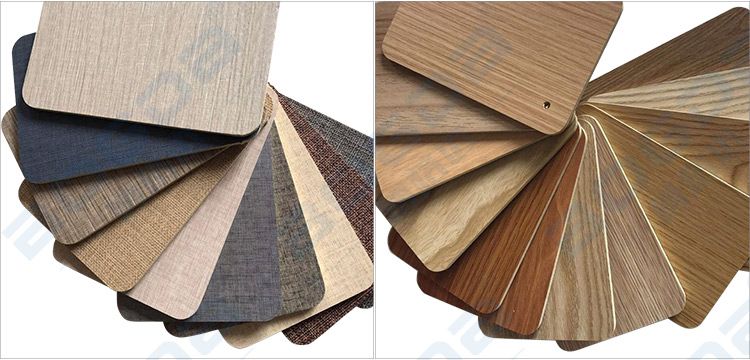

1.2m Width Interior Wall Decoration Wood Grain Laminated PVC Foam Board Extrusion Line

Production Application

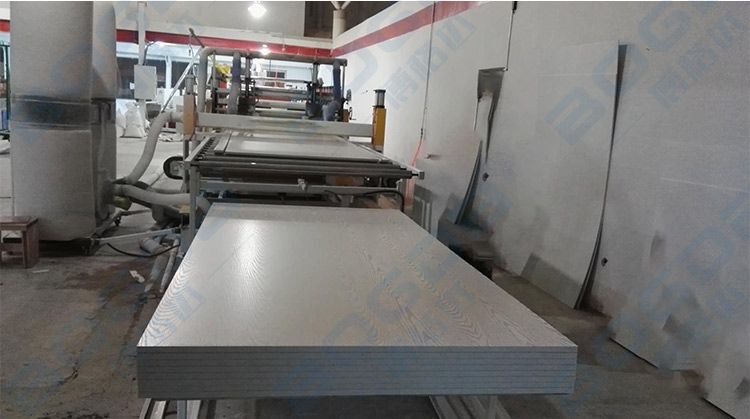

Compared with the free foaming, the surface layer of the PVC skin foaming board is not only smooth, but also has a greater hardness of the cortex, and its mechanical properties are obviously better than the free foaming body.

The application prospect is very broad. Widely used in cabinet furniture, interior wall decoration,advertising lettering materials, building decoration materials, automobile, train, ship interior decoration materials, etc.

Machine Specification

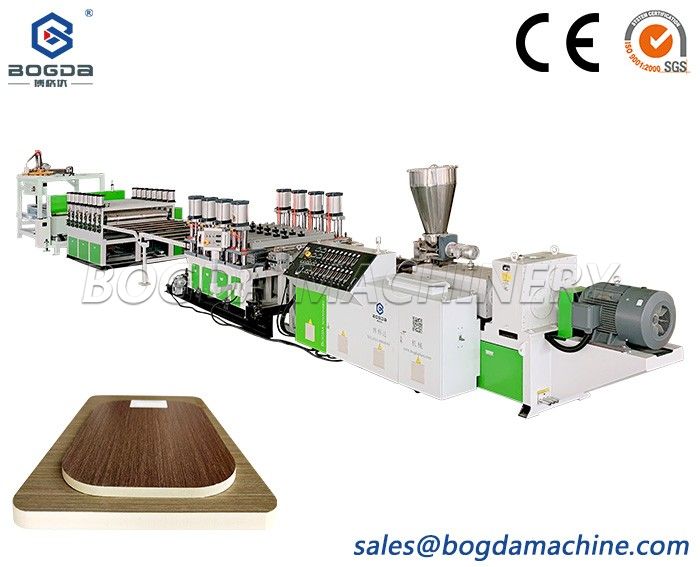

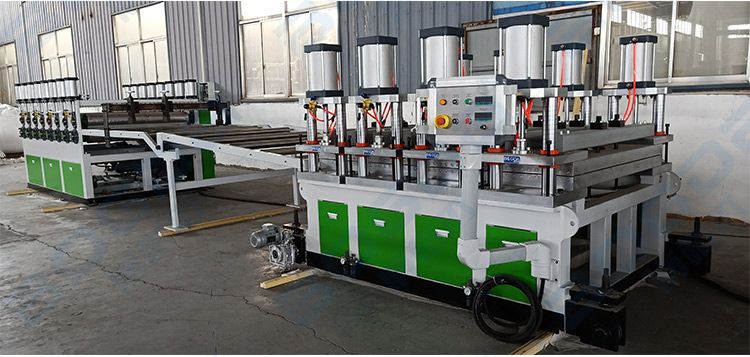

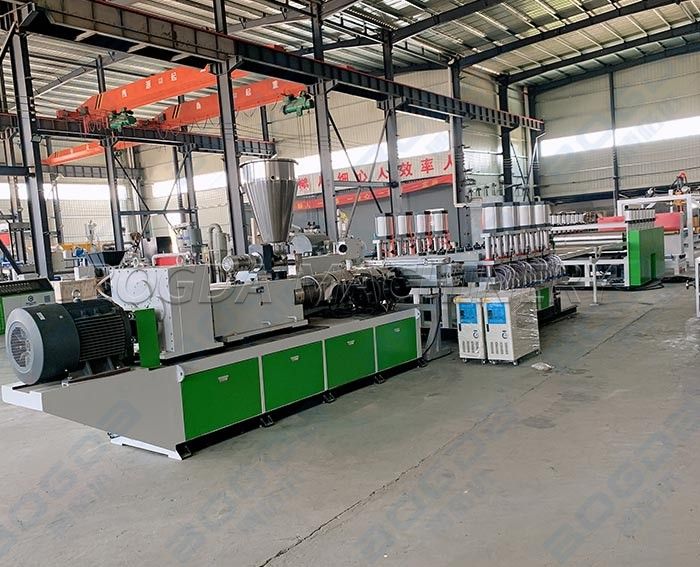

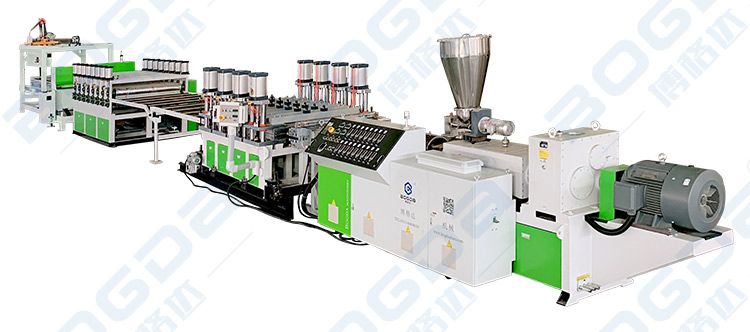

PVC skin-foamed sheet extrusion equipment is composed of parallel-parallel twin screw extruder, sheet extrusion mold, vacuum shaping and ten rollers traction and other auxiliary parts.

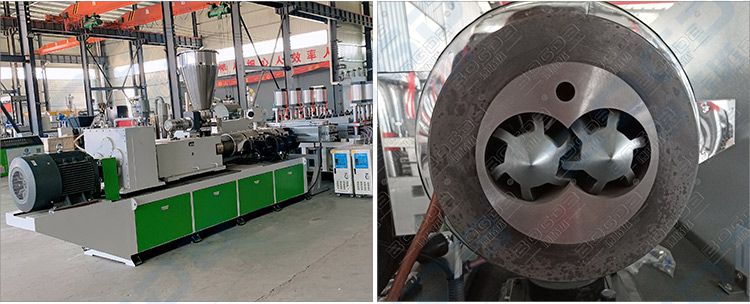

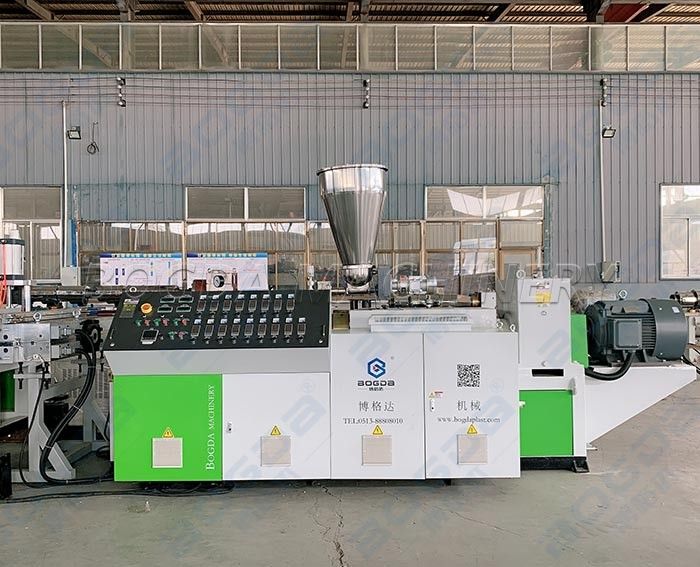

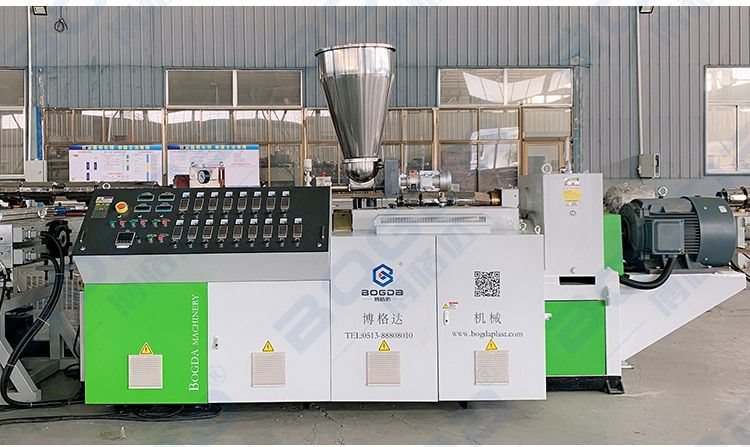

The extruder adopts SJZ80/156 high output extruder, adopts the new seven-stage pineapple head special foaming screw structure, and the output exceeds 10T in 24 hours.

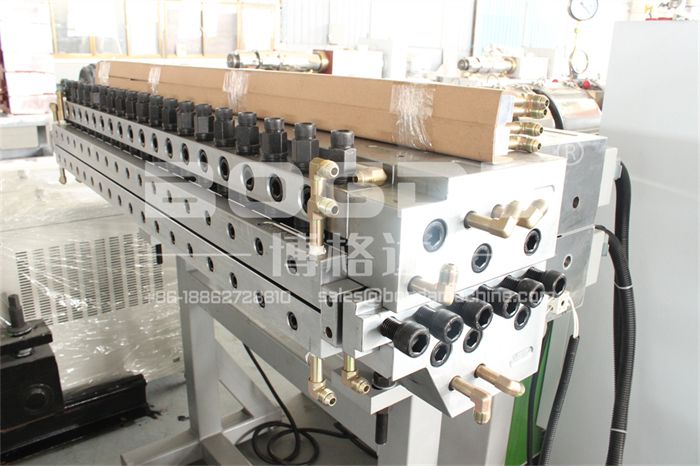

The extrusion flat die head adopts a small die lip on the basis of a common die, and the matching die temperature machine is controlled by the oil, so that the sheet skinning effect is better.

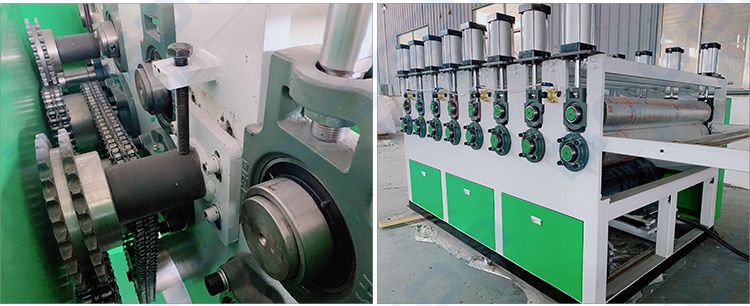

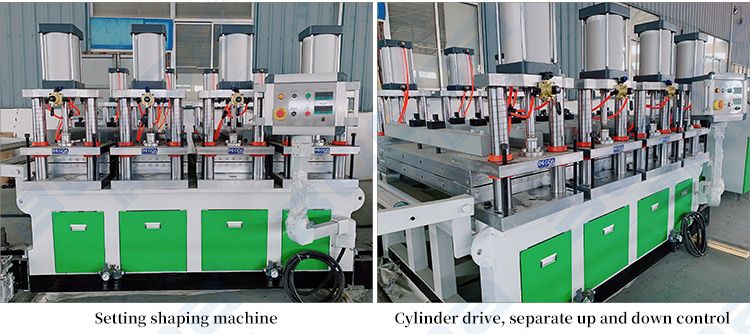

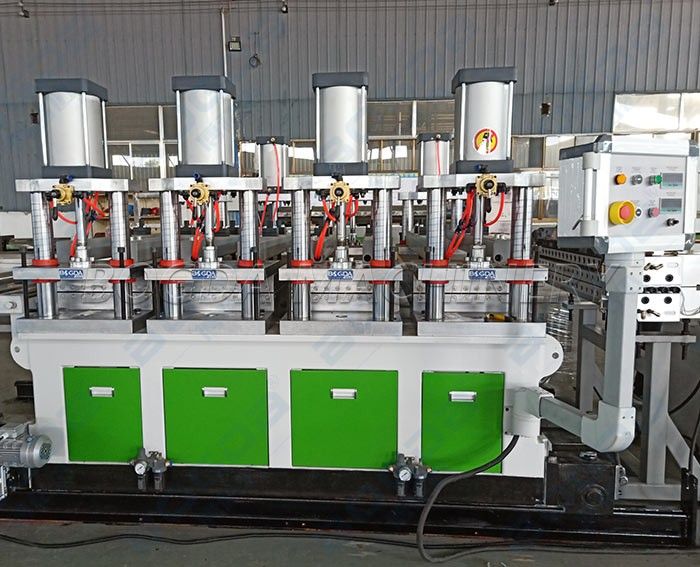

The setting table adopts 4 pairs of setting plate structure, the opening and closing are driven by cylinder or oil cylinder to ensure the stability of the setting table opening and closing. The setting plate adopts special mold steel with sufficient thickness, which not only guarantees the rigidity of the setting plate, but also guarantees the plastic sheet. Cooling crust effect. The traction machine adopts 8 pairs of rubber rollers to ensure the stability of traction and the traction required when producing thick plates. At the same time, it is equipped with FALK motor, gear box and Danfoss inverter control.

The horizontal cutting machine adopts photoelectric switch control, and the longitudinal follow-up adopts rack and pinion control to ensure the cutting accuracy of the plate. The main motor inverter adopts the ABB brand, the contactor adopts the Siemens brand, and other high-quality electrical components, so that the equipment can be high-yield, and continue to operate stably for a long time.

Energy saving and environmental protection. All scraps and used templates can be recycled, with zero waste discharge.

Product Paramenters

1.2m Width Interior Wall Decoration Wood Grain Laminated PVC Foam Board Extrusion Line
Model	Extruder Model	Product Width (mm)	Product Thickness (mm)	Motor Power (kw)	Capacity(kg/h)
Semi-skinning Foaming	SJZ80/156	1220	5-20	75	400
	SJZ92/188	1560	8-18	132	550
	SJZ92/188	2050	8-15	132	550
Co-extrusion Foaming	SJZ80/156 + SJZ65/132	1220	5-20	75+37	500

BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.

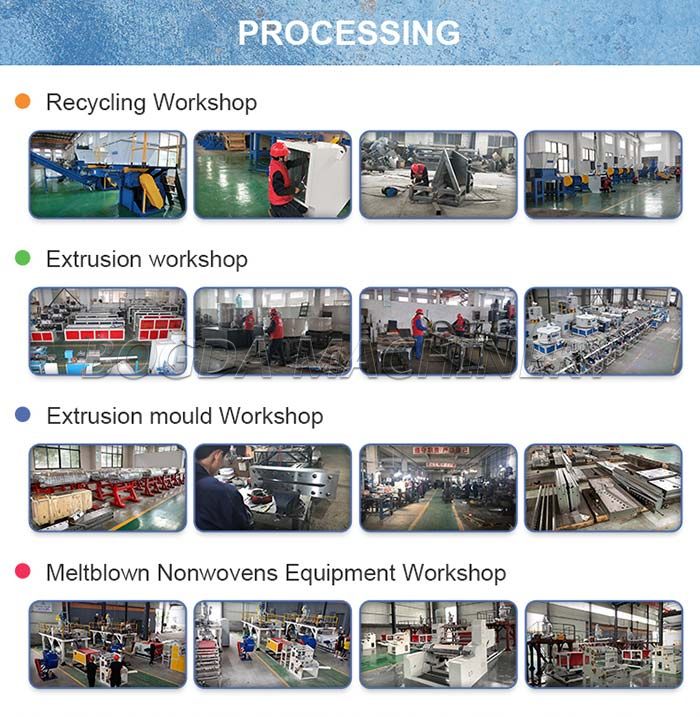

BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.

Fast response, good quality, best price and perfect service are our advantages and culture.

Q: Where can we get spare part?

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

Q: How can I help you when face some technical problem?

A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

Q: How long is the guarantee?

A: 12 months since the first day customer operates (except wear parts).

Q: Any quality checking before shipment?

A: 100% confirm, run and test machines before shipment with quality certificate.

Q: Can I operate machine if don’t have experienced engineers?

A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements

Q: How many electric, water, air need for the machines?

A: Technical department supply the whole layout for workshop details.
