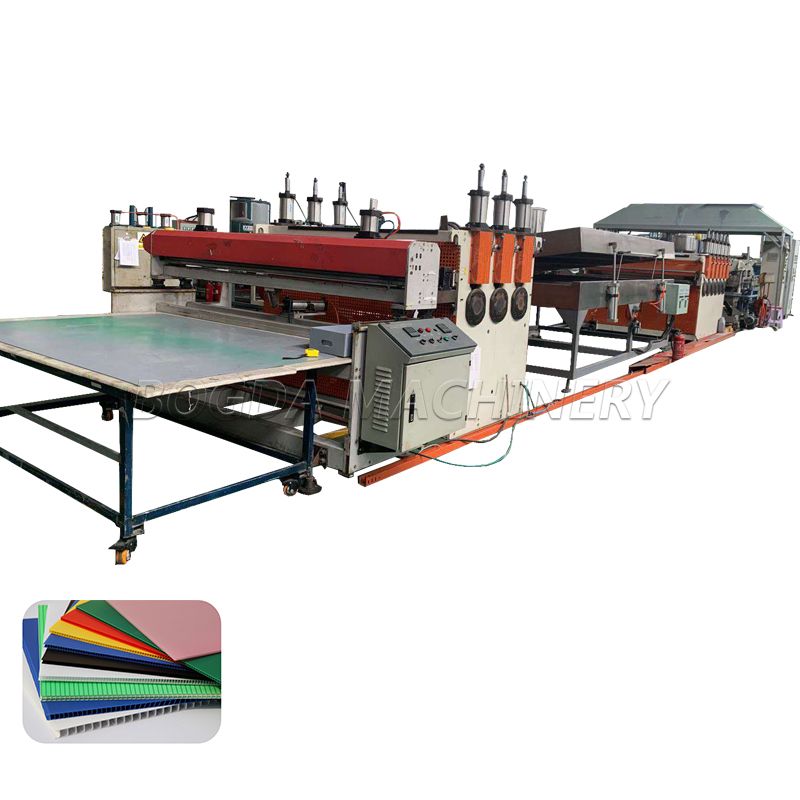

High strength, impact resistance, wear resistance, long service life, can be used more than 100 times. BOGDA's PP Hollow Board Extrusion Line is designed for manufacturing polypropylene hollow boards used in reusable construction formwork and other rigid board applications.
BOGDA's PP Hollow Board Extrusion Line is designed for manufacturing polypropylene hollow boards used in reusable construction formwork and other rigid board applications. The production line combines plastic extrusion, hollow board forming, cooling, traction and cutting processes to produce boards according to the required dimensions and structural specifications.
With equipment configurations tailored to board width, thickness, raw material formulation and target production capacity, BOGDA helps plastic board manufacturers establish production lines suited to their intended products. The extrusion system can also be evaluated for processing suitable PP recycled materials and production scraps, subject to material quality and formulation requirements.
Whether you are establishing a new PP hollow board factory or expanding an existing production facility, BOGDA provides equipment configuration consultation, workshop layout planning and technical support for your production requirements.
1. High strength, impact resistance, wear resistance, long service life, can be used more than 100 times
2. Light weight, convenient remove, low labor intensity for handling operations, high construction efficiency, safety and reliability, no moisture absorption, corrosion resistance, acid and alkali resistance
3. Smooth surface, no need to apply mold release agent
4. Waste boards and scraps can be recycled, which saves costs and reduces pollution

A PP hollow board extrusion line processes polypropylene materials into rigid boards with an internal hollow structure. The extrusion process integrates material feeding, plasticizing, board forming, calibration, cooling, traction and cutting into a continuous production workflow.
The equipment configuration is determined by the required board dimensions, hollow structure, material formulation and production output.
01 Material Feeding & Mixing→02 PP Extrusion & Plasticizing→03 Hollow Board Die Forming→04 Calibration & Cooling→05 Haul-Off & Stabilization→06 Cutting & Collection

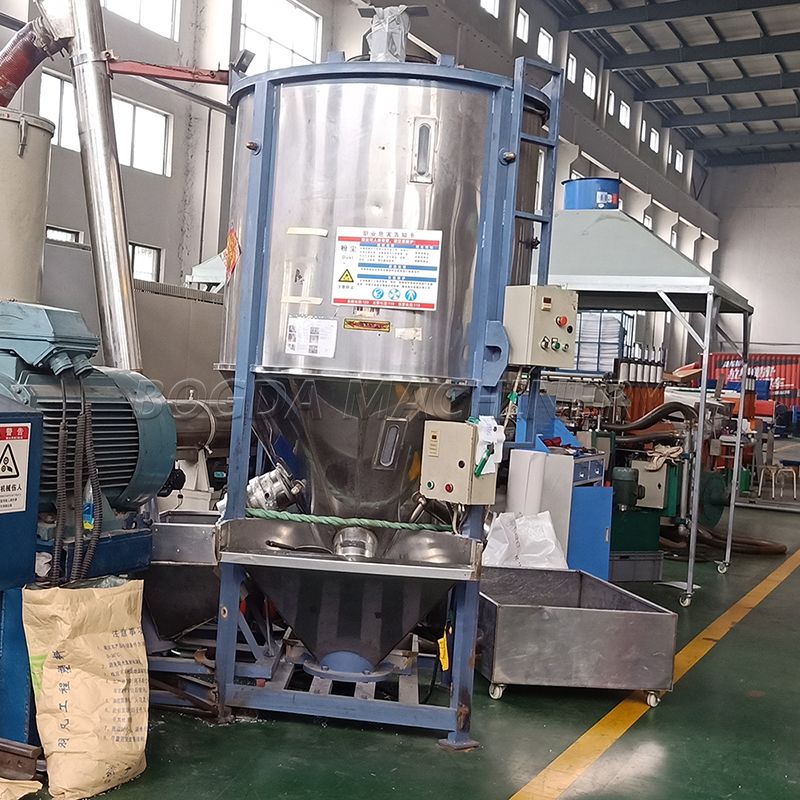

● Material Feeding and Mixing
PP resin and approved additives are prepared according to the required board properties. Material formulation influences processing stability, board weight, rigidity and finished product performance.
● Extrusion and Plasticizing
The extruder heats, melts and conveys the polypropylene material through the screw and barrel system. Stable melt temperature and material flow are important for consistent board forming.
● Hollow Board Die Forming
The molten PP passes through a specially designed extrusion die that forms the required hollow board structure. Die design must correspond to board width, thickness, internal rib configuration and material characteristics.

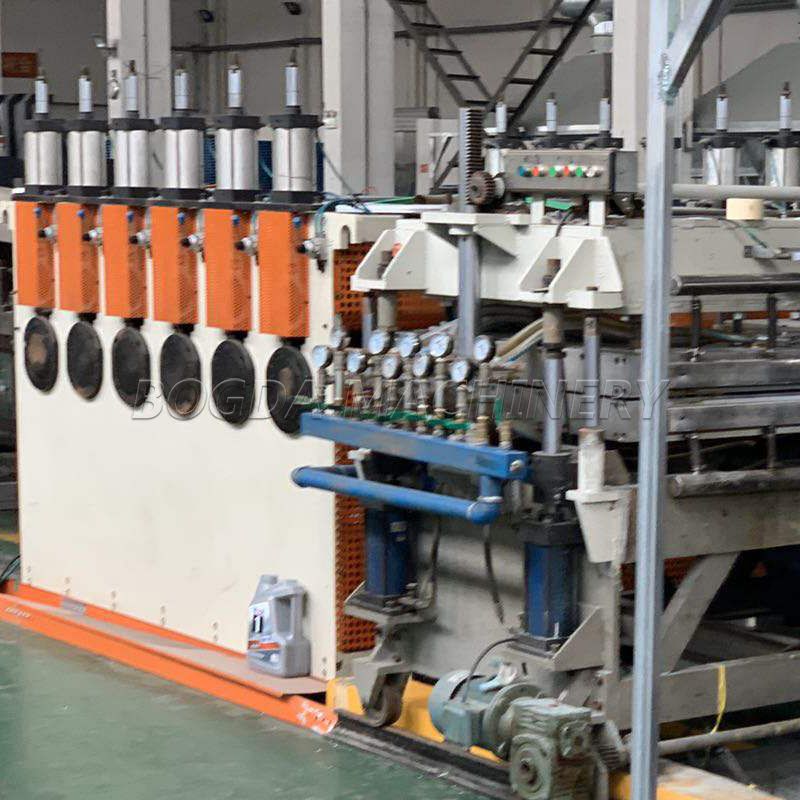

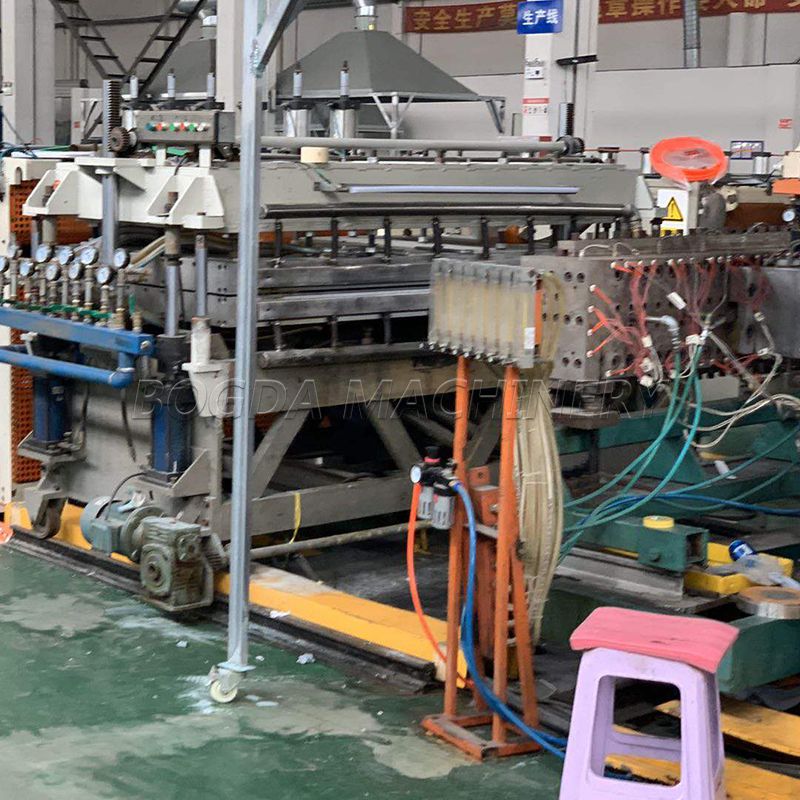

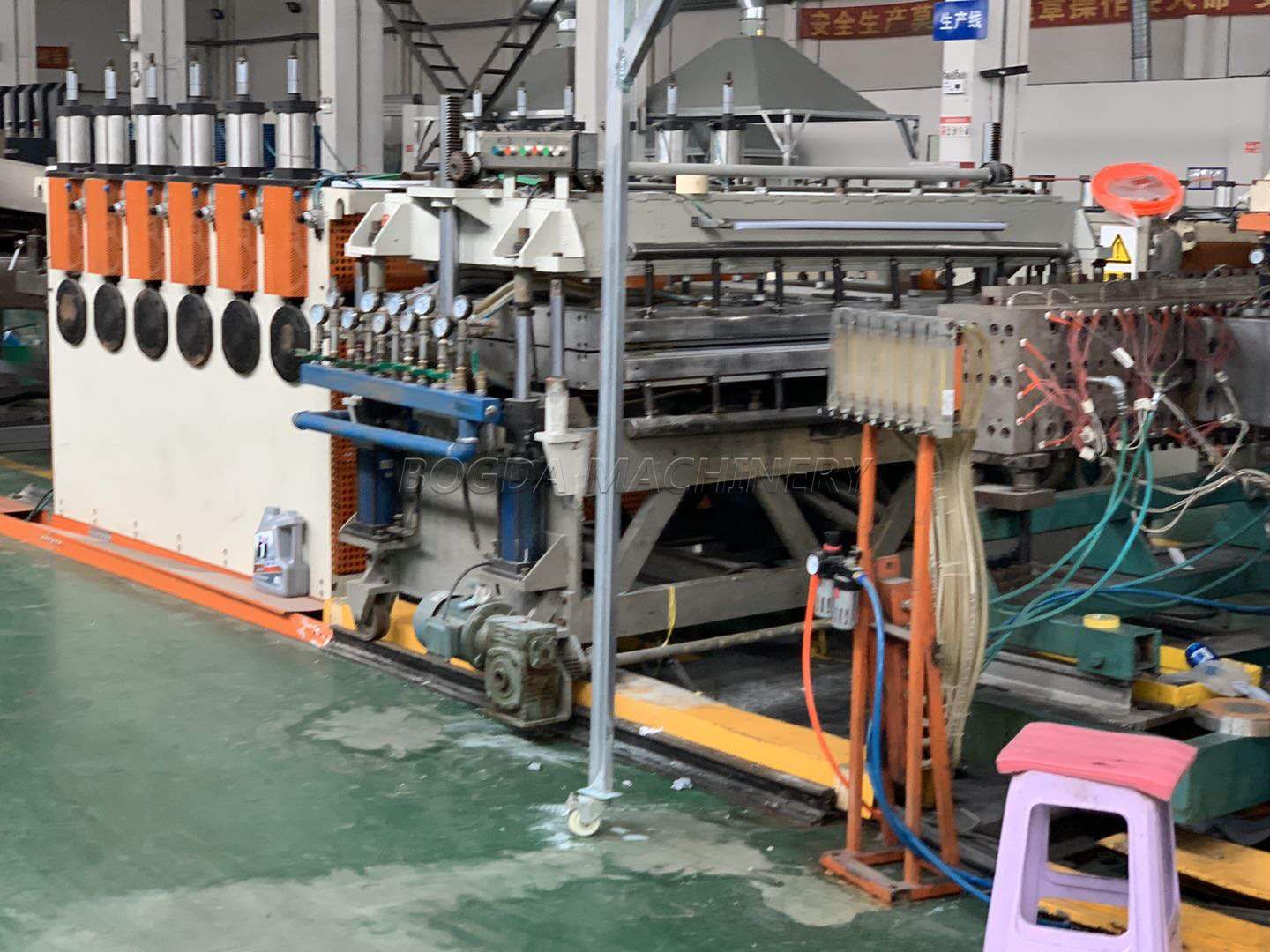

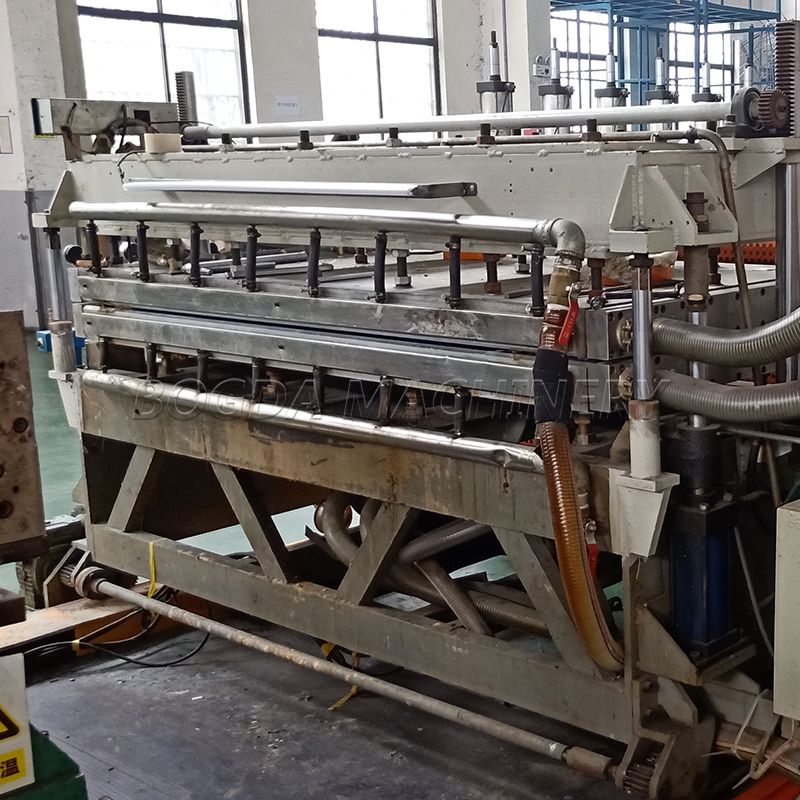

● Calibration and Cooling
The formed board enters the calibration and cooling section to control its dimensions and stabilize its shape. Cooling conditions influence board flatness, dimensional consistency and surface quality.
● Haul-Off and Stabilization
The haul-off system continuously draws the board through the production line. Proper coordination between extrusion output and traction speed helps maintain the required board thickness and dimensional consistency.
● Cutting and Collection
The continuous board is cut into specified lengths according to production requirements. Finished boards are then collected for inspection, stacking and subsequent processing.
![]() | ![]() |
Although both production lines process polypropylene into hollow plastic products, their equipment configurations and final applications can differ significantly.
A PP hollow board line intended for reusable construction formwork requires attention to board thickness, rigidity and internal supporting structure. A hollow sheet line intended for packaging applications typically emphasizes lightweight sheets and packaging-related dimensions.
Comparison | PP Hollow Board Extrusion Line | PP Hollow Sheet Extrusion Line |
|---|---|---|
Main Product | Rigid PP hollow boards | Lightweight PP hollow sheets |

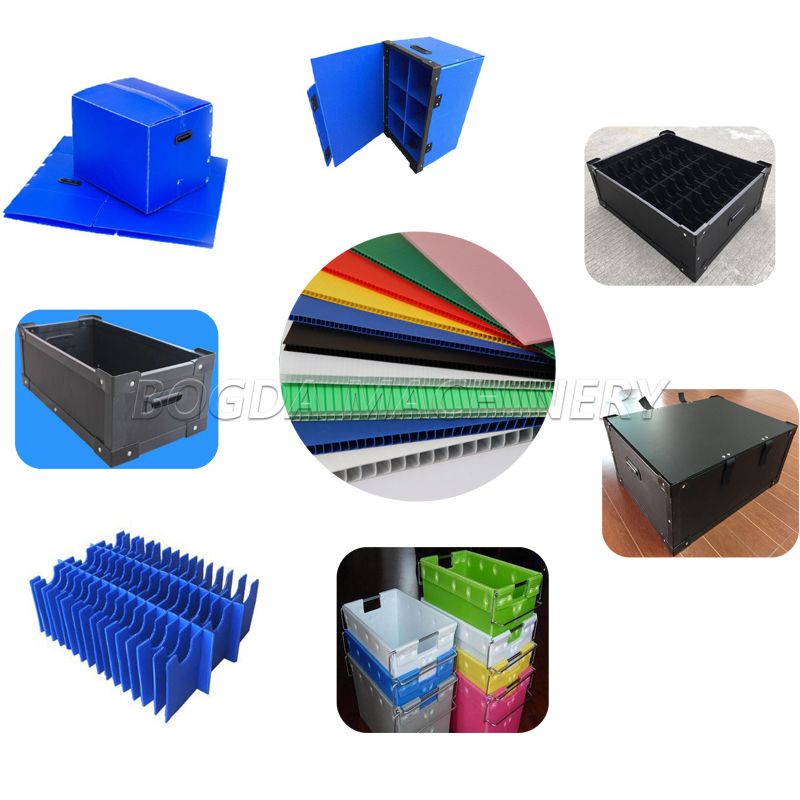

Typical Application | Construction formwork and rigid board products | Packaging boxes, partitions and protective sheets |
Main Buyer Concern | Board rigidity, thickness and structural consistency | Sheet weight, flexibility and packaging specifications |
Extrusion Die | Designed for the required hollow board structure | Designed for the required hollow sheet structure |
Main Selection Factor | Board dimensions, structural design and capacity | Sheet dimensions, weight and production capacity |
Downstream Equipment | Selected for rigid board handling and cutting | Selected for sheet handling and cutting |
For lightweight packaging applications, explore BOGDA's PP Hollow Sheet Extrusion Line.
For construction formwork applications, the current PP Hollow Board Extrusion Line page should emphasize board forming, structural requirements and equipment selection.
PP hollow boards are used in reusable construction formwork, where board rigidity, handling weight, moisture resistance and dimensional consistency are important.
A suitable extrusion line must produce boards that match the intended formwork dimensions and structural requirements.
For manufacturers entering the construction formwork market, equipment selection should begin with the finished board specifications rather than extruder power alone.
Finished Board Requirement | Production Line Consideration |
|---|---|
Board Thickness | Extrusion die design, calibration and process control |
Board Width | Effective die width and downstream equipment dimensions |
Hollow Structure | Internal rib geometry and die configuration |
Board Flatness | Cooling arrangement, temperature control and traction stability |
Board Weight | Material formulation and structural design |
Surface Quality | Die condition, processing temperature and calibration |
Cut Length | Cutting equipment and length control |
Recycled Material Content | Material quality, filtration and extrusion configuration |
For construction formwork production, BOGDA can review the required board dimensions and production objectives to determine an appropriate line configuration.
The finished board's structural performance and reuse requirements should be verified through product testing and application-specific standards.
Planning to manufacture PP hollow boards for construction formwork or other industrial applications?
BOGDA provides extrusion equipment selection and production line configuration support based on your finished product specifications and manufacturing requirements.
Send us your target board width, thickness, structural design, raw material formulation and expected output capacity. Our team can help review the required equipment arrangement and prepare a suitable production line quotation.

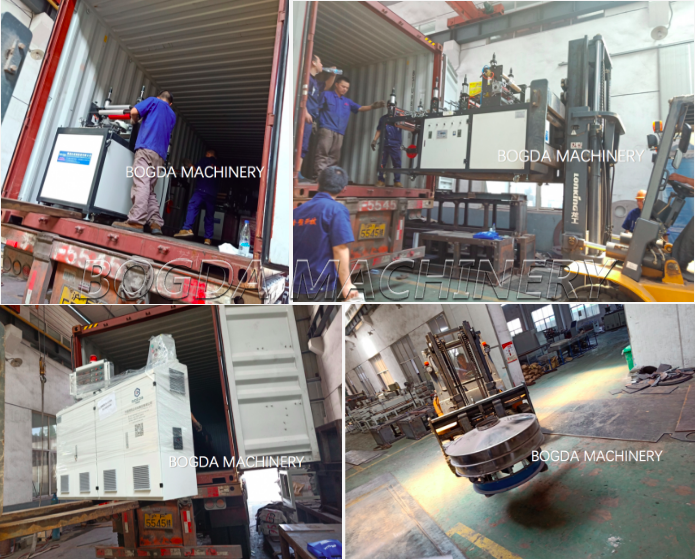

In wooden cases, wooden splints, wrap film and other specialized packaging film, to ensure that the machine impact damage in the long time of land and sea transport, thus reaching the customer factory intact.



Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
BOGDA International Co, BOGDA Machinery Co, who is a leader of Plastic Machine and Raw Material. Such as Plastic Profile/Pipe/Sheet Extrution Equipment,Injection Machine and Waste PP/PE Film, PET Bottle Washing Recyce Machine, as well as Plastic Granulating Line, meanwhile we are familiar with kinds of raw material to help our customers choose the most suitable machine on best quality by economically.

BOGDA manufactures plastic extrusion machinery and provides production line configuration support for customers establishing or expanding plastic processing operations.
For PP hollow board production projects, equipment selection involves more than the main extruder. The extrusion die, calibration equipment, cooling arrangement, haul-off and cutting systems must work together to produce boards that meet the required specifications.
BOGDA provides the following project support:
● Customized Production Line Configuration
Equipment selection based on raw material characteristics, board dimensions, production capacity and intended application.
● Extrusion Die and Downstream Equipment Coordination
Technical review of extrusion forming, cooling, traction and cutting requirements to support complete line configuration.
● Workshop Layout and Installation Planning
Production line arrangement and installation guidance according to available factory space and operating requirements.
● Technical and After-Sales Support
Equipment operation guidance, technical assistance and after-sales service for customers purchasing BOGDA machinery.
