BOGDA High Output Four Cavities PVC Pipe Extrusion Die Head Mould

Production Application

BOGDA High Output Four Cavities PVC Pipe Extrusion Die Head Mould

Plastic piping is used in drainage, wastewater, chemical, heating and cooling fluids, food, ultrapure liquids, mud, gas, compressed air and vacuum system applications.

PVC pipe use: solid wall pipe, foam inside spiral silencing pipe, hollow wall inside spiral pipe, water supply pipe, drain pipe, spiral reinforced pipe, mine pipe, communication (wire and cable)PVC fiber reinforced hose (network pipe or snakeskin pipe).

Product Description

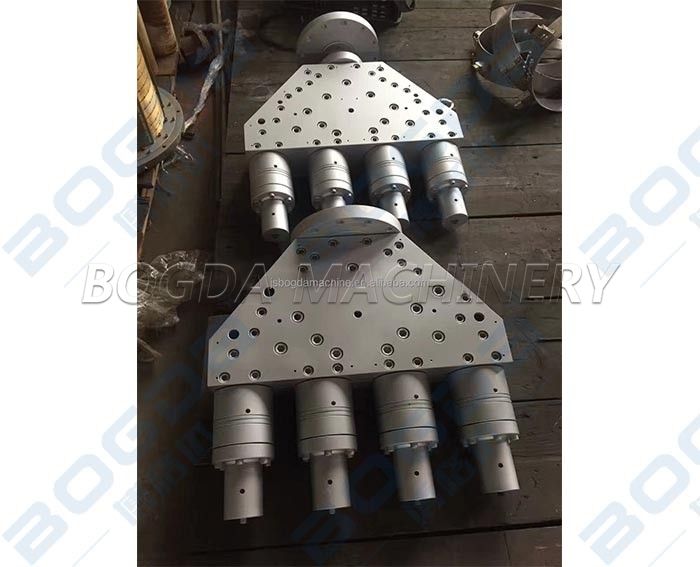

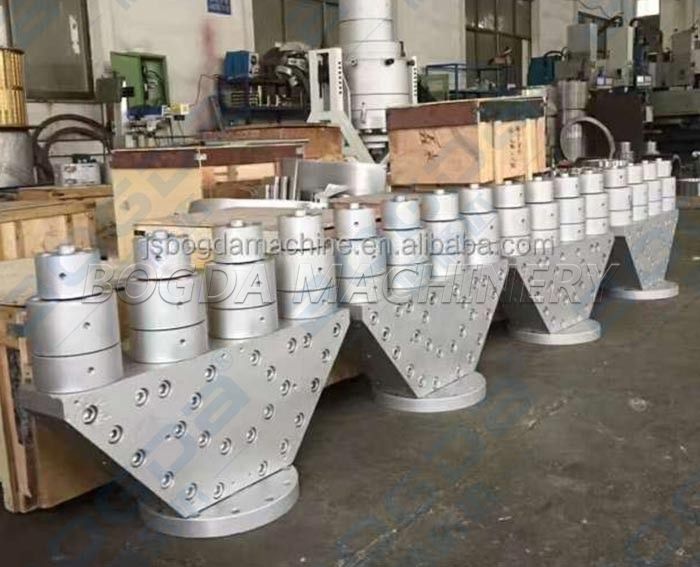

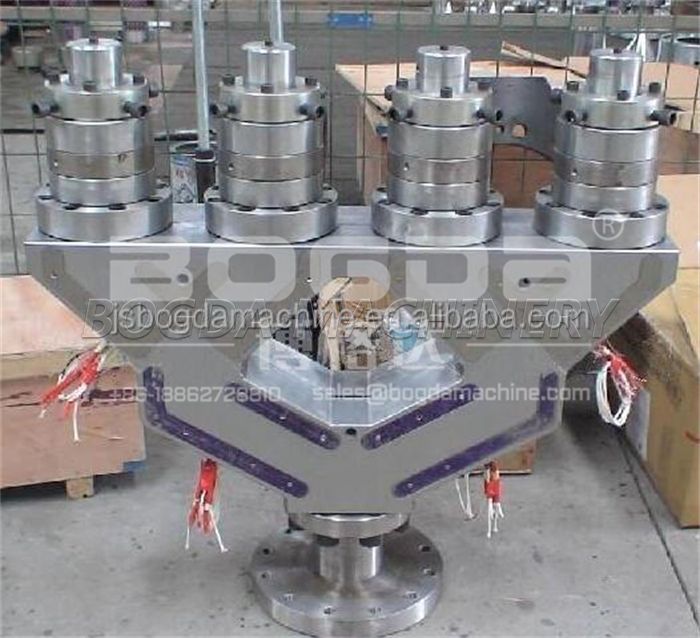

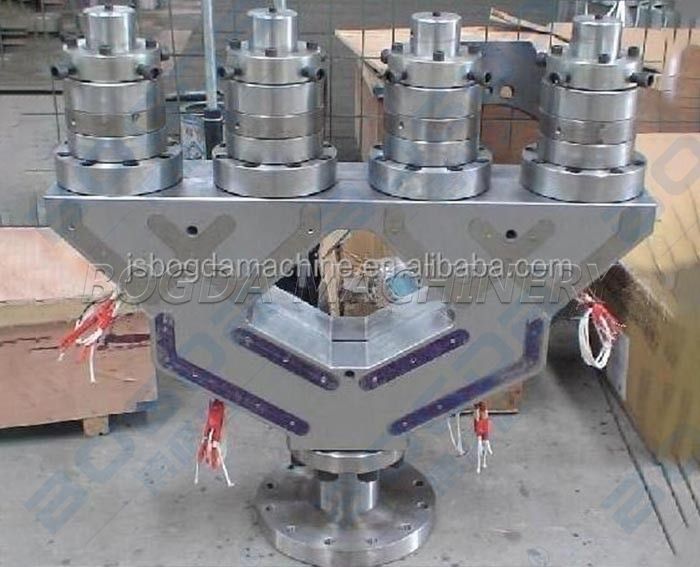

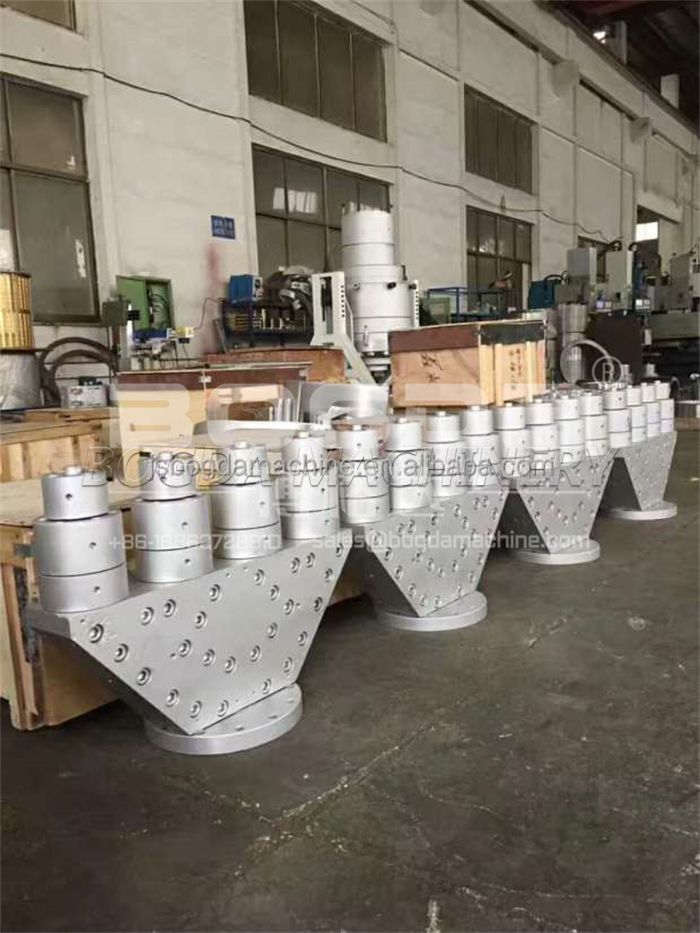

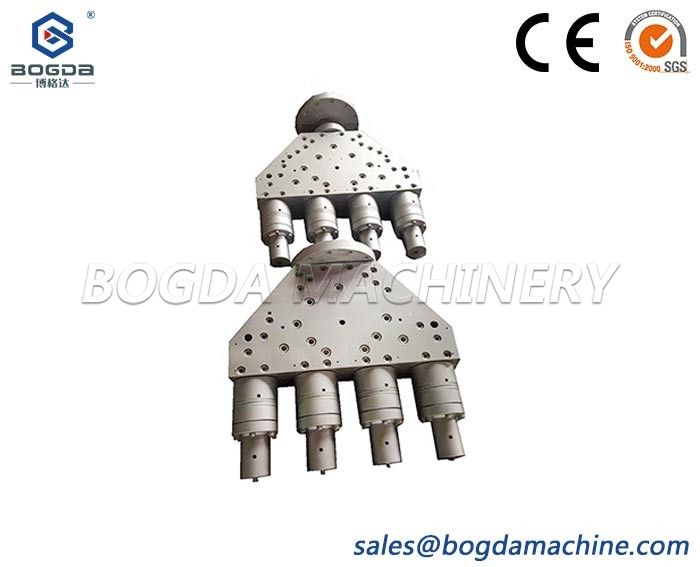

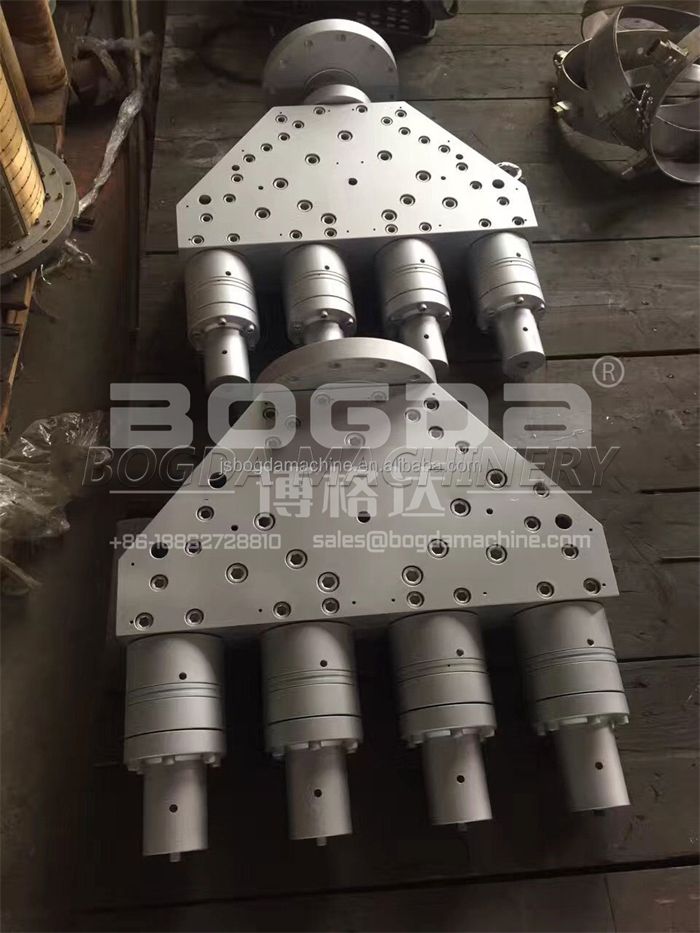

BOGDA High Output Four Cavities PVC Pipe Extrusion Die Head Mould

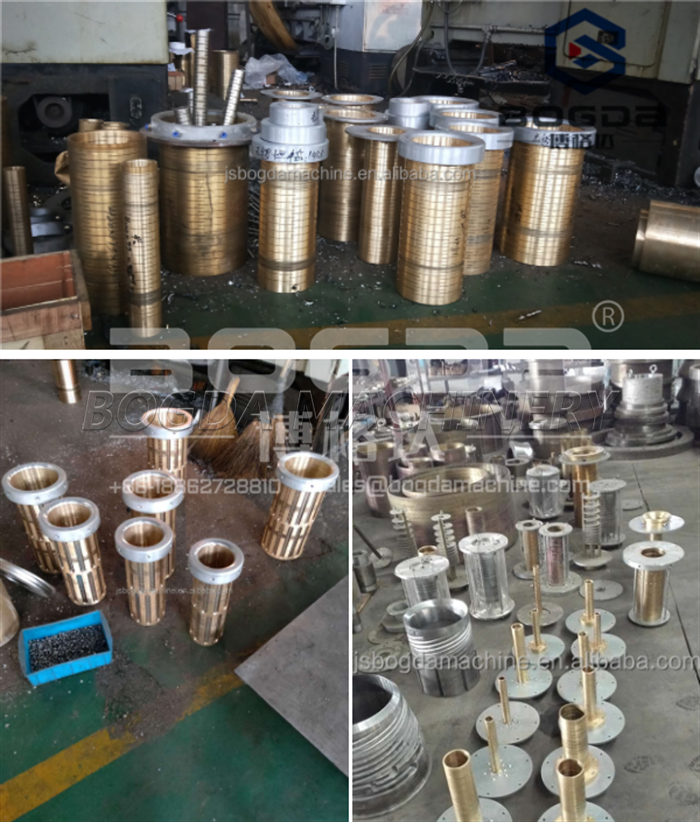

Mold type: scaffold or co-extruded composite die, made of high quality die steel, stainless steel or copper sizing sleeve. Adopt the split bracket type die head design to ensure the quality of PVC products.

Its advantages:

1. The die head pressure is low and the melt residence time is the shortest;

2. The flow characteristics of the overall flow channel are very good;

3. Ideal residence time and can set target temperature guidance for shear-sensitive materials;

4. Excellent wall thickness control;

Mould is an important factor affecting the process, the shape of the mold will reduce or increase the difficulty of process adjustment.

Product Paramenters

BOGDA High Output Four Cavities PVC Pipe Extrusion Die Head Mould
PVC drain pipe mould material	40Cr/3Cr17/304 SUS
Chrome layer	0.03mm or according to your requirement
Pipe diameter	10-63mm

BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.

BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.

Fast response, good quality, best price and perfect service are our advantages and culture.

Q: Where can we get spare part?

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

Q: How can I help you when face some technical problem?

A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

Q: How long is the guarantee?

A: 12 months since the first day customer operates (except wear parts).

Q: Any quality checking before shipment?

A: 100% confirm, run and test machines before shipment with quality certificate.

Q: Can I operate machine if don’t have experienced engineers?

A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements

Q: How many electric, water, air need for the machines?

A: Technical department supply the whole layout for workshop details.
