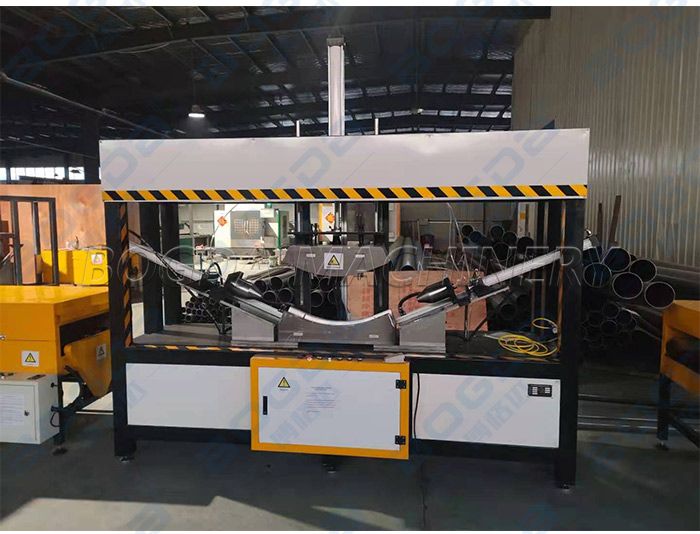

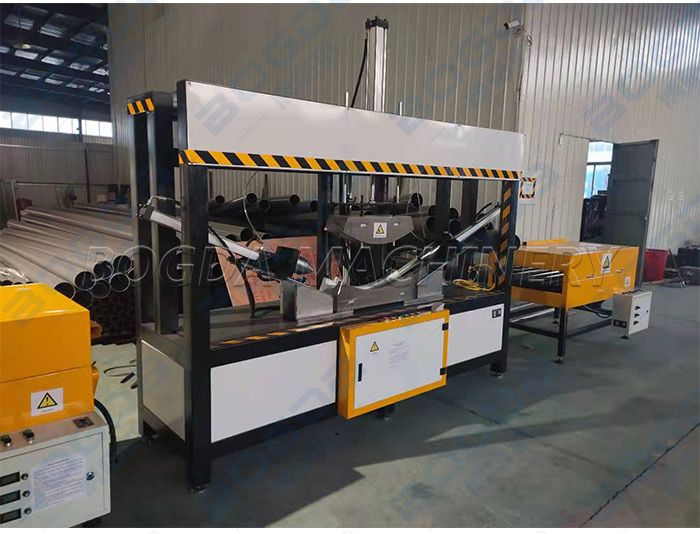

Fully Automatic Plastic PVC PE Pipe Bending Machine With Belling System

The special energy-saving and heat insulation device of the pipe bender of our company can increase the heat utilization rate by more than 40% compared with the machines of other manufacturers. Domestic infrared barium-plated vacuum heater, heating temperature equalization, at the same time, can make the heat radiation upward

Product Description

Production Application

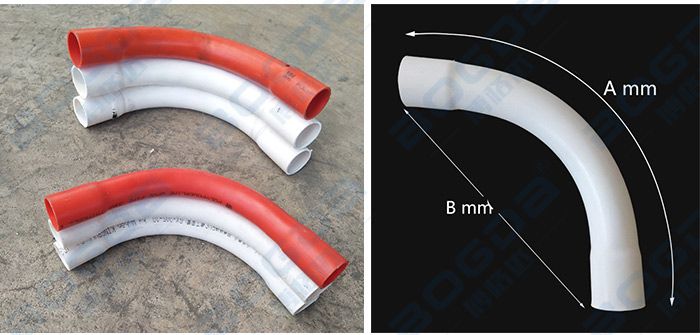

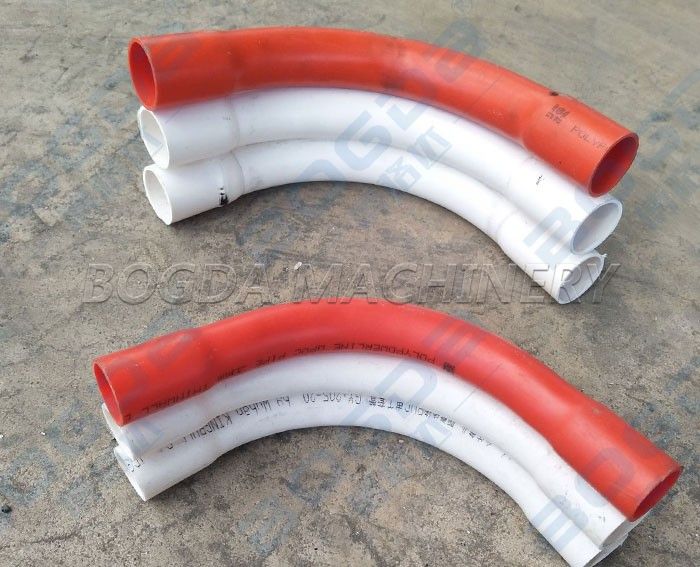

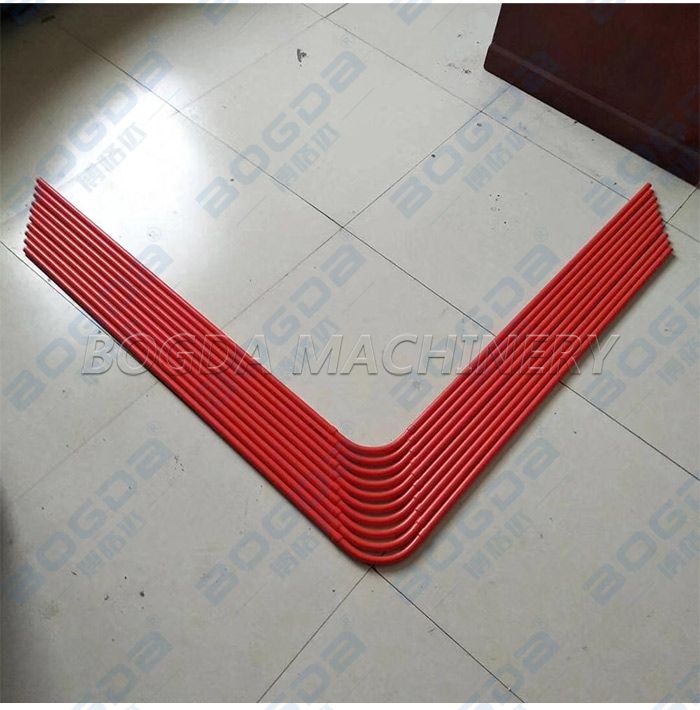

Before Belling and Bending After Belling and Bending

Fully Automatic Plastic PVC PE Pipe Bending Machine With Belling System

Fully Automatic Plastic PVC PE Pipe Bending Machine With Belling System

Product Description

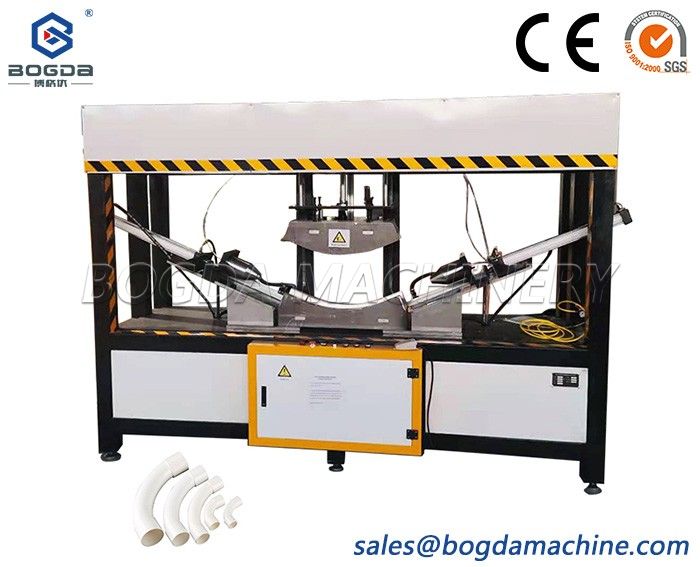

Fully Automatic Plastic PVC Pipe Bending Machine With Belling System

1. The special energy-saving and heat insulation device of the pipe bender of our company can increase the heat utilization rate by more than 40% compared with the machines of other manufacturers. Domestic infrared barium-plated vacuum heater, heating temperature equalization, at the same time, can make the heat radiation upward, than the ordinary machine to save more than 40% of the heat energy, automatic bending at the same time, the heater shift and power off, so that the pipe cooling design, energy saving, reasonable operation, humanization.

Fully Automatic Plastic PVC PE Pipe Bending Machine With Belling System

2. The special multifunctional positioning protractor made by Bogda makes the bending Angle adjustable, controllable, accurate and convenient.

Fully Automatic Plastic PVC PE Pipe Bending Machine With Belling System

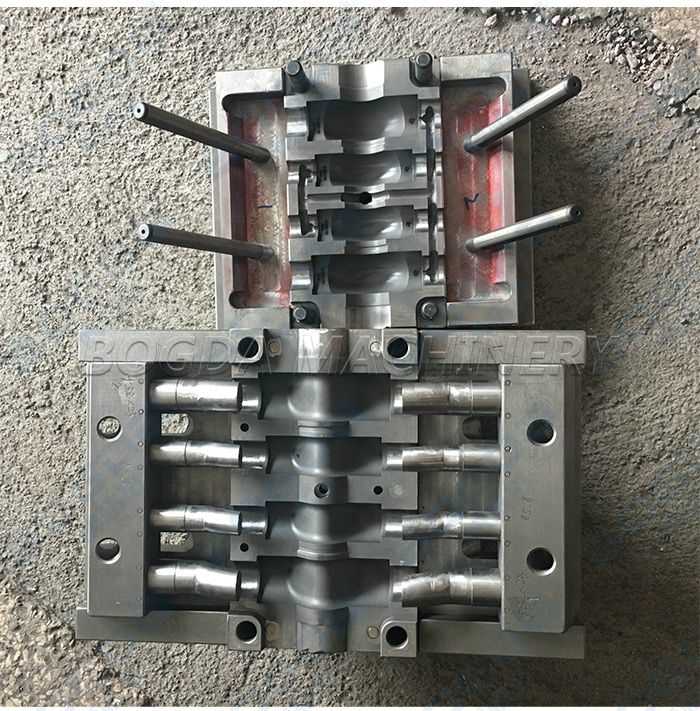

Plastic Pipe Belling And Bending Mold

3. The equipment is easy to operate and high working efficiency. The table of the equipment is made of thickened stainless steel mold, which ensures that the bending machine will not be worn or scratched in the production process. Mold pressure bar is equipped with pneumatic device, accurate positioning and high working efficiency. The equipment is designed with automatic mold propulsion, which is convenient and simple to bend. Control air pressure system, stable performance, durable.

Fully Automatic Plastic PVC PE Pipe Bending Machine With Belling System

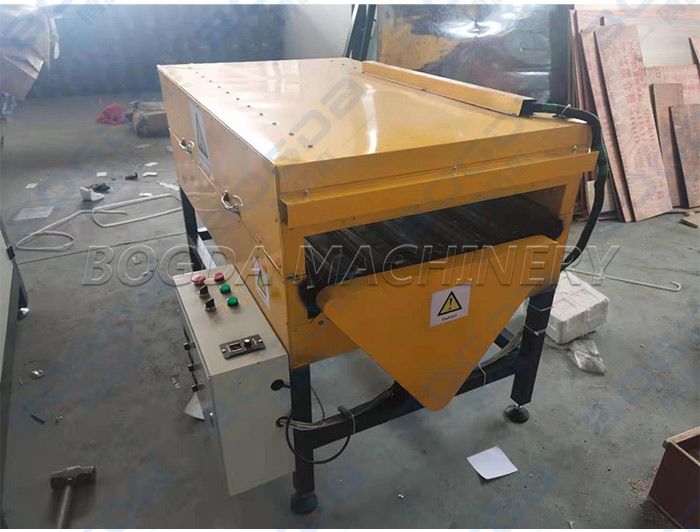

PVC PE Pipe HeatingOven For Next Bending and Belling

4. Bogda's unique heating and temperature equalizing device makes the pipes heat evenly. Adjustable heating width, convenient for arc bending, widely used. Water circulation automatic cooling system, so that the machine has a linear heating function.

Fully Automatic Plastic PVC PE Pipe Bending Machine With Belling System

5. Bogda machine special double leakage automatic protection function, safe use. Equipped with parallel mobile positioning bar and platform engraving device, bending length positioning.


6. Professional anticorrosive surface treatment technology, the surface coating is old and new. Integrated high strength frame, stable working performance, convenient transportation and installation. Novel appearance design: beautiful, generous and practical.

Fully Automatic Plastic PVC PE Pipe Bending Machine With Belling System

7. It has the function of temperature regulation. The heating temperature of the heating device can be adjusted according to the pipe variety, thickness and material requirements.Thus improve the processing quality of the machine. 8. It has timing function. The working time of the heating device can be set according to the type, thickness and material of the plate. In order to improve the processing quality of the machine, reduce the operation of workers: heating, bending, finalizing, and finally take out the product.

Fully Automatic Plastic PVC PE Pipe Bending Machine With Belling System

Specification

Product NameFully Automatic Plastic PVC Pipe Bending Machine With Belling System
Product typeVertical type
Pipe Diameter (mm)21-48mm, 60-114mm
Product speed (second/time)20-120
Max capacity (pcs/day)300-1200
Machine dimension (mm)1800x600x1500mm, 3000x800x2000mm
Motor power (kw)(21-50) 3-5kw, (63-114) 5-9kw
Max. heating temperature (℃)300
Pipe thickness (mm)1.5-10
Mold pressure(21-50) 300KG, (60-114) 500KG


Product Video

Packaging and Shipping

Fully Automatic Plastic PVC PE Pipe Bending Machine With Belling System

Fully Automatic Plastic PVC PE Pipe Bending Machine With Belling System

BOGDA Machinery Group is located in Europe and America (Hai'an) Industrial Park and Shanghai Fengxian (Hai'an) Industrial Park. It is a high-tech and innovative company dedicated to the research and development and manufacturing of plastic extrusion molding equipment. The company is people-oriented and innovative Development, with its unique corporate culture that has been brewing for many years, and the company’s eager attention to global economic development, it has continued to grow with its majestic momentum and quick response, making itself a large-scale and highly anticipated industry in this industry.


Leading technology and excellent quality have been highly recognized by authoritative departments and markets. Products are exported to more than 110 countries and regions such as Europe, America, the Middle East, Southeast Asia, South America, Russia, Turkey, Italy, Poland, Brazil, Romania, etc. Deeply trusted and praised by customers, the company has many subsidiaries such as pipeline equipment, sheet film intelligent equipment, intelligent automation, and granulation equipment. The company has a high-quality talent R&D team and more than 20 years of experience in the industry. A team of mechanical and electrical commissioning engineers, as well as an advanced machining base and a standardized assembly workshop. More than 600 sets of high-end plastic extrusion lines are produced every year.

Fully Automatic Plastic PVC PE Pipe Bending Machine With Belling System

Fully Automatic Plastic PVC PE Pipe Bending Machine With Belling System

Fully Automatic Plastic PVC PE Pipe Bending Machine With Belling System

Fully Automatic Plastic PVC PE Pipe Bending Machine With Belling System

Customer Review

Fully Automatic Plastic PVC PE Pipe Bending Machine With Belling System

FAQ

Q: Where can we get spare part?

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

Q: How can I help you when face some technical problem?

A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

Q: How long is the guarantee?

A: 12 months since the first day customer operates (except wear parts).

Q: Any quality checking before shipment?

A: 100% confirm, run and test machines before shipment with quality certificate.

Q: Can I operate machine if don’t have experienced engineers?

A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements

Q: How many electric, water, air need for the machines?

A: Technical department supply the whole layout for workshop details.
