BOGDA PVC WPC Foam Board Panel Fabrication Machine Production Line

PVC board has excellent chemical stability, corrosion resistance, high hardness, high strength, anti-uv (aging resistance), fire resistance and flame retardant (with self-extinguishing), reliable insulation performance, smooth surface, not water absorption and deformation, easy processing and other characteristics

Product Description

Production Application

BOGDA PVC WPC Foam Board Panel Fabrication Machine Production Line

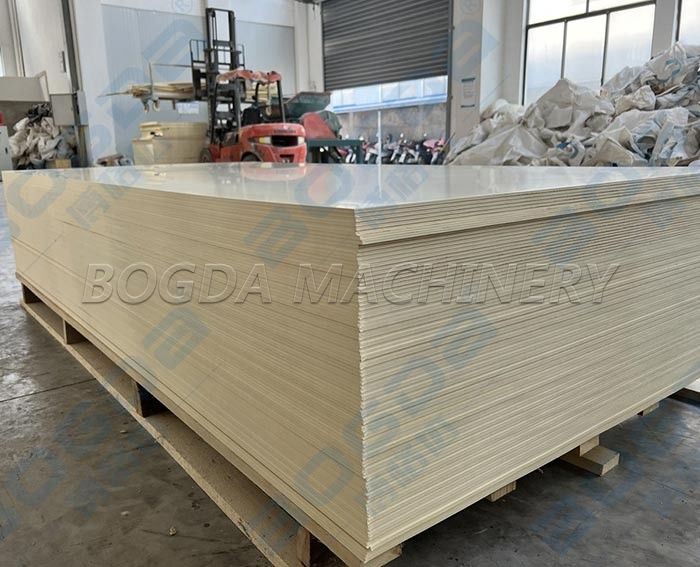

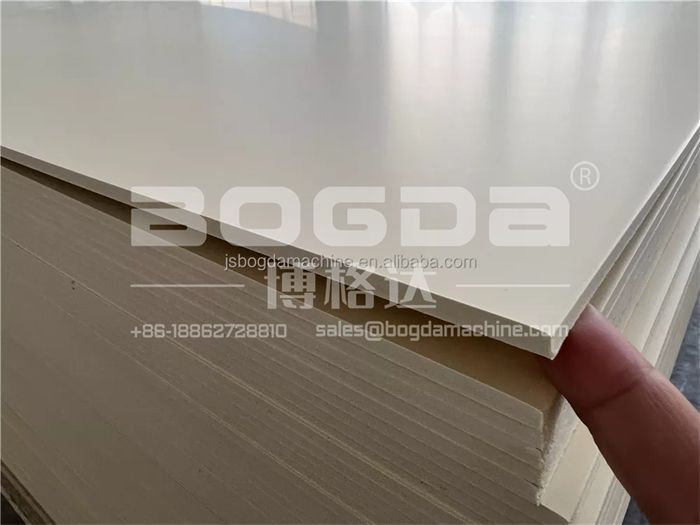

PVC foamed board belongs to the new environmental protection material, called no defect board in foreign countries, and the double post, no oil leakage, no water seepage, scratch resistant, also called blister board, base material of density board, surface by vacuum blister or adopt a seamless and PVC film pressure molding process, green non-polluting, renewable, is the ideal alternative ambry materials, and the people life more convenient, the most suitable. Door plate in normal size without edge, waterproof, moisture-proof, hardness and flexibility.


PVC board has excellent chemical stability, corrosion resistance, high hardness, high strength, anti-uv (aging resistance), fire resistance and flame retardant (with self-extinguishing), reliable insulation performance, smooth surface, not water absorption and deformation, easy processing and other characteristics

BOGDA PVC WPC Foam Board Panel Fabrication Machine Production Line

Product Description

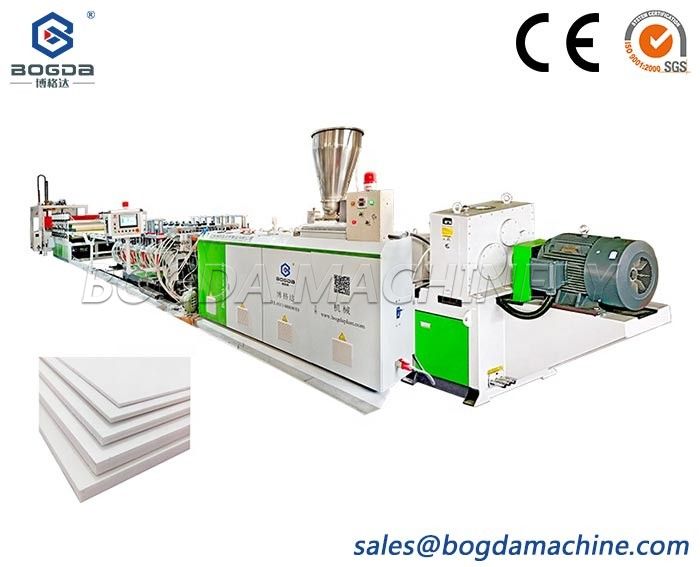

BOGDA PLC Control System Kitchen Cabinet PVC WPC Crust Foam Insulation Board Extrusion Production Line

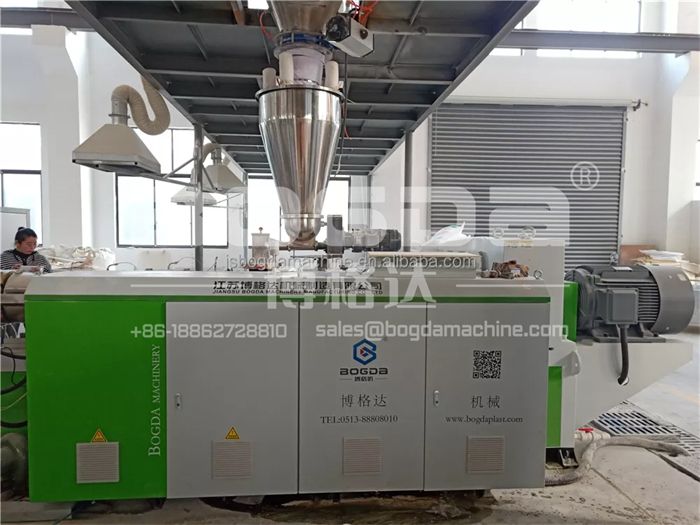

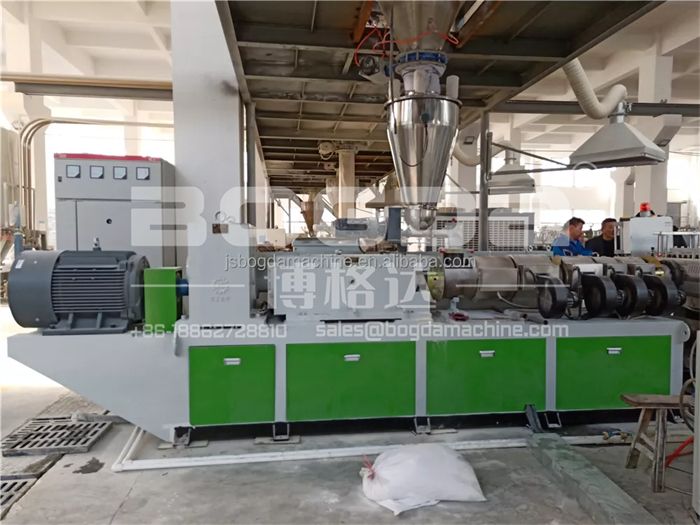

The conical twin-screw extruder has stable performance, which can make the melt plasticize well at a lower temperature. The cast aluminum heater is installed on the cylinder, which has high thermal efficiency, fast and uniform temperature rise, and is equipped with cooling fan.

BOGDA PVC WPC Foam Board Panel Fabrication Machine Production Line

BOGDA PVC WPC Foam Board Panel Fabrication Machine Production Line

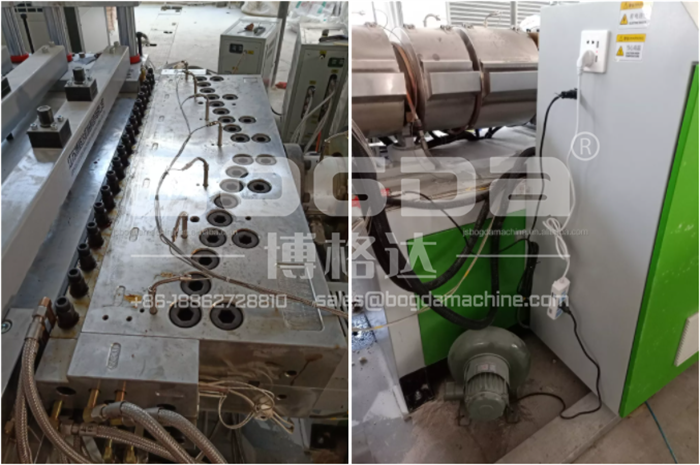

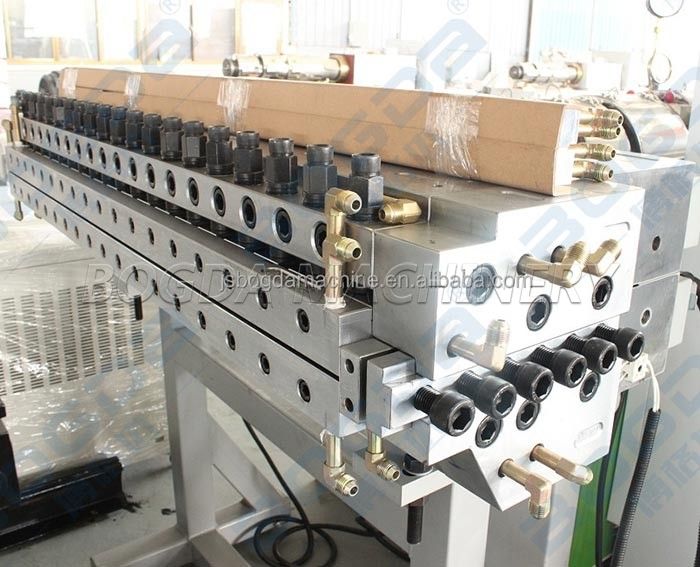

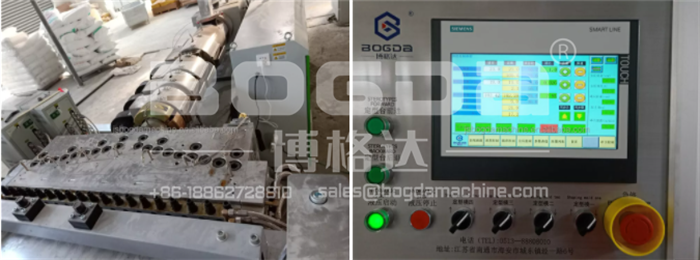

Extrusion Mould T-die And SIEMENS PLC Touch Screen Control System

1. Die head with streamlined runner surface, two half mold body design, die head disassembly, easy to clean.

2. Manual fine tuning of elastic die lip or movable upper die lip design, extrusion thickness 0.2-1.22mm. Special for lace products and can be adjusted according to the thickness of products.

3. To adapt to the melt flow of different viscosity to get uniform distribution.

4. Die body adopts die steel or imported alloy steel to prolong the life of the die.

5. All the surface of the runner is plated with hard chromium, the average thickness is 25μm~50μm, and mirror polished. 6. Die head fasteners with high strength bolts of class 12.9.
7. The heating element adopts durable stainless steel heating rod and heating ring

BOGDA PVC WPC Foam Board Panel Fabrication Machine Production Line

BOGDA PVC WPC Foam Board Panel Fabrication Machine Production Line

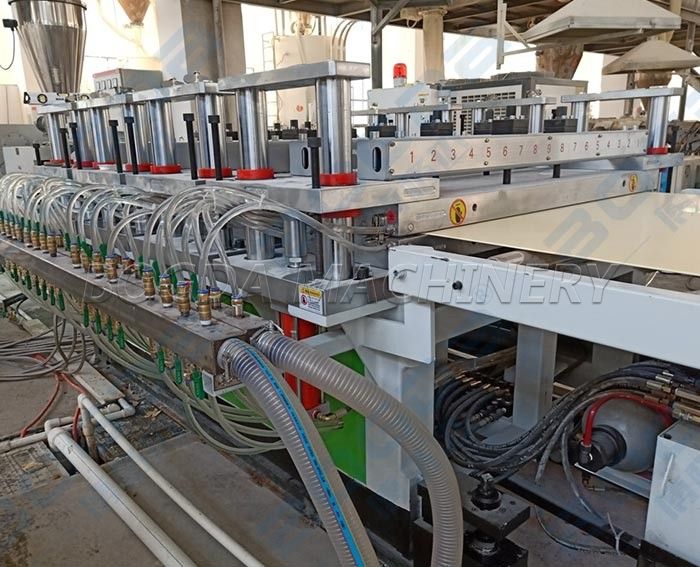

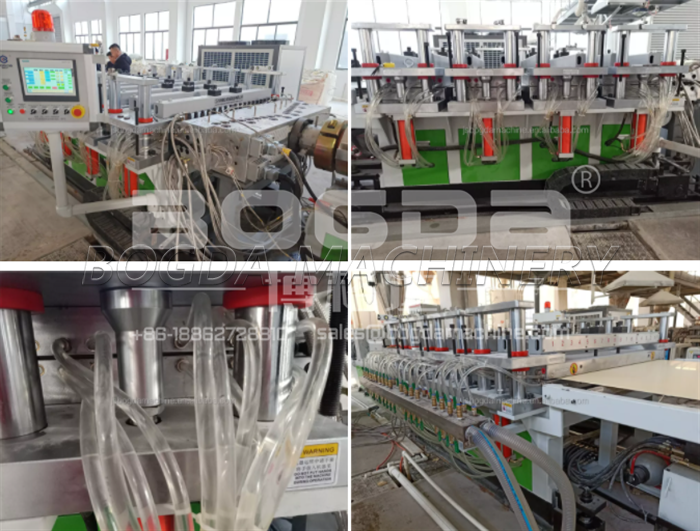

Calibration Forming Machine For PVC Foam Board

Number of set boards: four pairs. Width of shaping board: 1500mm Finalize plate closure: cylinder drive, independent up and down control Plate cooling: water cooling, optimize the design of flow channel Longitudinal movement of setting machine: 0.75 kW reducer motor drive

BOGDA PVC WPC Foam Board Panel Fabrication Machine Production Line

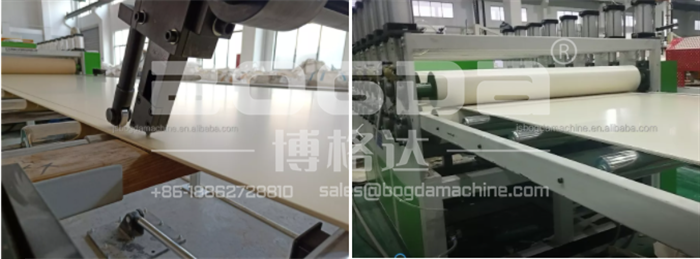

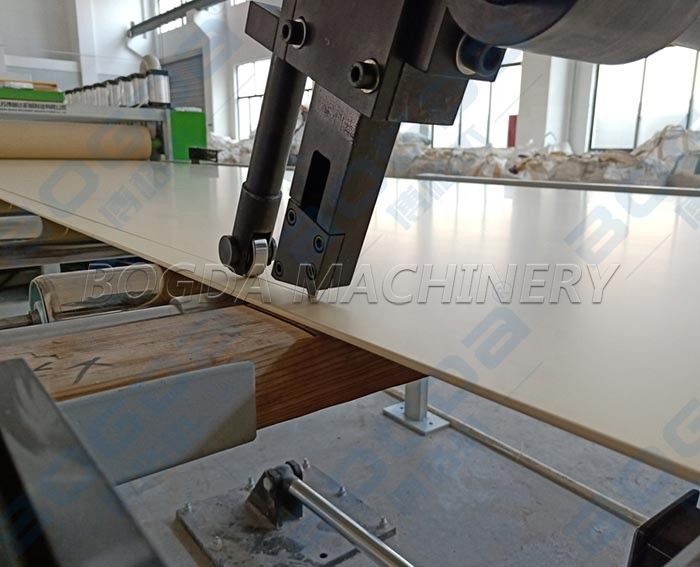

Cooling stacker with edge side cutting device

Length: 5 m Transition roller: stainless steel, surface polished, hardening treatment

BOGDA PVC WPC Foam Board Panel Fabrication Machine Production Line

Haul-off machine for pvc foam board

Rubber roller material: polyurethane adhesive Clamping mode: each pair of rollers is pressed by independent cylinder Drive: reducer motor Motor power: 5.5KW, 2 sets synchronous traction Control: Swiss ABB frequency converter

BOGDA PVC WPC Foam Board Panel Fabrication Machine Production Line

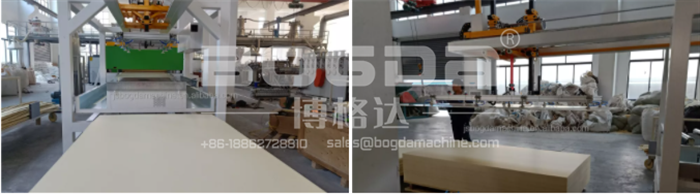

Non-dust Cutting Machine And  Automatic Robert Board Lift Machine For PVC Foam Board

Effective cutting width: 1500mm Cutting method: dust-free blade Transverse cutting: linear guide rail movement Lateral movement: driven by reducer motor, power 0.75KW Longitudinal follow-up: linear guide follow, cylinder control

BOGDA PVC WPC Foam Board Panel Fabrication Machine Production Line

BOGDA PVC WPC Foam Board Panel Fabrication Machine Production Line

Product Paramenters

BOGDA PVC WPC Foam Board Panel Fabrication Machine Production Line
Model
Product Width
Product Thickness
Capacity
Main Motor Power
SJSZ80/156
1220mm
5-20mm
500kg/h
55


Product Video

Packaging and Shipping

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.

BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.

Fast response, good quality, best price and perfect service are our advantages and culture.

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

Customer Review

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

FAQ

Q: Where can we get spare part?

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

Q: How can I help you when face some technical problem?

A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

Q: How long is the guarantee?

A: 12 months since the first day customer operates (except wear parts).

Q: Any quality checking before shipment?

A: 100% confirm, run and test machines before shipment with quality certificate.

Q: Can I operate machine if don’t have experienced engineers?

A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements

Q: How many electric, water, air need for the machines?

A: Technical department supply the whole layout for workshop details.
