Plastic hot mixing machine combines hot mixer and cooler mixer together .The materials after hot mixer can be getting into cooler mixer for cooling automatically ,exhausts remaining gases and avoids agglomeration. Through setting the time or temperature, the machine can be operated automatically.
Production Application
Plastic hot mixing machine application for plastics, rubber, daily chemical industry and laboratory materials mixed boxes, mixing, drying and coloring process.
Product Description

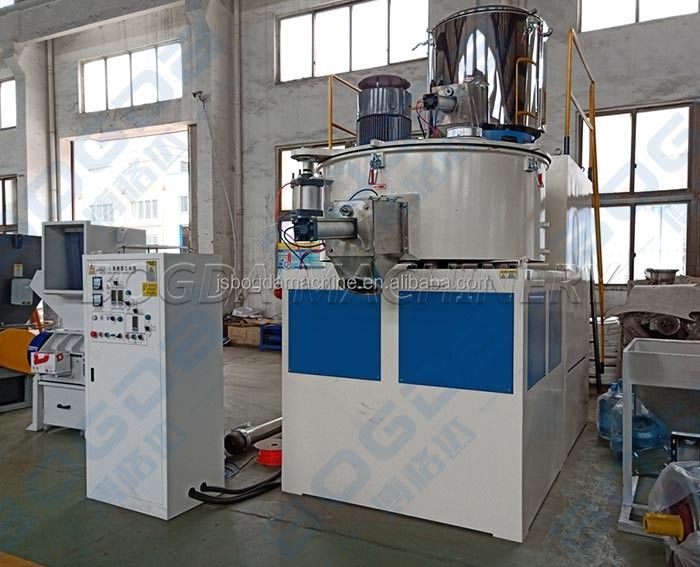

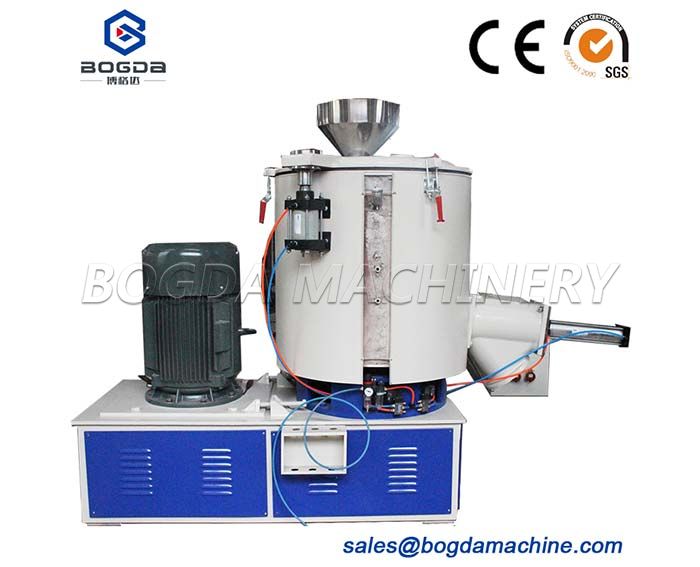

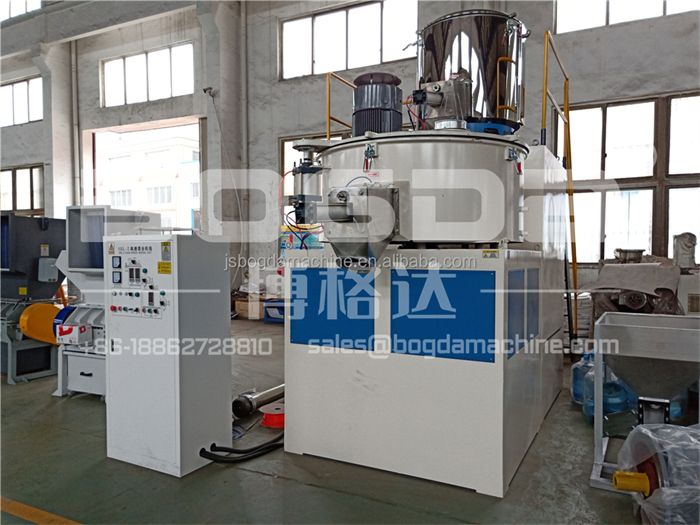

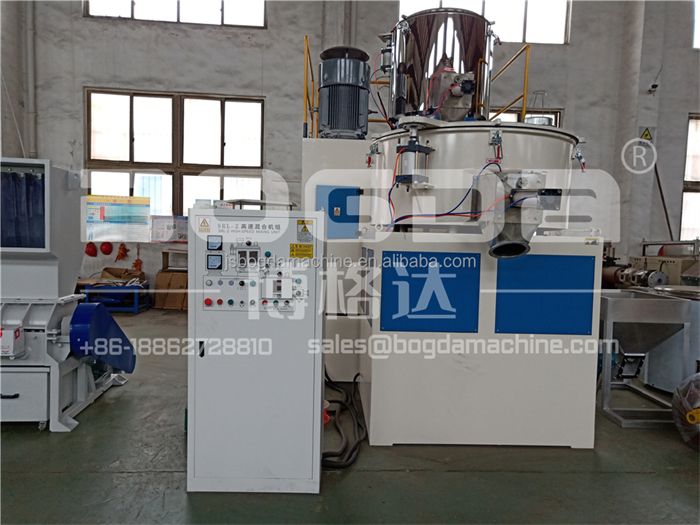

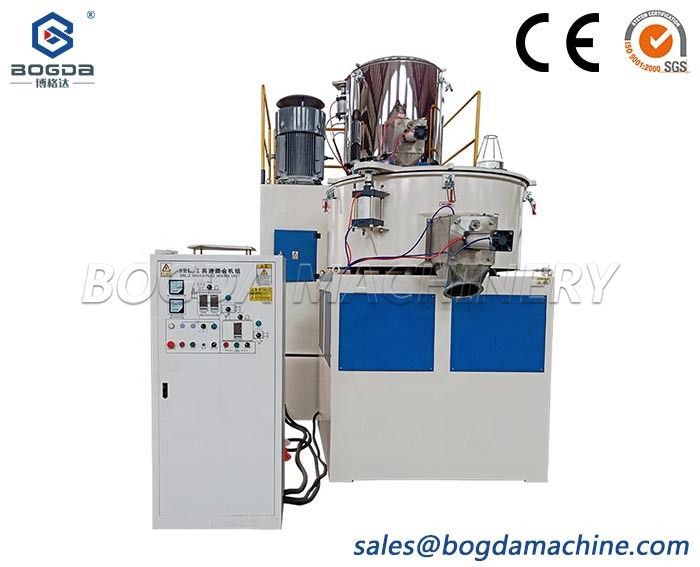

China Manufacturers High Speed PVC Plastic Powder Mixer Unit With Hot And Cold Mixing Machine

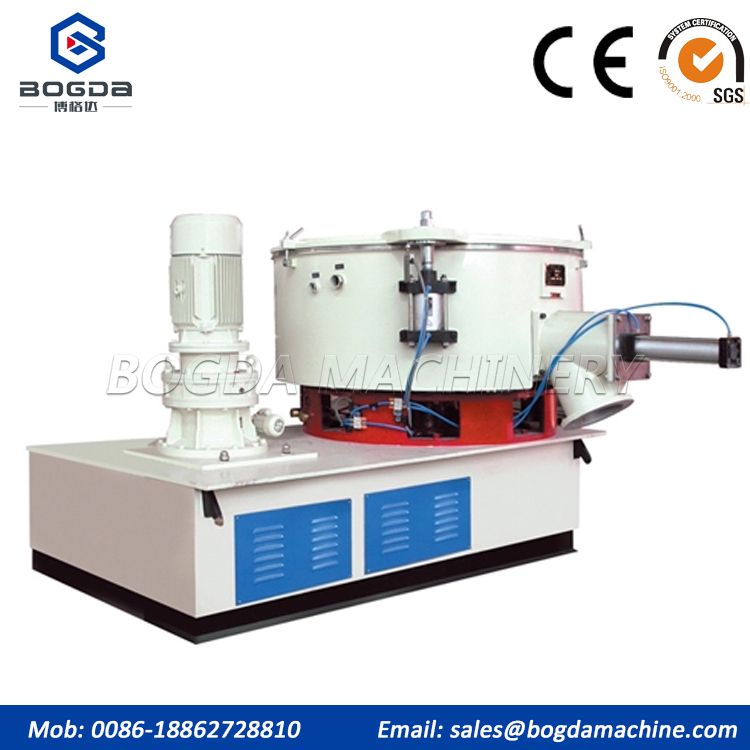

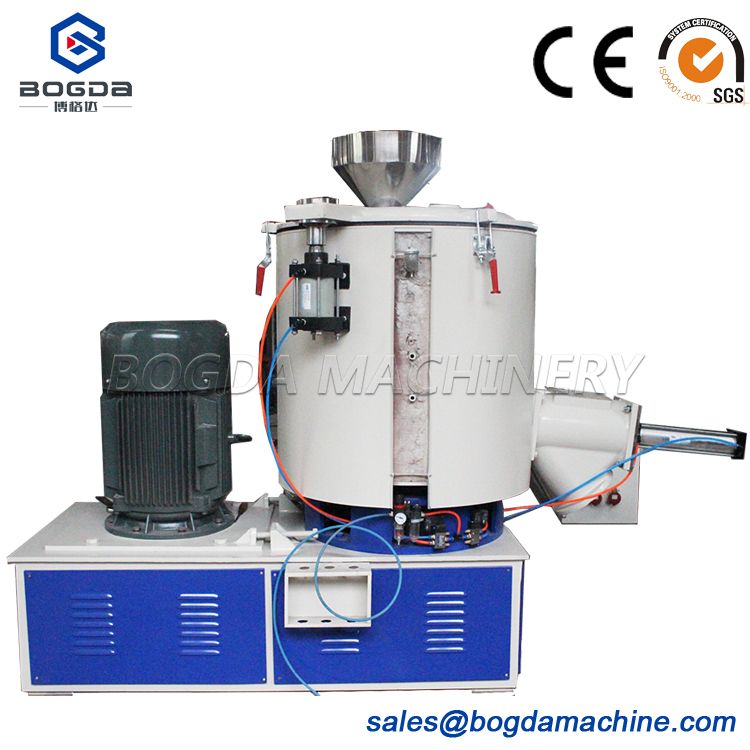

Plastic hot mixing machine combines hot mixer and cooler mixer together .The materials after hot mixer can be getting into cooler mixer for cooling automatically ,exhausts remaining gases and avoids agglomeration. Through setting the time or temperature, the machine can be operated automatically.
Plastic hot mixing machine is developed by importing and absorbing foreign advanced technology. By adopting PLC control, it features high automatic level, good mixing effect, complete function, compact structure and beautiful appearance. It is the ideal equipment for plastic mixing.
Characteristics of PVC mixer machine
1)It is used in mixing, drying, coloring and other processing. It is the most ideal equipment for producing shaped plastic material and plastics pipes.
2) The mixer has two functions of electric and self-friction heating.
3) It is equipped with the pulse dust-cleaning recovery device.

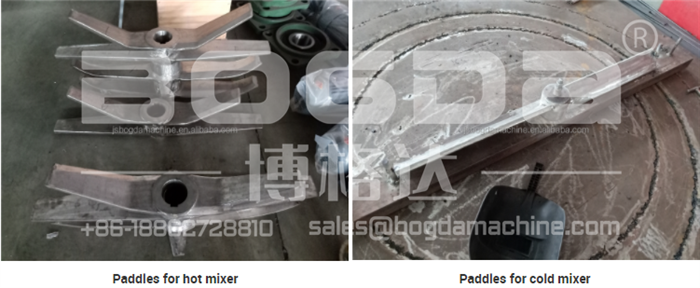

4) The blades have been passed the test of the dynamic and static balance testing machine.

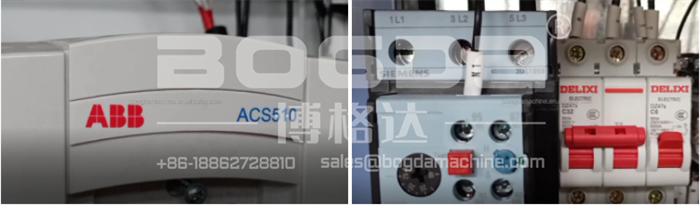

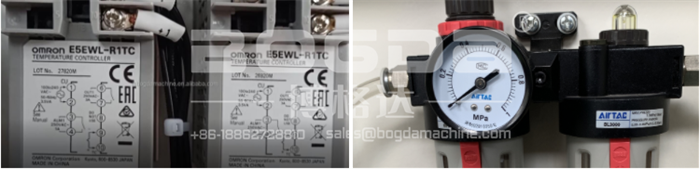

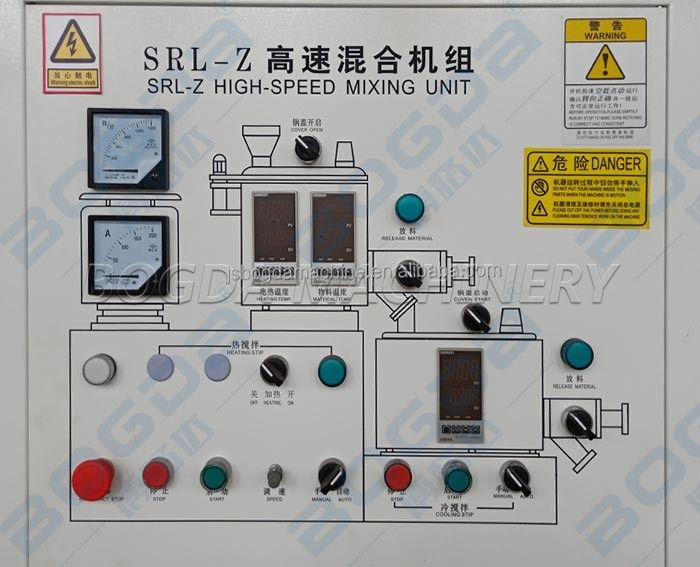

5) The electric control section with the programmable logic control adopted well known imported meters and control components.
6) Sealing technology is adopted in the pot cover. The opening of the heating mixed cover adopted the air opening device. Mark important information in the machine body.
BOGDA workshop for High Speed PVC Plastic Powder Mixer Unit With Hot And Cold Mixing Machine
We are professional for plastic mixer unit, pvc mixer, plastic blender, high speed plastic mixer, raw material mixer, high speed hot mixer, plastic heat mixer.
Specification
China Manufacturers High Speed PVC Plastic Powder Mixer Unit With Hot And Cold Mixing Machine | ||
Method | Heating Mixer | Cooling Mixer |
Total capacity | 300L | 600L |
Effective capacity | 200L | 400L |
Capacity | 100-120KG/batch | |
Total Capacity | 400-500kg/h | |
Mixing time | 15-20min | |
Mixing speed | 950rmp | 60rmp |
Main motor power | 55kw | 11kw |
BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.
BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.
Fast response, good quality, best price and perfect service are our advantages and culture.
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
