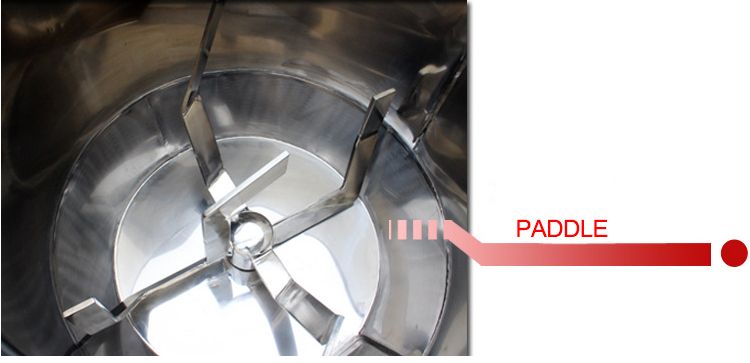

Mixing by: paddles; Color Mixer: vertical for small capacity; Discharge: by hand or pneumatic; Rotating Speed: 50-80r/min for small capacity; Used in: pigment or master batch mixing machine
Characteristic of plastic color mixer:
1.Tunching parts are made of 304 stainless seel.
2. Equipped with moving wheel on feet, convenient for moving

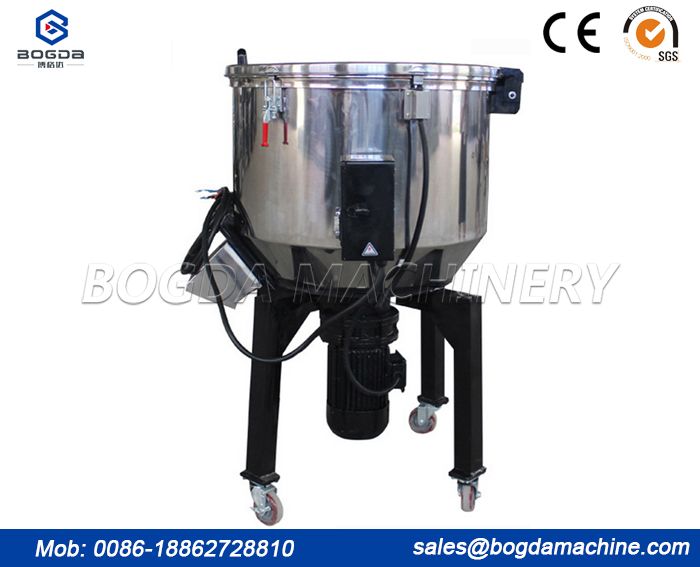

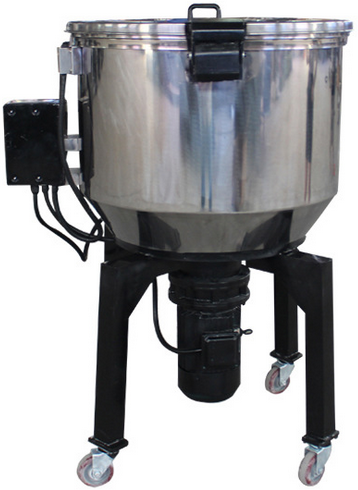

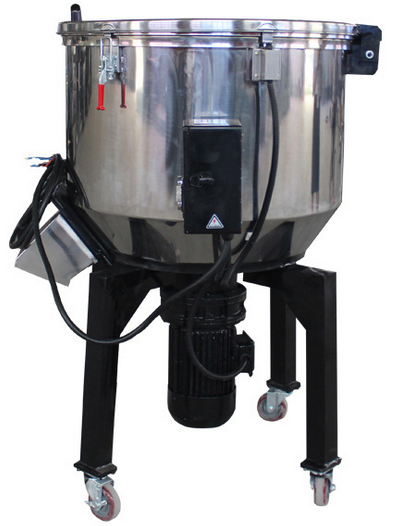

Frount Side
Parameter of plastic color mixer:
Model | Capacity(Kg/3min) | Power(Kw) | Rotating Speed (rpm) | Dimensions(mm) |
SH-25 | 25 | 0.75 | 85 | 830X790X960 |
SH-50 | 50 | 1.5 | 85 | 830X790X960 |
SH-100 | 100 | 3 | 85 | 960X860X1180 |
SH-150 | 150 | 4 | 85 | 1170X890X1360 |
SH-200 | 200 | 5.5 | 85 | 1190X1120X1430 |
SH-300 | 300 | 7.5 | 85 | 1390X1250X1530 |
SH-600 | 600 | 11 | 85 | 1700X1400X1400 |

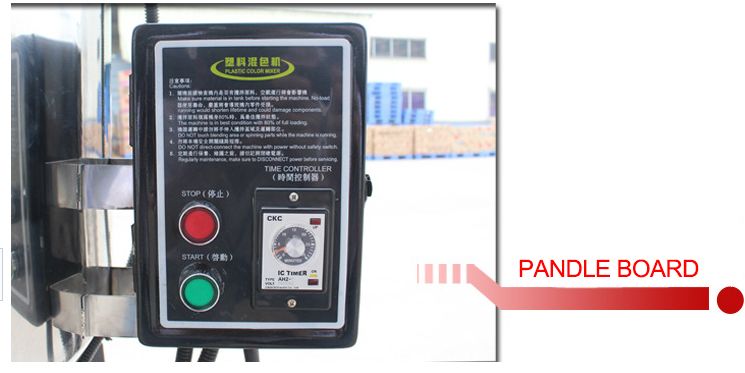

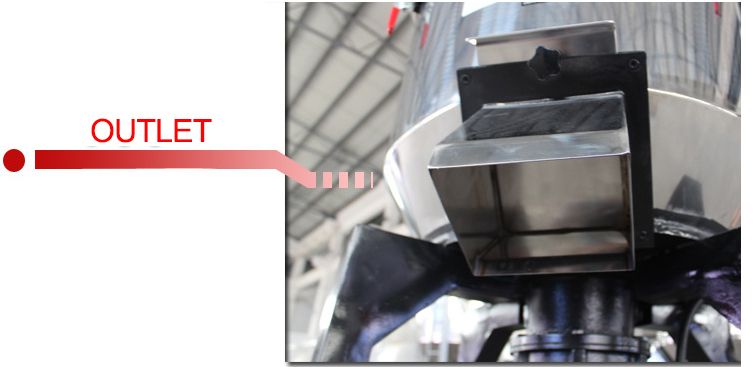

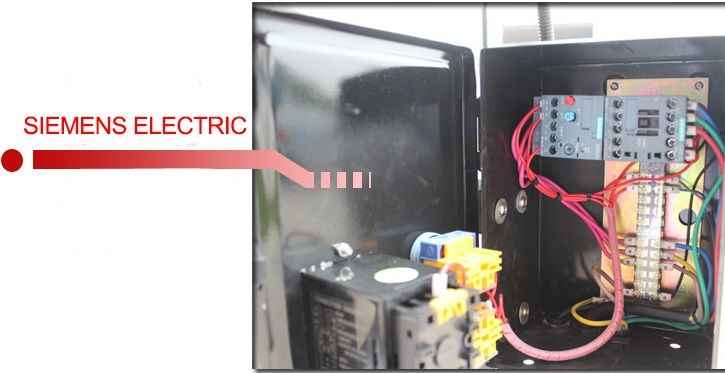

Detail pictures

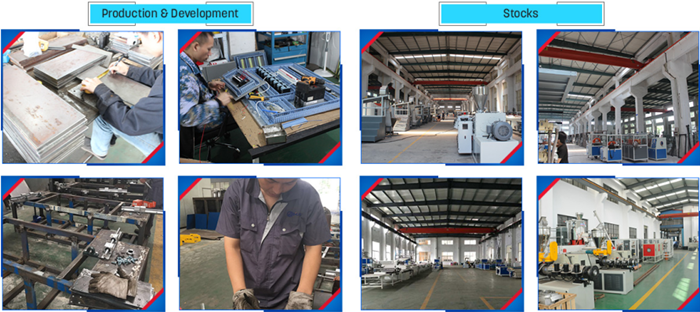

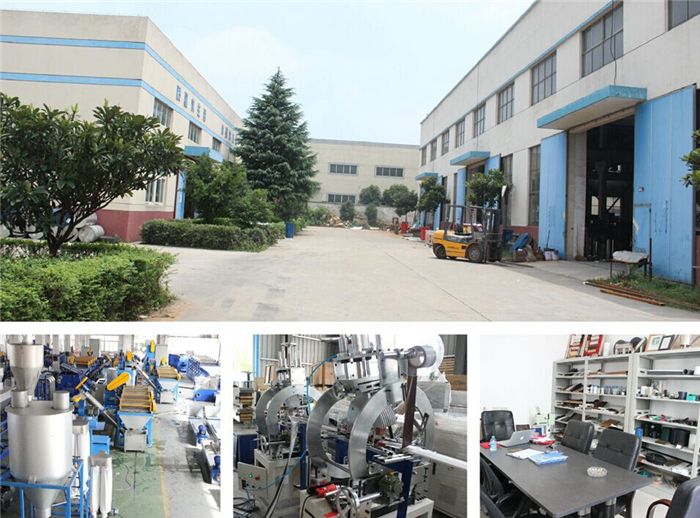

BOGDA Plastic Machinery Co, who is a leader of Plastic Machine and Raw Material. Such as Plastic Profile/Pipe/Sheet Extrution Equipment,Injection Machine and Waste PP/PE Film, PET Bottle Washing Recyce Machine, as well as Plastic Granulating Line, meanwhile we are familiar with kinds of raw material to help our customers choose the most suitable machine on best quality by economically.

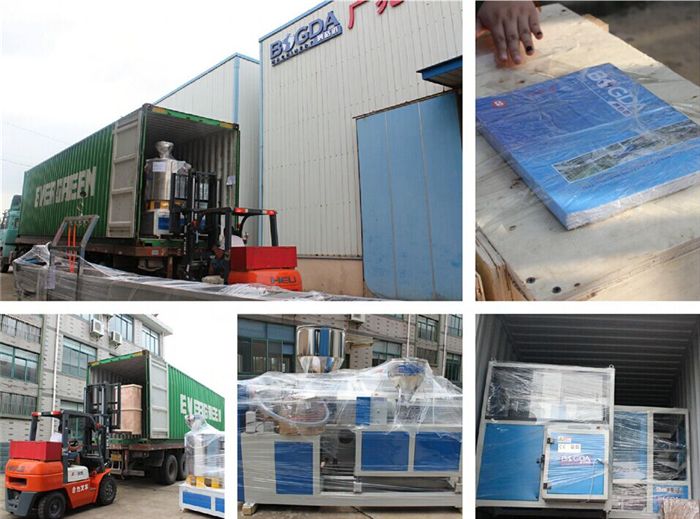

In wooden cases, wooden splints, wrap film and other specialized packaging film, to ensure that the machine impact damage in the long time of land and sea transport, thus reaching the customer factory intact.
