Mixing time:10-15; Application: coloring plastic materials; Plastic type: PP,PE,PVC,PC; Capacity: 500-5000kg/h;

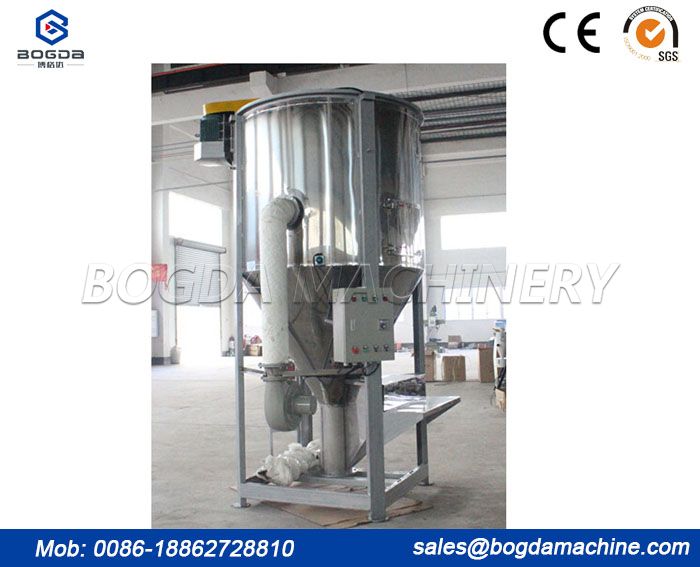

Applications for large capacity plastic color mixer

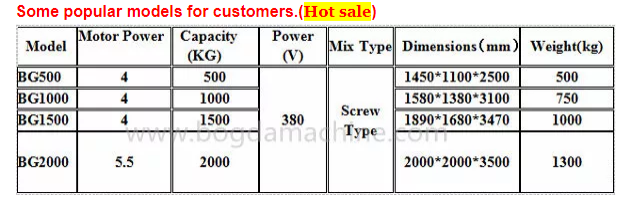

The large capacity vertical mixers are for powder and granule - like materials. They feature simple structure, fast mixing speed, easy for operation, maintenance and cleaning. It is mainly applied in plastic material mixing and also widely used in different industries, such as: powder metallurgy, pottery, chemical industry and food industry. It is an ideal mixing facility with five models, handling capacity ranging from 500-2000kg.
Model | BG-color mixer |
Motor | 5.5kw, 7.5hp |
Rotating speed | 300r/min |
Motor | copper wire |
Capacity | 500-2000kg/h |
Mixing way | screw type |
Demension | 189*168*374cm |
Heating power | 15kw |
Voltage | 380v 50hz |
Barrel thickness | 2.0mm |
Net weight | 1050kg |
Barrel material | stainless steel |
Mixing time | 0-30min |
Suitable material | granule, pellet, etc |
Features and advantages for plastic color mixer
1.Both mixing pail and vane are made of Stainless steel.
2.Helical circular mixing device, fast and equal stirring.
3.Overload protection device for motor and multi-protective devices for safety of motor and operator.
4.Spiral leaf need to be welded before processing ensure shaft concentricity and running smoothly.
5.Time setting can be controlled easily and Precisely in the range of 0 - 30minutes.

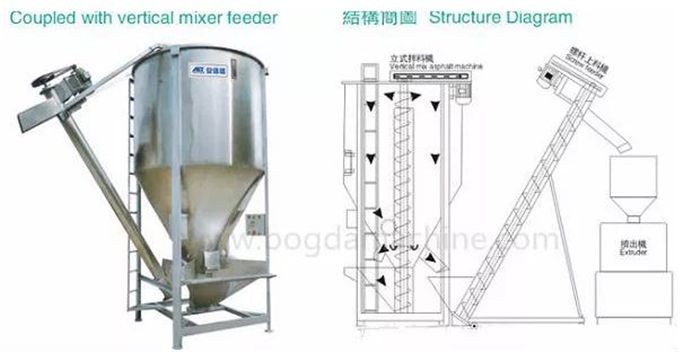

Notes:Because the large capacity vertical mixer is very high, the screw feeder can improve working efficiency.

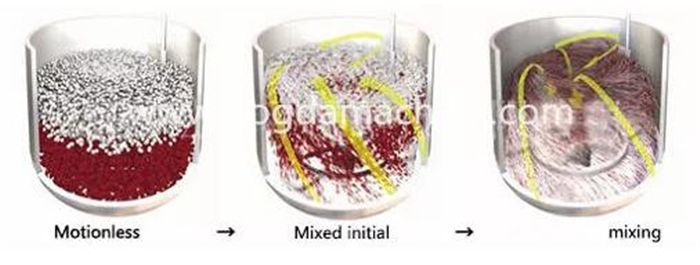

The mixing process for plastic mixer:about 0-30 min can mix the raw material.
The machine parts for plastic color mixer in BOGDA

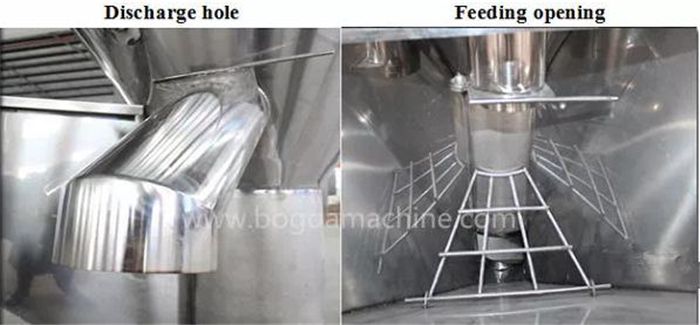

1-Barrel material:stainless steel
2-Humanization design for feeding opening, it easy to discharge

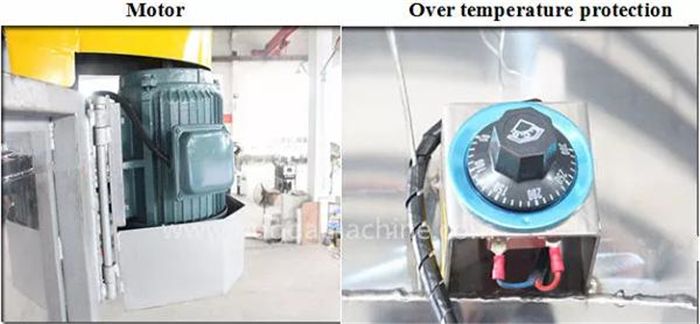

3-Siemens motor band
4-Over temperature protection, it can prevent high temperature and safety.
BOGDA Plastic Machinery Co, who is a leader of Plastic Machine and Raw Material. Such as Plastic Profile/Pipe/Sheet Extrution Equipment,Injection Machine and Waste PP/PE Film, PET Bottle Washing Recyce Machine, as well as Plastic Granulating Line, meanwhile we are familiar with kinds of raw material to help our customers choose the most suitable machine on best quality by economically.

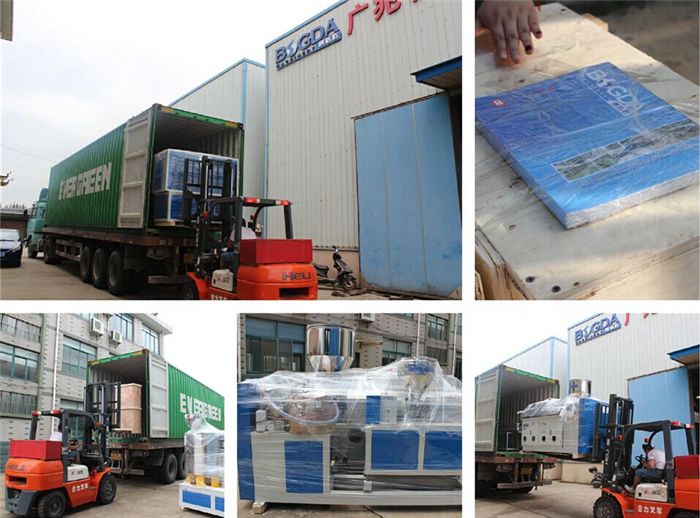

In wooden cases, wooden splints, wrap film and other specialized packaging film, to ensure that the machine impact damage in the long time of land and sea transport, thus reaching the customer factory intact.
