Capacity:300-500kg/h Power:3-5.5kw Warranty:one year
Capacity:300-500kg/h
Power:3-5.5kw
Warranty:one year
As a auxiliary machine , plastic granulate cutter is mainly used in plastic granulating production line and it adopts high-quality tool steel material cutting blades and intensive motor , reasonable strcture design and attractive machine color.
Detail Images

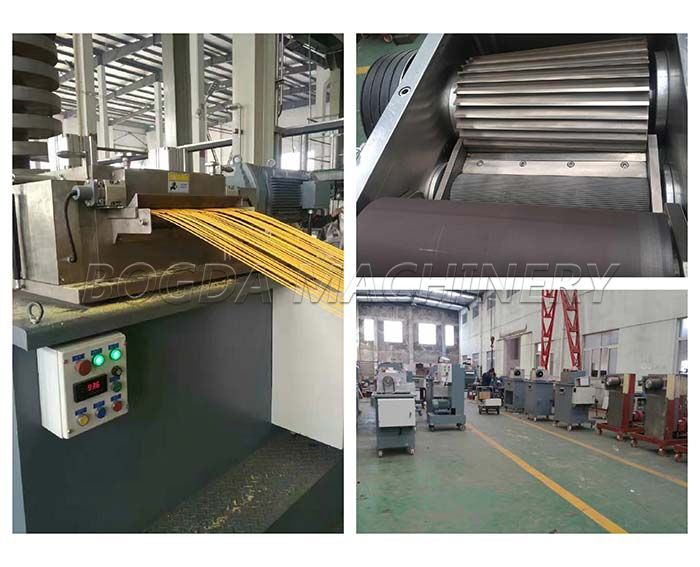

LM-BG Gantry petteter machine

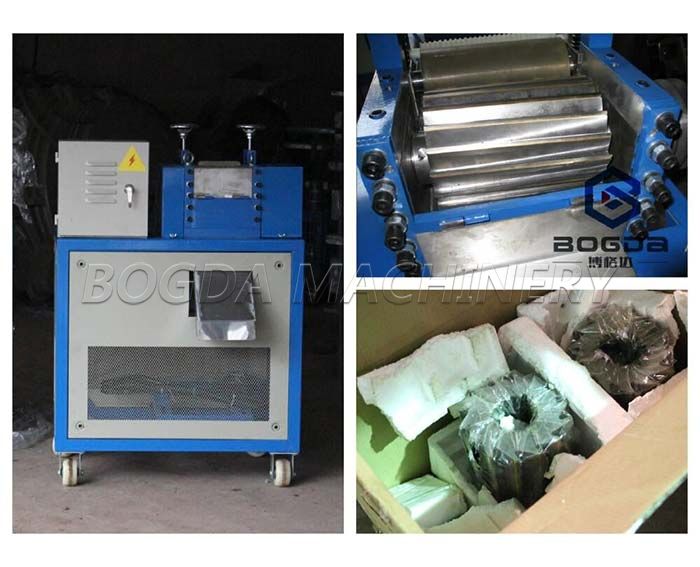

HS-BG Horizontal pellet cutter

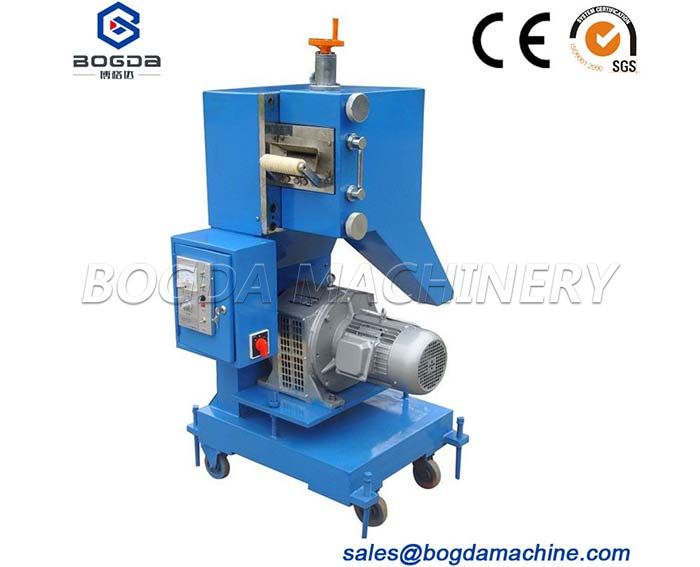

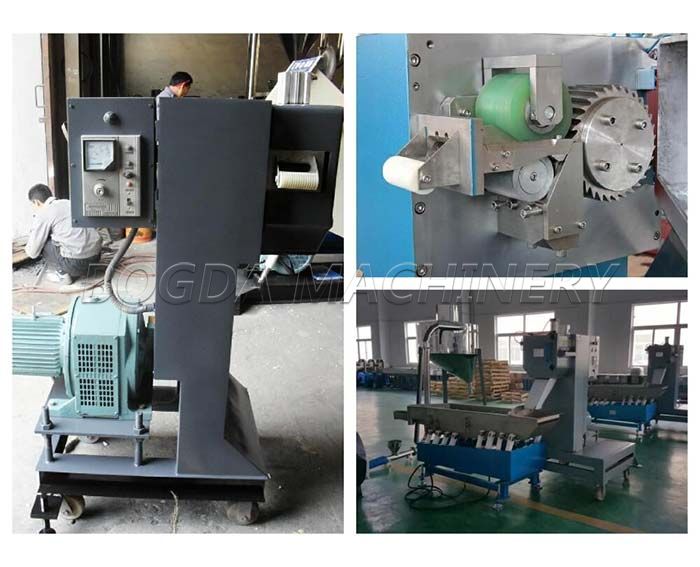

LQ-BG cantilever plastic pelleter machie
Technical parameter
We have three kinds of plastic pellet cutter machines in our company, such as horizontal type, Gantry petteter, cantilever type and so on.
| LM Series Gantry Pelletizer | |||||
| Model | Motor power(kw) | Cutting number(pcs) | Output size(mm) | Capacity (kg/h) | Knife material |
| LM-300 | 3-4 | 24 | 3*3 | ≦300 | YG15 Carb |
| LM-500 | 5.5-7.5 | 32 | ≦600 | ||
| LQ Series Cantilever Granulator | |||||
| LQ-300 | 3-4 | 32 | 3*3 | ≦300 | YG15 Carb |
| LQ-500 | 5.5-7.5 | 32 | ≦500 | ||
Different machine has their knife. Blade is a important consider factors for pellet cutter choices. Our knife is YG15 hard alloy with good quality.
Usages for plastic pelleter

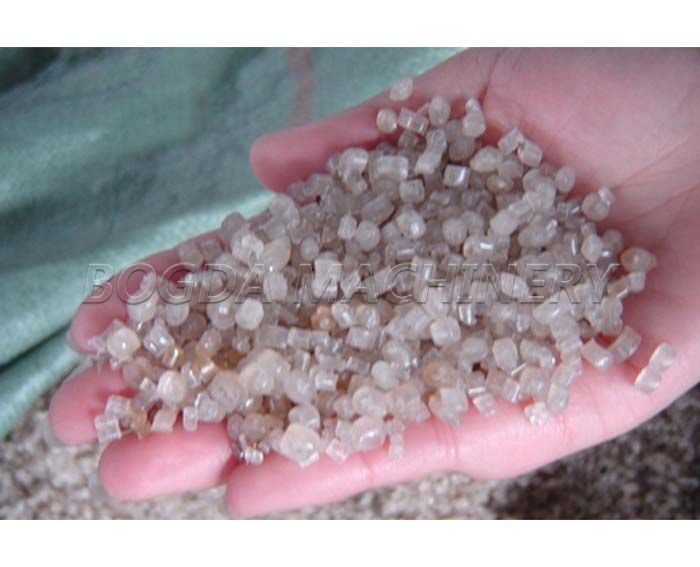

This machine is applied to composite plastic brace cutting.It is fit for granule cutting of PC, PA, ABS, PP, PE, PVC, and POM. What's more, it mainly used in plastic pelletizing machine. The output size is 3*3MM, this is a standard size, But it can be adjusted by adopt the knife.

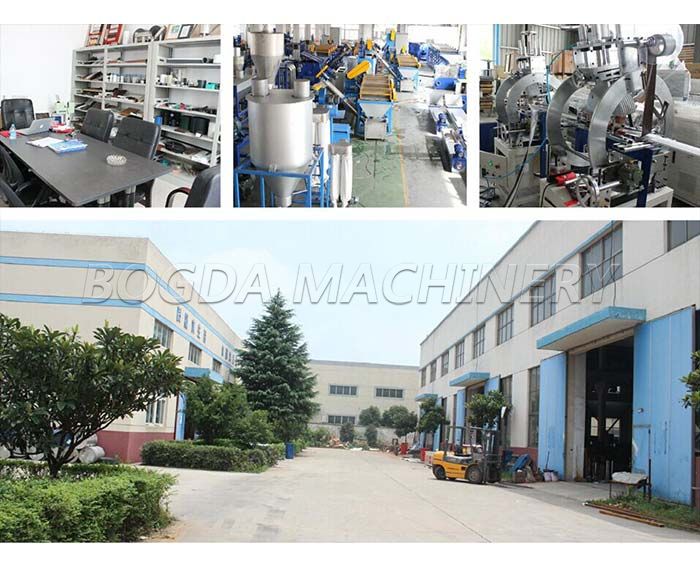

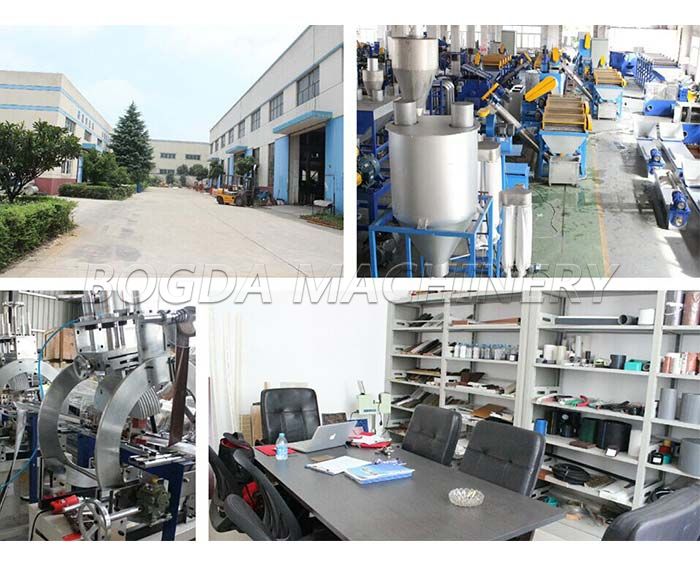

BOGDA was established in 2013, is specialized in research, manufacture and marketing of plastic extrusion machine, mixer and mixing plant, crusher, shredder, pulverizer, granulating line. BOGDA is located in Zhangjiagang City (2 hours drive from Shanghai), Jiangsu Pro, China. With years production and export experience, creative, innovative emotion, BOGDA developes high-quality products for the market.High skilled artisan together with modern processing methods ensure that BOGDA has stable and high performance products.
We provide below machines and plants to demestic and international market:
•Extrusion line for plastic profile/sheet/pipe
•Mixer and mixing plant for powder and granules
•Screening, converying, packing system for plastic granules
•Plastic profile/sheet crusher, PVC/PP/PE pulverizer
•Plastic granulating lines
•Auxiliary machines
Our mission: Help customers to gain profits ans assistant customer to sucess. BOGDA's development comes from the client's satisfaction.
Inner film and outer wood package for used plastics recycling pulverizer machine
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
