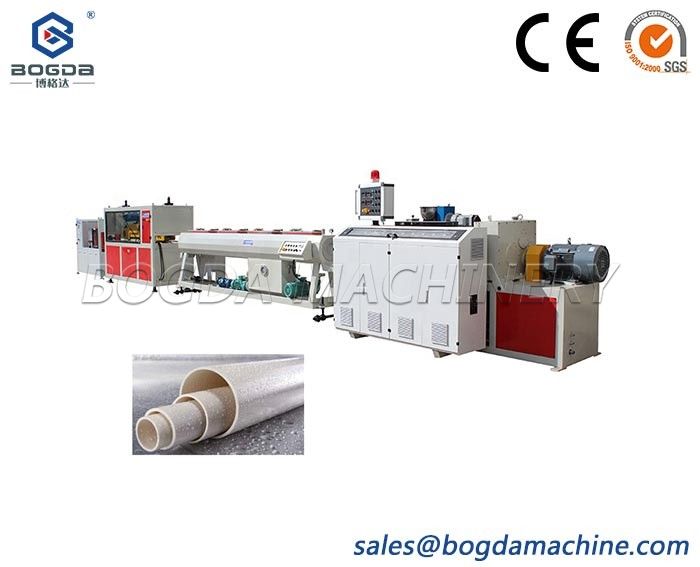

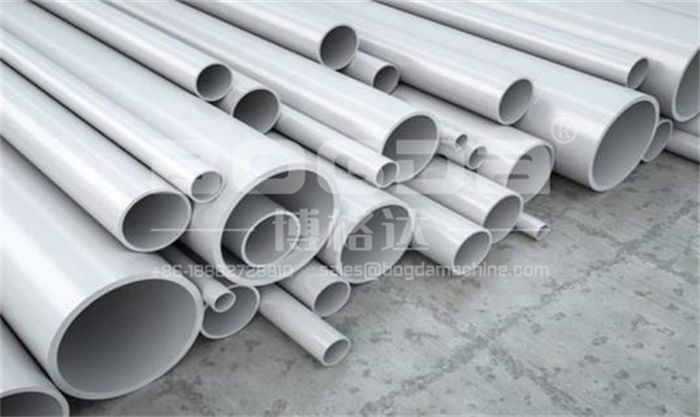

Hard PVC conduit pipe production line is mainly used to produce all kinds of PVC pipes, which are widely used in water supply and drainage of agriculture land and buildings, and cable laying. This production line is composed of conical twin screw extruder, and vacuum sizing device, traction machine,cutting machine and roll over stand.
Production Application
200-400mm PVC Drain Pipe Plastic Tube Moulding Production Line With PLC Control
PVC pipe extrusion line is mainly used to produce PVC pipe for water supply, drainage, cable tube and wall thickness tube. This line consists of twin conical screw extruder, vacuum calibration, cooling tank, haul-off unit, cutting unit, stacker and etc. Extruder and haul-off unit adopt high reputation brand ABB inverter, vacuun pump and driving motor adopt excellent ones. The haul-off machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type etc. Saw cutting or planetary cutting can be applied,and the planetary cutting machine is full automatic control, easy operation and reliable quality.
Product Description
200-400mm PVC Drain Pipe Plastic Tube Moulding Production Line With PLC Control
Hard PVC conduit pipe production line is mainly used to produce all kinds of PVC pipes, which are widely used in water supply and drainage of agriculture land and buildings, and cable laying. This production line is composed of conical twin screw extruder, and vacuum sizing device, traction machine,cutting machine and roll over stand.
Specification
200-400mm PVC Drain Pipe Plastic Tube Moulding Production Line With PLC Control
| Extruder model | Pipe Diameter (mm) | Main motor power (kw) | Capacity (kg/h) | Production Speed （m/min） |
| SJSZ51/105 | 16-63mm | 18.5 | 60-100 | 15 |
| SJSZ65/132 | 63-160mm | 37 | 150-200 | 6 |
| SJSZ80/156 | 160-315mm | 55 | 350-400 | 4 |
| SJSZ92/188 | 315-630mm | 110 | 700-800 | 1 |
BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.
BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.
Fast response, good quality, best price and perfect service are our advantages and culture.
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
