Plastic PVC pipe making machine for water supply/drain pipe

Product Descirption

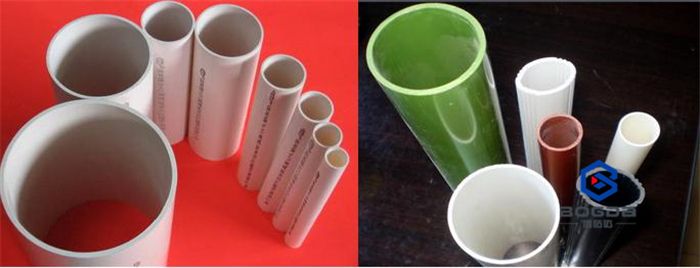

Plastic PVC Pipe Application

1-PVC pipe: main raw material of producing PVC pipe is  PVC resin powder.

2-PVC pipe is a kind of general purpose pipes to points: drains, pipe, conduit, cable sheathing, because raw recipe is different, indicators of every type pipes compression  are not the same.

3-PVC water pipe with water accessories, for building water supply projects.

PVC drain pipes for sewage



Product Description

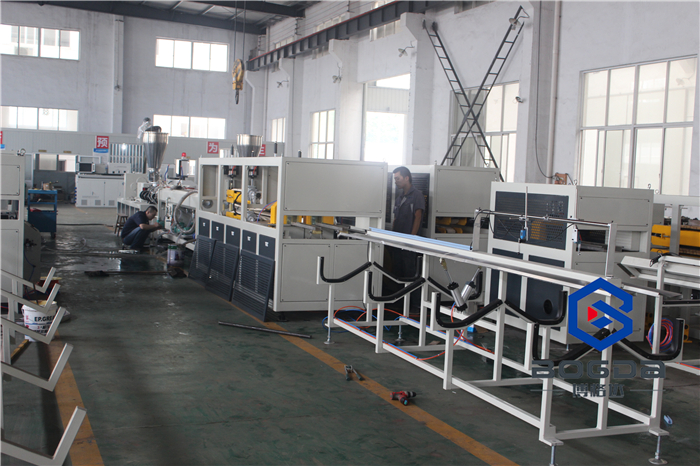

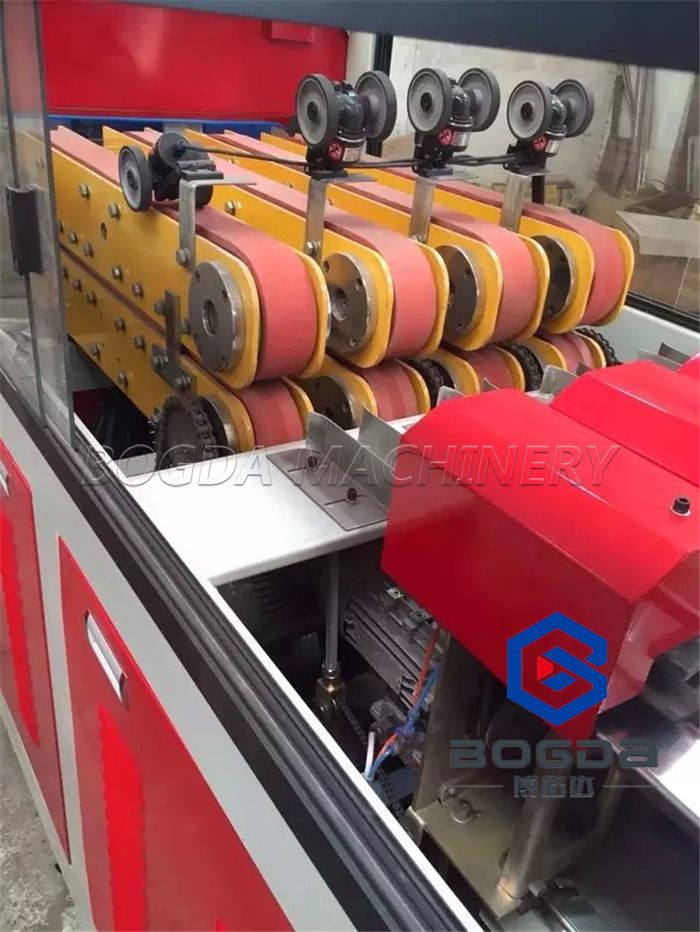

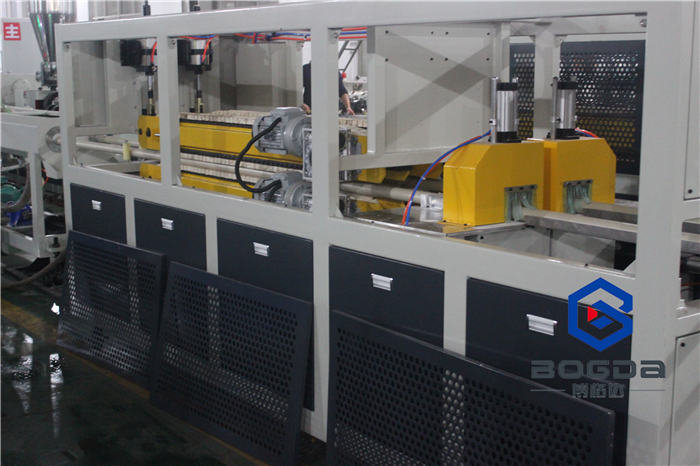

Plastic PVC Pipe Making Line Machine Process: Mixed raw + additive → forced feeding conveyor→ conical twin screw extruder → Vacuum sizing tank  → ink printing machine → Crawler tractor → cutting machine   → stacker

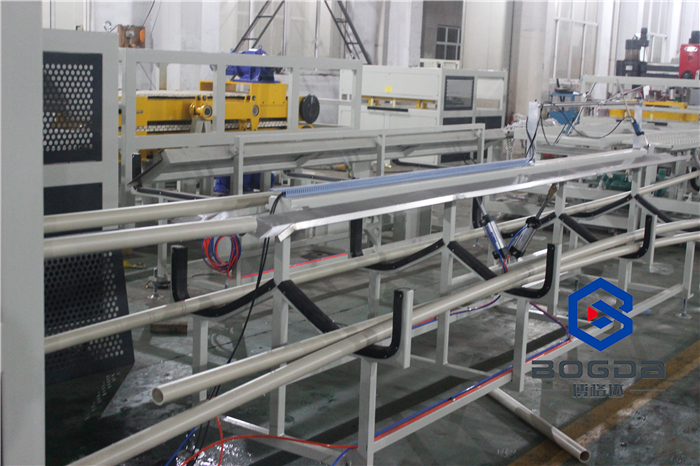

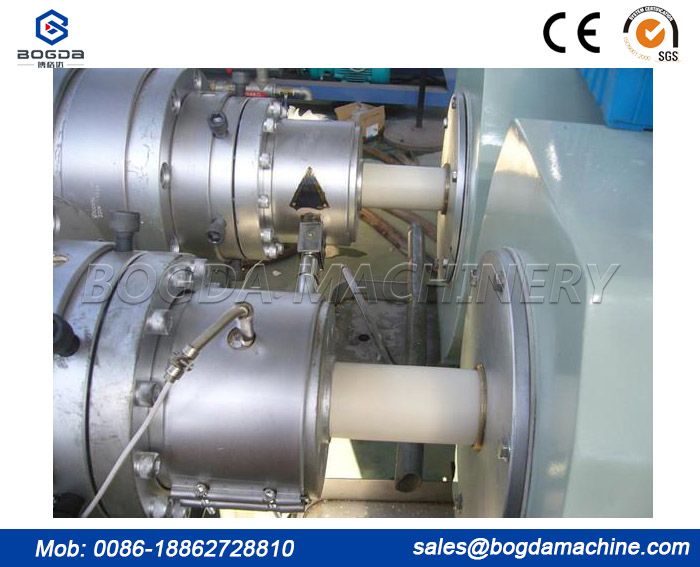

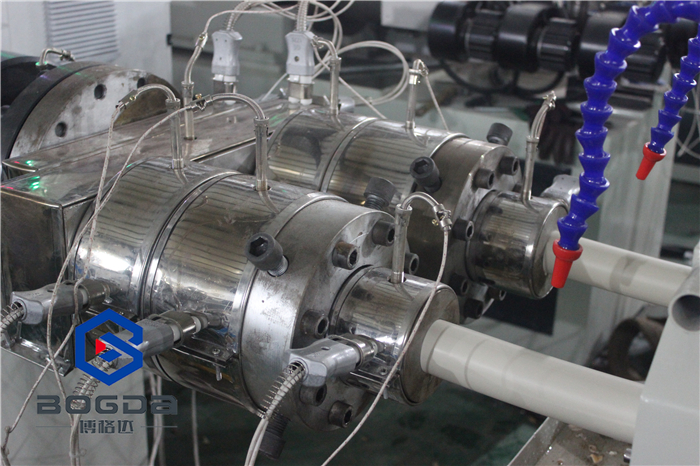

One out two

One out four



Main Technical Parameters Of Plastic PVC Pipe Making Machine

Model	PVCG-63	PVCG-110	PVCG-160	PVCG-250	PVCG-315	PVCG-400	PVCG-630
MATCHED EXTRUDER	SJZ51/105	SJZ65/132	SJZ65/132	SJZ65/132	SJZ80/156	SJZ80/156	SJG92/188
OD RANGE(mm)	16-63	50-110	50-160	75- 250	110-315	200-400	315-630
LENGTH OF VACUUM CALIBRATOR TANK(mm)	4000	5000	6000	6000	6000	6000	6000
HAUL SPEED(m/min)	0.6-8	0.6-6	0.5-5	0.4-4	0.3-3	0.2-2.5	0.2-1.5
INSTALLED POWER(kw)	55	75	85	95	125	135	255
TOTAL LENGTH9(mm)	15000	17000	18000	20000	20500	28000	30000

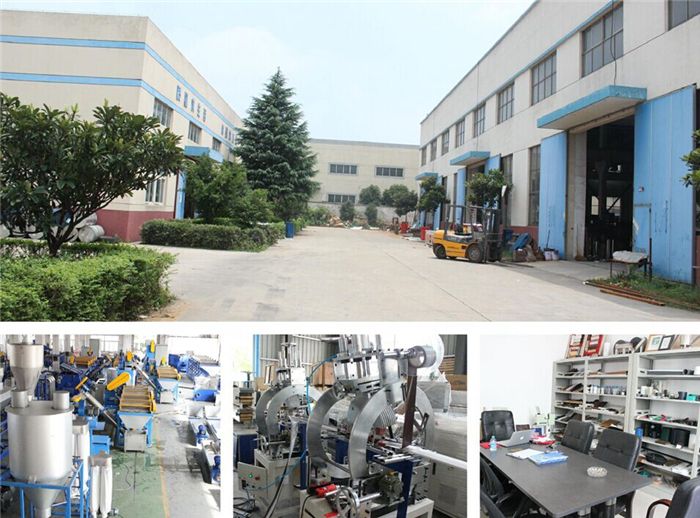

BOGDA International Co, BOGDA Machinery Co, who is a leader of Plastic Machine and Raw Material. Such as Plastic Profile/Pipe/Sheet Extrution Equipment,Injection Machine and Waste PP/PE Film, PET Bottle Washing Recyce Machine, as well as Plastic Granulating Line, meanwhile we are familiar with kinds of raw material to help our customers choose the most suitable machine on best quality by economically.

In wooden cases, wooden splints, wrap film and other specialized packaging film, to ensure that the machine impact damage in the long time of land and sea transport, thus reaching the customer factory intact.

Q: Where can we get spare part?

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

Q: How can I help you when face some technical problem?

A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

Q: How long is the guarantee?

A: 12 months since the first day customer operates (except wear parts).

Q: Any quality checking before shipment?

A: 100% confirm, run and test machines before shipment with quality certificate.

Q: Can I operate machine if don’t have experienced engineers?

A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements

Q: How many electric, water, air need for the machines?

A: Technical department supply the whole layout for workshop details.
