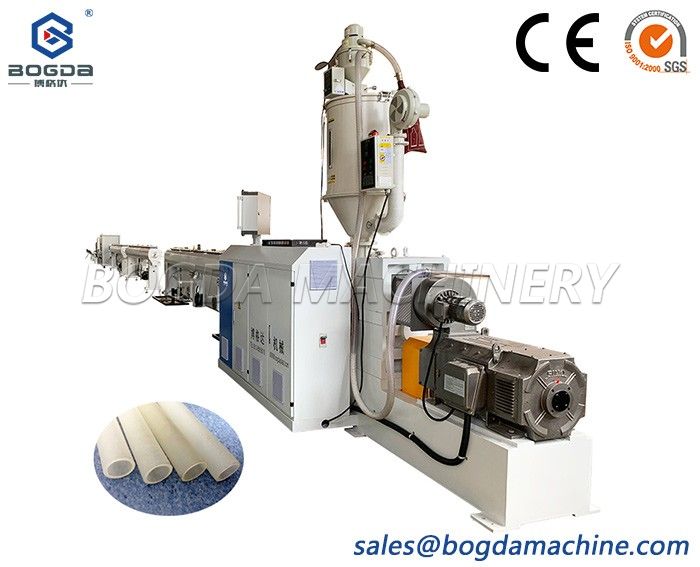

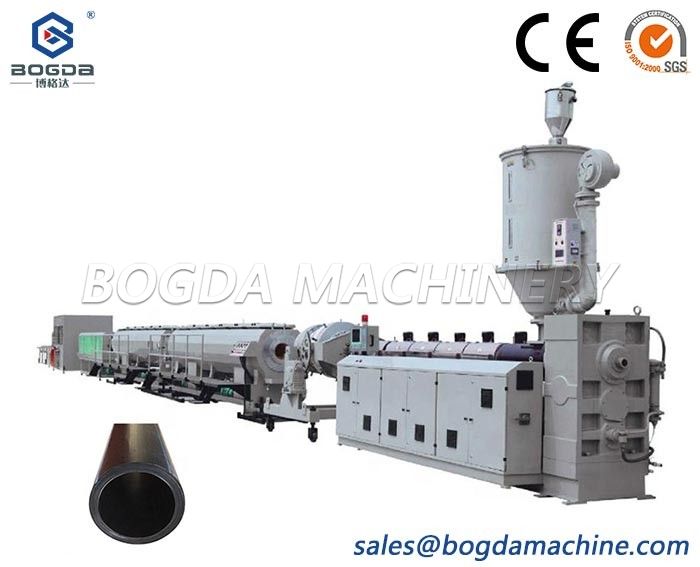

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

Integrative design of whole unit, synchronous operation of main and auxiliary machines, with high efficiency, high performance, high stability and other characteristics.

Product Description

Application of Final Products

What is ppr pipe ?

PP-R (Polypropylene Random) pipe, also known as three type polypropylene pipe and random copolymer polypropylene pipe or PPR pipe, has the advantages of energy saving, material saving, environmental protection, light weight, high strength, corrosion resistance, smooth inner wall and no scaling, easy construction and maintenance, long service life, etc. Widely used in building water supply and drainage, urban and rural water supply and drainage, urban gas, electric power and optical cable sheath, industrial fluid transportation, agricultural irrigation and other construction, municipal, industrial and agricultural fields. The PP-R pipe is made of random copolymer polypropylene by extrusion and injection into pipe fittings.

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

Application Fields

1. Cold and hot water system of buildings, including central heating system; 2. Heating system in the building, including floor, panel and radiant heating system; 3, can be directly drinkable pure water supply system; 4. Central (centralized) air conditioning system; 5, conveying or discharging chemical medium and other industrial pipeline system. 6, used for cylinder transmission of gas path and other pipeline system.

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

Product Description

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

The host screw adopts cast aluminum heater for heating and wind cooling. The temperature is controlled by precision electronic control instrument. The drive motor is frequency conversion for speed regulation. Hard tooth surface reducer can run continuously for a long time without trouble. Integrative design of whole unit, synchronous operation of main and auxiliary machines, with high efficiency, high performance, high stability and other characteristics.

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

Complete PPR Pipe Production Line
1Automatic Feeder and Drier1 set
2SJ65/33 Single Screw Extruder1 set
3SJ25/25 Color Strip Co-Extruder1 set

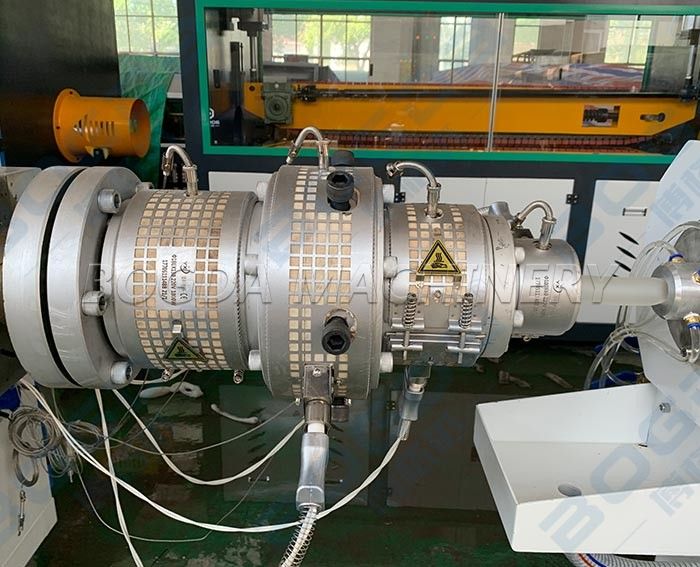

4Pipe Mould(including heater and calibrator)1 set
5Vacuum Tank 1 set
6Cooling tank2 set
7Haul-off machine unit1 set
8Non-dust cutting machine1 set
9Stacker machine1 set

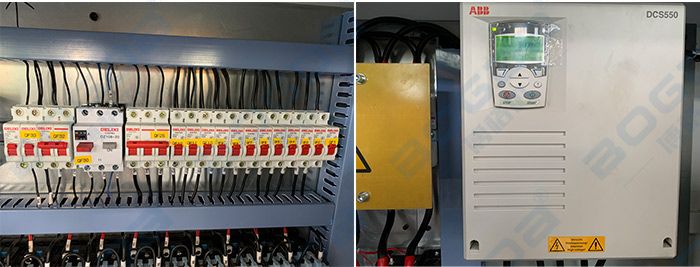

10Electric control system1 set

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

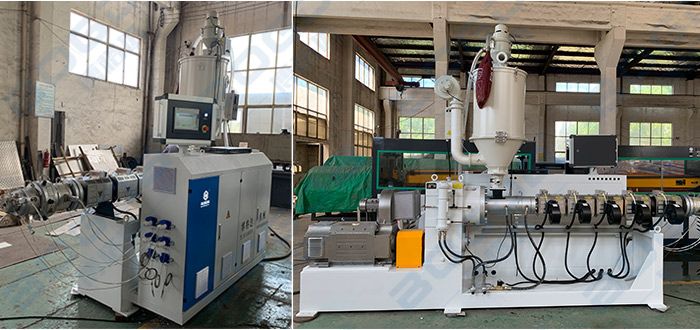

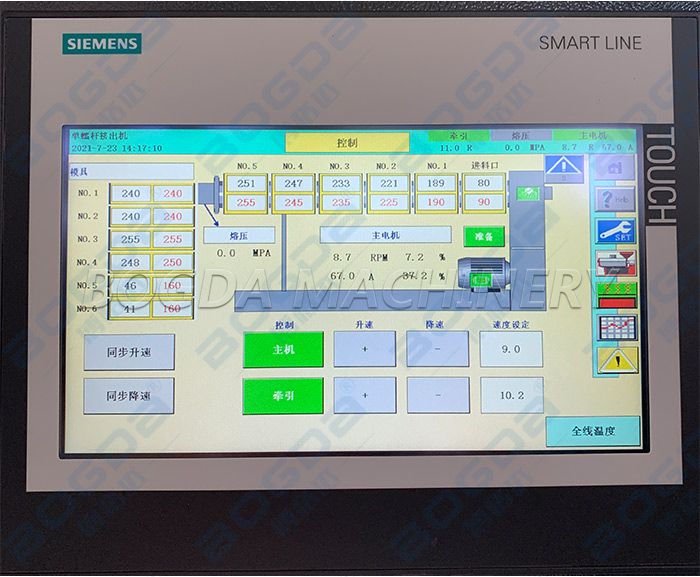

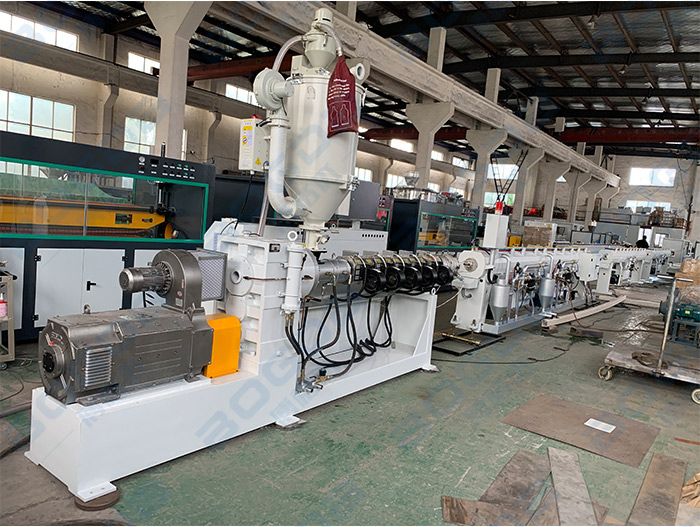

PPR tube production line designed by BOGDA specifically for PPR material characteristics, using efficient single screw extruder, equipped with Siemens PLC control system, can achieve automatic control of the entire production line from the extruder to the auxiliary machine, high output, stable extrusion.

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

Using high performance alloy steel 38CrMoAla professional processing, so that the machine has the advantages of uniform plasticizing, stable extrusion, high output, long life and so on.

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

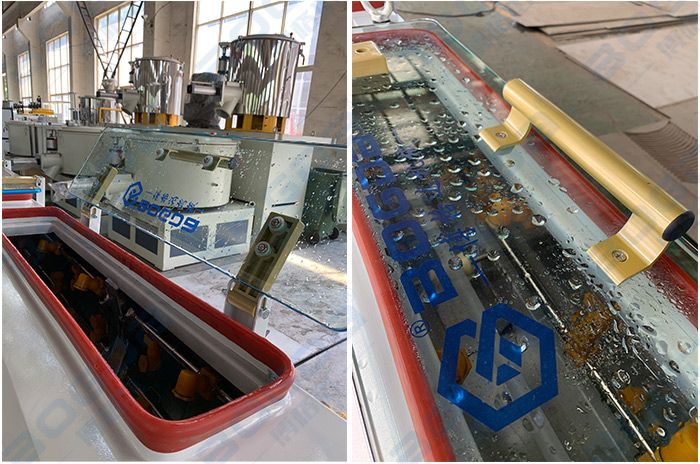

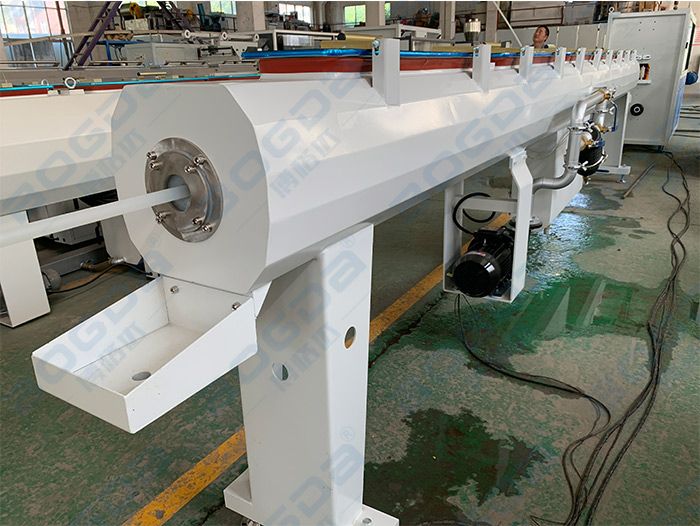

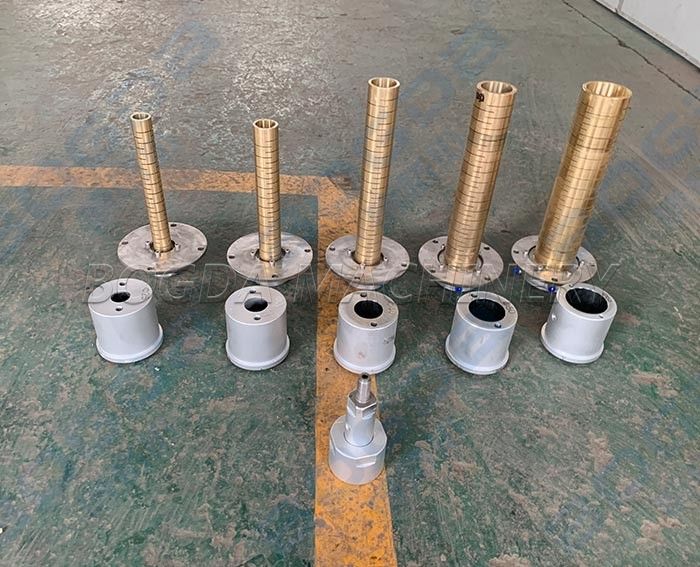

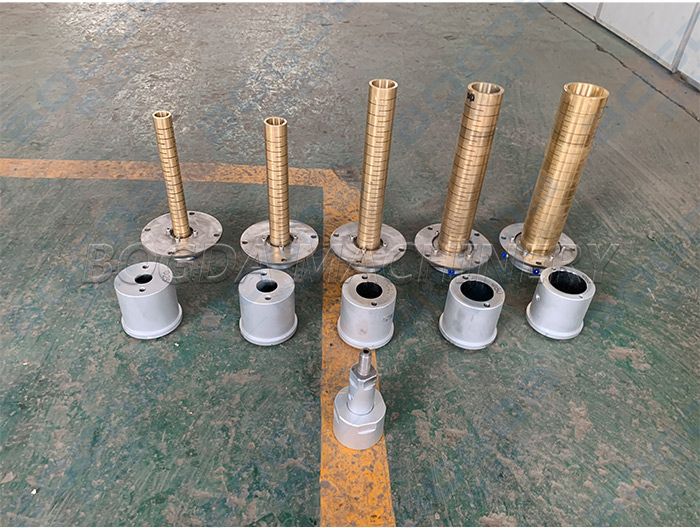

True empty box is mainly used with plastic extruder, used for vacuum sizing of PVC, PP-R, PE, PP, PE-RT and other pipe materials, so that the surface finish of the pipe is good. This machine box is made of stainless steel SUS304 material, the body up and down, left and right, front and rear three-dimensional movement, spray using four to six nozzle cooling. Real empty box automatic water and drainage function. Box models can be made according to customer requirements of different requirements of specifications, fixed pipe straight mold can be made from 16-63mm.

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

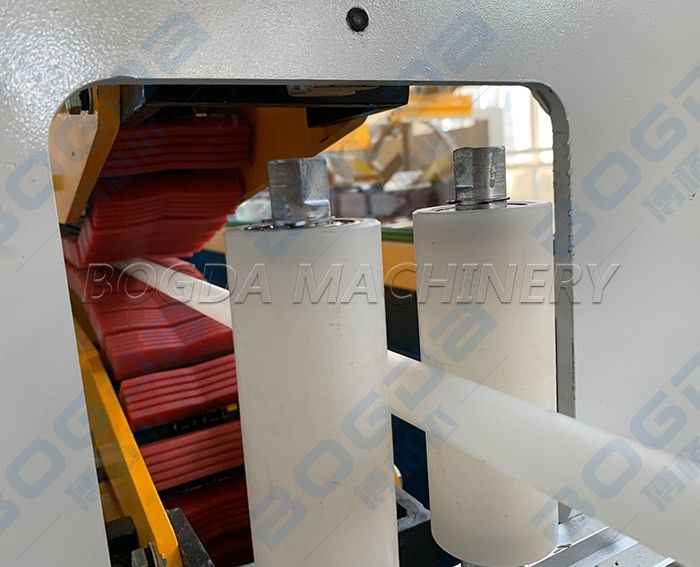

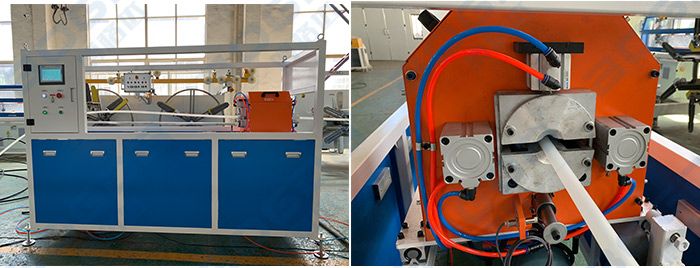

Haul-off machine, cutting machine and stacker.

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

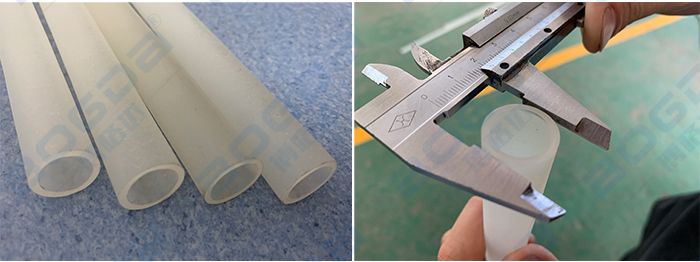

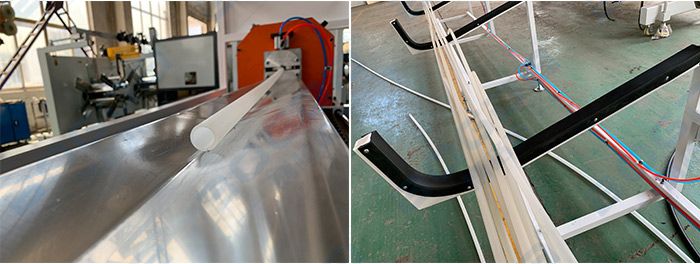

The whole ppr pipe production line can produce 20-63mm ppr pipes.

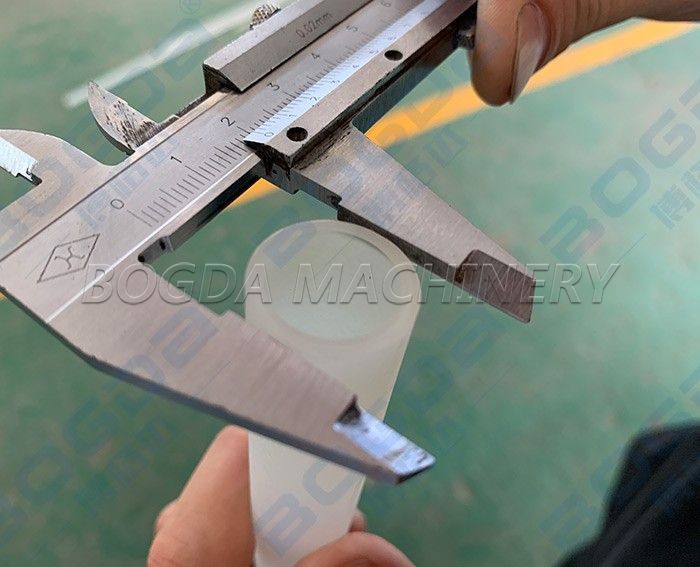

Precise pipe extrusion

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

Specification

Main Parameters For PPR Pipe Production Line
ModelPipe Diameter (mm)Extruder modelMax. capacity (kg/h)Total power (kw)
PPR-63 (single)φ20-63SJ65/33, SJ25/25150-180105


Product Video

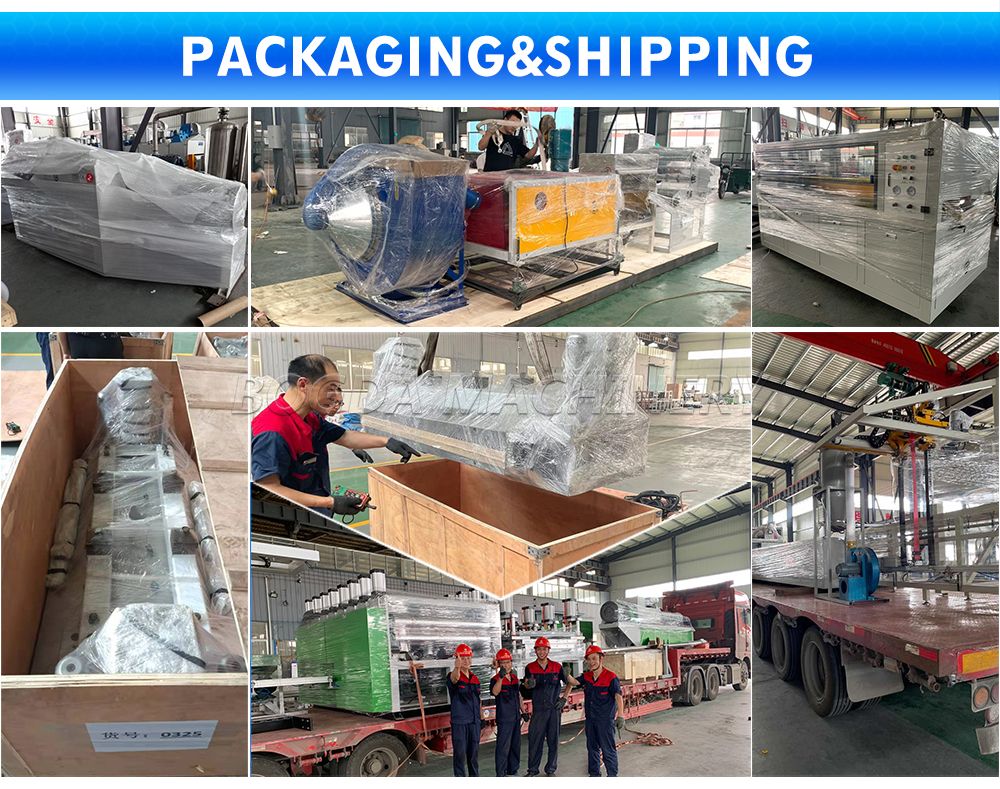

Packaging and Shipping

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

BOGDA 20-63mm PPR Pipe Extrusion Machine Line ManufacturerBOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer


Customer Review

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

BOGDA 20-63mm PPR Pipe Extrusion Machine Line Manufacturer

FAQ

Q: Where can we get spare part?

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

Q: How can I help you when face some technical problem?

A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

Q: How long is the guarantee?

A: 12 months since the first day customer operates (except wear parts).

Q: Any quality checking before shipment?

A: 100% confirm, run and test machines before shipment with quality certificate.

Q: Can I operate machine if don’t have experienced engineers?

A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements

Q: How many electric, water, air need for the machines?

A: Technical department supply the whole layout for workshop details.
