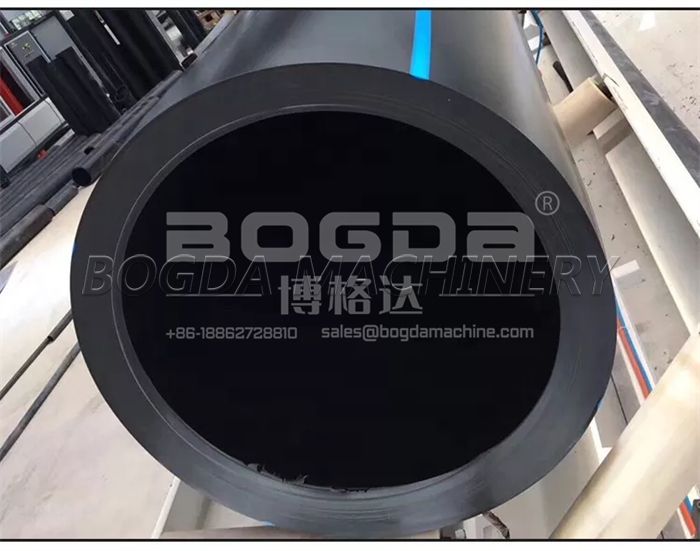

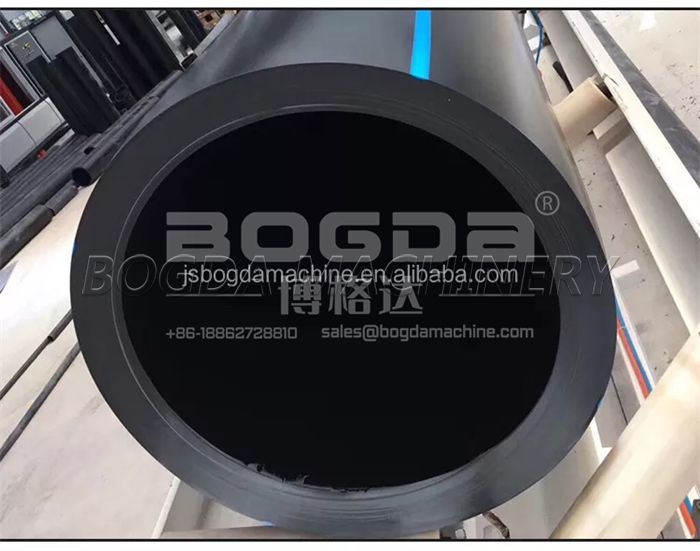

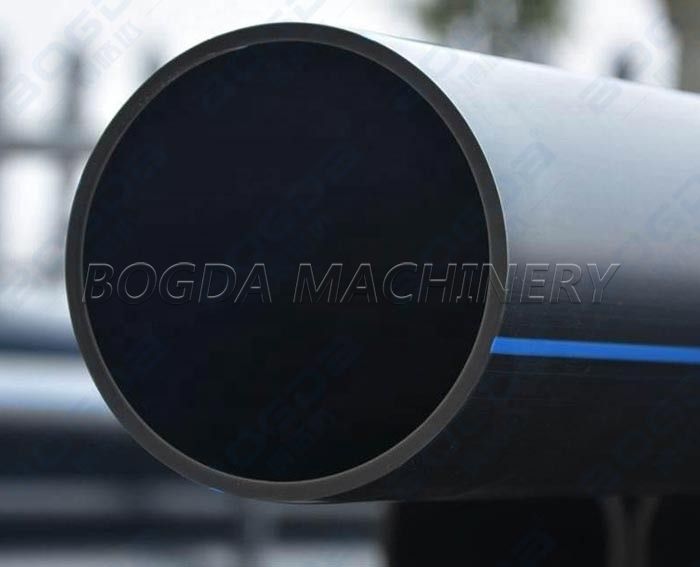

Large diameter HDPE pipes are tough, lightweight, shock and chemical resistant. They offer installation economy and long service life. These pipes are available in standard lengths of 3, 6, 12 and 14m. Special pipe lengths can be produced to meet almost any need.
Application of Final Products
Large diameter HDPE pipes are tough, lightweight, shock and chemical resistant. They offer installation economy and long service life. These pipes are available in standard lengths of 3, 6, 12 and 14m. Special pipe lengths can be produced to meet almost any need.

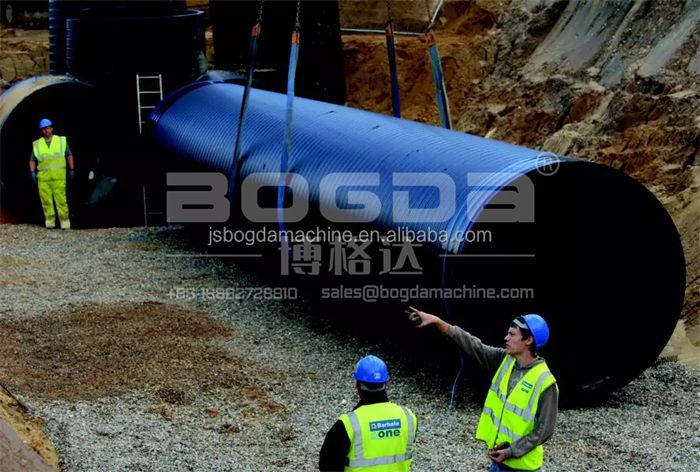

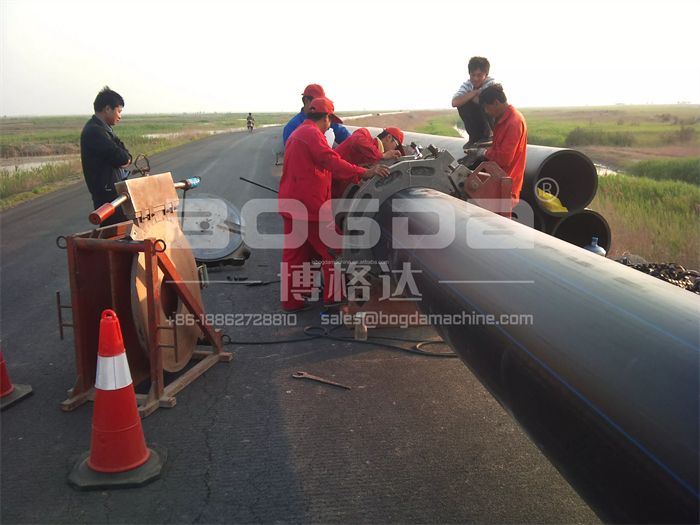

APPLICATIONS
* Gravity and low pressure applications up to 1.5bar internal pressure
* Surface water drainage & attenuation
* Culverts
* Fouls sewers
* Sea or river outfalls
* Pipe rehabilitation and relining
* Landfill
* Manholes
* Marine pipelines
* Below and over ground applications
FEATURES & BENEFITS
* Lightweight and impact resistant
* Corrosion and chemical resistant
* Flexible and fatigue resistant
* Installation is cost effective saving time and money against alternatives
* Ability to manufacture from 2kN/m2 to 8kN/m2 (standard strengths are 2kN/m2 & 4kN/m2)
* Various lengths up to 18m
* Sizes from 700mm to 3000mm
Product Description

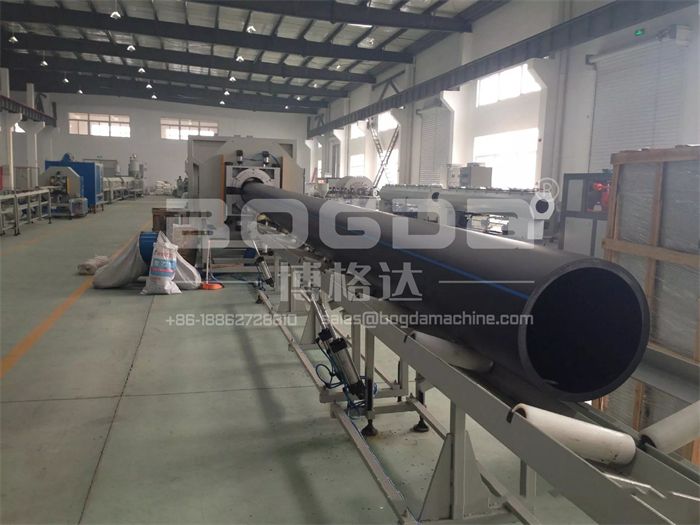

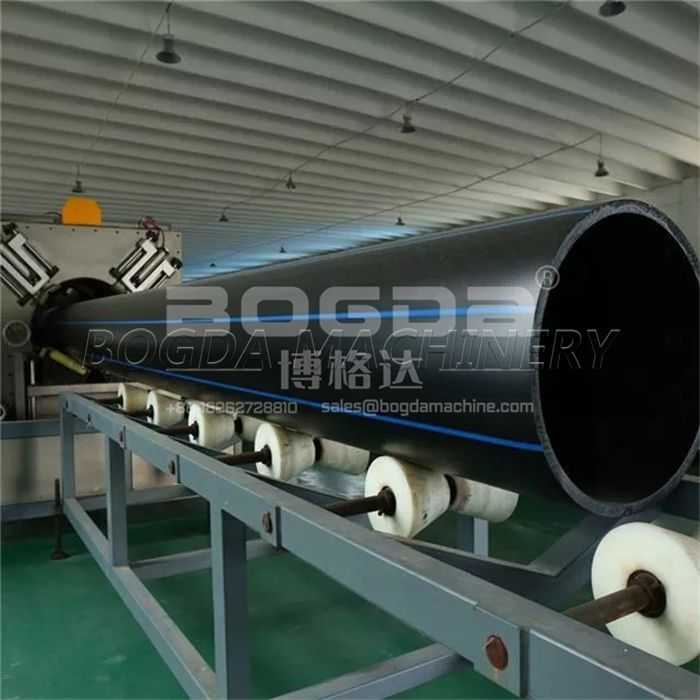

450-3000 mm Pipe Diameter High Density Polyethylene PE Pipe Extrusion Production Line

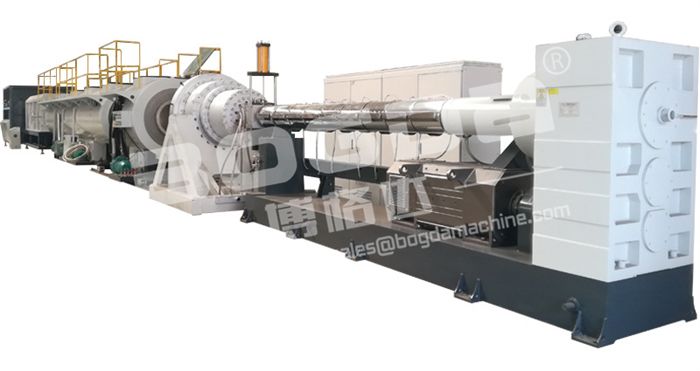

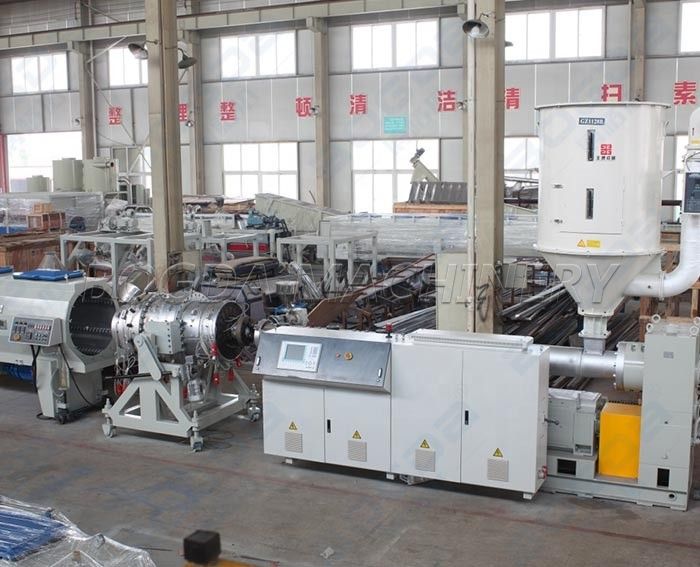

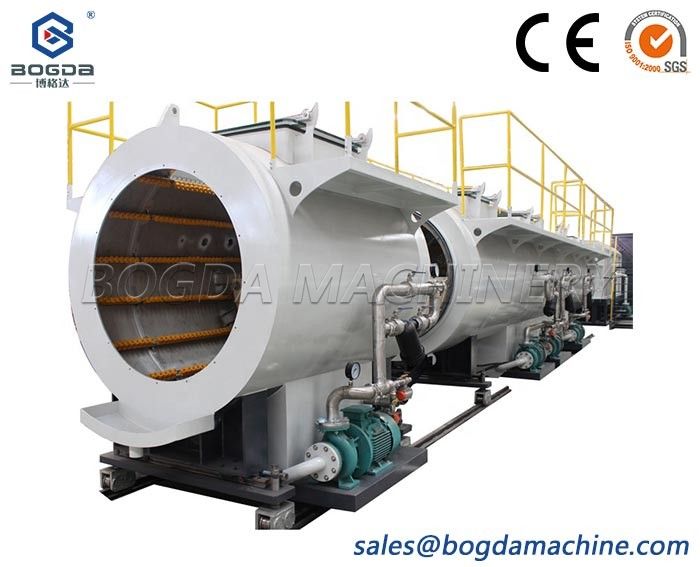

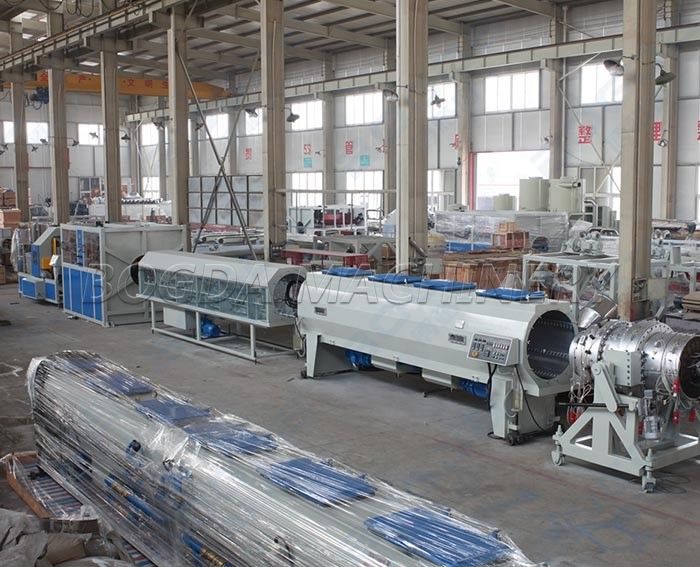

The 450-3000mm HDPE pipe production line is composed of vacuum feeder, drying hopper, SJ150 single screw extruder, pipe mold, vacuum shaping box, spray cooling box, tractor, ring cutting machine, stacker, and electric control cabinet.
Specification
| Main Specifications For Large Pipe Diameter High Density Polyethylene PE Pipe Extrusion Production Line | ||||
| Model | Diameter (mm) | Extruder | Capacity (kg/h) | Power (kw) |
| 800 | φ450-800 | SJ120/33 or150/33 | 1000-1300 | 600 |
| 1000 | φ630-1000 | SJ150/33 | 1000-1300 | 650 |
| 1200 | φ800-1200 | SJ90/33, SJ120/33 or SJ150/33 | 1000-1500 | 900 |
| 1600 | φ1000-1600 | SJ120/33 or SJ150/33 | 1000-1700 | 1300 |
| 2500 | φ1400-2500 | SJ120/33, SJ120/33 or SJ150/33 | 1500-2000 | 1400 |
| 3000 | φ2000-3000 | SJ120/33, SJ120/33 or SJ150/33 | 2000-2500 | 1550 |
BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.
BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.
Fast response, good quality, best price and perfect service are our advantages and culture.
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
