PVC Cable Trunking Double Sides Slotting Machine Mainly composed of stacked, trough, fixed-length feeding cylinder transport agency (by pneumatic components to perform an action), punching, punching, punching arm table mold, the crankshaft and drive system, the finished product stack frame, electric control box and other parts.

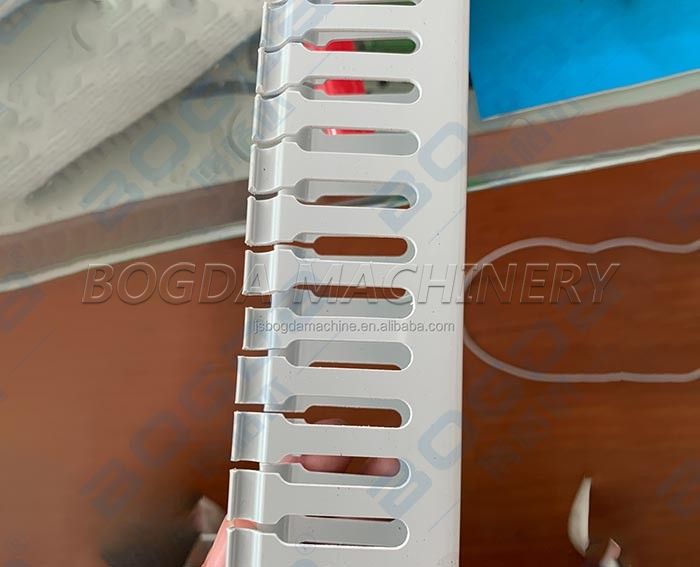

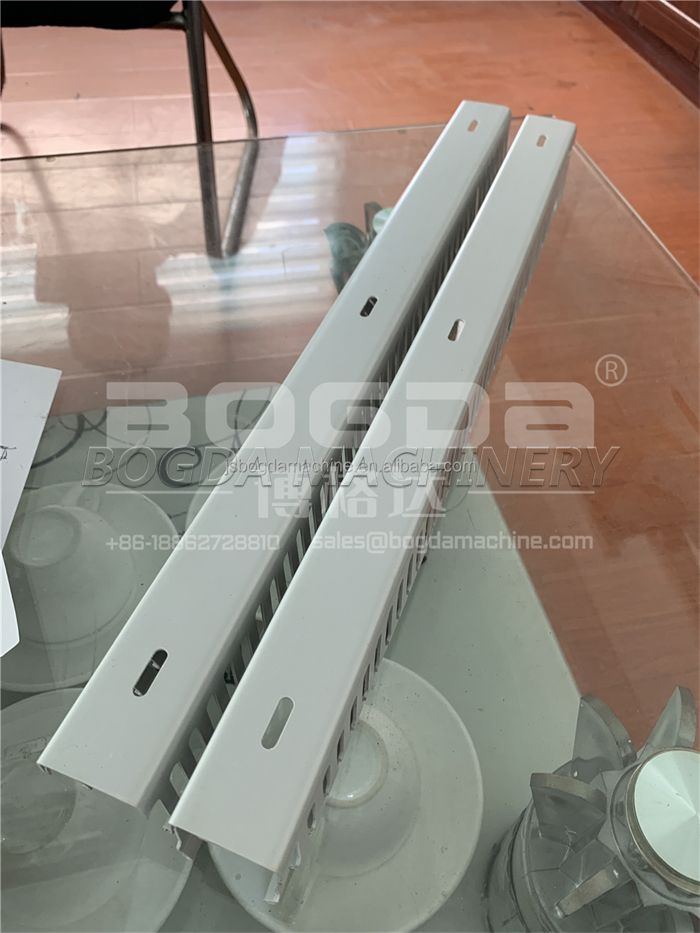

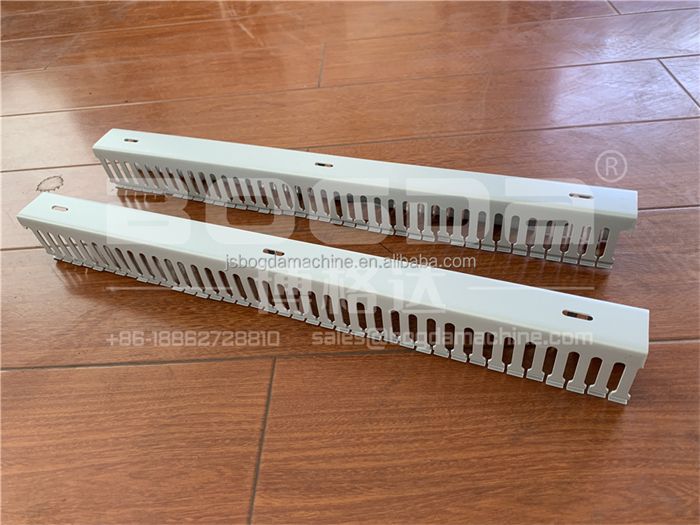

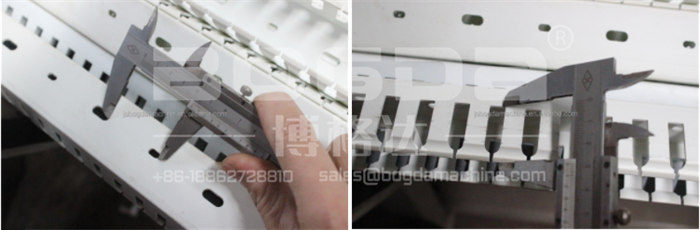

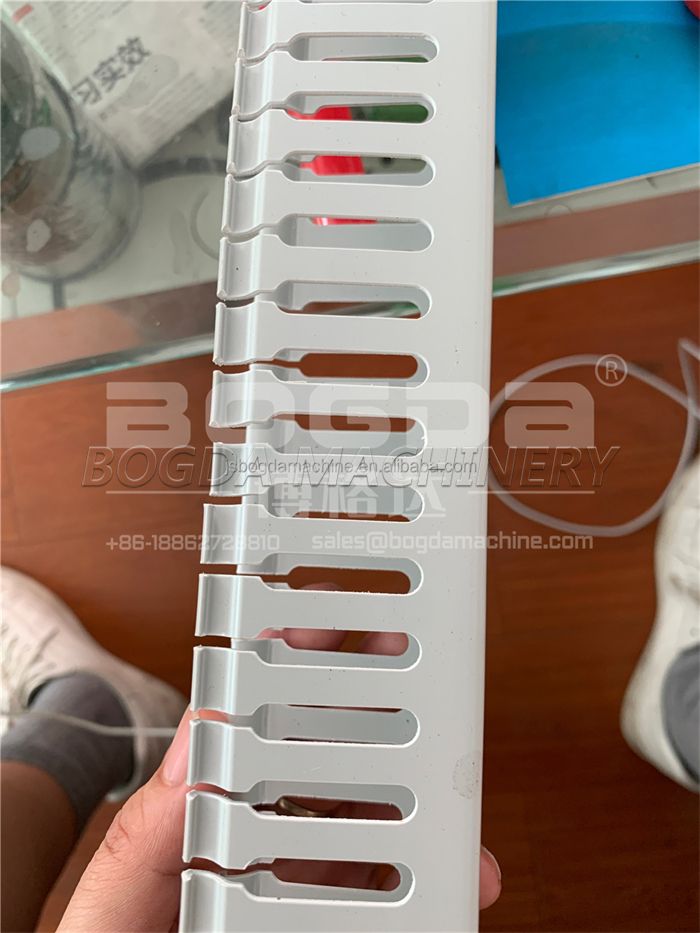

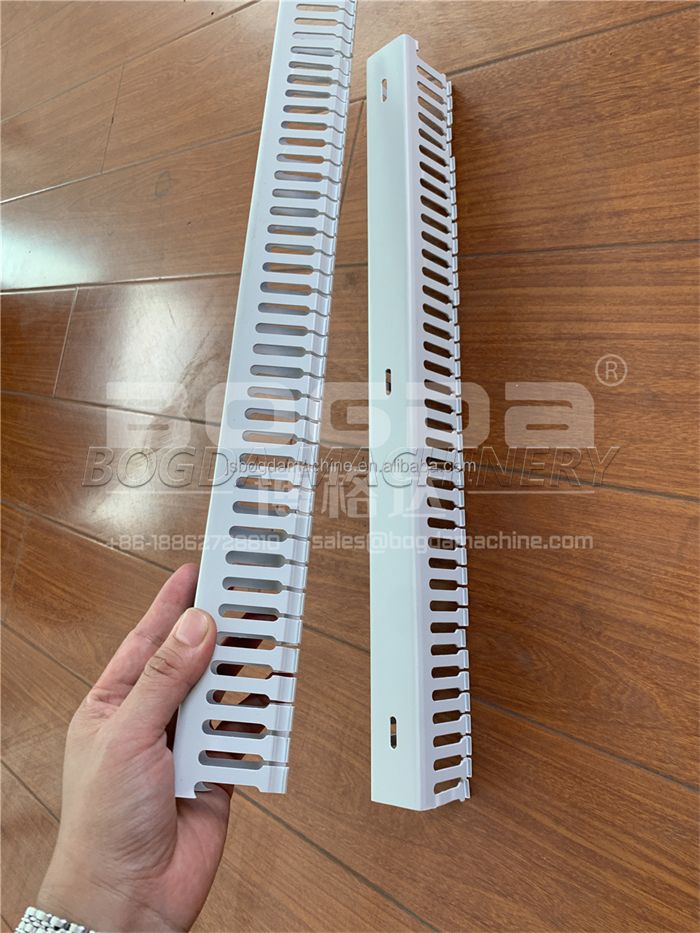

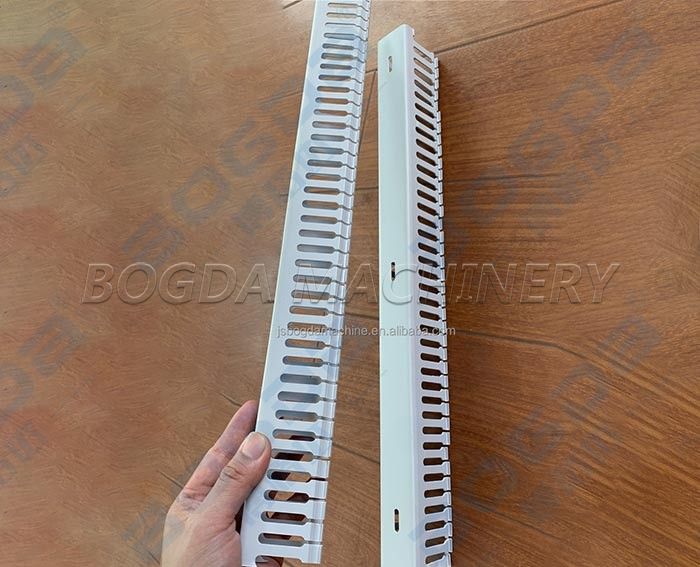

Finished Product
Application
Plastic trunking after punching used in Electrical Cabinet, for electrial wires connection.
Product Description

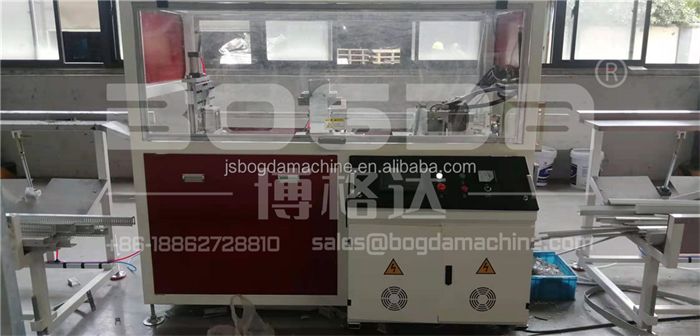

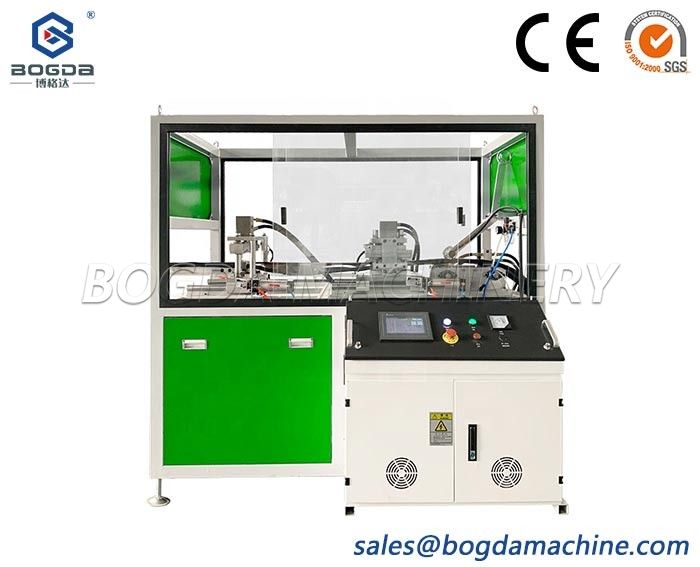

BOGDA Plastic Cable Trunking Punching Machine With Cutting System
PVC Cable Trunking Double Sides Slotting Machine Mainly composed of stacked, trough, fixed-length feeding cylinder transport agency (by pneumatic components to perform an action), punching, punching, punching arm table mold, the crankshaft and drive system, the finished product stack frame, electric control box and other parts.
Main features of BOGDA Plastic Cable Trunking Punching Machine With Cutting System
1.One time can punch 30pcs Plastic PVC Cable Trunking(width:40mm) together.
2.Lower noise and trunking punching working stable
3. Fully automatically PLC control + touch screen
4. Equip with burr removing brush
5. Online or Offline automatic working
6. Custom machien color

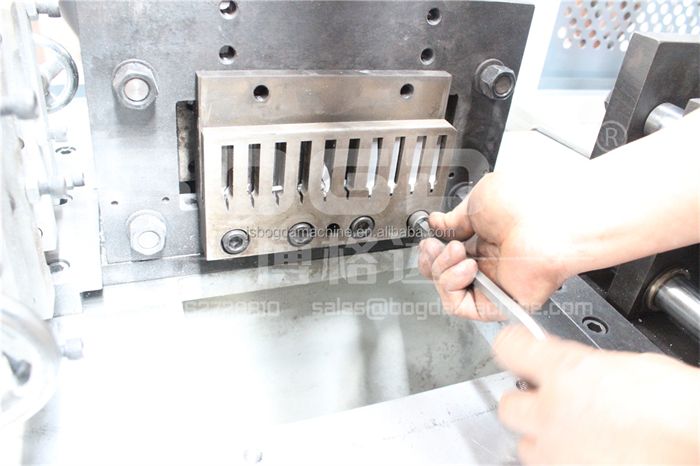

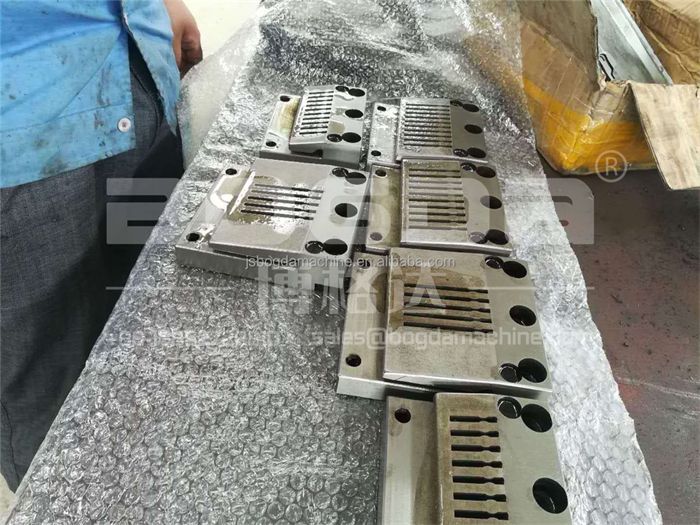

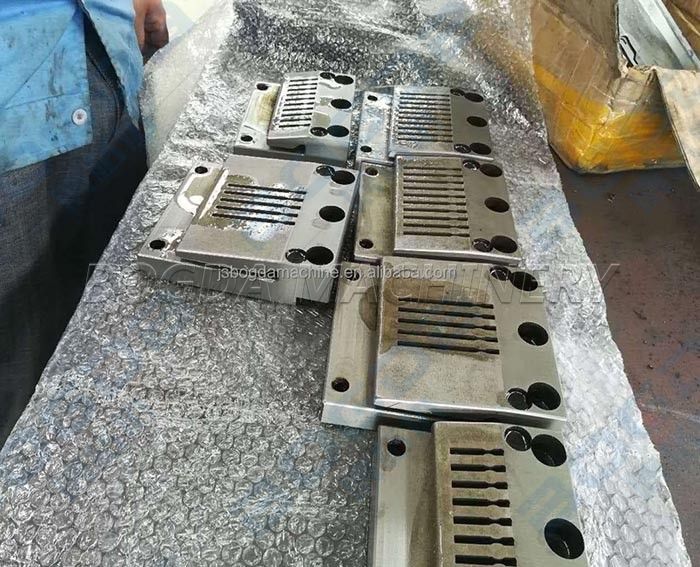

PVC trunking punching machine mould material: SKD-11, each mould is installed by modularization and convenient to disassemble.

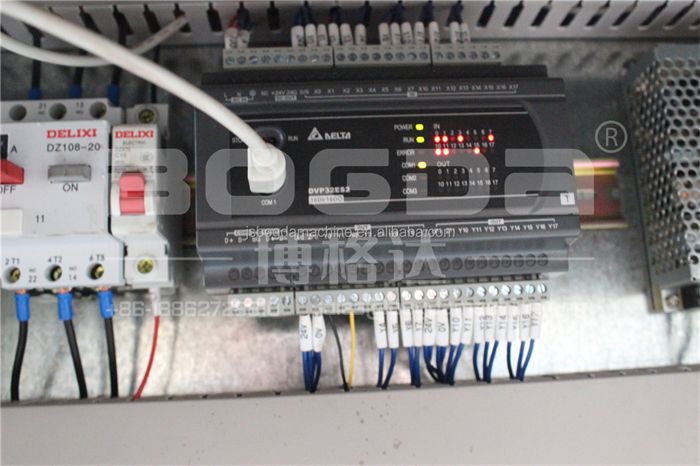

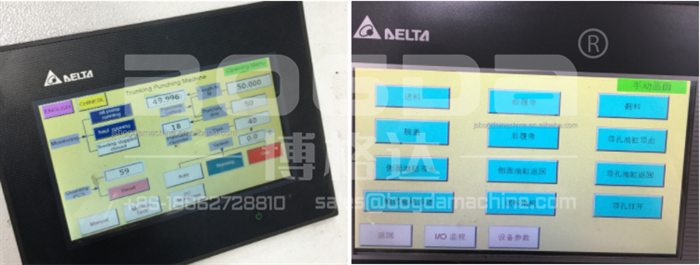

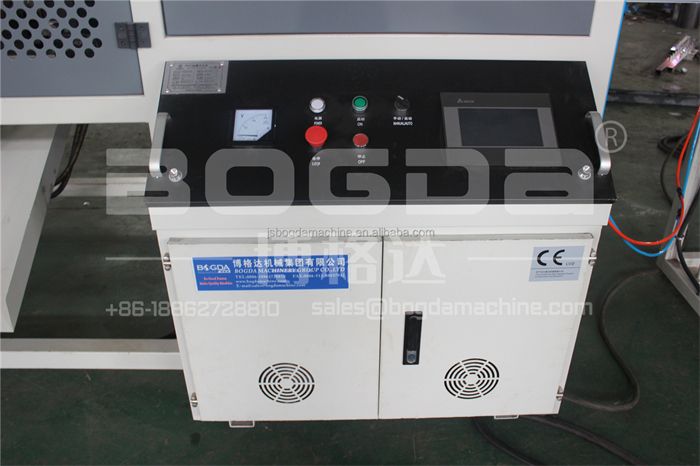

PLC control system & screen touch
1. DETAL brand, stable working
2. With Chinese ans English. If need add the third language, also can be customized

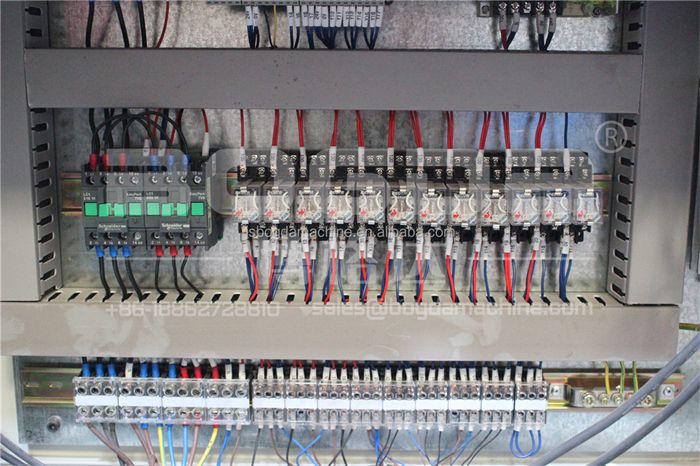

3. Each wire we all marked number for easy operating and daily maintance
Specification
| No | Item | Parameters of Punching machine |
| 1 | Control type | Full-automatic (by PLC+Touch-screen) |
| 2 | Working speed | 4-5m/min |
| 3 | Height adjust range | 45mm |
| 4 | punching method | Hydraulic auto punching |
| 5 | Punch type | Double sides slotting and bottom hole punching |
| 6 | Power | 5.5kw |
| 7 | Working type | Online punching |
| 8 | Dimension | L3000*W2000*H1700mm |
BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.
BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.
Fast response, good quality, best price and perfect service are our advantages and culture.
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
