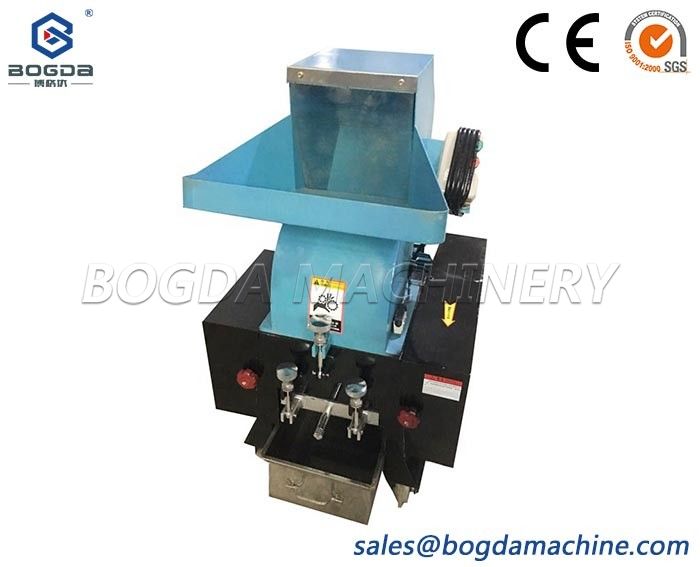

The Mini Plastic Crusher is mainly used to crush HDPE bottle, wood sheet, rubber, plastic, paper, glass bottle, PE film and other waste materials. The small plastic grinder is suitable for waste recycling in various industries. According to each customer's requirements, such as input size, output size, capacity, color of machine body
Product Description
The Mini Plastic Crusher is mainly used to crush HDPE bottle, wood sheet, rubber, plastic, paper, glass bottle, PE film and other waste materials. The small plastic grinder is suitable for waste recycling in various industries. According to each customer's requirements, such as input size, output size, capacity, color of machine body, voltage and etc, we can work out a suitable proposal for our customers. The machine has the characteristics of low speed and low noise.
Also, the plastic crusher machine is used in production line.
Features:
1.The material of machine body is super quality cast steel, not subject to fractures.
2. It is designed for several options of blades, strong in shearing force minimizing of motor load and effective in crushing.
3. The unique design also ensures perfect feeding with large inlet, and low noise with double sound-insulation.
4. Advanced sealing system to effectively prevent leakage of materials from the box, to ensure the service life of bearings.
5. The cutters are made of hign strength alloy and are suitable for cutting various kinds of high strength materials.
6. Material containers are made of stainless steel with wheels undelete durable and convenient for cleaning and moving.
7. Independently controlled electric box
8. Protective guards ensure the safety of the operators.
9. The whole machine system conforms to CE safety standard.
10. The main advantage of the vertical glass bottle crusher machine is that it saves a lot of cutting labor and cutting waste, saving energy and reducing consumption, and is safe and efficient. The entire system is controlled by the PLC central control system.
Main Usage and Application:
Our small plastic grinder machine also can crush other various kinds of materials and meet many crushing requirements such as:
1. PE/PP film, PVC sheet, HDPE bottle and etc.
2. PET bottles, glass bottles, beverage bottles, etc.
3. Plastic barrel, plastic plate, plastic pipe, pipe fitting, etc.
4. Wooden pallet, forklift pallet, automobile tires, PCB board etc.
5.Packing materials, cardboard, cartoon, etc.
6. Electronic appliances, such as waste home appliances, TV set, washing machines, refrigerator shells,etc.
7. Chemical fiber, such as waste clothes, space bags, fishing net, etc.
Our plastic crusher is widely applied in the industrial sectors of daily life articles, toys, household utensils, electrical appliances, building materials, etc.
Main Technical Parameter
| Model | PC-250 |
| Quantity of rotary blades (pcs) | 12 |
| Quantity of stationary blades (pcs) | 2 |
| Specification of blades (mm) | 50x50x12 |
| Motor power (KW) | 4 |
| Diameter of sieve mesh (mm) | 6-12 |
| Material of blade | qsicr |
| Product capacity (kg/h) | 100-200 |
| Transmission method | by belt (B2147X4) |
| Voltage | 380V 50Hz |
| Electric brand | Famous brand in China |
| Way of output | Equip with material receiver |
| Specification of machine (mm) | 750x900x1230 |
| Weight of machine (kg) | about 300 |
Claw Type Cutter Blade
BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.
BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.
Fast response, good quality, best price and perfect service are our advantages and culture.
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
