Knife Materia: 45 Cr,SKD-11 Bearing Brand:NSK Capacity:100-400KG/H Application:PVC PP ABS PE PS TPU EVA
Knife Materia: 45 Cr,SKD-11
Bearing Brand:NSK
Capacity:100-400KG/H
Application:PVC PP ABS PE PS TPU EVA
Plastics recycle pulverizing granulator machine include rotor(turbine) type grinder and disc pulverizers grinding machine.
According to the way of milling,there are room temperature and cryogenic pulverizing machine.
Here BOGDA introduced is the room temperature pulverizing machine.
Powder Picture
Application
Plastics scrap recycle pulverizer granulator machine mainly used in producing plastic powder from plastic granules, scraps. This plastic grinder has features of compact structure, high capacity, low noise.
The whole set of plastics PE pulverizer machine include feeding hopper, grinding chamber, vetex hopper, vibrating sieve, regrinding system, dust-cleaner.
The blades for this plastics pulverizer machine could be rotor type blade and disk type blade. With cooling system, our plastic pulverizers can apply to PP, PE, EVA, ABS, PVC materials.

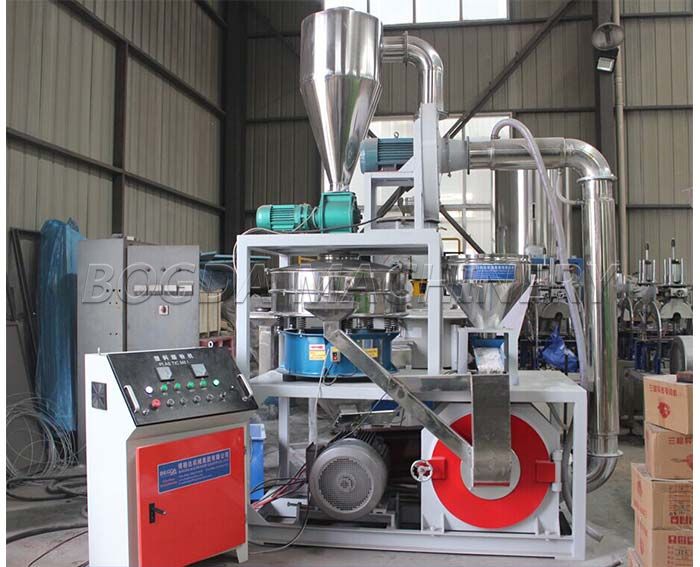

Main Pictures
Note: the capacity depends on the types and size of grinding materials, along with the finess of the grinding materials. Usually, the original diameter of the materials ranges from 5-8mm.
Detail Images

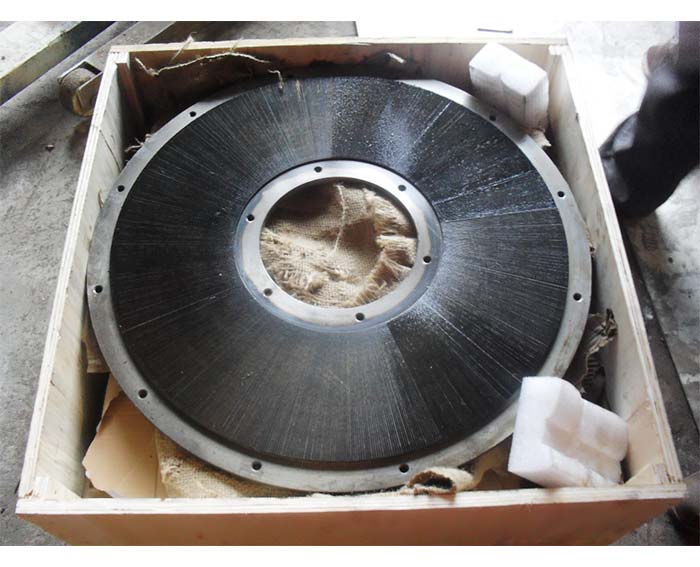

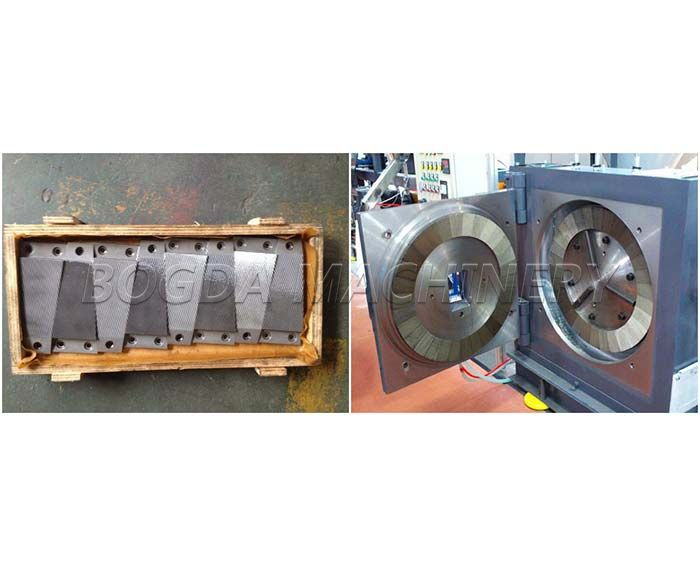

Two kinds of knife for MF series plastics recycling pulverizer
Segment type blades: can be sharpened
Integral type blades: can't be sharpened
Technical parameter
Model | MF-400 | MF-500 | MF-600 | MF-800 |
Disc diameter | 400mm | 500mm | 600mm | 800mm |
Main motor | 30kw | 37kw | 45kw | 75kw |
Capacity | 50-150kg/h | 120-280kg/h | 160-480kg/h | 280-880kg/h |
Dimensions | 2.8x2.6x3.7m | 3x2.8x3.9m | 3.2x3x4.2m | 4x3.5x4.5m |
Weight | 1580kgs | 2280kgs | 2680kgs | 3280kgs |

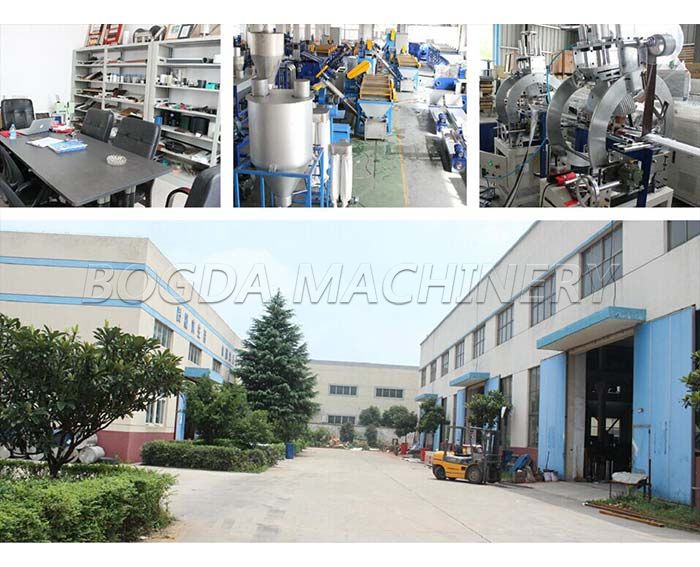

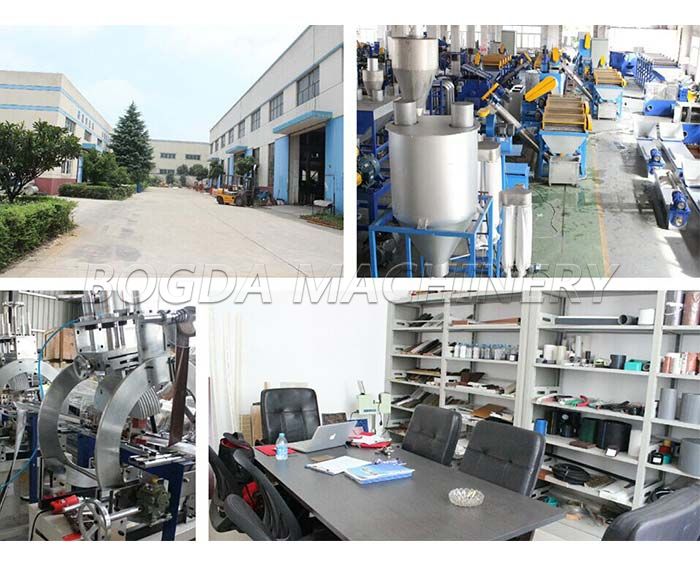

BOGDA was established in 2013, is specialized in research, manufacture and marketing of plastic extrusion machine, mixer and mixing plant, crusher, shredder, pulverizer, granulating line. BOGDA is located in Zhangjiagang City (2 hours drive from Shanghai), Jiangsu Pro, China. With years production and export experience, creative, innovative emotion, BOGDA developes high-quality products for the market.High skilled artisan together with modern processing methods ensure that BOGDA has stable and high performance products.
We provide below machines and plants to demestic and international market:
•Extrusion line for plastic profile/sheet/pipe
•Mixer and mixing plant for powder and granules
•Screening, converying, packing system for plastic granules
•Plastic profile/sheet crusher, PVC/PP/PE pulverizer
•Plastic granulating lines
•Auxiliary machines
Our mission: Help customers to gain profits ans assistant customer to sucess. BOGDA's development comes from the client's satisfaction.
Inner film and outer wood package for used plastics recycling pulverizer machine
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
