Single shaft shredder SKD-11 material blades
Single shaft shredder
SKD-11 material blades

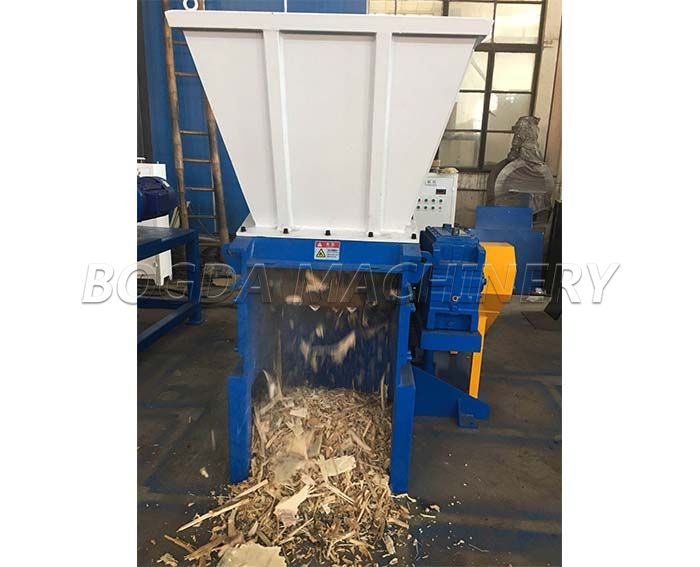

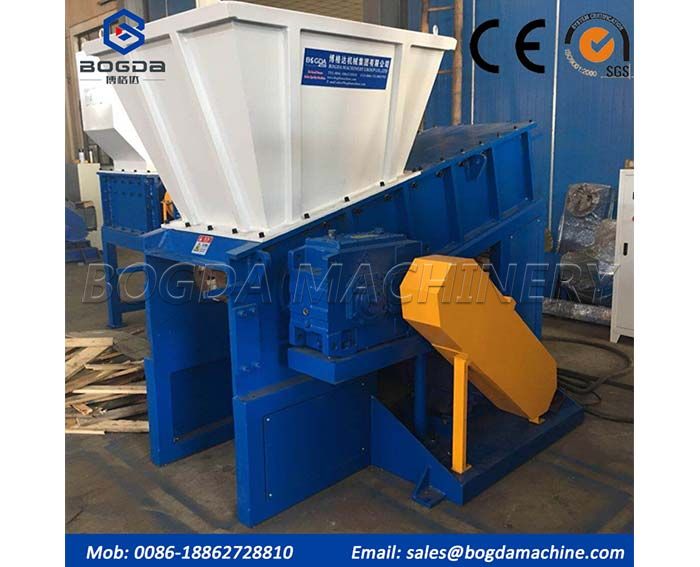

1-single shaft shredder
Speed for high speed: 1450 rpm, single shaft structure, available incans, paint bucket iron copper metal into the ball, the crushed particles smaller,more uniform (or: 10mm*10mm*10mm). Currently the most primitive and the most common, but there are 2 shortcomings: one: the processing of paint and other big area of scrap iron, low efficiency of high power consumption, two: noisecausing serious nuisance, the advantages are: after four shaft shredder then into the single shaft machine , high efficiency and low power consumption.
2-double shaft scrap shredder
The knife shaft for low speed: 26/15 R / min, high torque (meaning: low speedcrushing strength), double shaft structure, can be used for metal, plastic,tires,woven bag,crushered particles (or: 20mm*20mm*50mm).
3-four shaft scrap shredder
The knife shaft for low speed: 26/15 R / min, high torque (meaning: low speedcrushing strength), four knife shaft structure, especially suitable for electronicwaste, tire, contaminated soft material crushing, crushing particle is a medium-sized, more uniform (or: 20mm*20mm*50mm).
Application
Plastics - Injection molding, extrusion, blown film and other common plastics, nose block, etc.
• Wood - wood pallets, logs, scrap wood, etc.
• Paper - Waste paper, wrapping paper, cardboard, etc.
• Cable - Copper, aluminum and composite materials cable, etc
• Aluminum - Cans, aluminum scrap, etc.
• Fiber - Carpets, protective clothing, etc.
• Sponge - Industrial waste, etc.
• Composite materials - glass fiber products, automotive windshields, sealing tape, etc.
Technical parameter
Model | Shaft Diameter (mm) | Shaft Width (mm) | Rotary Block Qty | Motor Power (Kw) | Output (kg/h) | Dimension (mm) |
BGS-600 | 250 | 600 | 28 | 30 | 200-300 | 1750x1250x1680 |
BGS-800 | 400 | 800 | 36 | 37 | 500-700 | 1820x1400x1740 |
BGS-1000 | 400 | 800 | 58 | 45 | 800-1000 | 2650x1550x2000 |
BGS-1200 | 400 | 1200 | 68 | 55 | 900-1100 | 3000x2100x2300 |
BOGDA International Co, BOGDA Machinery Co, who is a leader of Plastic Machine and Raw Material. Such as Plastic Profile/Pipe/Sheet Extrution Equipment,Injection Machine and Waste PP/PE Film, PET Bottle Washing Recyce Machine, as well as Plastic Granulating Line, meanwhile we are familiar with kinds of raw material to help our customers choose the most suitable machine on best quality by economically.
In wooden cases, wooden splints, wrap film and other specialized packaging film, to ensure that the machine impact damage in the long time of land and sea transport, thus reaching the customer factory intact
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
