CE Approved Automatic PVC Plastic Crusher Pulverizer Machine Unit

Waste plastic crushing machine suitable for profiles, PET bottles, and various waste industries. According to per customer's requirements, such as the input size of the material, capacity and the final output size etc, we can work out a suitable proposal for our customers.

Product Description

Product Description

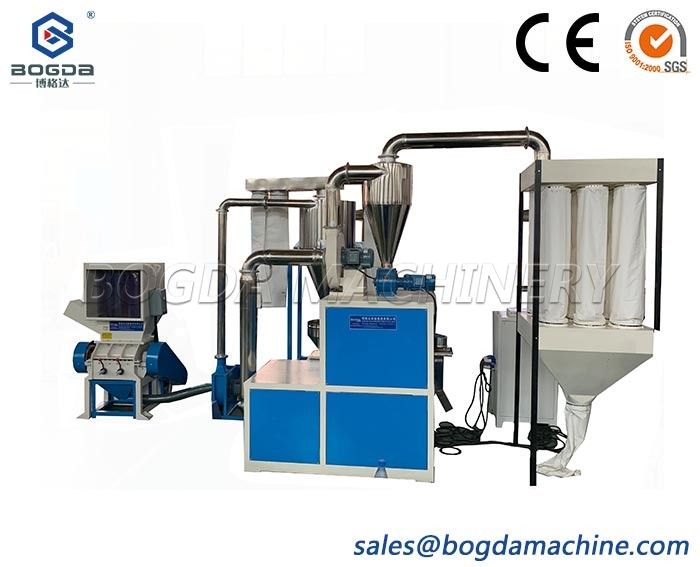

CE approved Automatic PVC Plastic Crusher Pulverizer Machine Unit

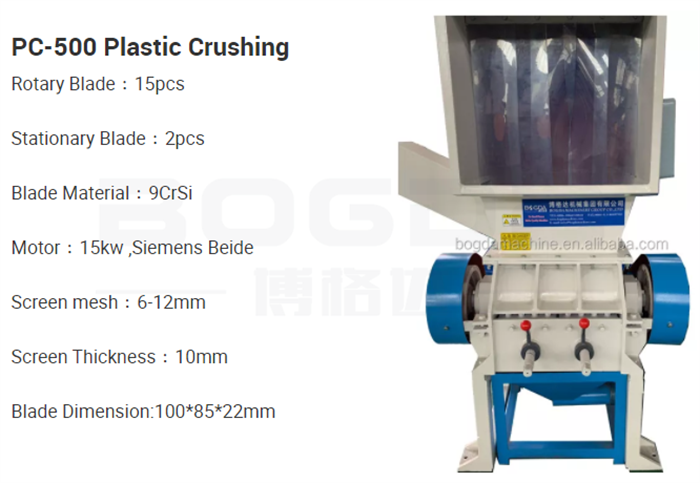

Crusher

Waste plastic crushing machine suitable for profiles, PET bottles, and various waste industries.  According to per customer's requirements, such as the input size of the material, capacity and the final output size etc, we can work out a suitable proposal for our customers. After being shredded by the single shaft shredder/crusher/granulator machine, the output material could be used directly or go into the step of size reduction.

Plastic Pulverizer

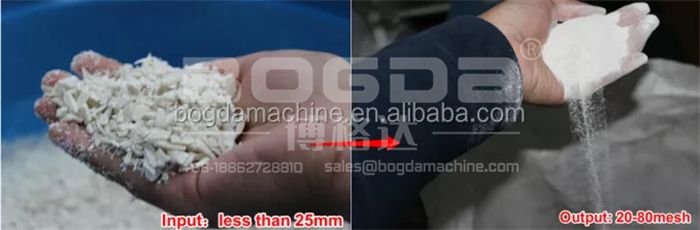

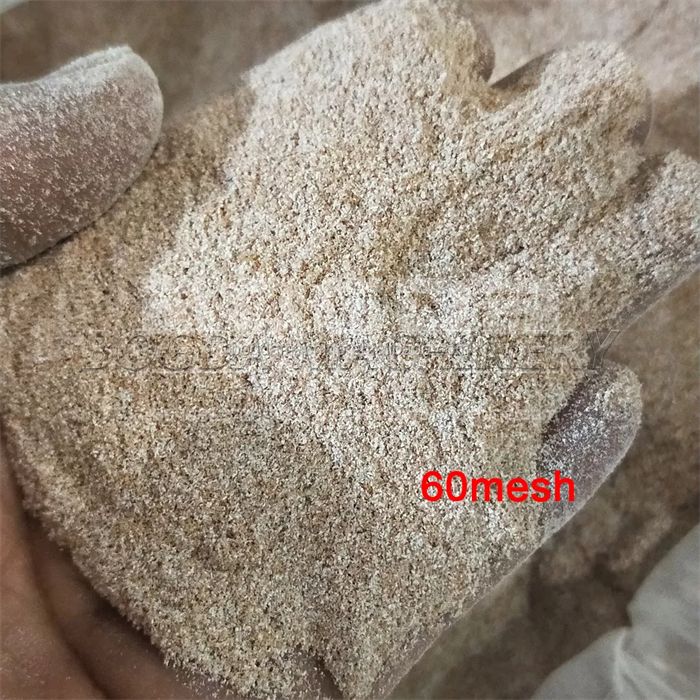

1. Plastic pulverizer making machine can grind all kinds Hard & Soft materials into 20-80 mesh powders in normal temperature

2. Widely use range, PVC/PE/ABS/PS/PA/PC Materials

3. Plastic pulverizer has a more higher output, 2 or 3 times than normal miller, equip with Dust collector. An ideal energy saving machine in plastic industries

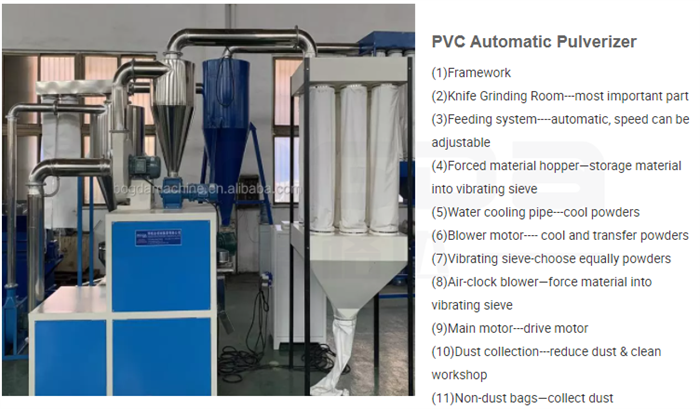

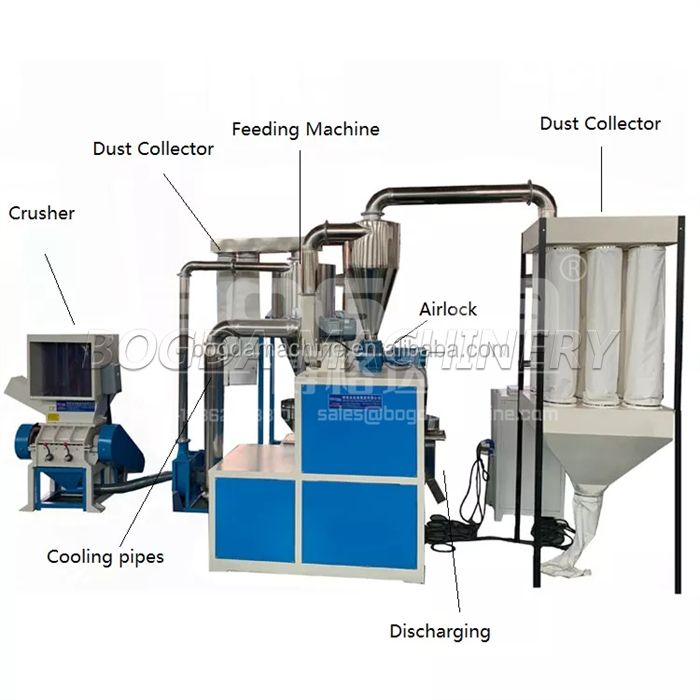

4. Includes automatic feeder, main engine, air fan conveying, cyclone separator, automatic shaker screen, auto coarse material milling again,high-efficiency dust collector system. Automatic and space saving.

5. Sword adopted imported stainless steel, durable, can work continous.

6. Plastic pulverizer Knife can be adjusted easily, easily maintained and control

7. Main shaft adopted SKF, matched with oil pump imported, can used about 3-4 years in normal use.


CE Approved Automatic PVC Plastic Crusher Pulverizer Machine Unit

CE Approved Automatic PVC Plastic Crusher Pulverizer Machine Unit

CE Approved Automatic PVC Plastic Crusher Pulverizer Machine Unit


Knife Design 12pcs fixed blades, 24pcs movable knives
Capacity 180-250KG/H for PVC
Powder mesh20-40mesh
Vibrating sieve motor 800model vibrating, 0.55kw
Vibrating sieve diameter10-80meshs, which can be adjustable
Drive motor37kw, 380V 50HZ 3-P
Motor manufacturerSIEMENS BEIDE Famous
Outer size 2200*1900*4200mm (L * W *H)

CE Approved Automatic PVC Plastic Crusher Pulverizer Machine Unit

CE Approved Automatic PVC Plastic Crusher Pulverizer Machine Unit

CE Approved Automatic PVC Plastic Crusher Pulverizer Machine Unit


Detailed Images

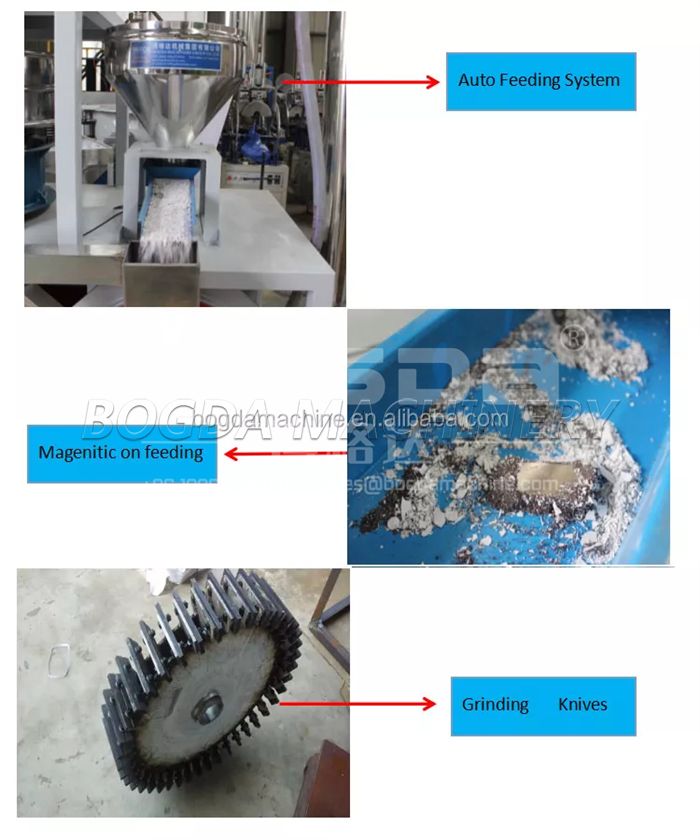

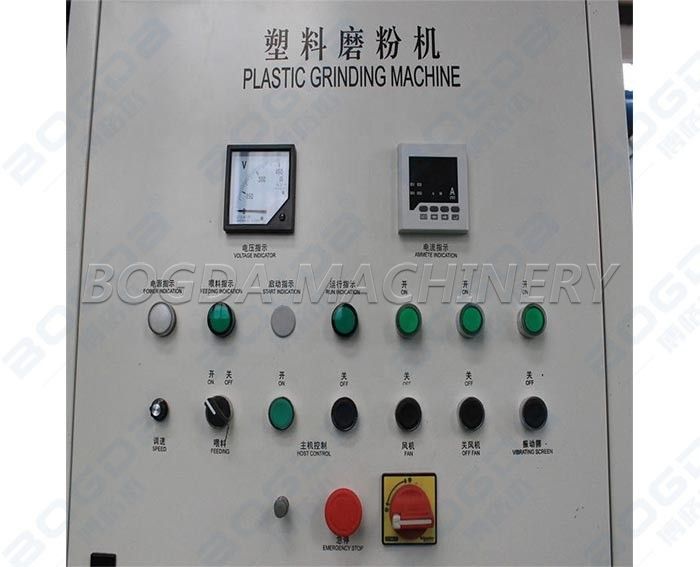

Here are some detailed pictures of pulverizer machine.

CE Approved Automatic PVC Plastic Crusher Pulverizer Machine Unit

Packaging and Shipping

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.

BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.

Fast response, good quality, best price and perfect service are our advantages and culture.

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

Customer Review

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

FAQ

Q: Where can we get spare part?

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

Q: How can I help you when face some technical problem?

A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

Q: How long is the guarantee?

A: 12 months since the first day customer operates (except wear parts).

Q: Any quality checking before shipment?

A: 100% confirm, run and test machines before shipment with quality certificate.

Q: Can I operate machine if don’t have experienced engineers?

A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements

Q: How many electric, water, air need for the machines?

A: Technical department supply the whole layout for workshop details.
