Screw material :38CrMoAlA Nitride layer depth: 0.5-0.8 mm Hardness of nitriding: not more than 2 Surface roughness: Ra 0.4 um Screw straightness: 0.015 mm Hardness of hard chrome plating after nitriding: >950HV
Production Application
Single Screw Barrel is widely used in PP PE ABS PC PLA PET PCL PS PVC Granules Profiles Plastic Film Plate Sheet Pipes Extrusion Machine. It is suitable for plastic granules raw material.
Machine Specification

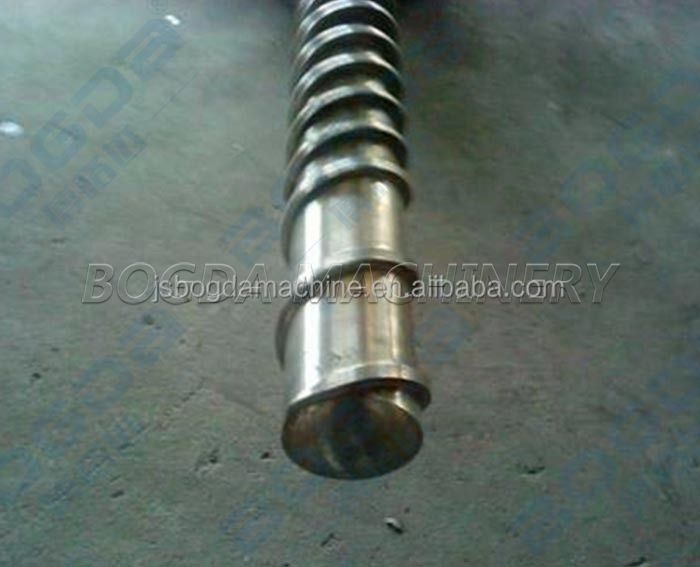

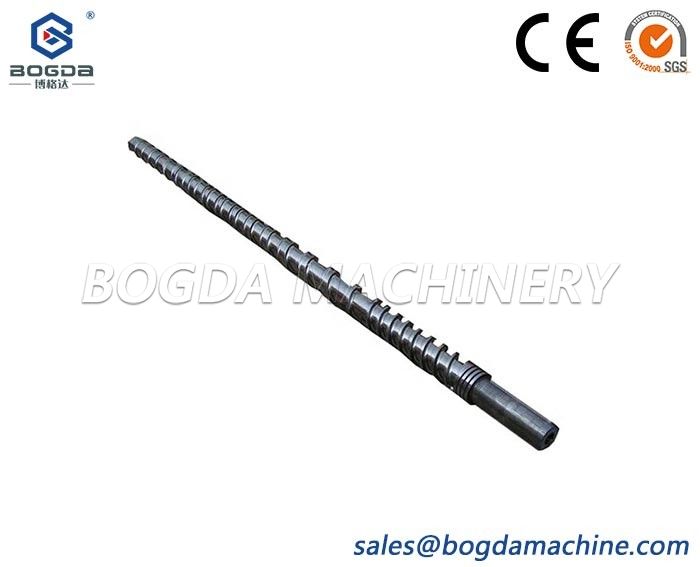

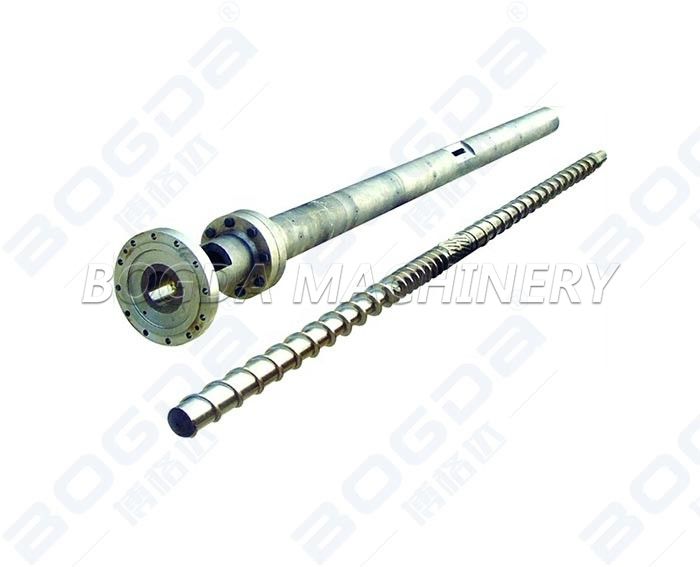

38CrMoAlA Extrusion Single Screw Plastic Extruder Screw Barrel
Screw material :38CrMoAlA Nitride layer depth: 0.5-0.8 mm Hardness of nitriding: not more than 2 Surface roughness: Ra 0.4 um Screw straightness: 0.015 mm Hardness of hard chrome plating after nitriding: >950HV
Heat Treatment For Single Screw and Barrel
1. Nitride treatment
2. Hard chrome plating
3. High frequency quenching
4. Spraying bimetallic alloy for corrosion
5. Resistance and abrasive resistane
6. Vacuum quenching

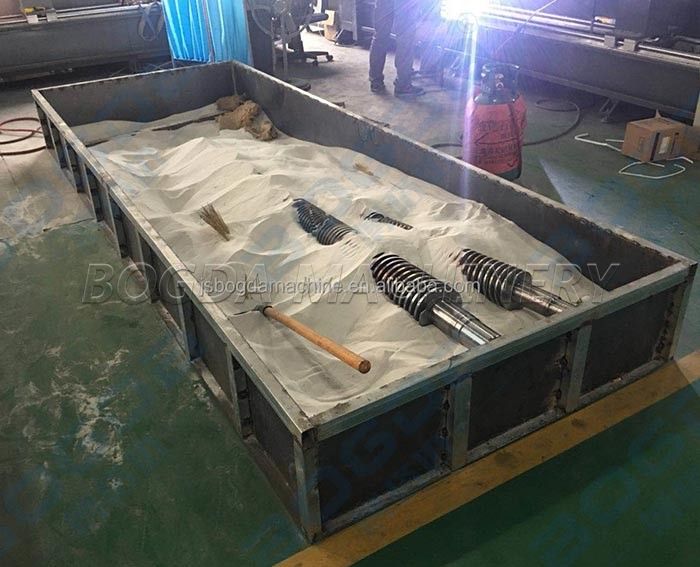

Screw Cooling Treatment
After the screw is processed, it can not be placed directly beside the screw. It should be cooled down slowly to maintain the temperature.
Packaging and shipping Requirement For Double Alloy Treatment Conical Double Screw Barrel

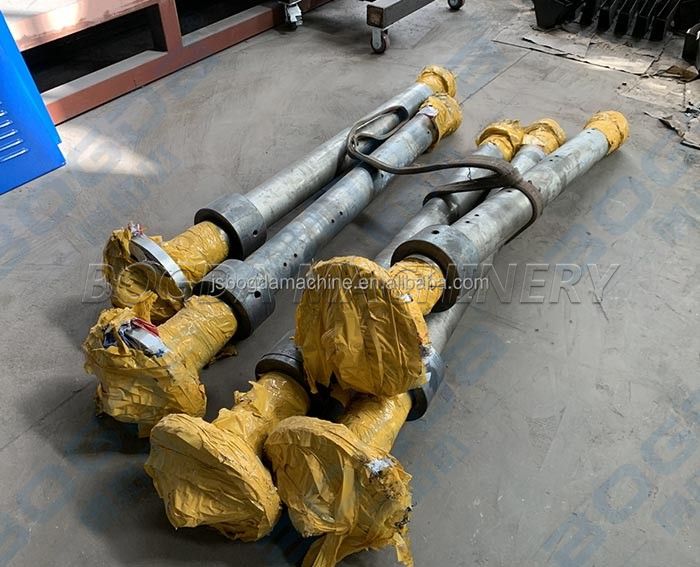

Screw and barrel to pack by steel frame, not to easy to be broken in shipping.
Also, can packed by plywood as you like.
Product Paramenters
Single Screw Barrel Technology Parameter | |||||
Model | Motor Power (kw) | Screw Diameter (mm) | L/D | Screw Rotation Speed (rpm) | Output (kg/h) |
SJ45 | 15-22 | 45 | 28/30/33 | 120 | 15-45 |
SJ55 | 22-37 | 55 | 28/30/33 | 120 | 45-80 |
SJ65 | 30-45 | 65 | 28/30/33 | 100 | 60-120 |
SJ80 | 45-55 | 80 | 28/30/33 | 100 | 80-200 |
SJ90 | 55-90 | 90 | 28/30/33 | 90 | 150-280 |
SJ105 | 75-110 | 105 | 30/33/35 | 90 | 180-350 |
SJ120 | 132-185 | 120 | 30/33/35 | 90 | 250-450 |
SJ150 | 15-315 | 150 | 30/33/35 | 80 | 400-600 |
SJ170 | 220-355 | 170 | 30/33/35 | 80 | 550-700 |
BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.
BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.
Fast response, good quality, best price and perfect service are our advantages and culture.
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
