Usage: industry plastic, Controller: microcomputer, absorb material: flakiness, granules; Voltage: customized
Descriptions

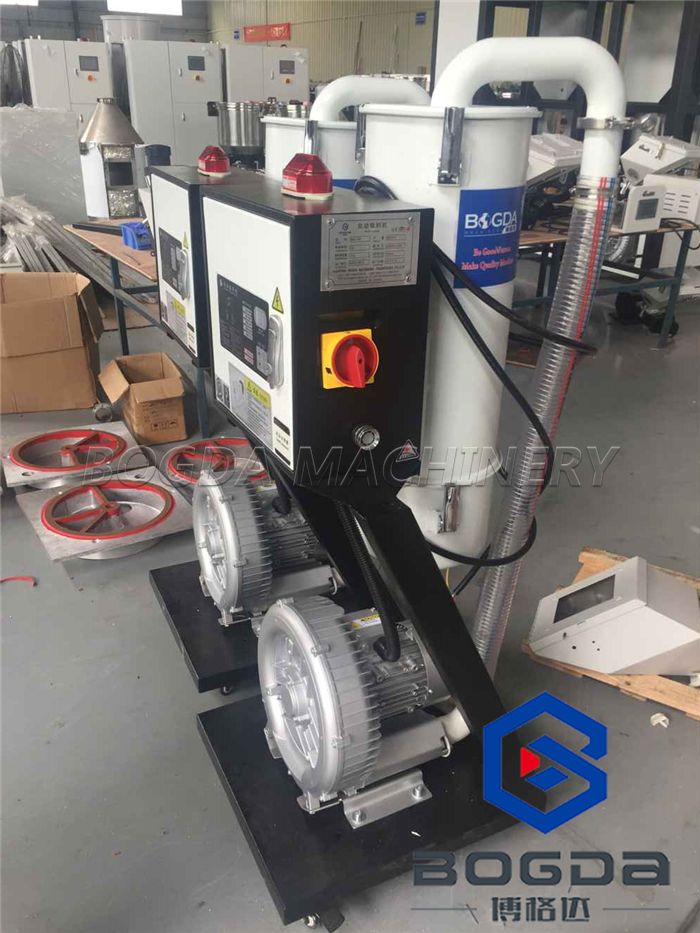

This series powder loader adopted vacuum absorption transported principle, can be make the particle diameter and all kinds of powder and original granular,which greater than a micron sent to specified equipment from all kinds of storage containers. Using with profile unit, mixing system, chemical processing equipment, replace
artificial feeding completely, this is the ideal environmental protection powder conveying equipment.
Features
1.This series on the basis of absorbing the advantages of import prototype design and manufacture
2.Adopting imported cutting dust filter, high strength, good effect of cutting dust, no pollution.
3. Vibration discharge system can prevent powder bypass, make it more smoothly.
4. Adopting pulse compression air blowback cleaning device, port explosion shock the filtering surface, cleaning effect will be better.
5. The aspiratory inlet and suction inlet will be close automatically when counter blowing, without contamination of the environment and human populations.
6. This series adopts absorption and counter blowing clean up at a time, make conveying more efficient, and can be extend the service life of the filter unit.

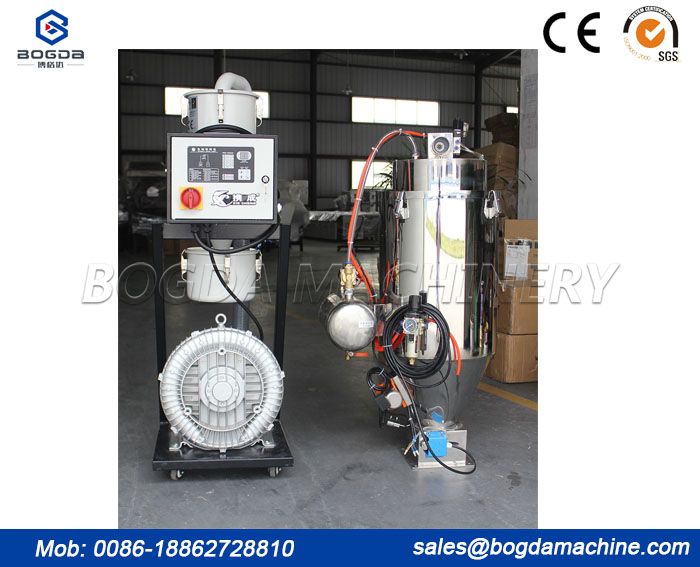

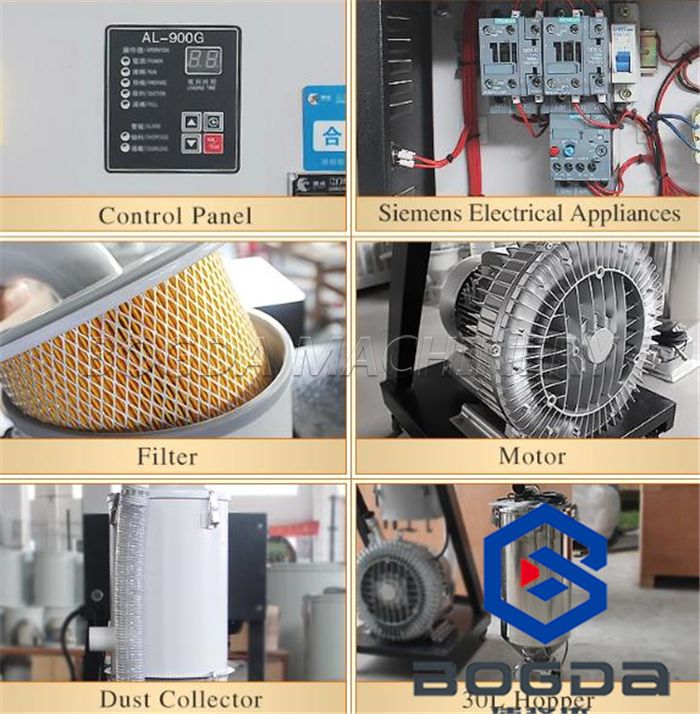

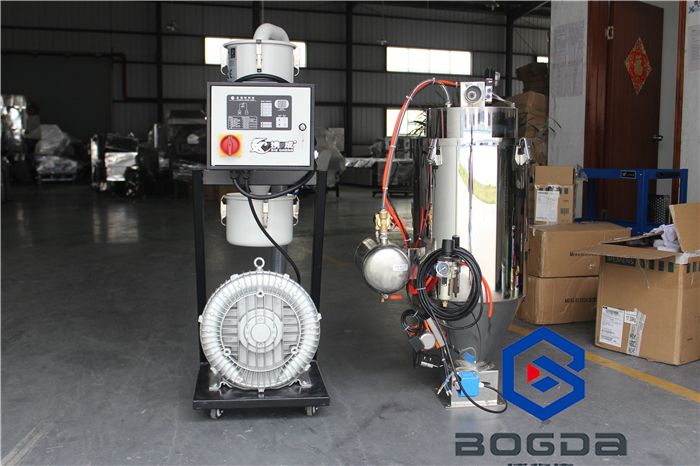

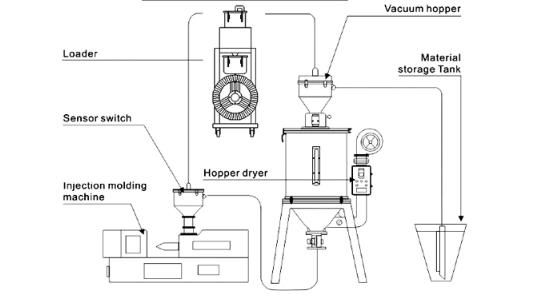

Structure of plastic powder feeder
Technical parameter
Model | Converying capacity (kg/h) | Hopper practical capacity (L) | Vortex pump power (kw) | Vortex pump voltage (V) | Suction tube diameter (mm) | Absorb tube diameter (mm) |
BG-XF5HP | 400 | 40 | 4 | 380 | 51 | 51 |
BG-XF7.5HP | 600 | 40 | 5.5 | 380 | 51 | 51 |
BG-XF10HP | 800 | 60 | 7.5 | 380 | 63 | 63 |
Note: Voltage can be customized, 380V is standard equipment
BOGDA Plastic Machinery Co, who is a leader of Plastic Machine and Raw Material. Such as Plastic Profile/Pipe/Sheet Extrution Equipment,Injection Machine and Waste PP/PE Film, PET Bottle Washing Recyce Machine, as well as Plastic Granulating Line, meanwhile we are familiar with kinds of raw material to help our customers choose the most suitable machine on best quality by economically.

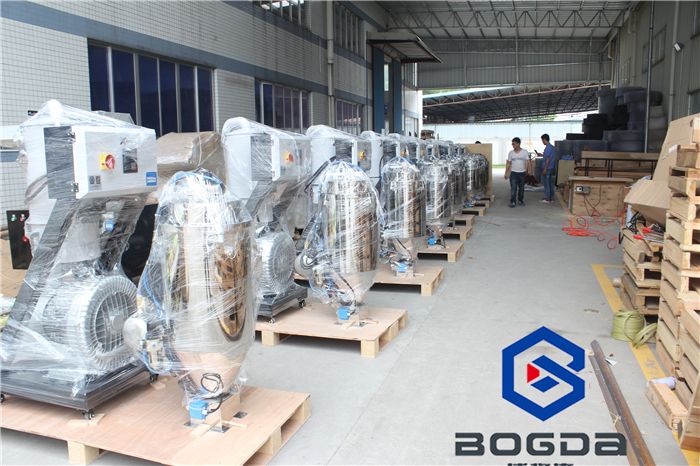

In wooden cases, wooden splints, wrap film and other specialized packaging film, to ensure that the machine impact damage in the long time of land and sea transport, thus reaching the customer factory intact.
