Relying on the different material properties, we select the proper transmission method to combine with the hot/cold mixer as well as the devics of automatic metering, dosing system, transfer hopper and recycling hopper in connection with the extruder,which shapes a fully-exclosed and dust-free producing chain.
Product Description
Relying on the different material properties, we select the proper transmission method to combine with the hot/cold mixer as well as the devics of automatic metering, dosing system, transfer hopper and recycling hopper in connection with the extruder,which shapes a fully-exclosed and dust-free producing chain.
By such way, we get the improvement of mixing work environmental and capablity to meet the production requirements in large quantity, high quality , low cost and high effiency.
Advantages of auto dosing mixing loading system
Reduce the loss raw materials
Contamination free handling of all raw material. Reduce spillages of costly raw material.
Automatic control system
Less human involvement leads to less human errors.
Auto control system to monitor whole processing.
Protect the environment
Effective utilization of raw material leads to increase productivity.
Environmental protection, without dust spillage.
Technical Parameter

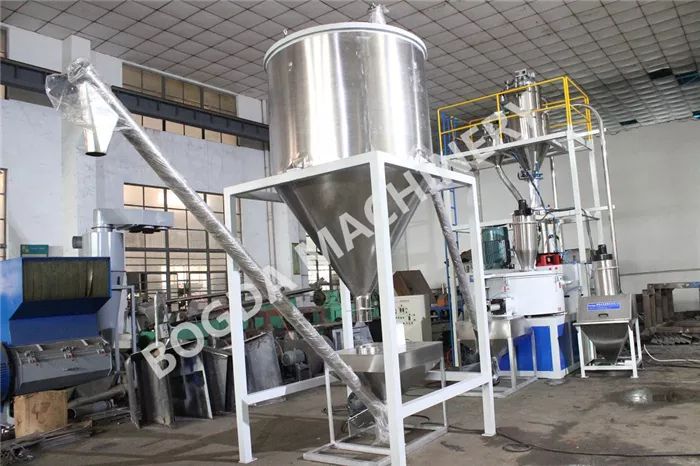

Whole auto-compounding system process
1. PVC resin and CaCo3 weighing system
2. Main additives weighing system, include power or liquid additives
3. Mixing

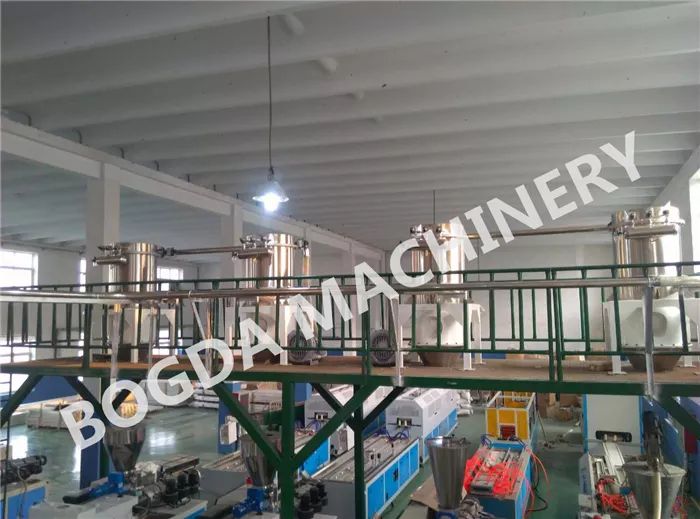

4. Dry blend storing and conveying system

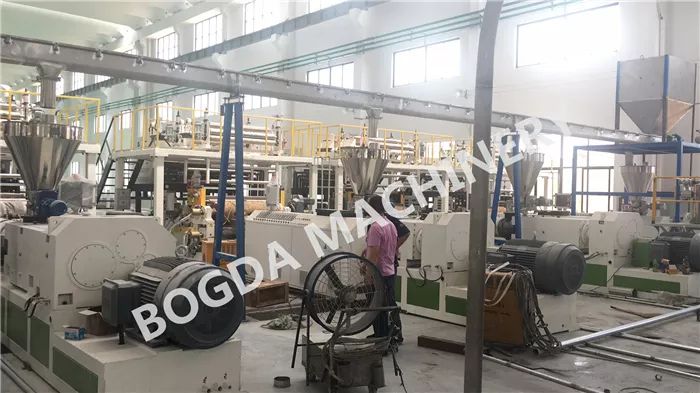

5. Feeding system to the extrusion lines.
Machine list of auto dosing system(as reference)
No. | Item | Quantity |
1 | PVC loading station | 1set |
2 | CaCO3 loading station | 1set |
3 | Auto vacuum sucking and dosing system | 1set |
4 | Additive loading and central de-dusting system | 1set |
5 | Non-dust loading silo | 5set |

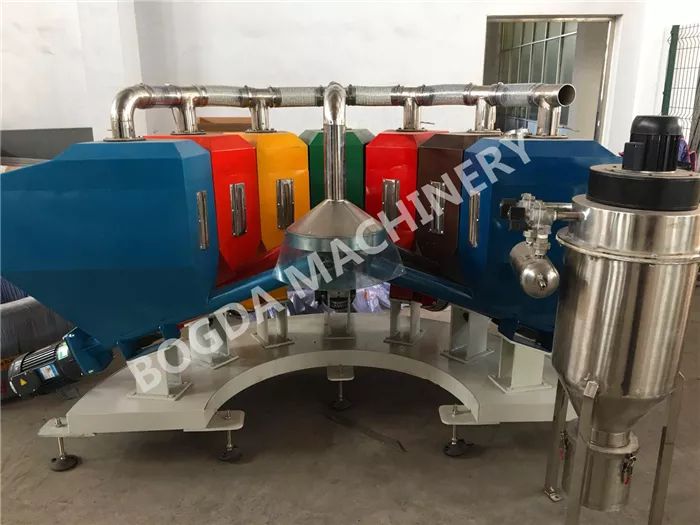

6 | Additive auto dosing system | 1set |

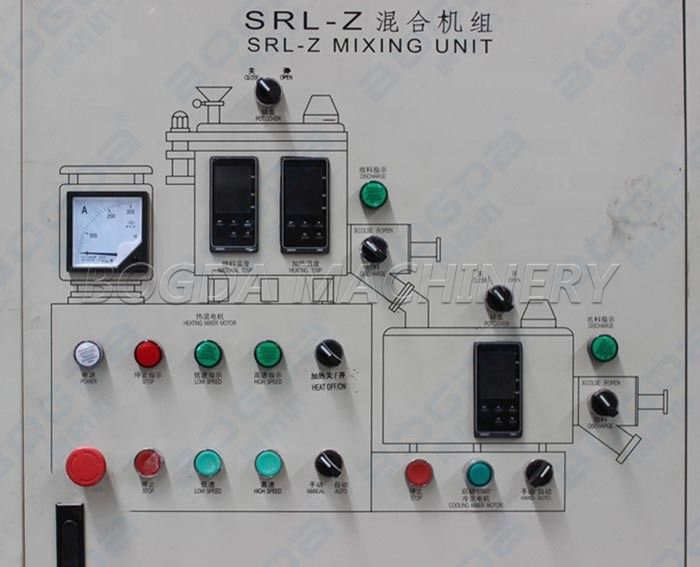

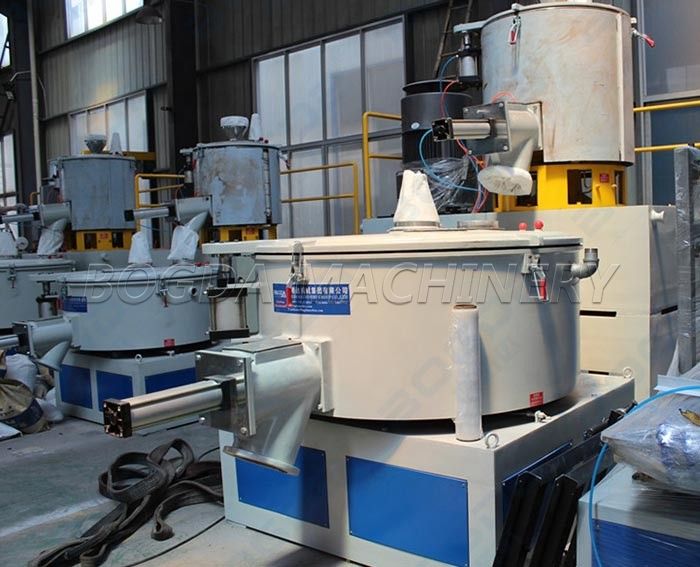

7 | Mixer group SRL-Z300/600A and de-dusting system | 1set |
8 | Dry blend vacuum sucking system | 1set |

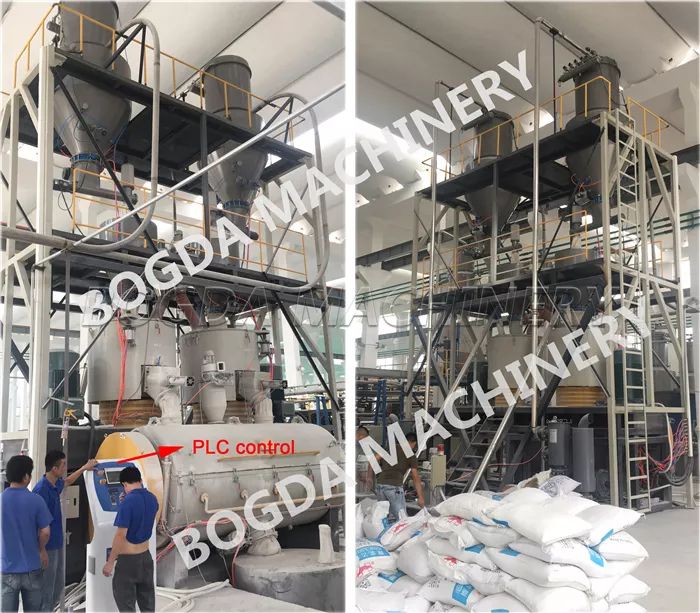

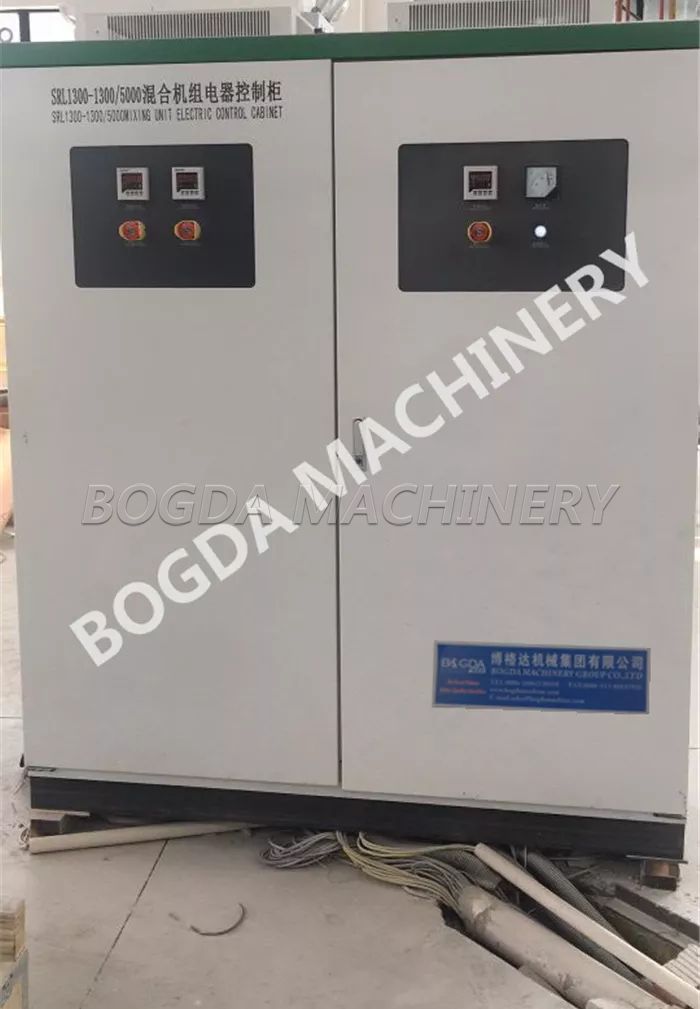

9 | PLC auto control system | 1set |
10 | Electric wire cable and bridge, supplied by USER | 1set |
11 | Package & transportation | 1set |
BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.
BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.
Fast response, good quality, best price and perfect service are our advantages and culture.
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
