Frame Material:Stainless Steel 304/316; Usage: Material Transimission;
Description
1. Wide temperature range, good anti-sticking, can be added with the board, to enhance the angle of large, easy to clean, easy maintenance
2. For a variety of environments, suitable for a variety of special occasions and uses
3. Feeding speed, high efficiency
4. Manufacturers can be customized plastic loading machine
5. Can be bent to facilitate the installation of the machine
Technical parameter
Model | Motor Power (kW) | pipe diameter (mm) | Capacity(kg/h) | Storge volume (kg) | Storge size(cm) |
ZD-600 | 1.1 | 76 | 600 | 80 | 65×65×80 |
ZD-1000 | 1.5 | 102 | 1000 | 150 | 100×75×80 |
ZD-2000 | 2.2 | 114 | 2000 | 200 | 100×75×80 |
ZD-3000 | 2.2 | 133 | 3000 | 250 | 100×100×100 |
ZD-5000 | 3 | 159 | 5000 | 300 | 100×100×100 |
ZD-8000 | 3 | 219 | 8000 | 500 | 120×120 |

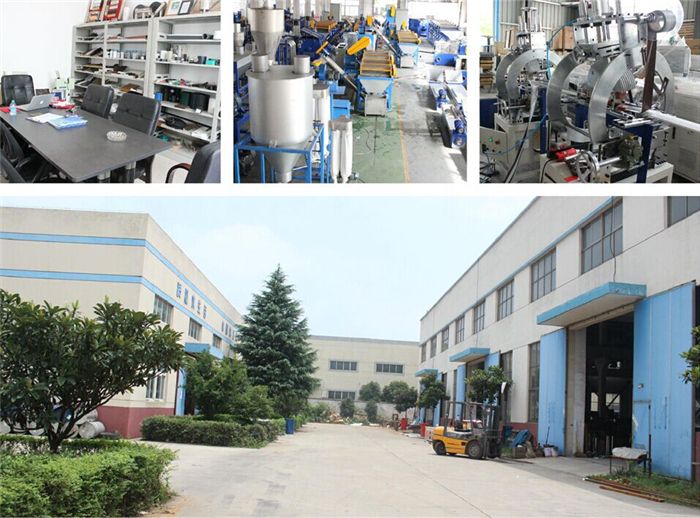

BOGDA Plastic Machinery Co, who is a leader of Plastic Machine and Raw Material. Such as Plastic Profile/Pipe/Sheet Extrution Equipment,Injection Machine and Waste PP/PE Film, PET Bottle Washing Recyce Machine, as well as Plastic Granulating Line, meanwhile we are familiar with kinds of raw material to help our customers choose the most suitable machine on best quality by economically.
In wooden cases, wooden splints, wrap film and other specialized packaging film, to ensure that the machine impact damage in the long time of land and sea transport, thus reaching the customer factory intact.
