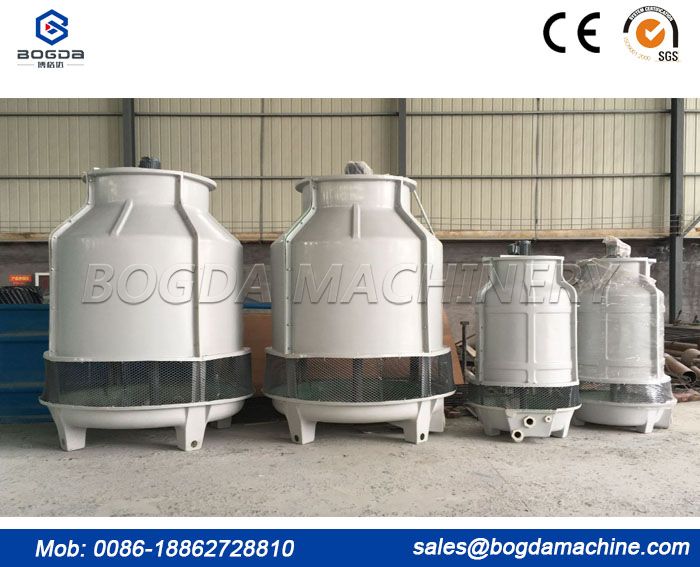

Tower Body: Bottle design, reduce resistance, glass fiber reinforced plastic material, bright colors, the surface of the resin contains anti-ultraviolet agent, anti-aging, high strength, light weight, corrosion resistance. Filler: Adopt the modified temperature-resistant hard PVC (PVC) wave plate with the highest temperature 50 ℃, or polypropylene (PP) the highest temperature 85 ℃.
The wave plate increases the convex rib, the water redistribution ability is strong, the air resistance is reduced to a low, effectively prolongs the water circulation and the cooling wind in the tower contact and the heat exchange time.
Water cloth: The use of water to automatically rotate the reverse impact of water, water cloth shell by ABS or aluminum alloy, equipped with stainless steel ball bearings, flexible and reliable operation, low head, not sleep evenly.
Fan: Low noise, high efficiency fan designed according to cooling tower parameters.
Motor: Low noise energy-saving motor designed for cooling tower, good sealing performance, high temperature resistance, efficient and small noise.
Air Inlet window: Equipped with louver mesh, reduce floating water, small air resistance, especially suitable for the northern region and the whole year need to use the cooling tower facilities and units. Bracket: All fans, fillers, air inlet window, tower body and other steel bracket for assembly, paint anti-corrosion or hot dip galvanizing treatment. Galvanized bolts are used in fasteners.
motor power | fan diameter | diameter of tower | height | water inlet diameter | |
B-5T | 0.18kw | 584mm | 860mm | 1100mm | 40 |
B-6T | 0.18kw | 584mm | 950mm | 1450mm | 40 |
B-10T | 0.18kw | 584mm | 950mm | 1580mm | 40 |
B-12T | 0.18kw | 584mm | 1000mm | 1670mm | 50 |
B-15T | 0.37kw | 760mm | 1100mm | 1750mm | 50 |
B-20T | 0.37kw | 760mm | 1300mm | 1800mm | 50 |
B-25T | 0.37kw | 760m | 1400mm | 1900mm | 50 |
B-30T | 1.1kw | 884mm | 1500mm | 1980mm | 80 |
B-50T | 1.1kw | 884mm | 1860mm | 2350mm | 80 |
\
