Building Material Formwork PP Plastic Concrete Formwork Construction Making Extrusion Machine

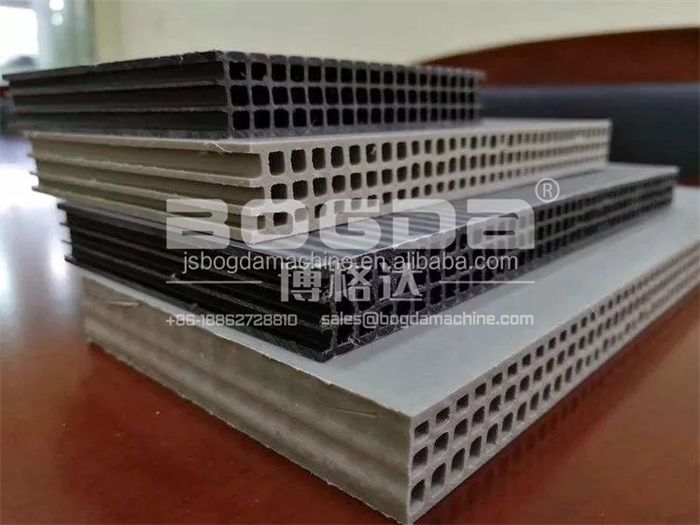

Hollow plastic building formwork is a kind of energy-saving and green environmental protection product, pp plastic combined with macromolecule nano-technology. It is a new product after wood formwork, composite steel formwork, bamboo-wood bonding formwork and all-steel large formwork. It is energy saving and environmental protection,and can complet

Product Description

Product Description

Building Material Formwork PP Plastic Concrete Formwork Construction Making Extrusion Machine

Hollow plastic building formwork is a kind of energy-saving and green environmental protection product, pp plastic combined with macromolecule nano-technology. It is a new product after wood formwork, composite steel formwork, bamboo-wood bonding formwork and all-steel large formwork. It is energy saving and environmental protection,and can completely replace the traditional steel formwork, wood formwork.

It can reuse over 60 times. USD 0.5 per time.

Building Material Formwork PP Plastic Concrete Formwork Construction Making Extrusion Machine

Building Material Formwork PP Plastic Concrete Formwork Construction Making Extrusion Machine

Building Material Formwork PP Plastic Concrete Formwork Construction Making Extrusion Machine

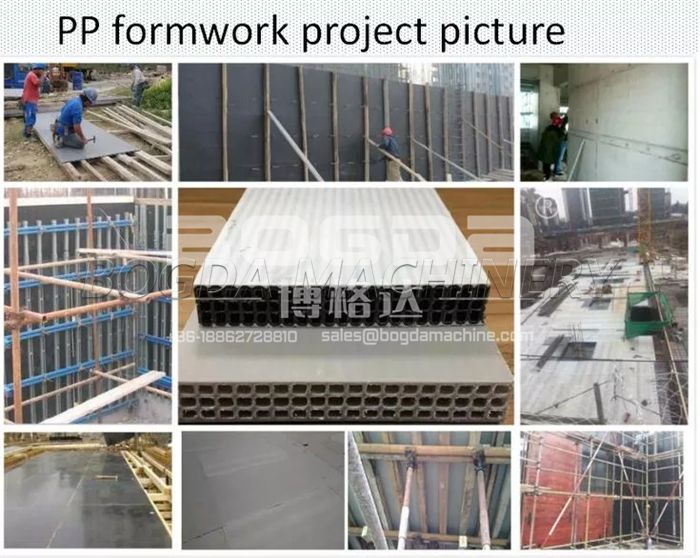

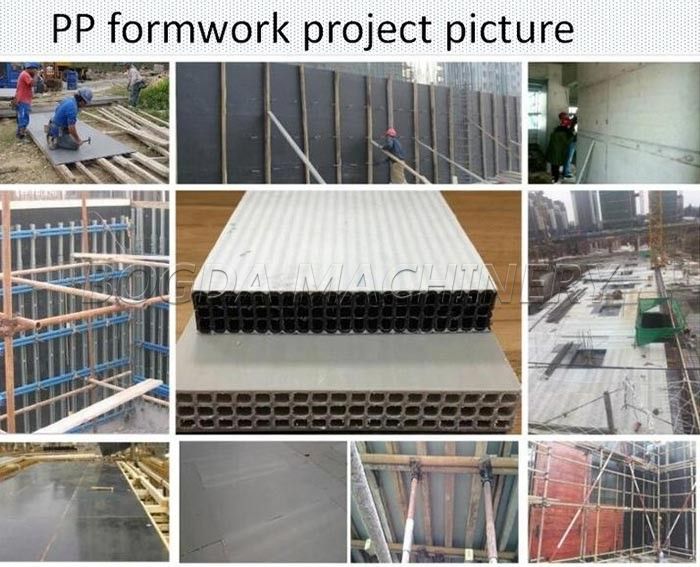

Plastic PP Hollow Formwork Board Wall Concrete Construction Advantage

1. Good water resistance.Even if it is completely immersed in water for many days, it will not be deformed by dampness.It will not rot and rust.

2. It is not friendly to cement and is sticky. It is easy to remove the mold after construction and will not be deformed due to cement adhesion. 3. High construction efficiency and good quality.The surface of the building constructed with it is smooth and smooth, without secondary modification. 4. The working procedure is saved and the construction efficiency is improved.At the same time, the surface of the template can be pretreated to get the desired metope pattern. 5. Light weight, convenient construction and high efficiency. 6. High support strength, not easy to deform. 7. Low cost. 8. Long life and repeated use.The final damaged plastic template can still be smashed again and reprocessed into a new template, saving resources and meeting the requirements of "Green industry "Requirements. 9. Good thermal insulation, which is conducive to shorten the construction period.

Building Material Formwork PP Plastic Concrete Formwork Construction Making Extrusion Machine

Building Material Formwork PP Plastic Concrete Formwork Construction Making Extrusion Machine

Building Material Formwork PP Plastic Concrete Formwork Construction Making Extrusion Machine

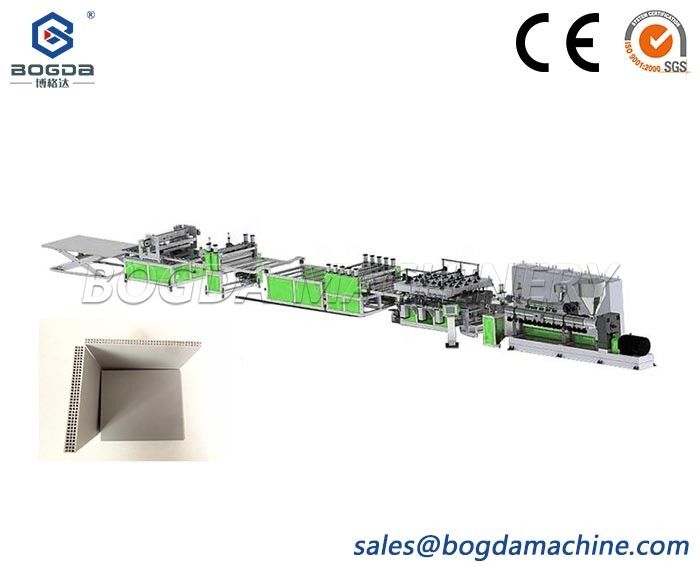

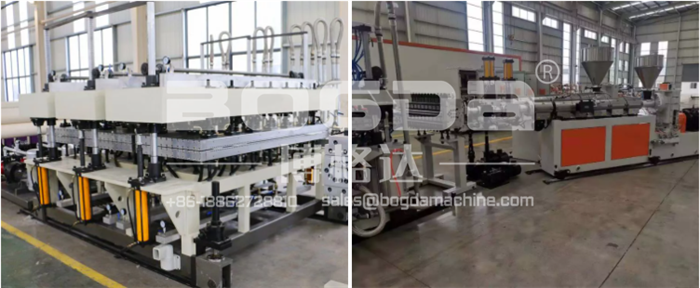

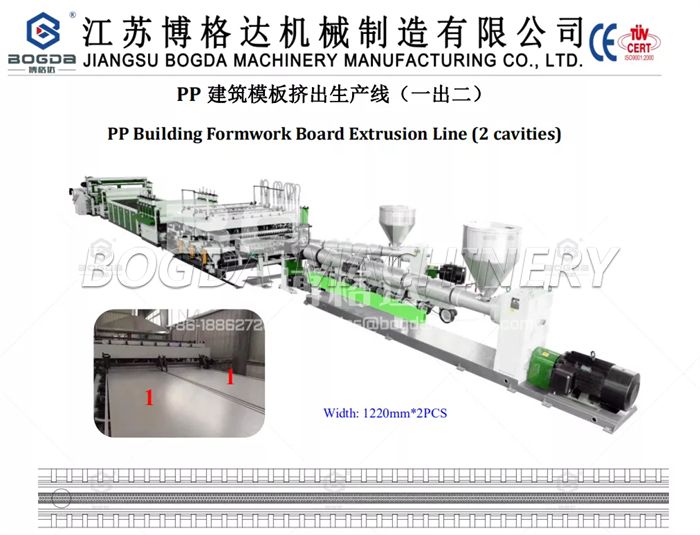

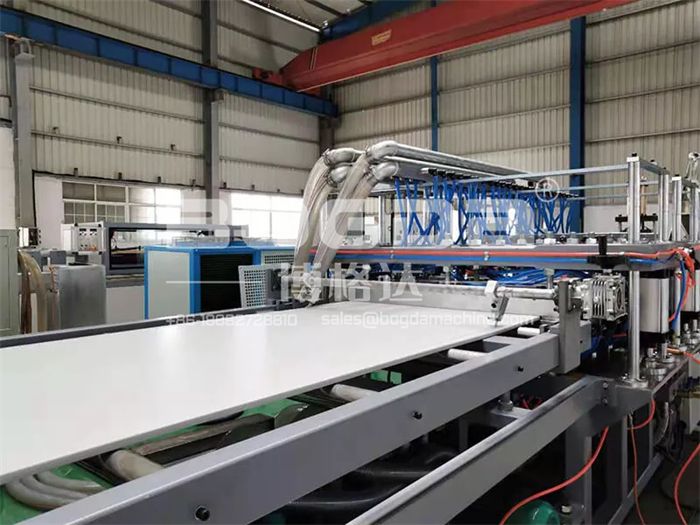

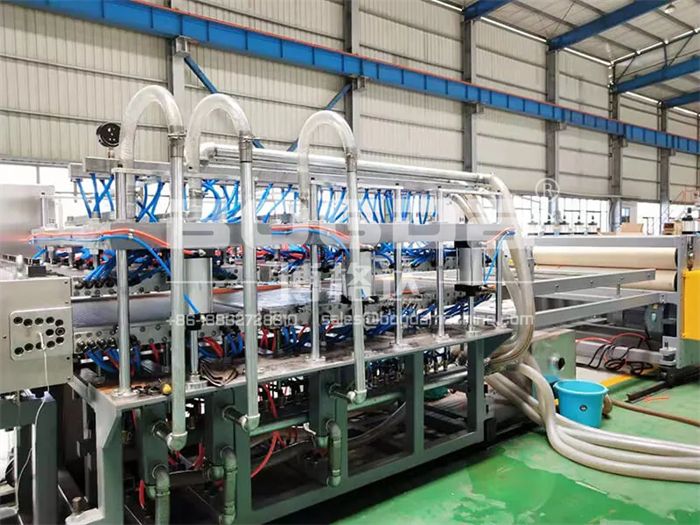

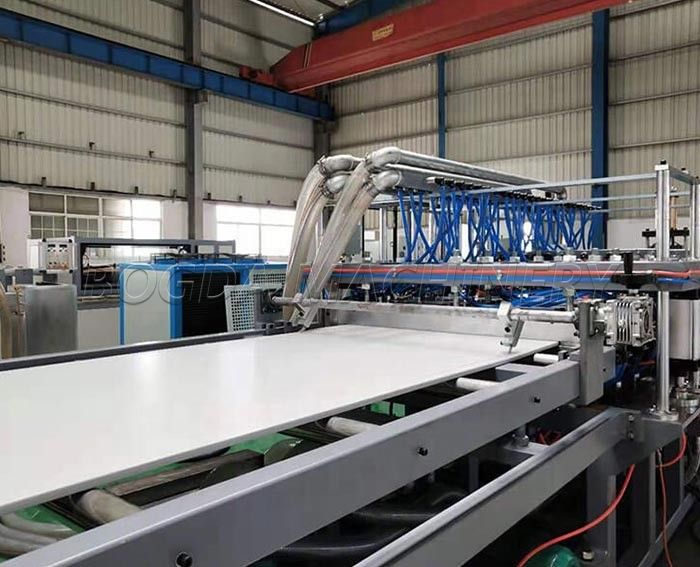

PP plastic building template production line equipment production of plastic building template, can add straw, corn cob, wheat pole, sawdust and other powder, mixed in PP raw materials through special process to produce a variety of new construction template for construction site needs. This machine consists of two single screw extruder, hydraulic net changer, mould, setting machine, primary tractor,annealing furnace, cooling box, secondary tractor, cross cutting machine and conveyor.

1SJSZ-120/36 Single screw extruder
2SJSZ80/33 Single screw extruder
3Hydraulic screen changer
4Distributor
5Mold (customized by client requirement)
6Vacuum calibration table
7First haul-off device
8Cooling bracket
9Second haul-off device
10Cutter
11Stacker


Building Material Formwork PP Plastic Concrete Formwork Construction Making Extrusion Machine

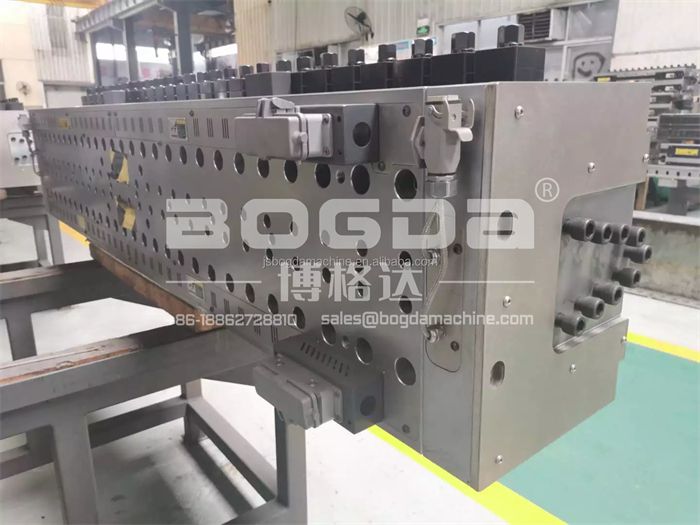

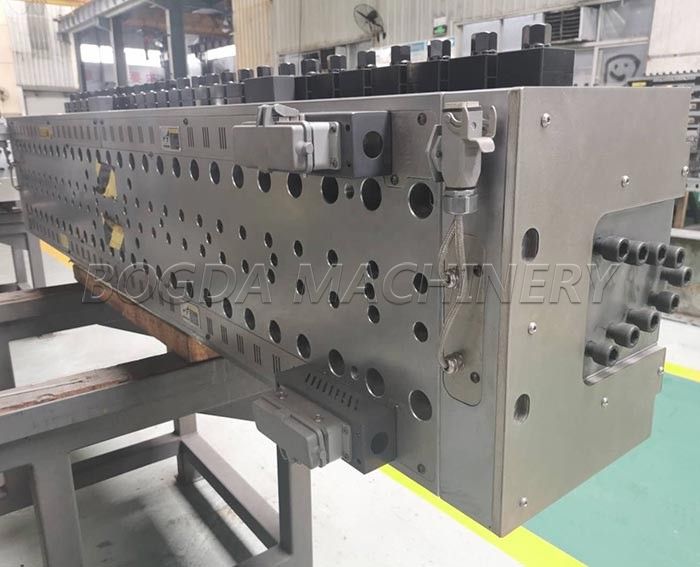

Mould for Building Material Formwork PP Plastic Concrete Formwork Construction Making Extrusion Machine

1- Width: 1220mm

2- Thickness:15-18mm

3- 13 zones

4- Alloy Steel

Building Material Formwork PP Plastic Concrete Formwork Construction Making Extrusion Machine

Thickness SizeWeightArea
15mm915mm*1830mm13.5kgs+_0.5kgs1.67m2
15mm1220mm*2440mm24.5+_0.5kgs2.98m2
17mm915mm*1830mm14.5+_0.5kgs1.67m2
17mm1220mm*2440mm25.5+_0.5kgs2.98m2

Building Material Formwork PP Plastic Concrete Formwork Construction Making Extrusion Machine

Building Material Formwork PP Plastic Concrete Formwork Construction Making Extrusion Machine

Packaging and Shipping

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.

BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.

Fast response, good quality, best price and perfect service are our advantages and culture.

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

Customer Review

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

FAQ

Q: Where can we get spare part?

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

Q: How can I help you when face some technical problem?

A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

Q: Any quality checking before shipment?

A: 100% confirm, run and test machines before shipment with quality certificate.

Q: Can I operate machine if don’t have experienced engineers?

A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements

Q: How many electric, water, air need for the machines?

A: Technical department supply the whole layout for workshop details.
