PVC marble sheet, also named PVC marble panel, PVC simulate marble panel, PVC wall panel, UV coating wall panel and other similar names, it is mainly made from PVC resin and calcium carbonate powder, and can be used in many places for its outstanding features. It is very economical, easy install and maintain, most of consumers can afford it.
Product Description
PVC artificial marble sheet production line plastic wall panel making machine
PVC marble sheet, also named PVC marble panel, PVC simulate marble panel, PVC wall panel, UV coating wall panel and other similar
names, it is mainly made from PVC resin and calcium carbonate powder, and can be used in many places for its outstanding features.
It is very economical, easy install and maintain, most of consumers can afford it. It grows to replace other interior wall
decoration materials like wood, wallpaper, natural stone, and other synthetics.
Process Flow

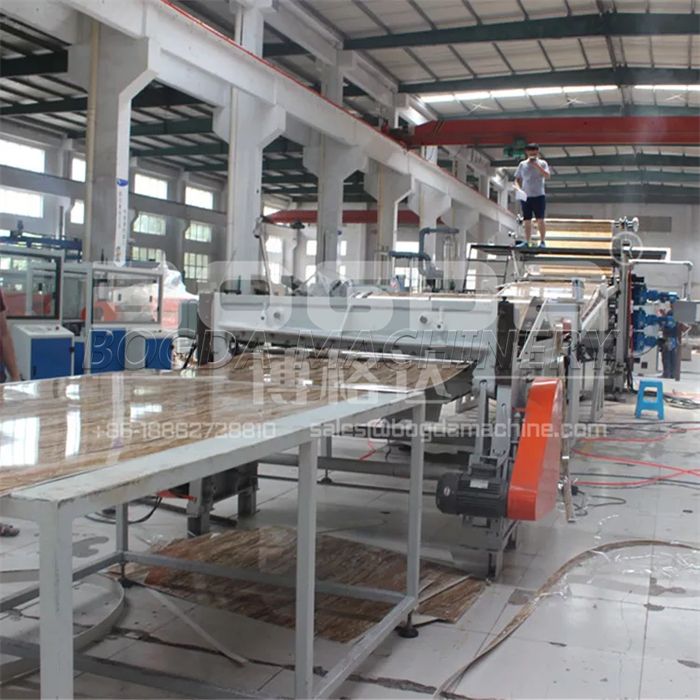

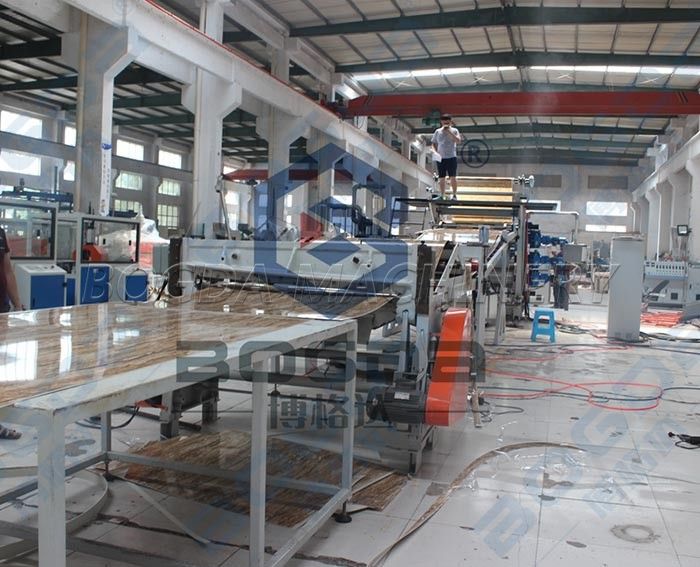

Mixer→Feeder→SJSZ80 double-screw extruder→Mould→Three-roller calender(online laminating)→Cooling group rollers→Hual
off→Transversal cutter→Edge cutter→Conveyor→UV treatment
Product Description
Production Technology for PVC Artificial Marble Sheet Extrusion Production Line
1. According to the formula, add different raw materials to the high-speed mixer to mix, then plasticize and extrude through the

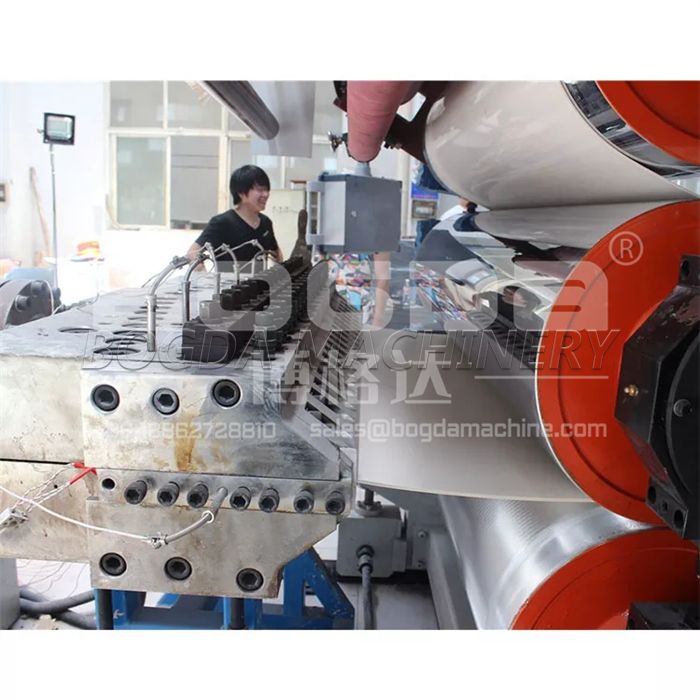

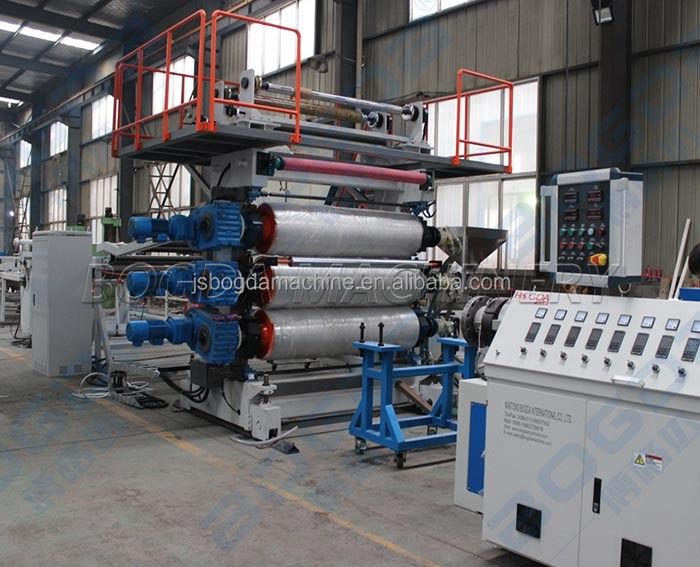

extrusion molding machine, and then form the whole by the three-roll calender molding unit, and coat the surface with a layer of
polymer with marble lines. The film or thermal transfer process is used to print the marble pattern on the surface, and then the
finished substrate is accurately cut by a cutting machine.
2. Put the finished substrate from the previous production line into the UV equipment to apply the UV paint, and then dry and cure
it through z ultraviolet light to treat the surface. The treated board has bright color, strong visual impact, abrasion
resistance, strong chemical resistance, long service life, no color change, and easy cleaning.
Specification
Equipment list for the PVC artificial marble sheet production line
| 1 | ZJ800Screw loader—Feeding system | 1set |
| 2 | SJSZф92/188 conical twin screw extruder | 1set |
| 3 | DF6000 vacuum cooling calibrator | 1set |
| 4 | Haul off machine | 1set |
| 5 | Cutter | 1set |
| 6 | Stacker | 1set |
| 7 | Screw Loader | 1set |
| 8 | SRL-Z800/2500 High Heating/cooling Mixer | 1set |
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
