PVC artificial marble panel production line plastic sheet making machine

PVC marble sheet, also named PVC marble panel, PVC simulate marble panel, PVC wall panel, UV coating wall panel and other similar names, it is mainly made from PVC resin and calcium carbonate powder, and can be used in many places for its outstanding features. It is very economical, easy install and maintain, most of consumers can afford it.

Product Description

Product Description

What is PVC artificial marble Sheet?


PVC marble sheet, also named PVC marble panel, PVC simulate marble panel, PVC wall panel, UV coating wall panel and other similar
names, it is mainly made from PVC resin and calcium carbonate powder, and can be used in many places for its outstanding features.
It is very economical, easy install and maintain, most of consumers can afford it. It grows to replace other interior wall
decoration materials like wood, wallpaper, natural stone, and other synthetics.

Process Flow

Mixer→Feeder→SJSZ80 double-screw extruder→Mould→Three-roller calender(online laminating)→Cooling group rollers→Hual
off→Transversal cutter→Edge cutter→Conveyor→UV treatment

Product Description

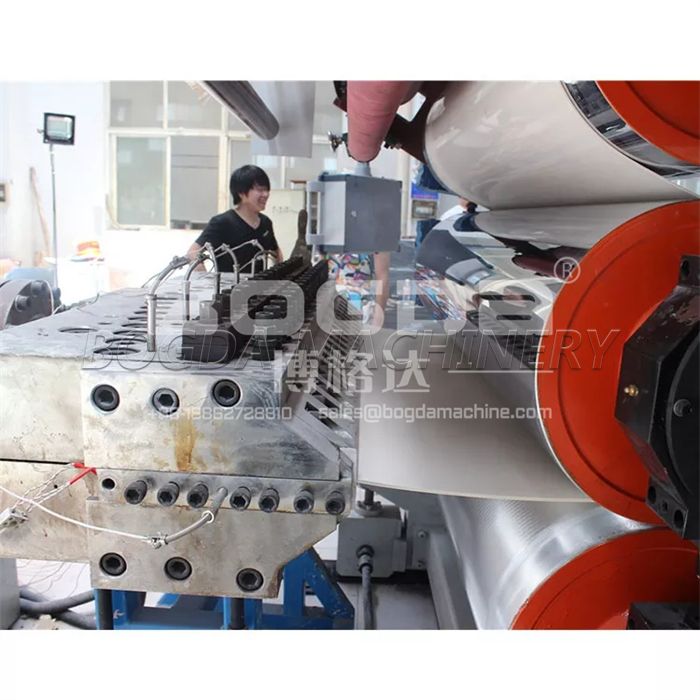

Production Technology for PVC Artificial Marble Sheet Extrusion Production Line
1. According to the formula, add different raw materials to the high-speed mixer to mix, then plasticize and extrude through the

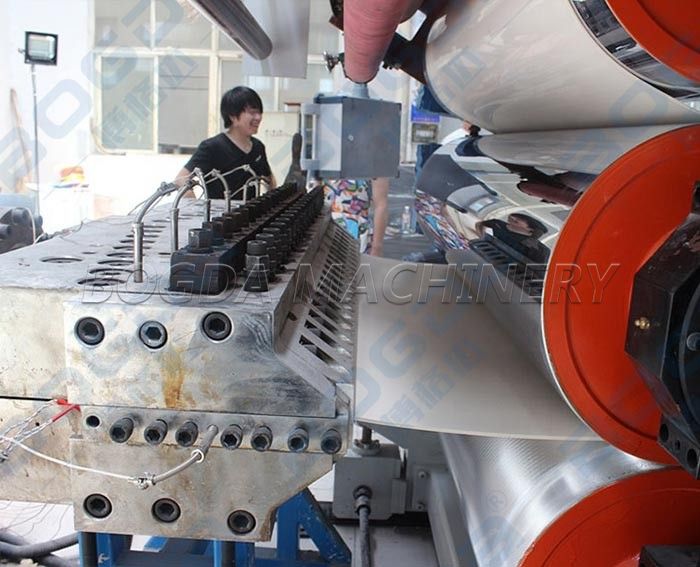

extrusion molding machine, and then form the whole by the three-roll calender molding unit, and coat the surface with a layer of
polymer with marble lines. The film or thermal transfer process is used to print the marble pattern on the surface, and then the

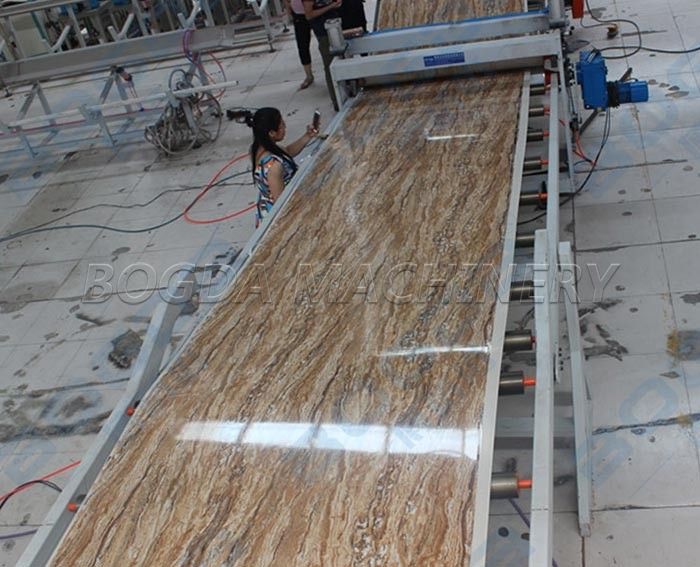

finished substrate is accurately cut by a cutting machine.

2. Put the finished substrate from the previous production line into the UV equipment to apply the UV paint, and then dry and cure
it through z ultraviolet light to treat the surface. The treated board has bright color, strong visual impact, abrasion
resistance, strong chemical resistance, long service life, no color change, and easy cleaning.

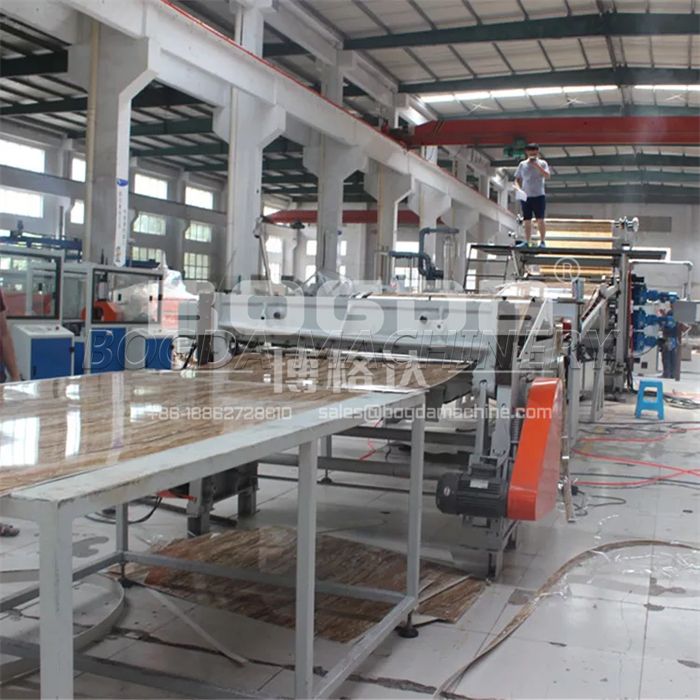

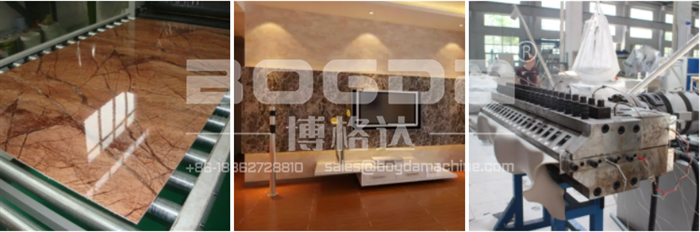

PVC artificial marble panel production line plastic sheet making machine

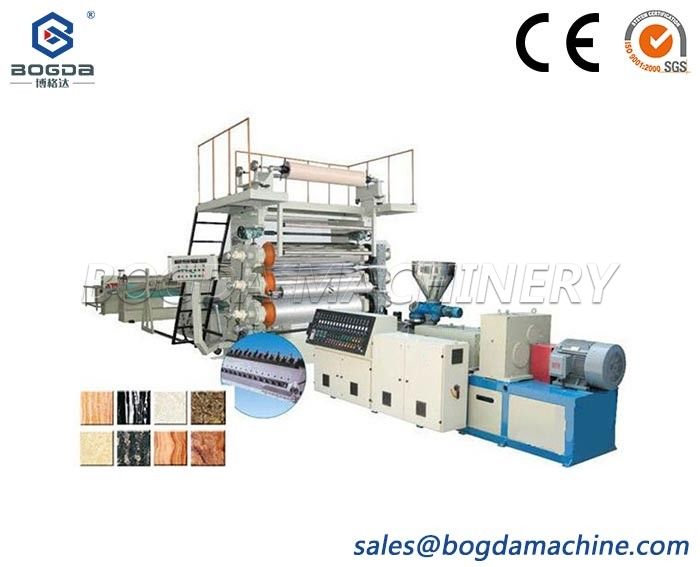

PVC artificial marble panel production line plastic sheet making machine

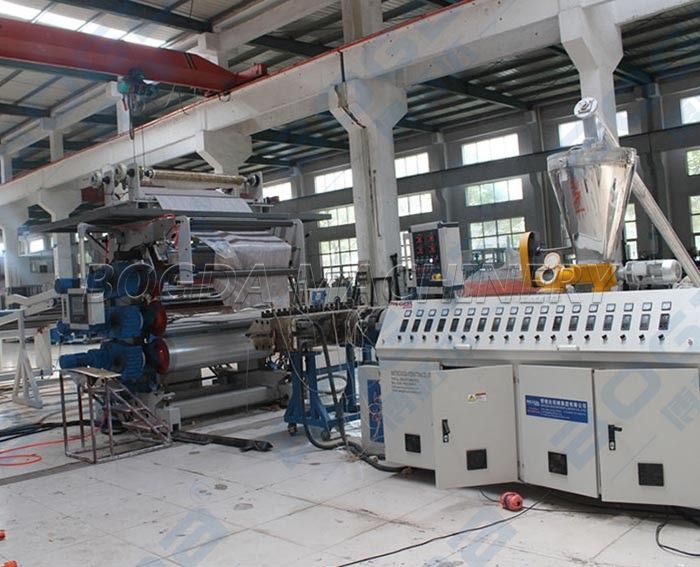

PVC artificial marble panel production line plastic sheet making machine

Specification

Equipment list for the PVC artificial marble sheet production line

1
ZJ800Screw loader—Feeding system
1set
2
SJSZф92/188 conical twin screw extruder
1set
3
DF6000 vacuum cooling calibrator
1set
4
Haul off machine
1set
5
Cutter
1set
6
Stacker
1set
7
Screw Loader
1set
8
SRL-Z800/2500 High Heating/cooling Mixer
1set


Packaging and Shipping

Plastic PP Hollow Construction Building Formwork Template Board Extrusion Making Machines Equipment

Plastic PP Hollow Construction Building Formwork Template Board Extrusion Making Machines Equipment

BOGDA Machinery Group is located in Europe and America (Hai'an) Industrial Park and Shanghai Fengxian (Hai'an) Industrial Park. It is a high-tech and innovative company dedicated to the research and development and manufacturing of plastic extrusion molding equipment. The company is people-oriented and innovative Development, with its unique corporate culture that has been brewing for many years, and the company’s eager attention to global economic development, it has continued to grow with its majestic momentum and quick response, making itself a large-scale and highly anticipated industry in this industry.


Leading technology and excellent quality have been highly recognized by authoritative departments and markets. Products are exported to more than 110 countries and regions such as Europe, America, the Middle East, Southeast Asia, South America, Russia, Turkey, Italy, Poland, Brazil, Romania, etc. Deeply trusted and praised by customers, the company has many subsidiaries such as pipeline equipment, sheet film intelligent equipment, intelligent automation, and granulation equipment. The company has a high-quality talent R&D team and more than 20 years of experience in the industry. A team of mechanical and electrical commissioning engineers, as well as an advanced machining base and a standardized assembly workshop. More than 600 sets of high-end plastic extrusion lines are produced every year.

Plastic PP Hollow Construction Building Formwork Template Board Extrusion Making Machines Equipment

Plastic PP Hollow Construction Building Formwork Template Board Extrusion Making Machines Equipment

Plastic PP Hollow Construction Building Formwork Template Board Extrusion Making Machines Equipment

Plastic PP Hollow Construction Building Formwork Template Board Extrusion Making Machines Equipment


Customer Review

Plastic PP Hollow Construction Building Formwork Template Board Extrusion Making Machines Equipment

FAQ

Q: Where can we get spare part?

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

Q: How can I help you when face some technical problem?

A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

Q: How long is the guarantee?

A: 12 months since the first day customer operates (except wear parts).

Q: Any quality checking before shipment?

A: 100% confirm, run and test machines before shipment with quality certificate.

Q: Can I operate machine if don’t have experienced engineers?

A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements

Q: How many electric, water, air need for the machines?

A: Technical department supply the whole layout for workshop details.
