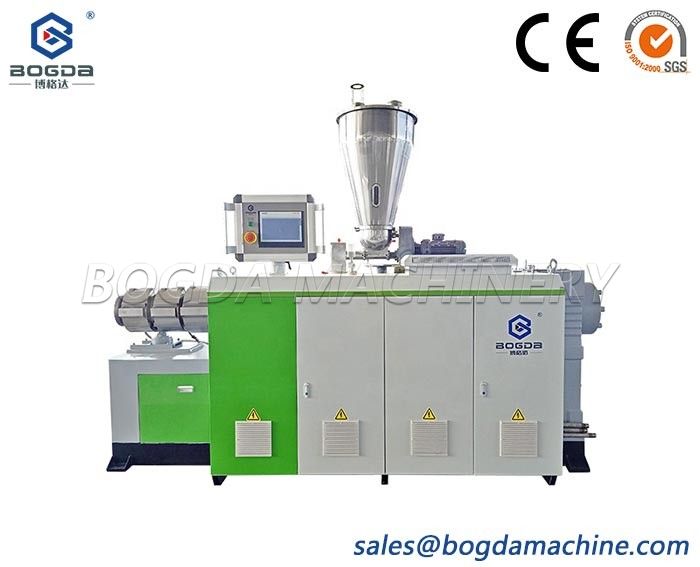

PLC Vertical Type Double Screw Extruder For PVC Board Production Line Co-extrusion Machine

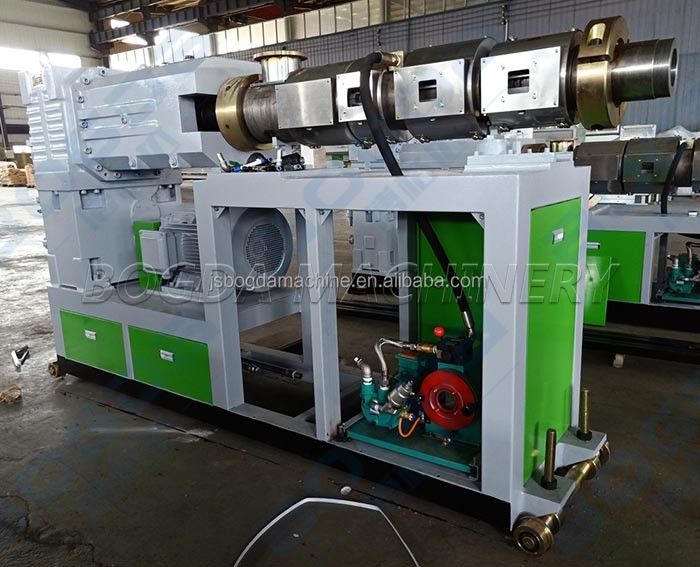

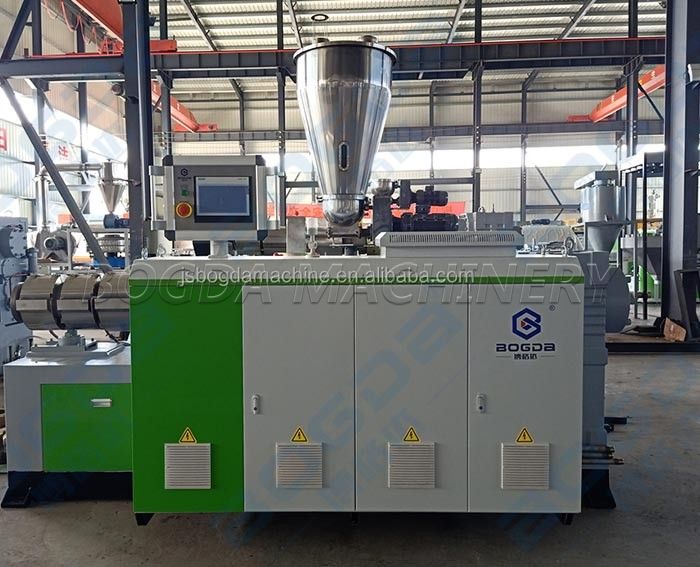

Vertical type Conical twin-screw extruder is an efficient mixing and extrusion equipment. The machine has the characteristics of low shear rate, difficult decomposition of materials, uniform plasticization and mixing, stable quality, high output, wide application range and long service life. The PVC powder is made into plastic products with different cross-sections such as pipes, plates, profiles, etc.
Specification
PLC Vertical Type Double Screw Extruder For PVC Board Production Line Co-extrusion Machine | |||||
Extruder Model | SJSZ55 | SJSZ65 | SJSZ80 | SJSZ92 | SJSZ110 |
Screw Diameter (mm) | 55/120 | 65/132 | 80/156 | 92/188 | 110/220 |
Rotating Speed (r/min) | 45 | 45 | 34.7 | 34.7 | 34.7 |
Capcity (kg/h) | 180 | 380 | 500 | 800 | 1400 |
Central height (mm) | 1050 | 1050 | 1050 | 1100 | 1100 |
Motor Power (kw) | 22/30 | 37 | 55 | 110 | 160 |
Weight (kg) | 3500 | 4000 | 5500 | 8000 | 9000 |
LXWXH (m) | 3.6x1.1x2.1 | 4.2x1.5x2.4 | 4.7x1.5x2.4 | 6x1.6x2.5 | 6.5x1.6x2.5 |
BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.
BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.
Fast response, good quality, best price and perfect service are our advantages and culture.
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
