Screw material: 38CrMoAlA; Model include: SJ25,SJ30,SJ45,SJ65,SJ75, SJ90, SJ120, SJ150
Product Descirption
Single screw extruder can be used for extruding thermo-plastics like soft or hard PVC and PE. Coordinated with the appropriate auxiliary machine (including the head of former), it can produce many kinds of plastic products such as film, pipe, board, belt as well as granules.
Single screw extruder advanced in design, high in output, good in plasticization and low in energy consumption. The innovate gear drive is characterized by low noise, stable working, big bearing capacity and long service time.

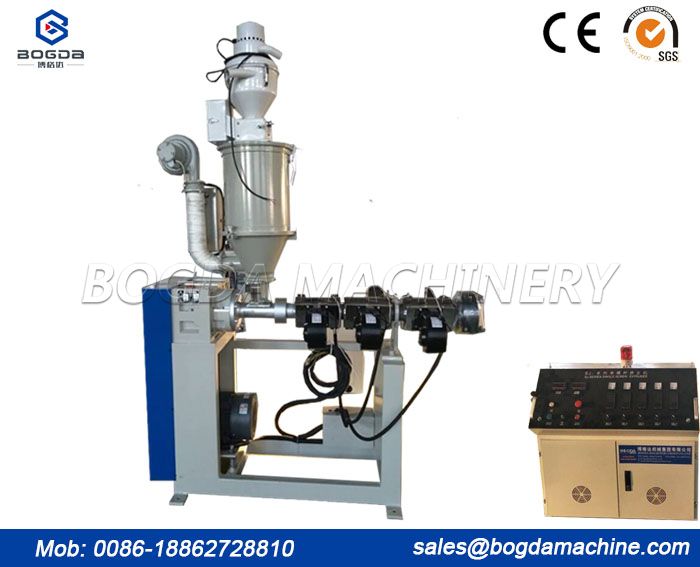

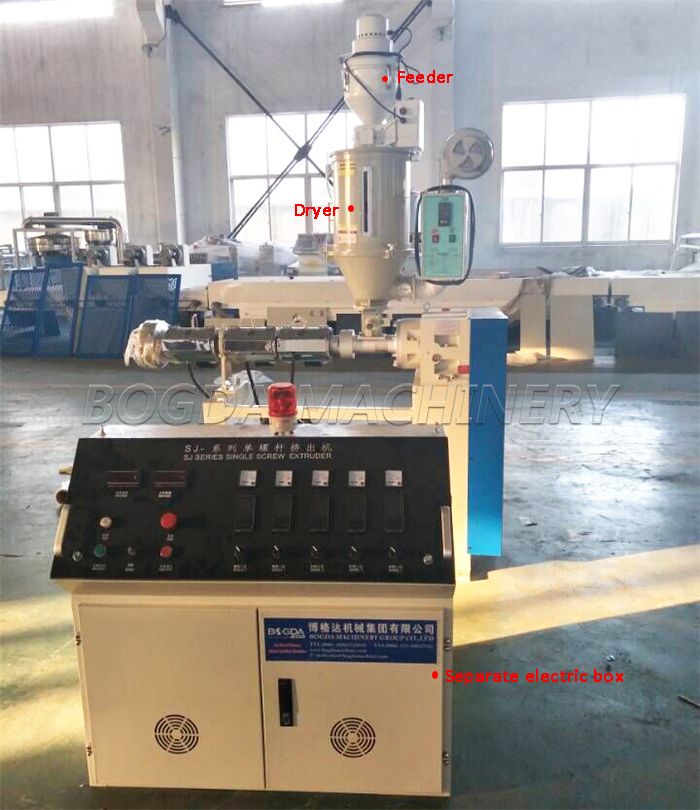

Single screw extruder for plastic extrusion line
Technical parameter
Model | L/D | Output (kg/h) | Speed (r/min) | Drive power (kw) |
SJ25 | 25/1 | 5 | 20-120 | 2.2 |
SJ30 | 25/1 | 10 | 20-180 | 5.5 |
SJ45 | 25-33/1 | 50-150 | 20-150 | 7.5-22 |
SJ65 | 25-33/1 | 60-250 | 20-150 | 22-90 |
SJ75 | 25-33/1 | 200-350 | 20-150 | 55-110 |
SJ90 | 25-33/1 | 180-550 | 20-110 | 37-185 |
SJ120 | 25-33/1 | 320-800 | 20-90 | 75-280 |
SJ150 | 25-33/1 | 400-1200 | 20-75 | 90-355 |

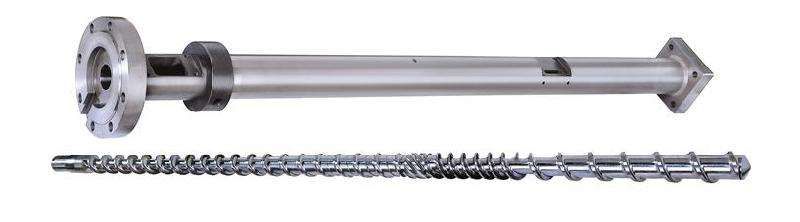

Screw for extruder- 38CrMoAlA material

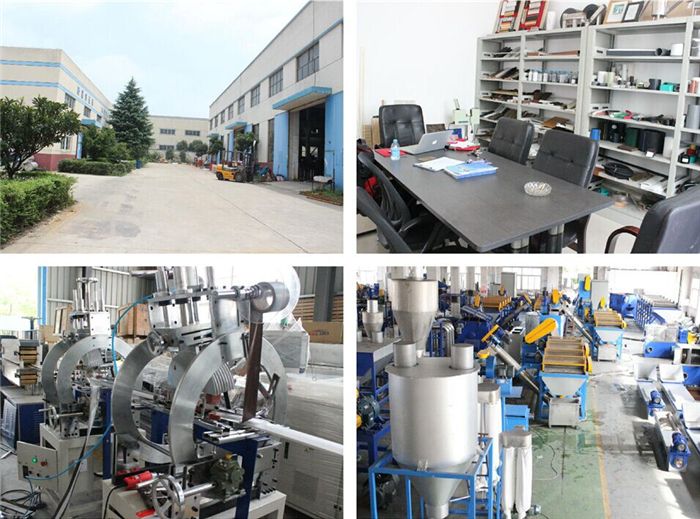

BOGDA Plastic Machinery Co, who is a leader of Plastic Machine and Raw Material. Such as Plastic Profile/Pipe/Sheet Extrution Equipment,Injection Machine and Waste PP/PE Film, PET Bottle Washing Recyce Machine, as well as Plastic Granulating Line, meanwhile we are familiar with kinds of raw material to help our customers choose the most suitable machine on best quality by economically.
In wooden cases, wooden splints, wrap film and other specialized packaging film, to ensure that the machine impact damage in the long time of land and sea transport, thus reaching the customer factory intact
