Model Number:BG-SJZ51 Raw material: PVC Powder, additives Main Material: PVC and soft rubber side
Model Number:BG-SJZ51
Raw material: PVC Powder, additives
Main Material: PVC and soft rubber side

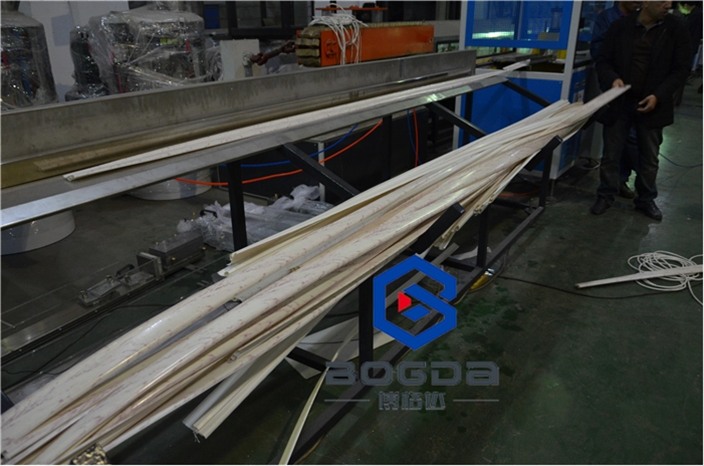

Final Products-PVC baseboard usage:
1- Cover the ground floor and wall joints, better enable combine firm
2- To reduce deformationod the wall, avoid damage to the collision force between the wall and floor
3- Protect the wall to prevent carrying things
4- Foot line easy clean when walking or doing clean wall soiling
PVC baseboard mainly include 2 parts as below:
1- Formed or hard PVC skirtings
2- PVC skirting with soft rubber edge
PVC skirting board exreusion machine description

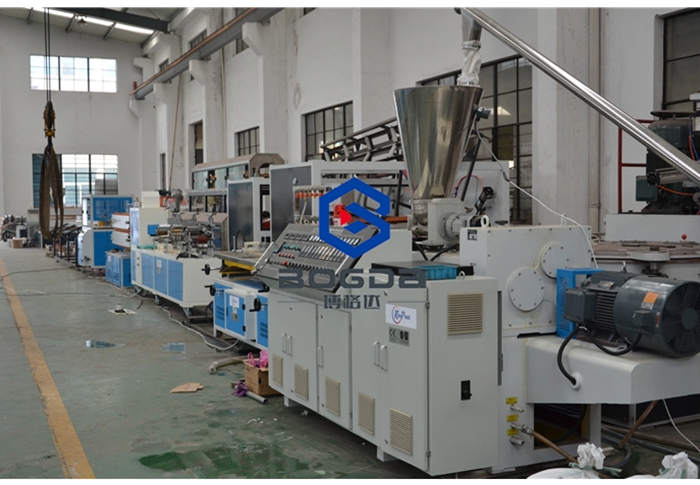

PVC plastic skirting board extrusion making machine include conical twin screw extruder, mould, water vacuum calibration tank, 3 oil colors printing machine, haul off machine, cutter and stacker.
Mould choose idea for PVC baseboard

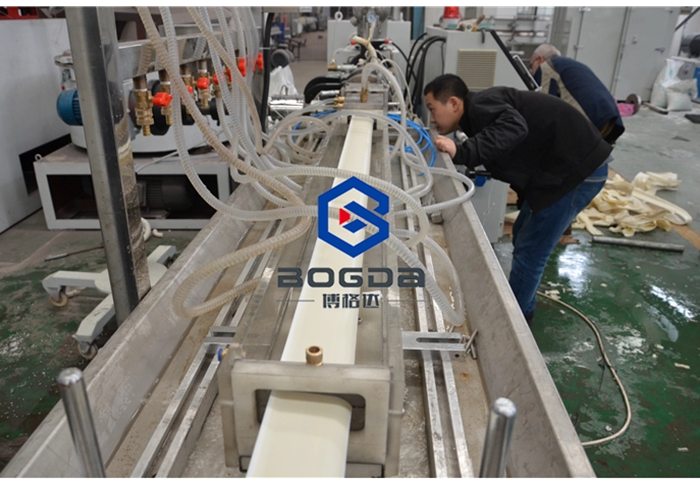

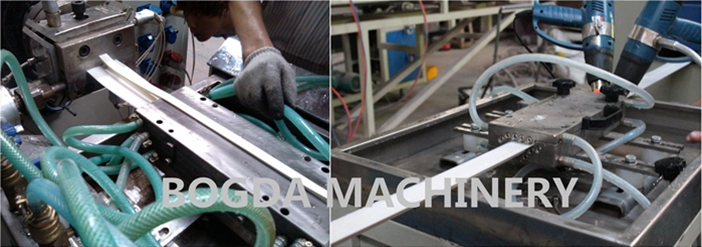

Mould design 1: mould die + calibrator, already curved before printing
Mould design 2: mould die + calibrator + forming mould, will curve after printing by forming mould parts.
3 clolors printing machine for PVC skirting board

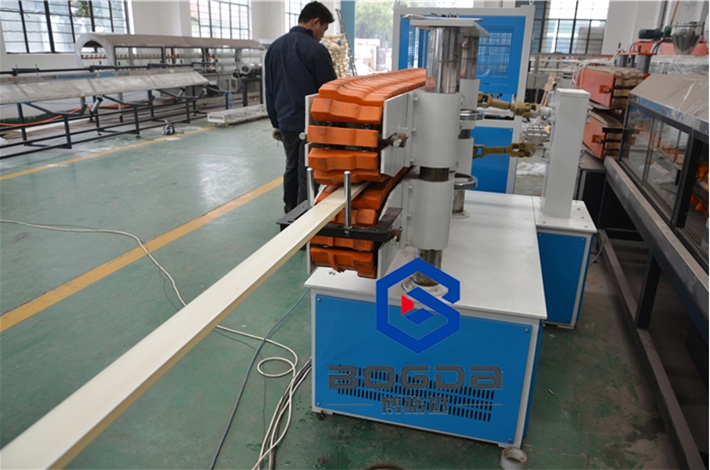

Haul off machine with special design rubber shape
Technical parameter
Specification Name | SJSZ51/105 Conical twin screw extruder |
Diameter | 51mm and 105mm |
Nitride Depth of screw and barrel | 0.5-0.7mm |
Feeding Method | Two-screw feeding system |
Inverter Brand | ABB |
Extruder Main Motor Power | 18.5KW/AC |
Extruder Speed Adjust Method | Transducer |
Related equipment

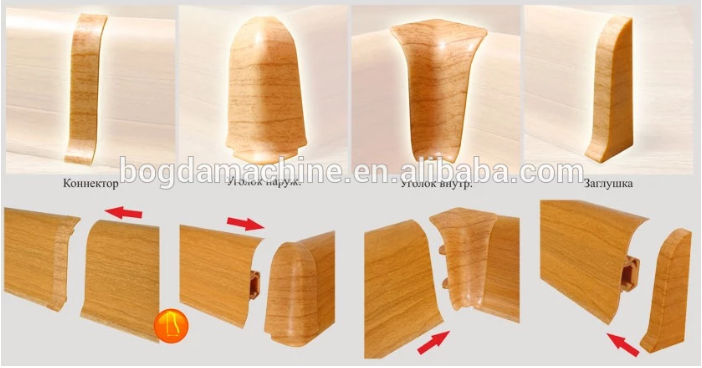

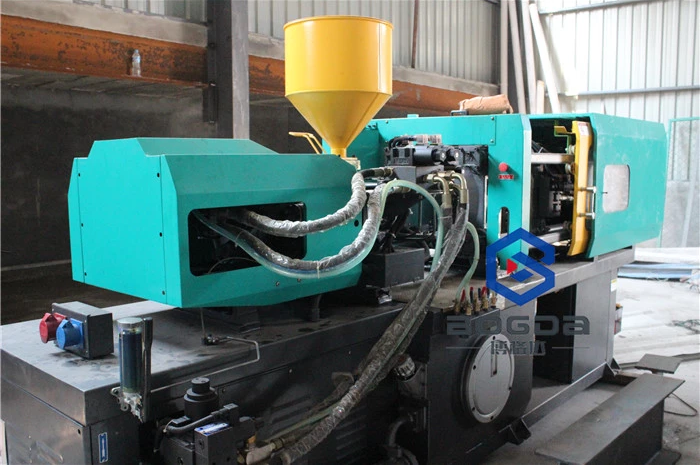

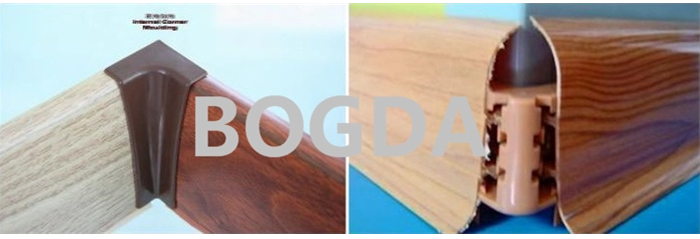

Plastic injection molding machine for PVC baseboard accessories
Customer Feedback

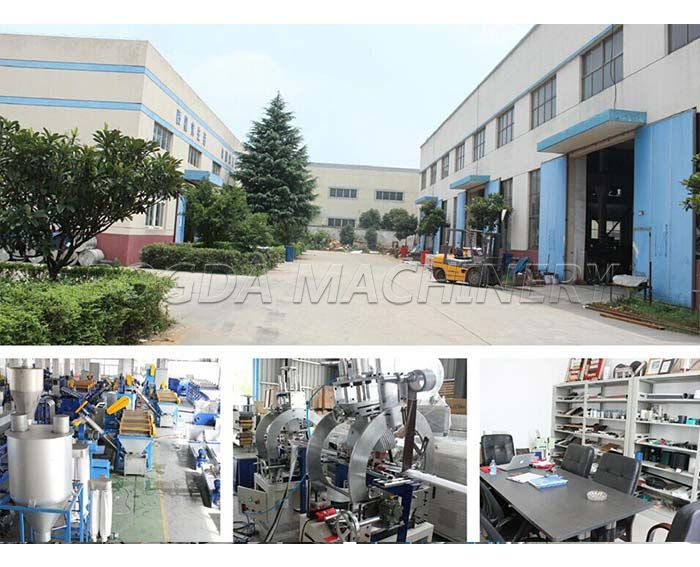

BOGDA International Co, BOGDA Machinery Co, who is a leader of Plastic Machine and Raw Material. Such as Plastic Profile/Pipe/Sheet Extrution Equipment,Injection Machine and Waste PP/PE Film, PET Bottle Washing Recyce Machine, as well as Plastic Granulating Line, meanwhile we are familiar with kinds of raw material to help our customers choose the most suitable machine on best quality by economically.
In wooden cases, wooden splints, wrap film and other specialized packaging film, to ensure that the machine impact damage in the long time of land and sea transport, thus reaching the customer factory intact
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
