Scew Material: 38 CrMoAlA Temperature-control: Omron control Heating method: Foundry Aluminum Heate
Scew Material: 38 CrMoAlA
Temperature-control: Omron control
Heating method: Foundry Aluminum Heate

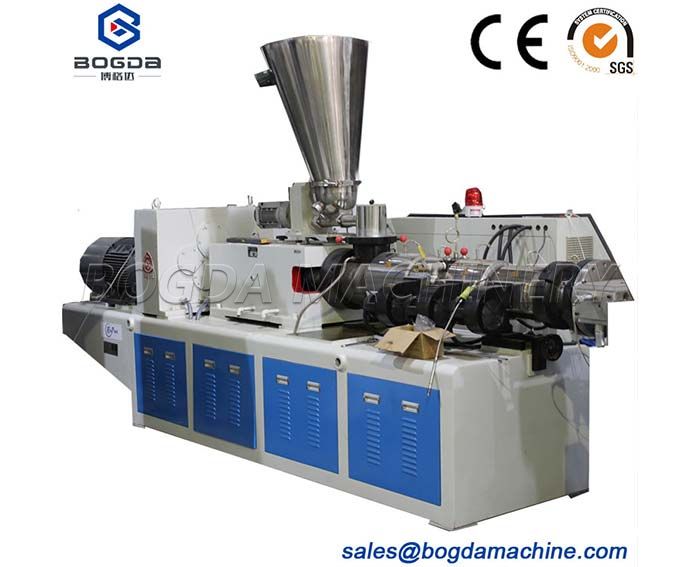

PVC ceiling machine can be discussed based on different materials, it is a kind of high efficiency equipment for plastic extrusion, it is mainly composed by force feeder, soft plasticization screw and barrel, high precision gearbox, exhaust system, it is features of even mixing, better plasticization,stable working, high capacity, and it is suitable for produce PVC products from mixed powder, within different mold and other auxiliary equipments, it can produce plastic pipe, profile, board, sheet, granules and so on.

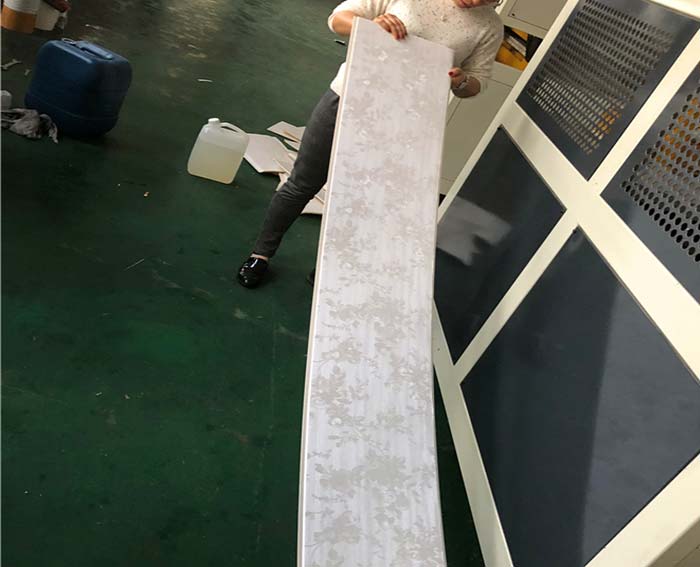

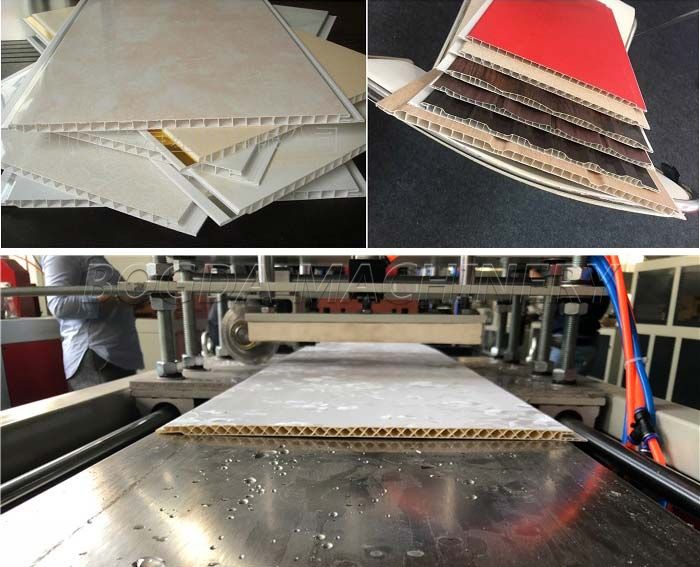

Extrusion Products
Extrusion Flow

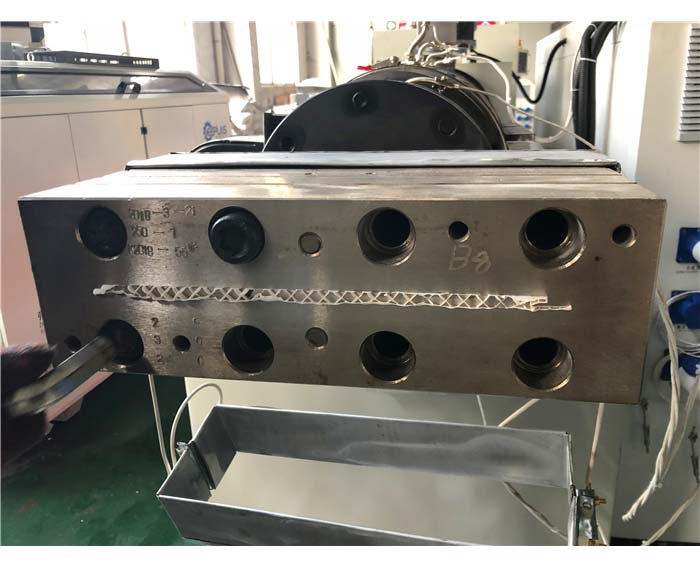

PVC ceiling panel machine: SJZ Series Conical Twin Screw Extruder Machine → Die mould → Vacuum Calibration Table → Haul-off → Cutting Machine → Stacker.
(Note: Other Auxiliary Machine, such as Crusher, Pulverizer, Mixer, will be provided according to client's requirements)

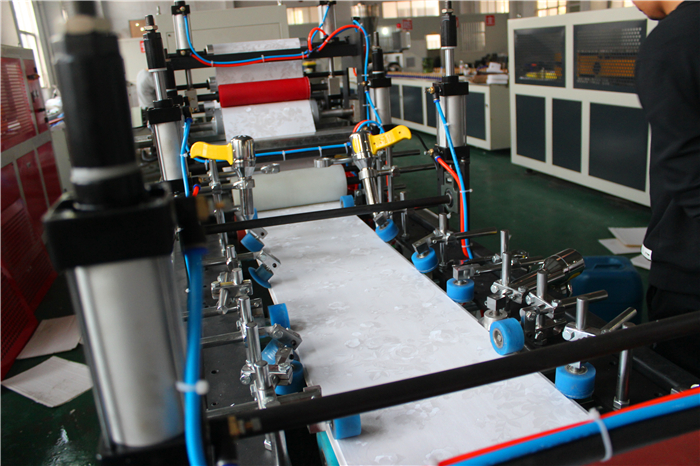

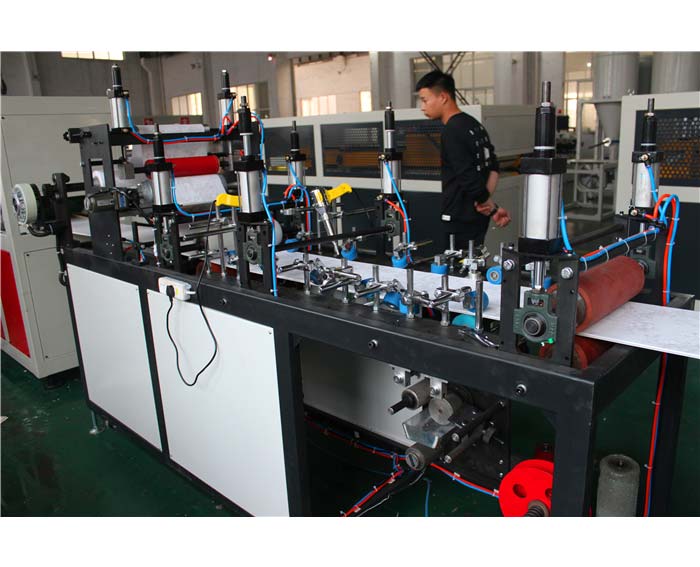

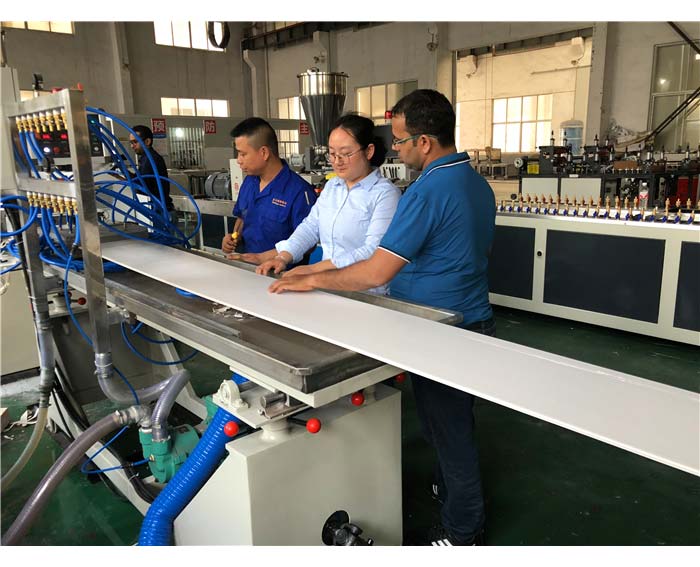

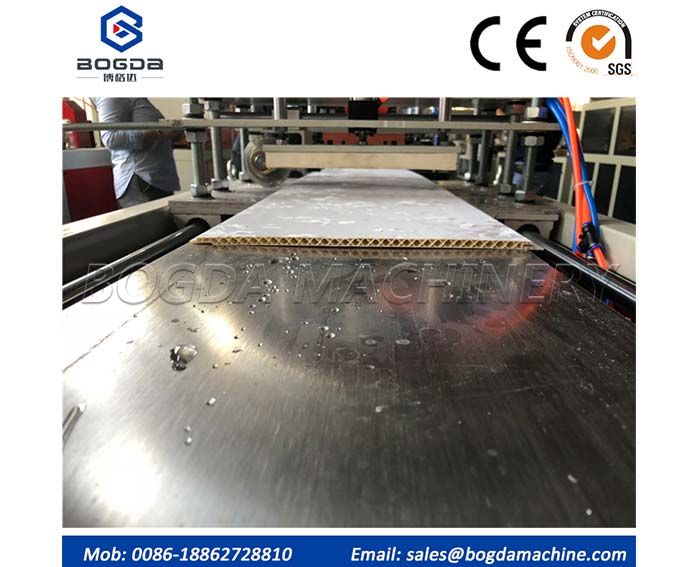

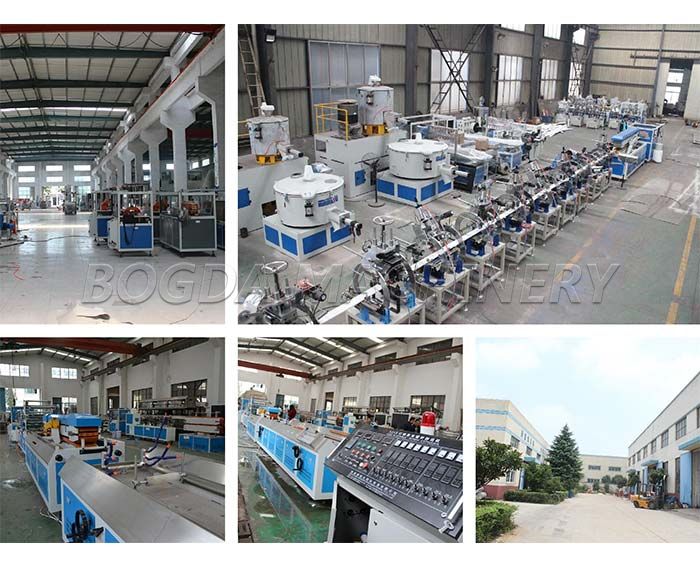

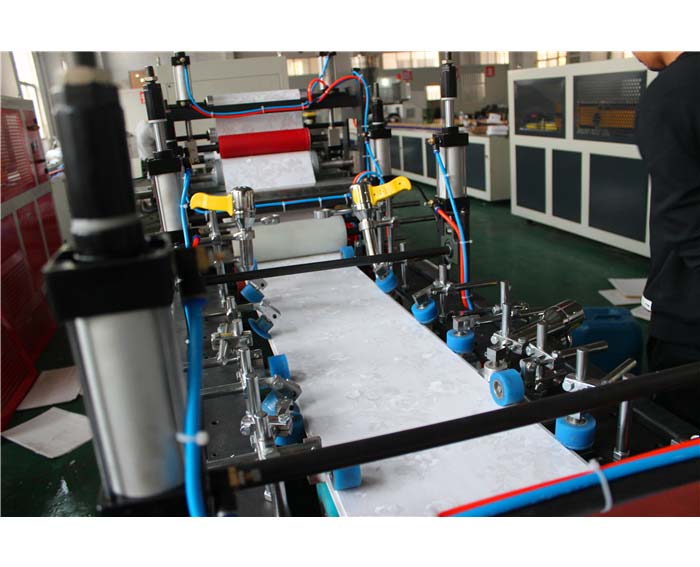

Factory testing images
Technical parameter
Model | SJZ51 | SJZ65 |
Screw diameter (mm) | 51/105 | 65/132 |
Screw rotation speed (r/min) | 1-30 | 1-34.7 |
Effective length of screw (mm) | 1050 | 1430 |
Main motor power (kw) | 22 | 37 |
Barrel heating power (kw) | 18 | 24 |
Capacity (kg/h) | 110 | 250 |
Central height (mm) | 1000 | |
Net Weight(kg) | 3200 | 5000 |

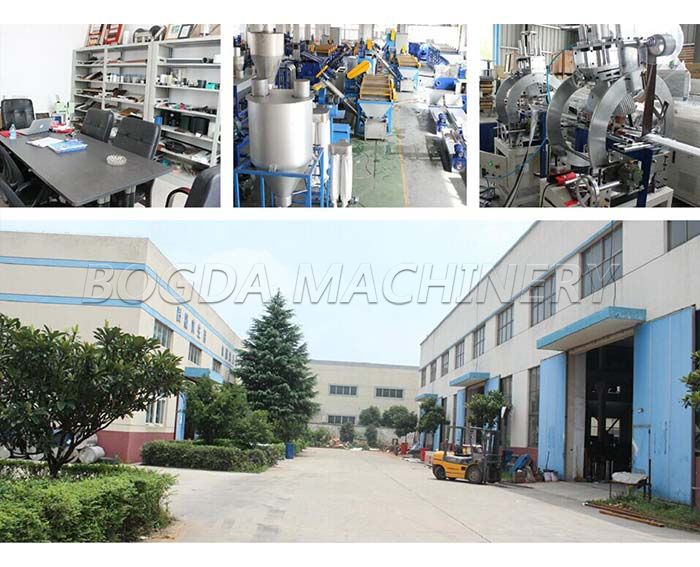

BOGDA International Co, BOGDA Machinery Co, who is a leader of Plastic Machine and Raw Material. Such as Plastic Profile/Pipe/Sheet Extrution Equipment,Injection Machine and Waste PP/PE Film, PET Bottle Washing Recyce Machine, as well as Plastic Granulating Line, meanwhile we are familiar with kinds of raw material to help our customers choose the most suitable machine on best quality by economically.
In wooden cases, wooden splints, wrap film and other specialized packaging film, to ensure that the machine impact damage in the long time of land and sea transport, thus reaching the customer factory intact
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
