single screw extruder specially designed for PP PE HDPE pellets extruding, it also can combine with the PP PE PC pipe productionline, PP PE PC profile production line.We produce Single screw extruder, and also high speed high efficient Single screw extruder.
Product Description

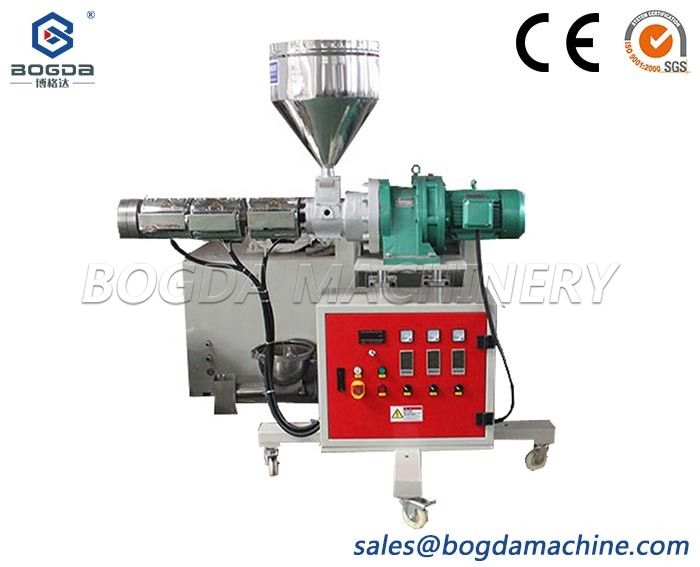

SJ25 small size Single Screw Plastic Extruder Machine For PP PE Pipes
single screw extruder specially designed for PP PE HDPE pellets extruding, it also can combine with the PP PE PC pipe productionline, PP PE PC profile production line.We produce Single screw extruder, and also high speed high efficient Single screw extruder.
The set is advanced in design,high in output,good in plasticization and low in energy consumption.
The involute gear driving is characterized by low noise,stable running,big bearing capacity and long service life.
Single screw extruder' screw structure also can re-designed accoring to customer's detail raw material and the purposes.
No. | Main parts | Detail specification |
1 | Model | SJ25/25 |
2 | Design | Single screw extruder |
3 | Driving motor | 1.5KW |
4 | Screw diameter | 30mm |
5 | L/D ratio | 25:1 |
6 | Screw effective length | 750mm |
7 | Screw material | 38CrMoAIA |
8 | Screw straightness | < 0.015mm |
9 | Screw hardness | HV900-1000 |
10 | Surface treatment | Nitriding layer with thickness:0.6-0.8mm,Polishing |
11 | Max rotating speed | 0-55rpm |
12 | Barrel,inner processing | Nitriding layer with thickness:0.6-0.8mm |
13 | Heating zones | 2pcs |
14 | Heating power | 2 zones*2KW=4KW in total |
15 | Heater | Cast-Aluminum+stainless steel covering |
16 | Cooling method, power | Air fans:2pcs*60W |
17 | Gear box | Speed reduce ratio: 12.5:1 |
18 | Electric cabinet | AC motor |
19 | Contactor | SIEMENS |
20 | Inverter | ABB |
21 | Dimension(L*W*H) | 2.2m*1.1m*1.35m |
22 | Weight | 300kg |
23 | Voltage | 380V,50Hz,3phase |
24 | Suitable plastic processed | PC,PE,PP,PVC,ABS,etc |
SJ-25 single screw extruder/3D filament extrusion machine/Small plastic filament extruder machine Plastic Mini Plastic Lab Extruder Small mini polyethylene extruder 25mm plastic extrusion machine 25mm Single Screw Lab Extruder SJ30/25 small single screw extruder for PE PPR PVC plastic pipe colorline marking
BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.
BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.
Fast response, good quality, best price and perfect service are our advantages and culture.
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
