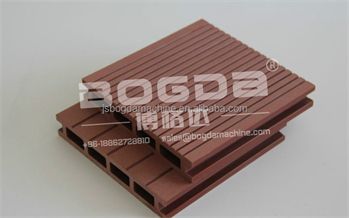

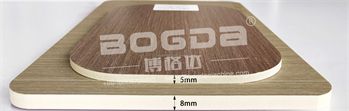

BOGDA Wood Plastic Lumber Panel Twin-screw Extruder

Production Application

BOGDA Wood Plastic Lumber Panel Twin-screw Extruder

Taper twin screw extruder has the characteristics of homogenous plasticizing, high yield, stable quality, wide range of application, long service life, direct molding of PVC powder, etc.

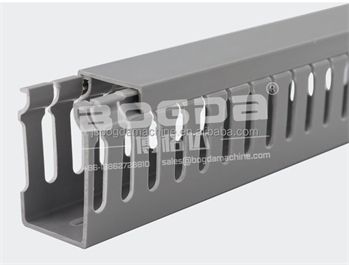

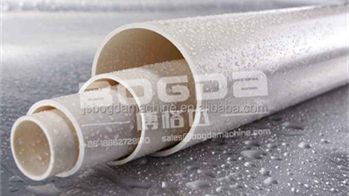

With the corresponding molding head mold and auxiliary machine, it can directly extrude all kinds of thermoplastic plastics, especially hard polyvinyl chloride powder, into plastic products such as tubes, boards, sheets, bar, films and profiles, and can also complete the modification of all kinds of plastics and the process of powder granulation.





Product Description

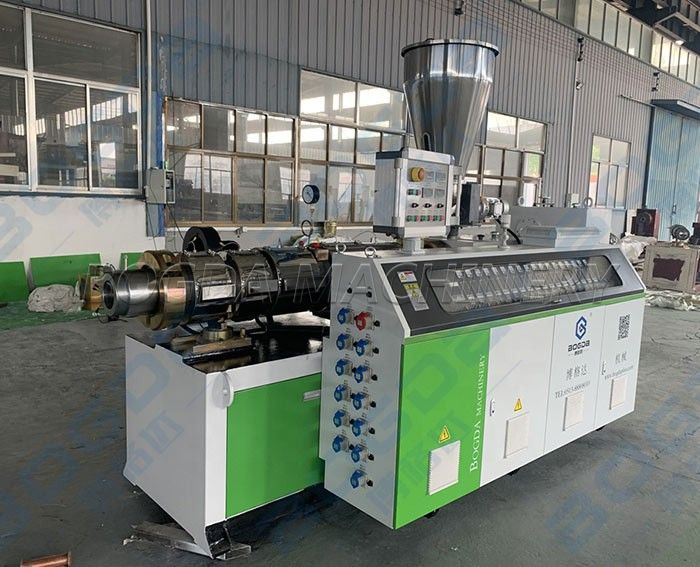

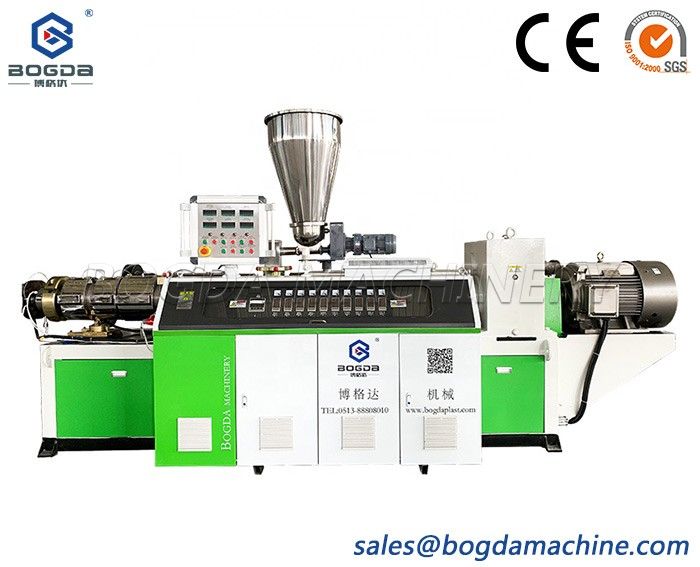

BOGDA Wood Plastic Lumber Panel Twin-screw Extruder

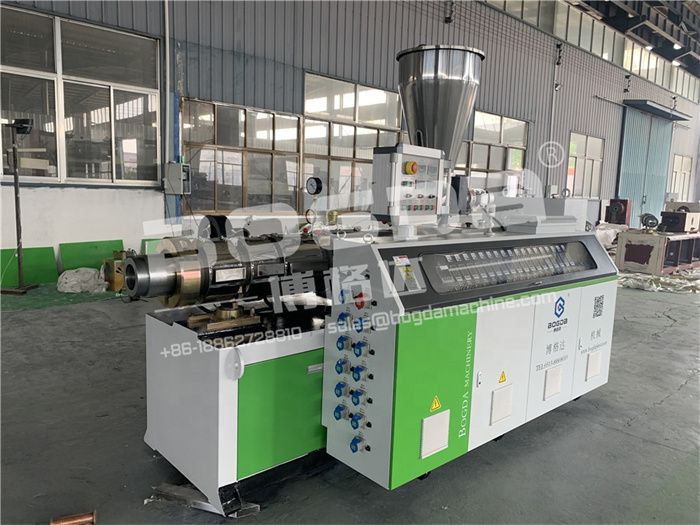

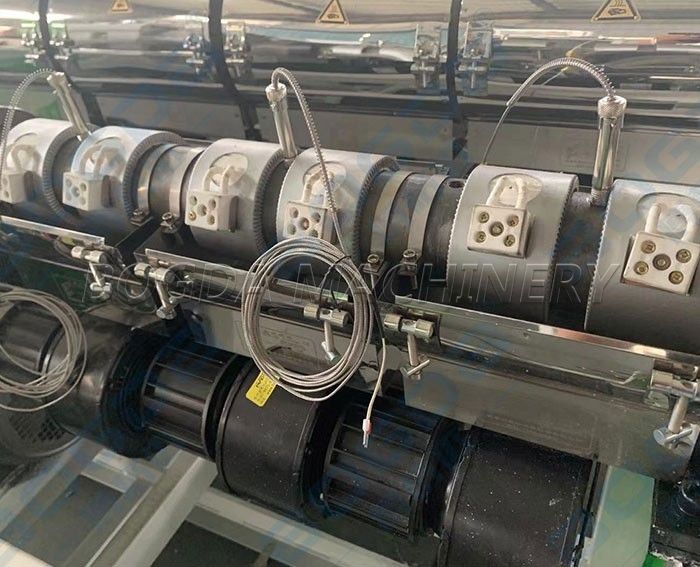

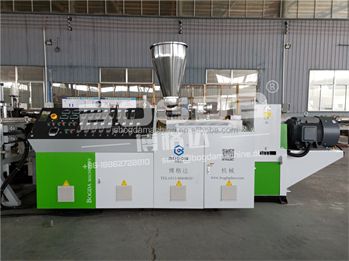

The conical twin-screw extruder has stable performance, which can make the melt plasticize well at a lower temperature. The cast aluminum heater is installed on the cylinder, which has high thermal efficiency, fast and uniform temperature rise, and is equipped with cooling fan.

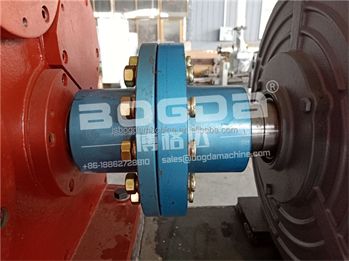

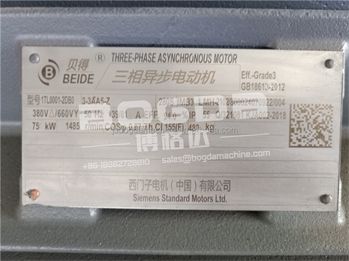

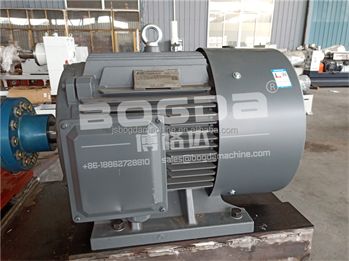

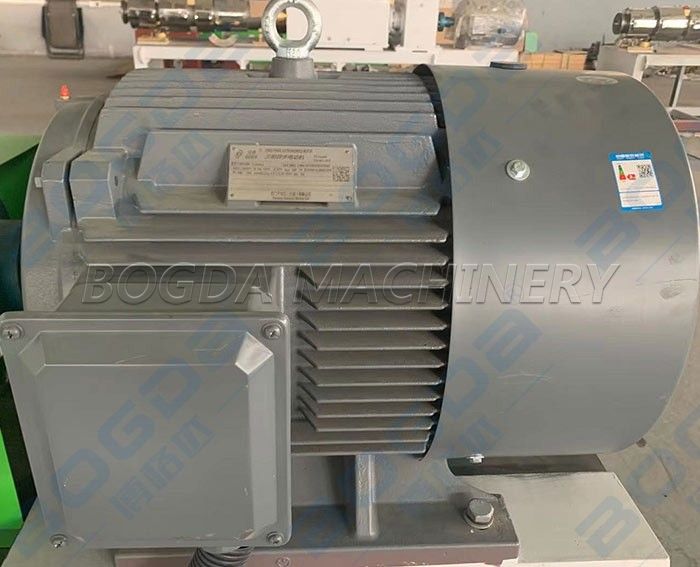

The specially designed transmission part adopts the new frequency conversion motor drive or direct drive current motor, which has the advantages of stable operation, large transmission torque and high efficiency.Stepless and stable speed regulation can be achieved through imported frequency converter or DC governor, with high precision and energy saving. Adopt intelligent double display digital temperature controller with high control precision and small temperature fluctuation.



Equip with overload protection and fault alarm, screw core part oil circulation constant temperature, barrel oil cooling and other functions, and equipped with vacuum exhaust pipe device and quantitative feeding device.





Product Paramenters

Extruder	SJSZ45	SJSZ51	SJSZ55	SJSZ65	SJSZ80	SJSZ92
Screw Diameter (mm)	45/90	51/105	55/113	65/132	80/156	92/188
Screw speed (r/min)	1-45	1-45	40	1-35	1-37	1-33
Power (kw)	15	18.5	22/30	37	55	90
Direction of screws	Screw rotation direction
Capacity (kg/h)	120	80-150	150-180	250-300	320-400	600-800
Weight (kg)	2800	3200	3500	4000	5000	8000

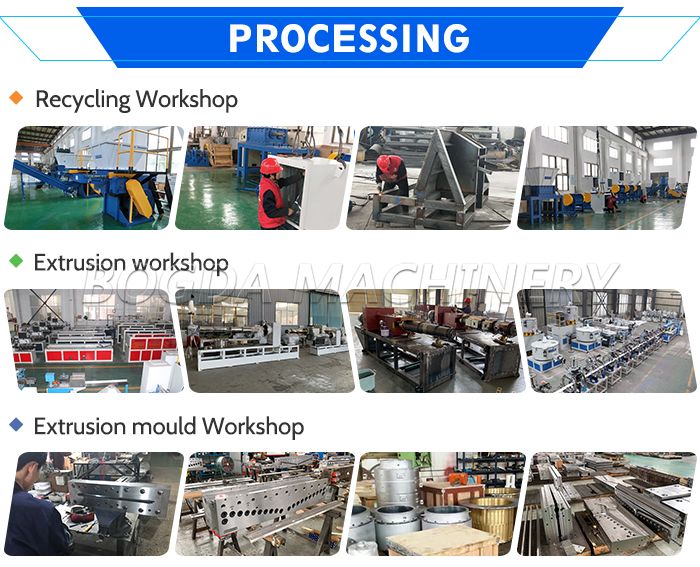

BOGDA Machinery Group is located in Europe and America (Hai'an) Industrial Park and Shanghai Fengxian (Hai'an) Industrial Park. It is a high-tech and innovative company dedicated to the research and development and manufacturing of plastic extrusion molding equipment. The company is people-oriented and innovative Development, with its unique corporate culture that has been brewing for many years, and the company’s eager attention to global economic development, it has continued to grow with its majestic momentum and quick response, making itself a large-scale and highly anticipated industry in this industry.

Leading technology and excellent quality have been highly recognized by authoritative departments and markets. Products are exported to more than 110 countries and regions such as Europe, America, the Middle East, Southeast Asia, South America, Russia, Turkey, Italy, Poland, Brazil, Romania, etc. Deeply trusted and praised by customers, the company has many subsidiaries such as pipeline equipment, sheet film intelligent equipment, intelligent automation, and granulation equipment. The company has a high-quality talent R&D team and more than 20 years of experience in the industry. A team of mechanical and electrical commissioning engineers, as well as an advanced machining base and a standardized assembly workshop. More than 600 sets of high-end plastic extrusion lines are produced every year.

Q: Where can we get spare part?

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

Q: How can I help you when face some technical problem?

A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

Q: How long is the guarantee?

A: 12 months since the first day customer operates (except wear parts).

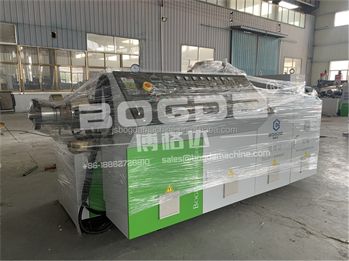

Q: Any quality checking before shipment?

A: 100% confirm, run and test machines before shipment with quality certificate.

Q: Can I operate machine if don’t have experienced engineers?

A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements

Q: How many electric, water, air need for the machines?

A: Technical department supply the whole layout for workshop details.
