Product Descirption
The SHJ twin-screw compounding extruder has screw threads made of high grade steel with a five-axis machining tool to reduce clearance and wear.
This twin screw extruder is equipped with PLC controllers and high-level touch screen panels for manual or automatic operations. The extruder’s operating parameters are input and displayed on the touch panel. Designed by CAD, the closely intermeshed screw elements have excellent self-wiping characteristics, and can be interchanged with each other easily. Besides, twin-screw compounding extruder is installed with the newly designed torque distribution system, high-precision grinding of hardened gear teeth, and imported high-quality key bearings.
Furthermore, the system is capable of remote control. This twin screw extruder can be extensively used in many fields, such as polymer blending, homogeneity, plasticization, filling modification and granulation, engineering polymer and glass fiber reinforcement, master batch, functional parent granule, special material, power coating material and cable material reactive extrusion, degassing and devolatilization, etc.
All SHJ series twin-screw compounding extruders meet or exceed CE and international safety standards.
Technical parameter
Model | SJH35 | SJH50 | SJH65 | SJH75 | SJH95 |
Screw l/d ratio (L/D) | 28-52 | 28-52 | 32-52 | 32-52 | 32-48 |
Screw diameter (mm) | 35 | 50 | 65 | 72 | 95 |
Max speed of screw (r/min) | 600 | 400 | 400/500 | 400/500 | 300/400 |
Power of main machine (kw) | 15 | 45 | 55/75 | 90/110 | 240 |
Total power of heating (kw) | 18 | 38 | 41 | 58 | 180 |
Installed capacity (kw) | 36 | 95 | 110/130 | 165/185 | 450 |
Production capacity (kg/h) | 40-100 | 100-200 | 200-400 | 300-600 | 700-1200 |
Speed-regulate | Direct speed regulate | ||||
Central height of main machine (mm) | 1000 | 1100 | 1100 | 1100 | 1100 |
Weight of main machine (kg) | 2500 | 3000 | 3900 | 5000 | 8000 |
BOGDA Plastic Machinery Co, who is a leader of Plastic Machine and Raw Material. Such as Plastic Profile/Pipe/Sheet Extrution Equipment,Injection Machine and Waste PP/PE Film, PET Bottle Washing Recyce Machine, as well as Plastic Granulating Line, meanwhile we are familiar with kinds of raw material to help our customers choose the most suitable machine on best quality by economically.

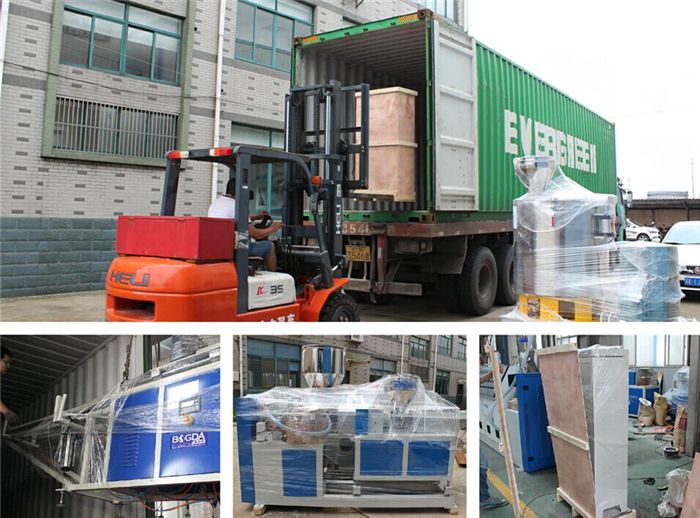

In wooden cases, wooden splints, wrap film and other specialized packaging film, to ensure that the machine impact damage in the long time of land and sea transport, thus reaching the customer factory intact.
