BOGDA HDPE Plastic Raw Material Granules Pelletizing Making Machine For Plastic Economic

Production Application

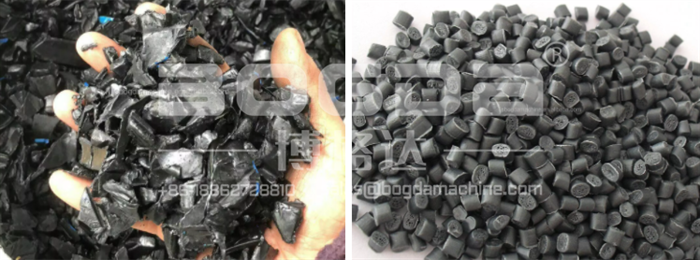

Application for HDPE Granules

HDPE recycled material is also called high density polyethylene recycled material, it is through the recovery of HDPE nozzle material, HDPE products reused, after cleaning, after the removal of water, and then broken, after the granulator, granulation. Because of the different technology level of granulation manufacturers, and the purity of HDPE material to determine the quality of HDPE recycled material.

Product Description

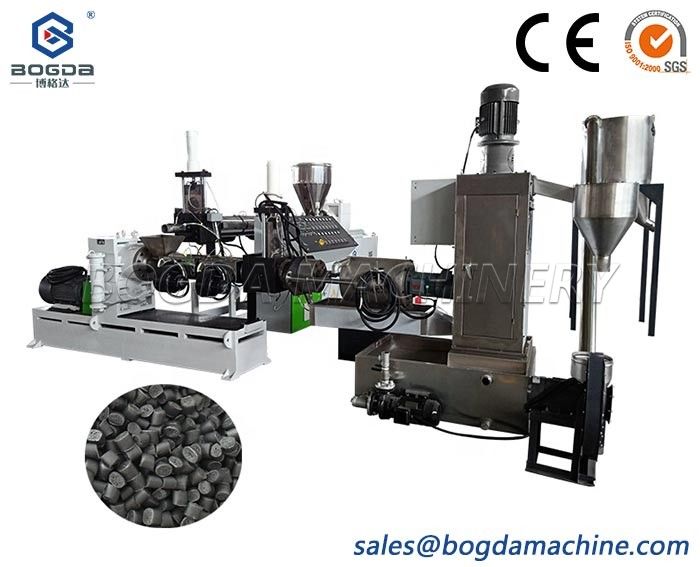

BOGDA HDPE Plastic Raw Material Granules Pelletizing Making Machine For Plastic Economic

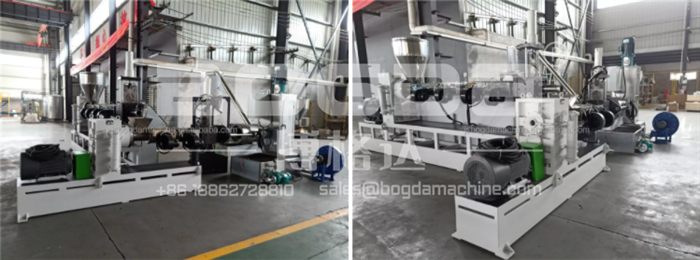

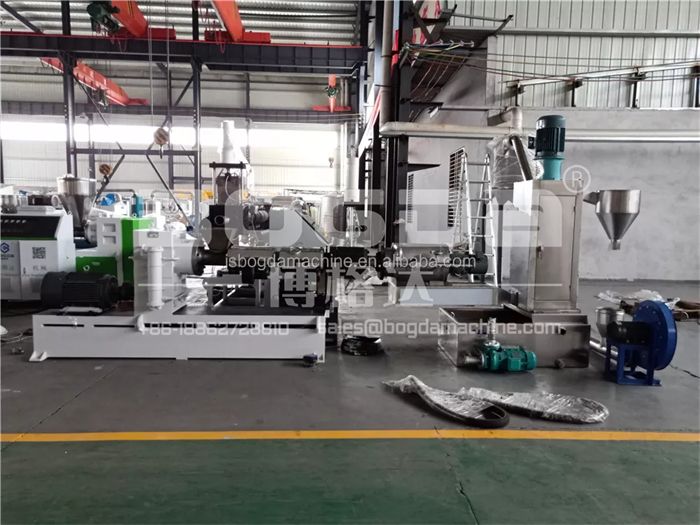

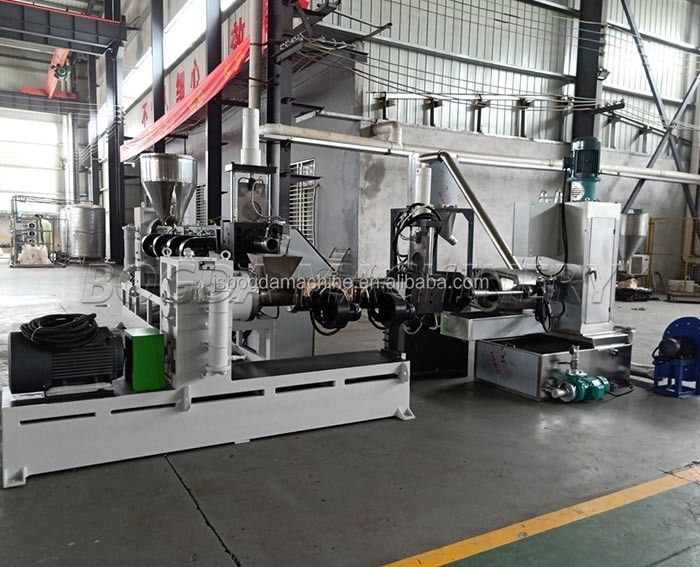

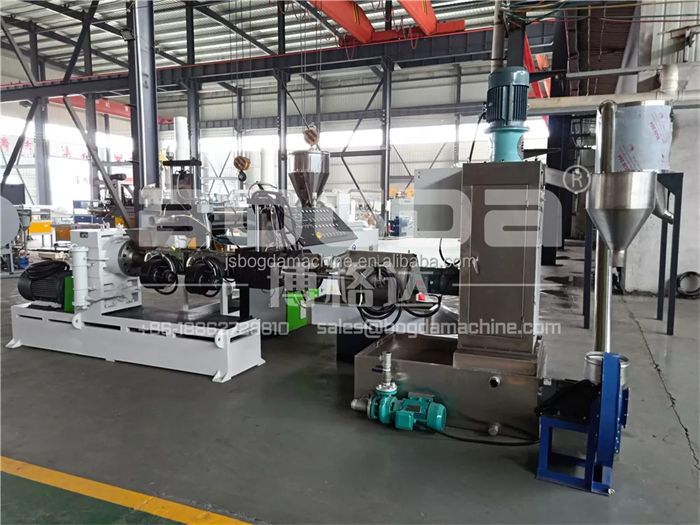

HDPE Die-face Horizontal Cutter Pelletizing line                                               Capacity: 180-220kg/h

BOGDA HDPE Plastic Raw Material Granules Pelletizing Making Machine For Plastic Economic

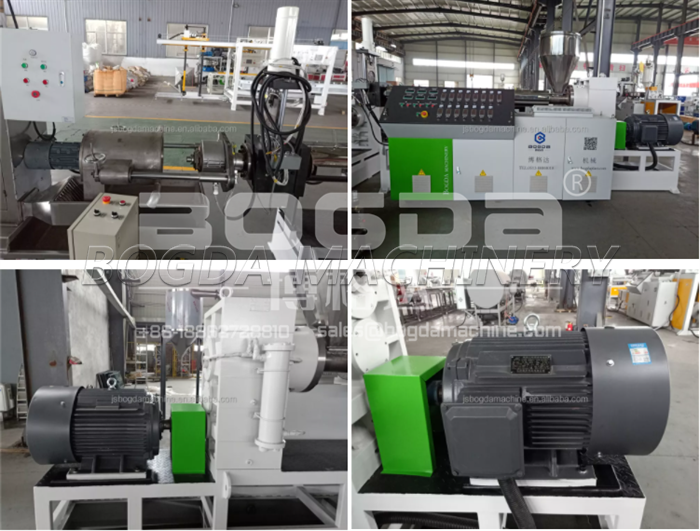

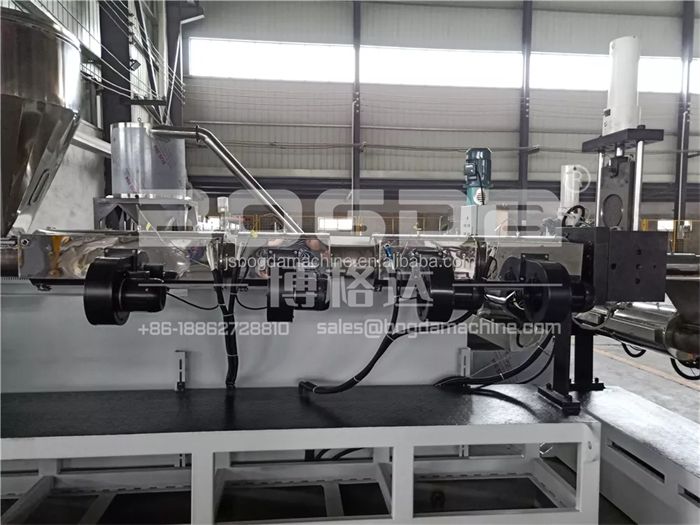

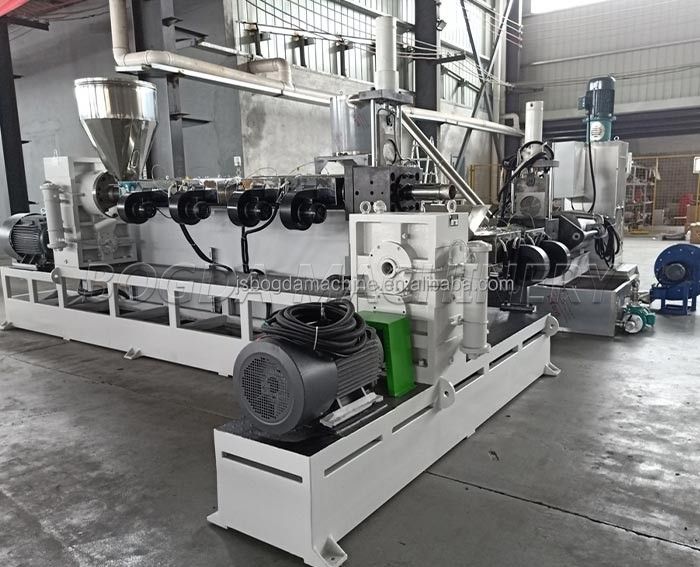

1	SJ100/25 single screw extruder for HDPE

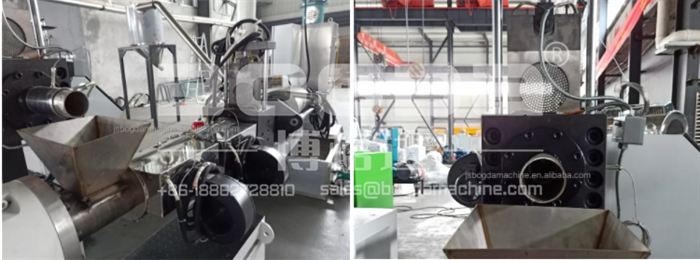

2	Hydraulic sieve system
3	SJ100/12 single screw extruder for HDPE
4	Hydraulic sieve system
5	Horizontal water-ring cutting system
6	Dewatering machine

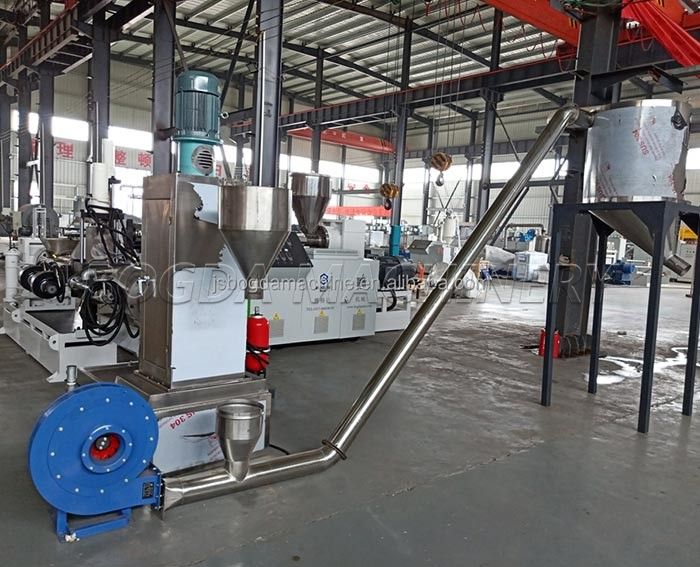

7	Air-cooling system
8	Electric operating cabinet

Screw and barrel:
Material of screw and barrel: 38CrMoAlA
Tempering hardness: HB230-250
Nitride hardness: HV850-950
The depth of nitride treatment: 0.5-0.7mm
Brittleness: 2 grades

Single channel double-screen hydraulic swift exchanger:
Material of screw and barrel: 40Cr
Tempering hardness: HB 260-280
Nitride hardness: HRC 50-60
Oil pump power: 2.2kw

250model gear box:

High torque, low noise, Hardened teeth grinding gear box with an external cooling circulatory.

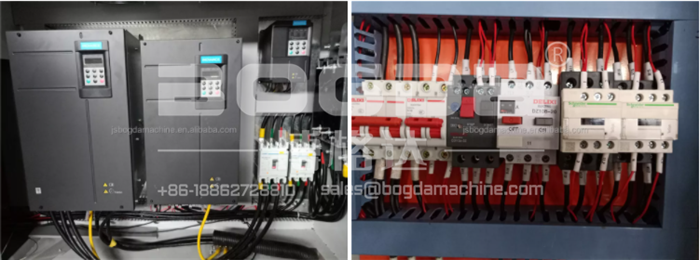

Electric Operation Cabinet:
Temperature control: Omron of Japan
Contactor: TAIAN
Inverter: TECO

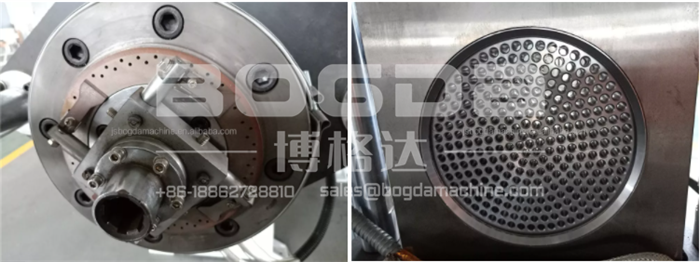

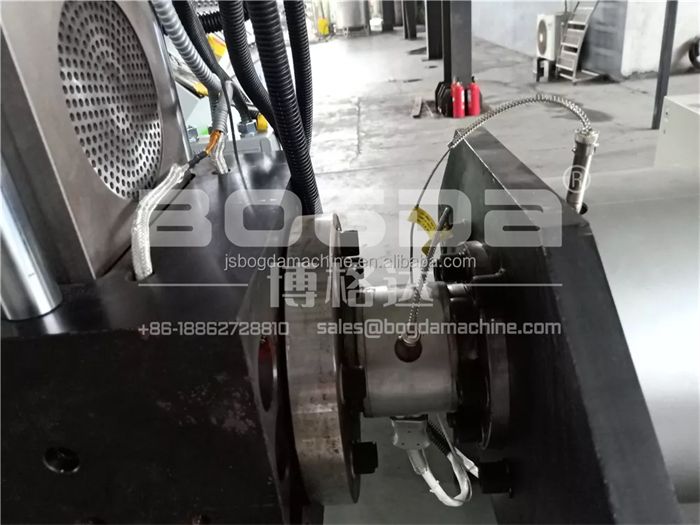

Horizontal Water-ring Cutting System:
* power of the motor: 1.5kw
* way of control: frequency control
* water pump power: 3kw

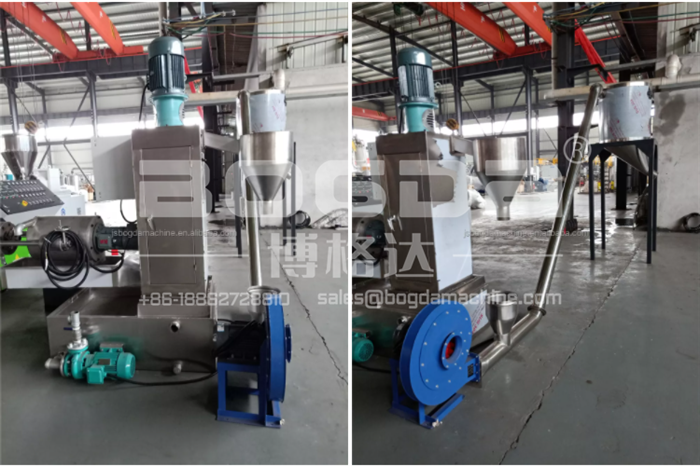

Dewatering Machine:
* Motor power: 5kw
* Material: stainless steel
* Rotating Speed: 120RPM
* Main shaft adopts balance treatment.

Product Paramenters

Model	SJ100/25
Extruder Motor Power (kw)	55
Extruder Max. Capacity (kg/h)	180-220kg/h
Motor rotating	0 ~120r/min

BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.

BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.

Fast response, good quality, best price and perfect service are our advantages and culture.

Q: Where can we get spare part?

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

Q: How can I help you when face some technical problem?

A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

Q: How long is the guarantee?

A: 12 months since the first day customer operates (except wear parts).

Q: Any quality checking before shipment?

A: 100% confirm, run and test machines before shipment with quality certificate.

Q: Can I operate machine if don’t have experienced engineers?

A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements

Q: How many electric, water, air need for the machines?

A: Technical department supply the whole layout for workshop details.
