BOGDA Manufacture Plastic PP PVC Tube Settler Media Profile Extrusion Making Machinery Production Line

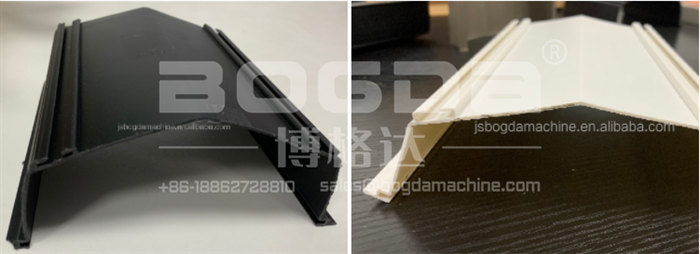

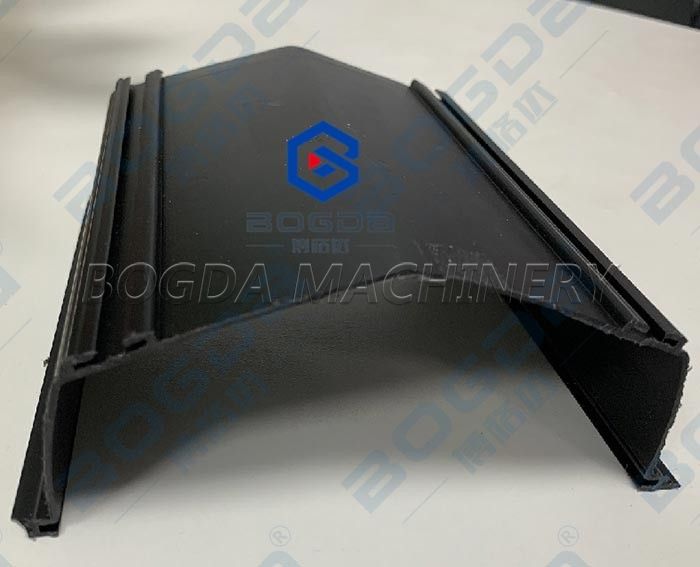

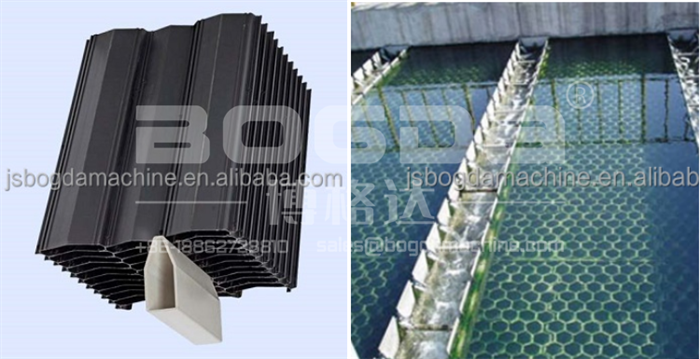

Finished Product

PP PVC Tube Settler Media Profile Extrusion Making Machinery Production Line

Tube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment. Tube settlers are single plastic profiles combined to tubes. This design multiplies the sedimentation area up to 15 times per square meter surface area and helps to improve sedimentation in water and waste water treatment plants. Different executions support a better process and cost reduction of the plant.

Raw materials

PP, PVC, ABS, with lubricating additives to provide a smooth, antifriction surface

Solids Removal Sludge, sand and siltes in surface water, chemical precipitation and flocculation form solids which have to be removed. The most economic process to remove this pollution is parallel plate sedimentation. Multiple sedimentation planes within one tank reduce the size and cost of the tanks.

Product Description

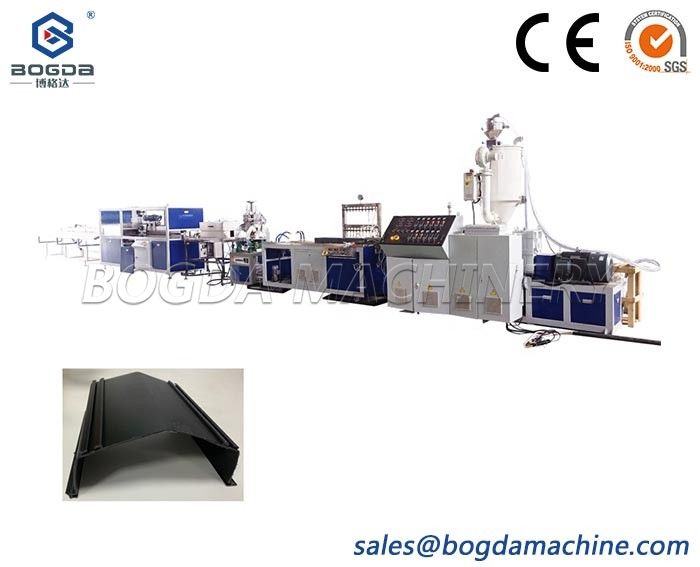

Tube Settler Media Profile Extrusion Making Machinery
1	Auto loader & hopper dryer	1 SET
2	SJ55/33 Single screw extruder	1 SET
3	Extrusion mould	1 SET
4	Vacuum calibration and cooling table	1 SET
5	240 Haul-off machine with rubber blocks	1 SET
6	240 Cutting machine	1 SET
7	Final stacker	1 SET

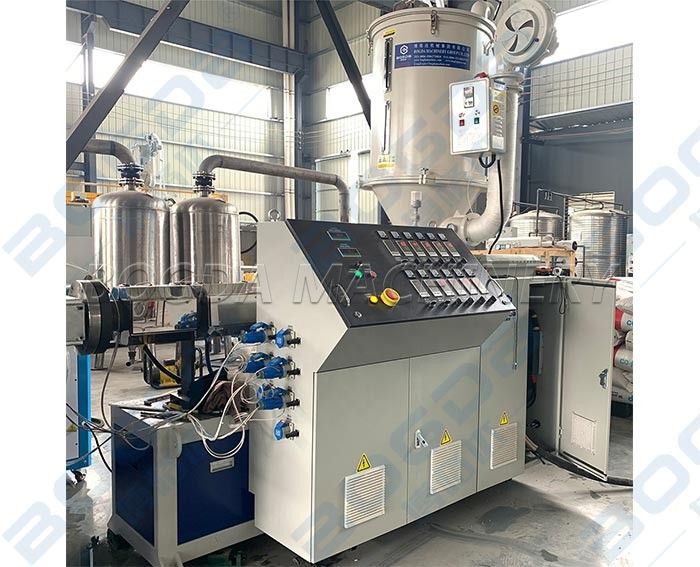

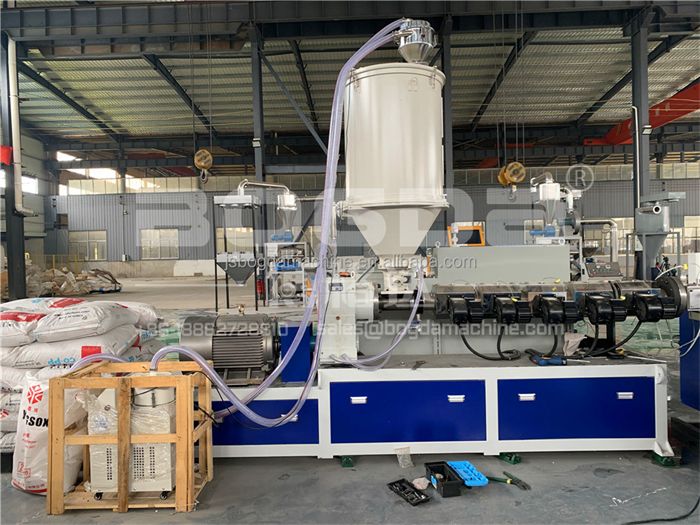

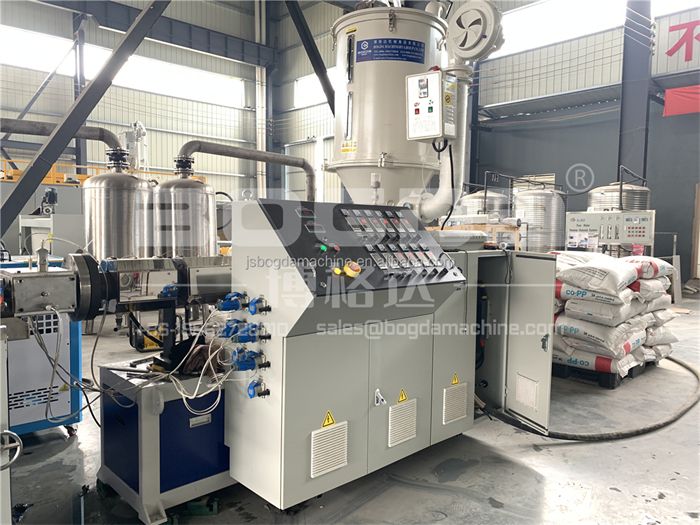

SJ55/33 single screw extruder

1. With auto loader hopper dryer

2. Famous electrical brand: OMRON temperature controller, ABB inverter, SIEMENS BEIDE motor

3. Main motor power: 30KW, SIMO or WANAN or SIEMENS BEIDE  brand

4. Inverter brand: ABB or INOVANCE

5. Extrusion speed: 2-2.5m/min

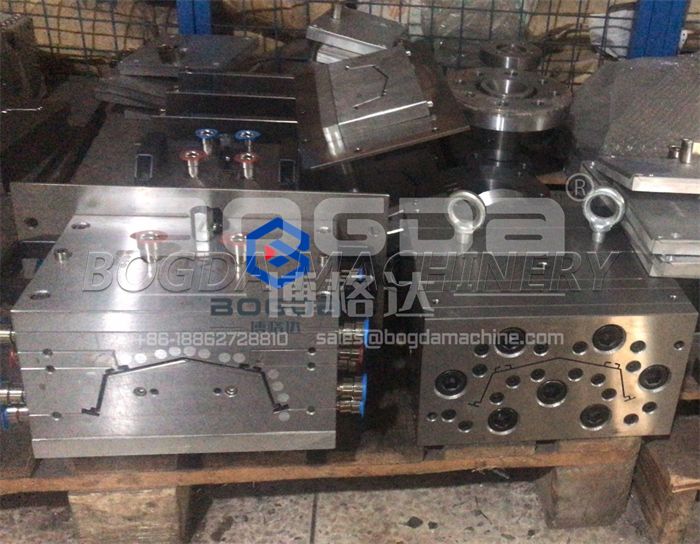

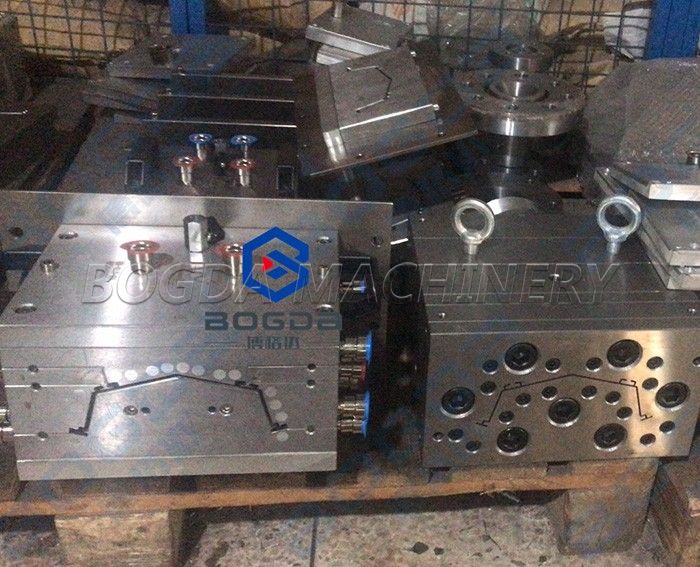

Extrusion mould

1. Inlcude mould die, vacuum forming mould, water tank

2. Material: 3Cr17

3. Different designs for different sharps

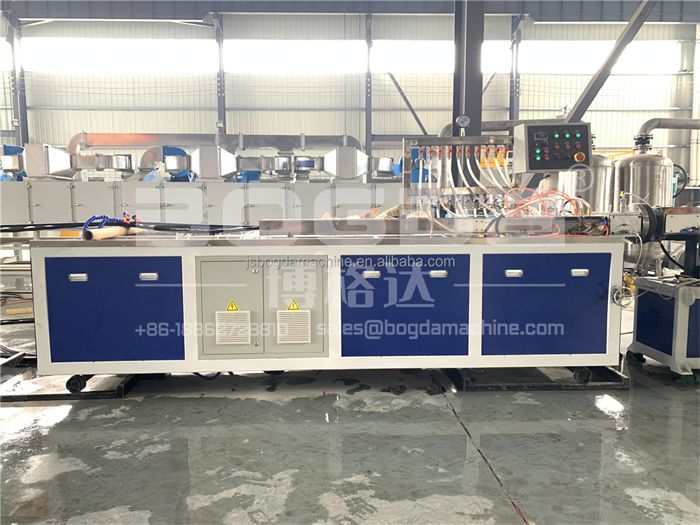

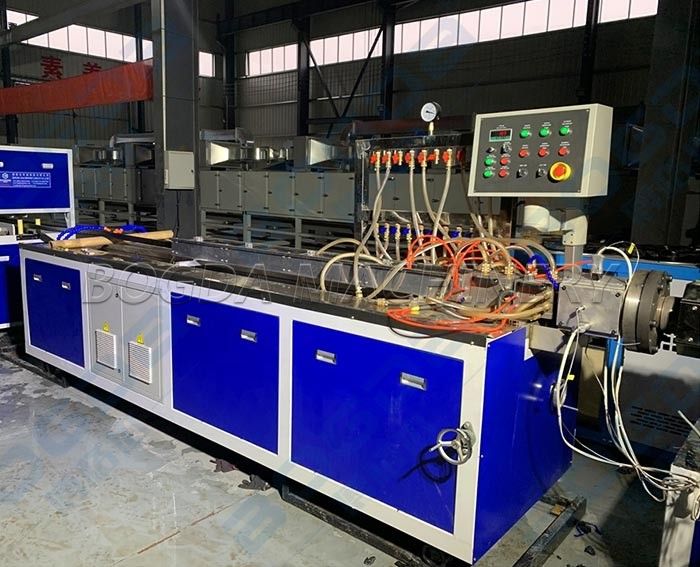

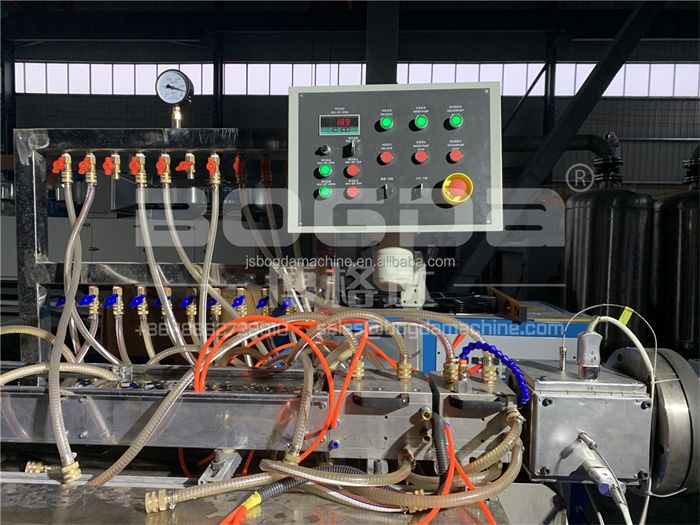

Vacuum calibrator & cooling table

1. Length: 3.5m

2. Surface material: stainless steel

3. Water pump: 2.2KW

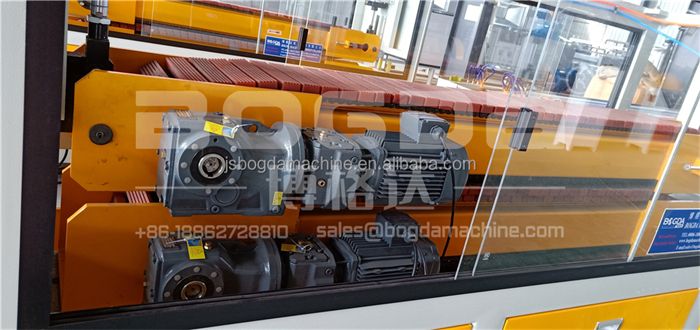

240 Haul off machine

1. Customized rubber block for profiles

2. Maximum haul off width: 240mm

3. Motor power: 1.5kw*2 sets

4. Haul off speed: 0.5-4.6m/min

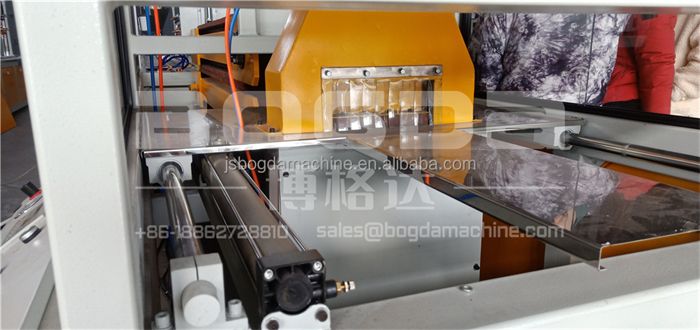

240 Cutting Machine

1. Maximum cutting width: 240mm

2. PLC control

3. Length measurement: switch limited

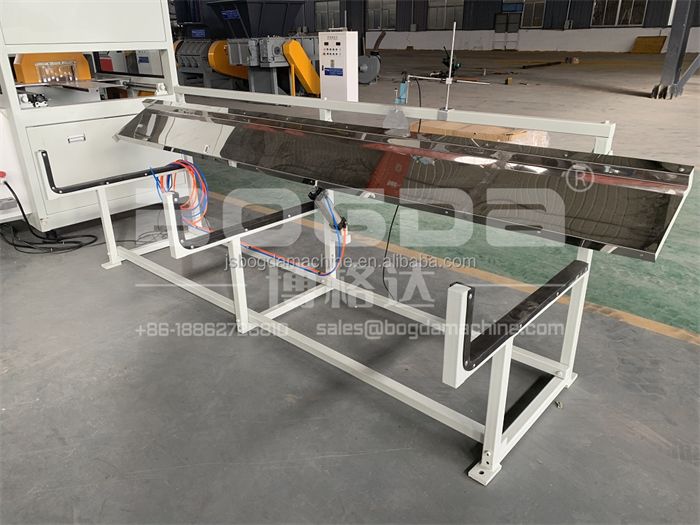

Final stacker

1. Length: 6 meters, can be customized

2. Pneumatic turning automatic

BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.

BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.

Fast response, good quality, best price and perfect service are our advantages and culture.

Q: Where can we get spare part?

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

Q: How can I help you when face some technical problem?

A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

Q: How long is the guarantee?

A: 12 months since the first day customer operates (except wear parts).

Q: Any quality checking before shipment?

A: 100% confirm, run and test machines before shipment with quality certificate.

Q: Can I operate machine if don’t have experienced engineers?

A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements

Q: How many electric, water, air need for the machines?

A: Technical department supply the whole layout for workshop details.
