Extruder Screw Design: Single-screw Extrusion Speed:1-10m/min Printing Machine: foil hot stamping machine Flower Machine: embossing machine
Extruder Screw Design: Single-screw
Extrusion Speed:1-10m/min
Printing Machine: foil hot stamping machine
Flower Machine: embossing machine

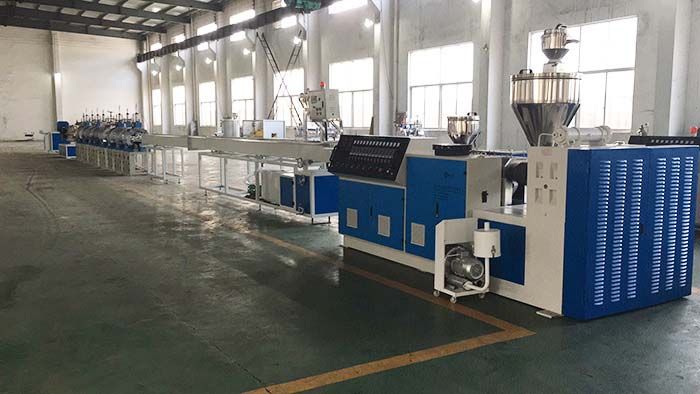

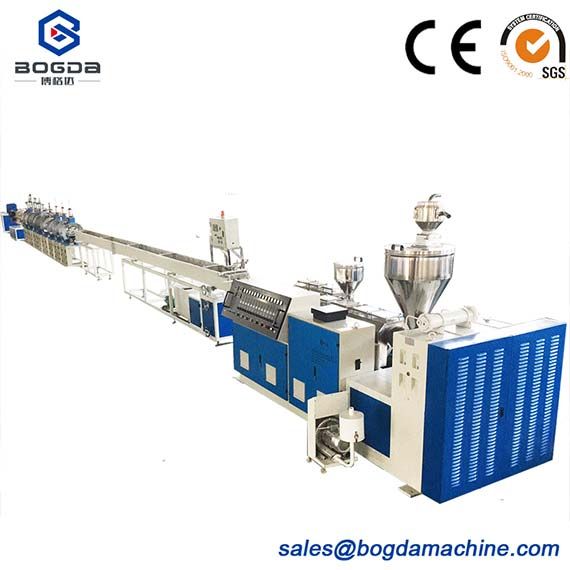

PS Foam Frame Extrusion Line Description
Polystyrene Foam Picture Frame Making Machine can make Polystyrene Foamed Skirting Profile, Polystyrene Foamed Decoration Profile, Polystyrene Foamed Picture Frame, Mirro Frame, Photo Frames, which can replace the tradition wooden frame profiles, the costs are much lower and the quality is much better than wooden profiles.
The main raw materials are recycled PS, mixing with little some other additives in different formulas, such as HIPS, EPS, Foaming, DOP TiO2 (about 4-5 kinds), this can get different quality profiles for various application, adopting low foam technology which can save more materials cost in production.

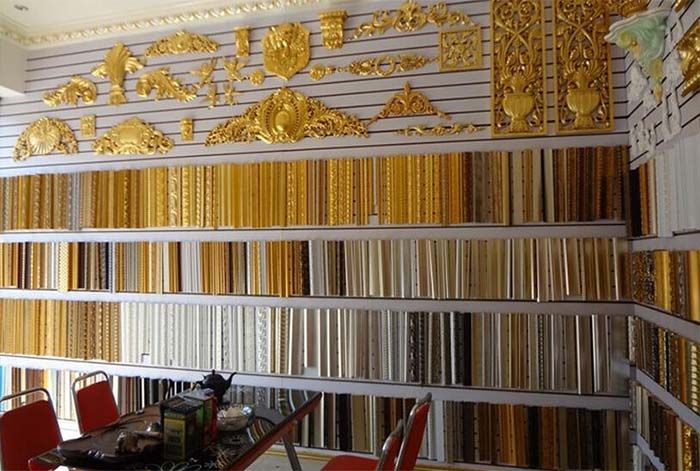

Kinds of PS foam frame designs
PS foam frame profiles machine list

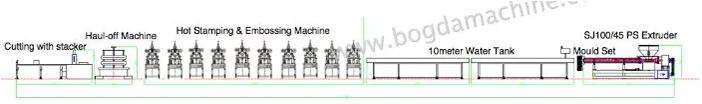

Mixing raw materials------Conical twin screw extruder------Extrusion dies------Vacuum calibrating tank------Haul-off machine & Cutting machine------Stacker
Technical parameter
Technology date for PS foam frame machine
Model | Production line speed | Production line power (KW) | Appearance size (mm) |
PS65 | 2-6m/min | 50 | 27000×1600×2100 |
PS75 | 2-7m/min | 60 | 28000×1600×2100 |
PS90 | 1-5m/min | 90 | 33000×1700×2100 |
PS100 | 1-6m/min | 100 | 34000×1700×2100 |
PS120 | 1-3m/min | 130 | 35000×1700×2100 |

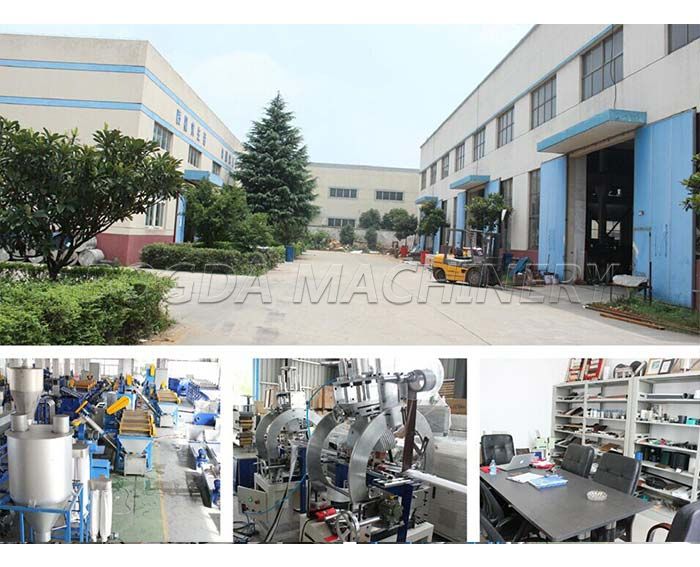

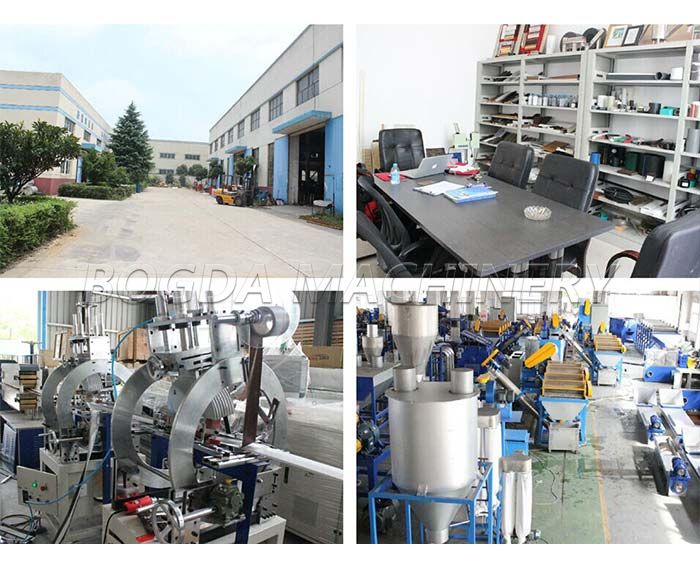

BOGDA International Co, BOGDA Machinery Co, who is a leader of Plastic Machine and Raw Material. Such as Plastic Profile/Pipe/Sheet Extrution Equipment,Injection Machine and Waste PP/PE Film, PET Bottle Washing Recyce Machine, as well as Plastic Granulating Line, meanwhile we are familiar with kinds of raw material to help our customers choose the most suitable machine on best quality by economically.
In wooden cases, wooden splints, wrap film and other specialized packaging film, to ensure that the machine impact damage in the long time of land and sea transport, thus reaching the customer factory intact
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
