holding. For the WPC door frame, the inner is high density Laminated Veneer Lumber which has advantage of high strength, high toughness, and resistant of fatigue failure caused by periodic stress and thus high nail/screw holding strength.

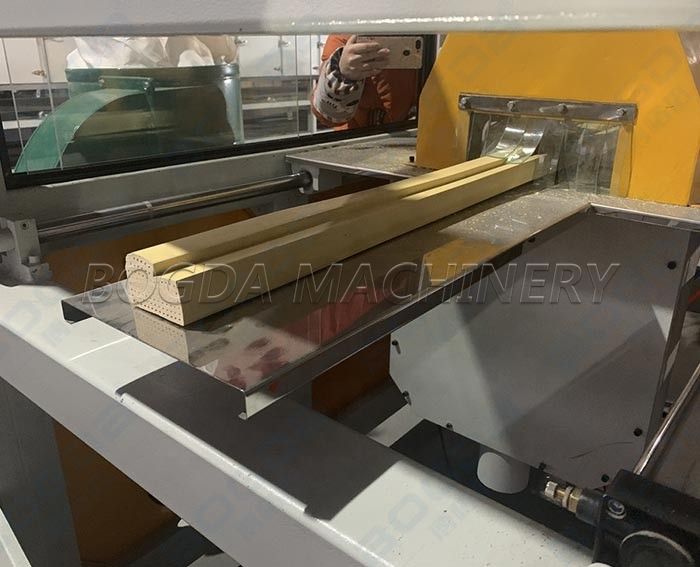

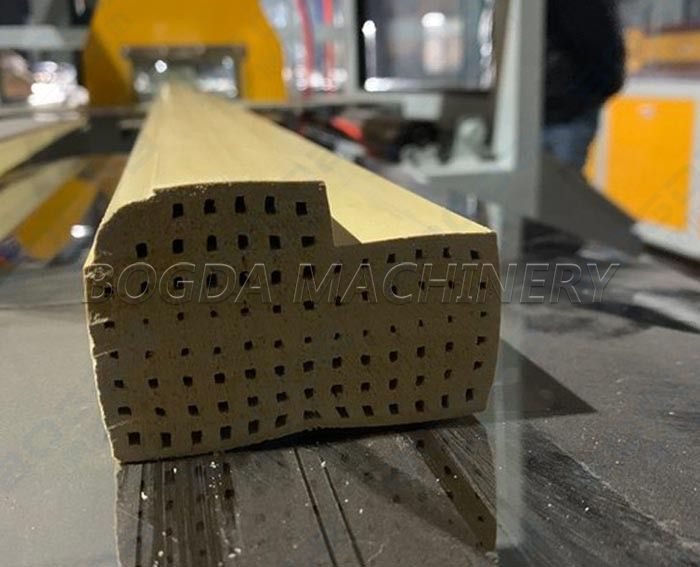

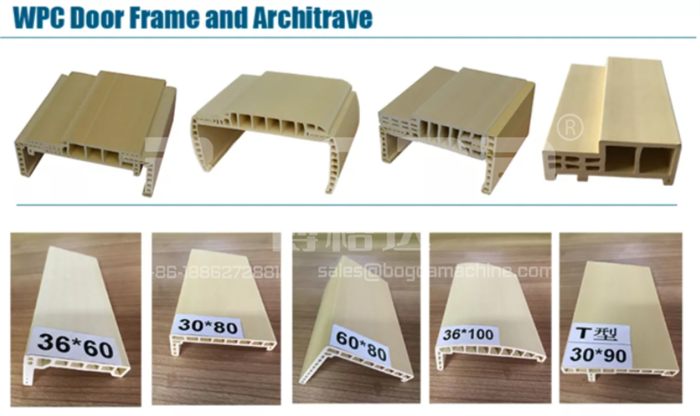

Finished Product

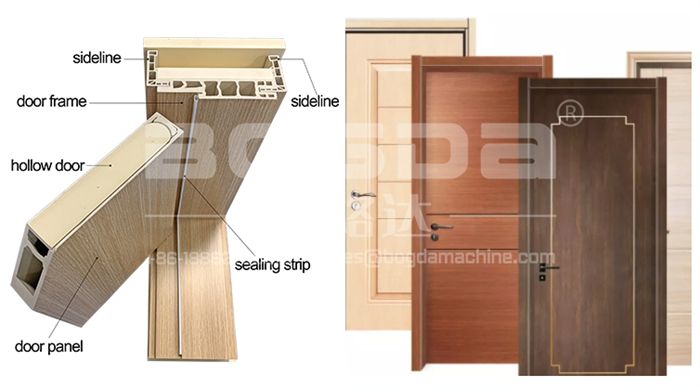

PVC WPC door frame features and advantages
WPC Door frame is purely a Polymer foam with wood content, thus product of low density can face problem of screw holding. For the WPC door frame, the inner is high density Laminated Veneer Lumber which has advantage of high strength, high toughness, and resistant of fatigue failure caused by periodic stress and thus high nail/screw holding strength.
Resistance to moisture; water proof; Fire retardant; Resistance to bugs; Anti-fungal; Anti-termite, Eco-friendly, Formaldehyde free, Non-Toxic, High durability and strength, Aging resistant; Recyclable, Totally hygienic
Quick installation and have few after-sales problems.Time-saving, worry-saving. Very good for hotel decoration.
Product Description

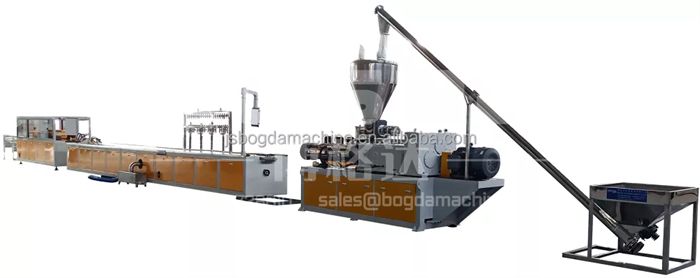

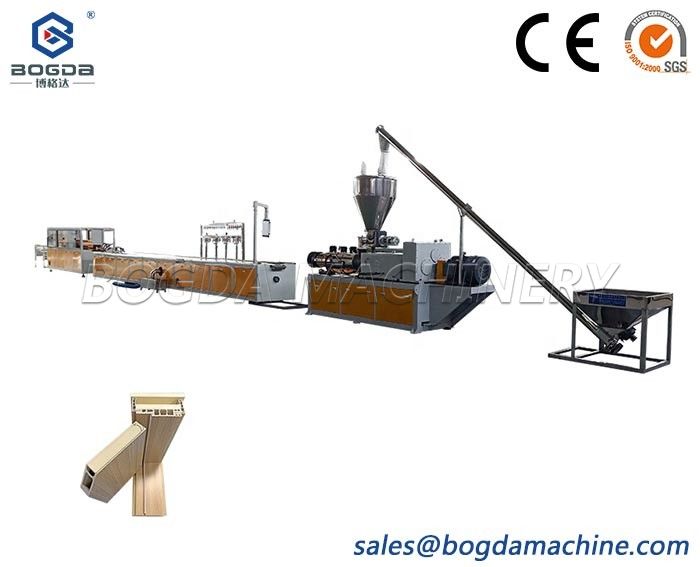

WPC Door Frame Extrusion Production Line Making Machine
1. This line application for different PVC plastic profiles making, like door frame making, UPVC window profiles making, wall sheet producing
2. Whole line power consumption: about 55kw
3. Extrusion speed: about 2m/min
| WPC Door Frame Extrusion Production Line Machine List | |||
| NO. | Machine Name | Qty. | Mark |
| 1 | Screw Conveyor | 1 SET | |
| 2 | SJZ65/132 Conical Twin Screw Extruder | 1 SET | main motor: SIMO brand |
| 3 | Extrusion Mould | 1 SET | Material: 3Cr17 |
| 4 | Vacuum Calibrator Water Tank | 1 SET | 10 meters |
| 5 | Haul off machine | 1 SET | Frequency control |
| 6 | Cutting machine | 1 SET | Saw cutting, cutting length control by limit switch |
| 7 | Final stacker | 1 SET | Stainless steel |

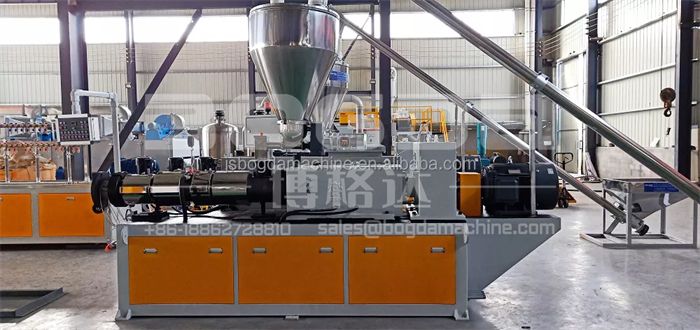

1. SJZ65/132 Conical Twin Screw Extruder
Extrusion capacity: 200-220KG/H
Main motor: 37KW, SIMO or SIEMENS brand
Inverter: INOVANCE or ABB brand
Raw materials feeding: auto feeding by screw conveyor
Screw and barrel: mainly for making foamed PVC WPC plastic profiles, advanced processing and testing equipment, strict heat treatment control technology, test block and test report provided

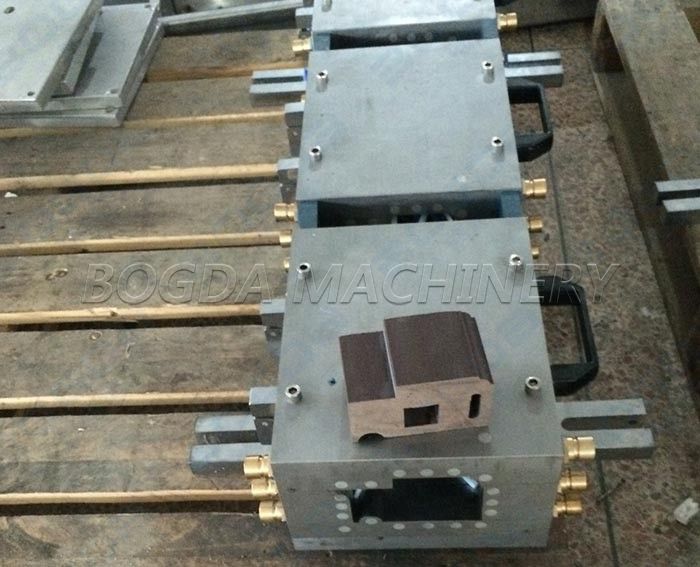

2. Extrusion mould for WPC door frame
Material: 3Cr17, mould steel
Composition: mould die + calibrator + water Tank + heating zones
Heating material: Cast Aluminum, stable accuracy heating temperature

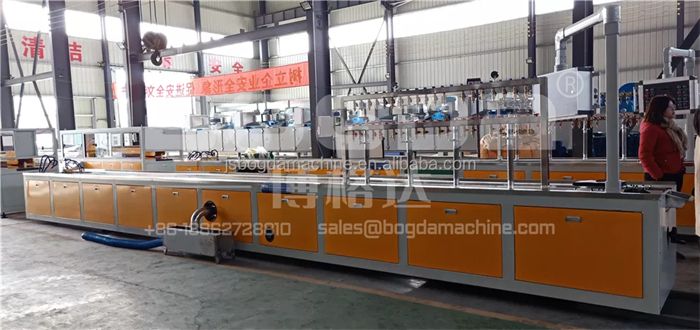

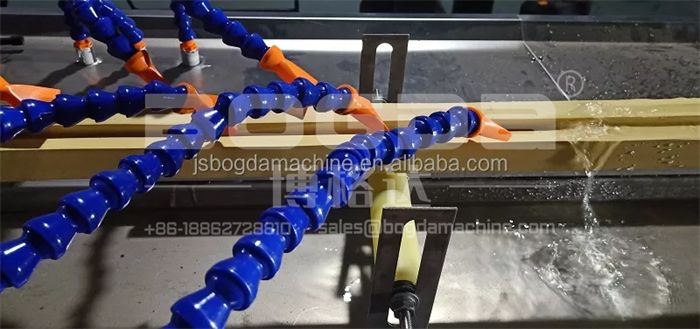

3. Vacuum Calibrator Water Tank: 6m
Material and cross-section form of the shaped tabletop rail: stainless steel sink, cast aluminum profile for mold connection rail, hard anodized surface or silver powder paint, bracket and water collection pipe as one body, stainless steel square tube, wear-resistant and corrosion-resistant.
Water pump: 5.5kw *3units, Water ring vacuum pump with silencer and integral bottom plate; high installation accuracy and Vibration, withover-current protection.

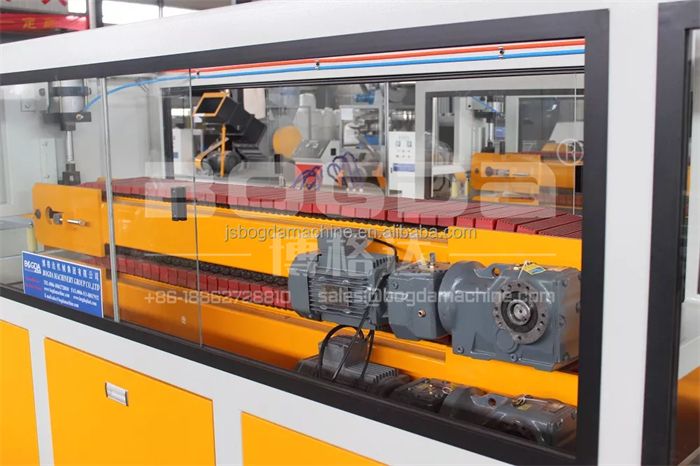

4. Haul- off Machine
Customized rubber block for WPC door cover hauling off
Effective haul off length is 1600mm
Greared motor: 1.5kw, speed control of the traction belt is provided by the frequency converter
Rubber block adopts the formula provided by the Korean manufacturer, which is reliable and wear-resistant, has a trapezoidal section and a groove on the contact surface

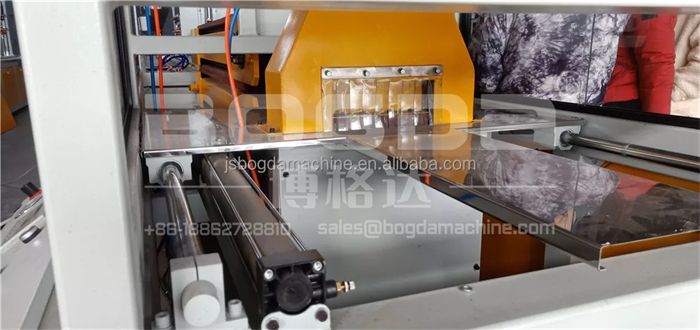

5. Saw Cutting Maachine
Cutting blade: high-quality alloy, suitable for cutting PVC profiles.
Saw blade outer diameter is 400mm
PLC control cutting blade and stroke movement
Length counting method: by limit switch
Cutting motor: 1.5kw

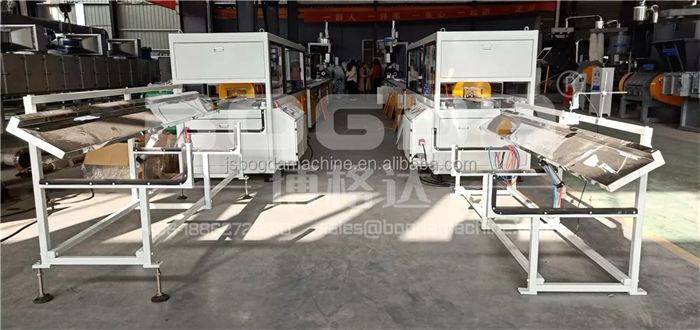

6. Final Stacker: 3m
Limit switch installed on stacker
Removable, the product contact part of the turning rack is covered by rubber blocks.
BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.
BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.
Fast response, good quality, best price and perfect service are our advantages and culture.
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
