Features: 1.One time can punch 30pcs Plastic PVC Cable Trunking(width:40mm) together. 2.Very lower noise and trunking punching working stable 3. Fully automatically PLC control + touch screen
Product Description
White color plastic cable duct PVC wire duct PVC trunking punching machine is mainly composed of stacked, trough, fixed-length feeding cylinder transport agency (by pneumatic components to perform an action), punching, punching, punching arm table mold, the crankshaft and drive system, the finished product stack frame, electric control box and other parts.
Features:
1.One time can punch 30pcs Plastic PVC Cable Trunking(width:40mm) together.
2.Very lower noise and trunking punching working stable
3. Fully automatically PLC control + touch screen
Application

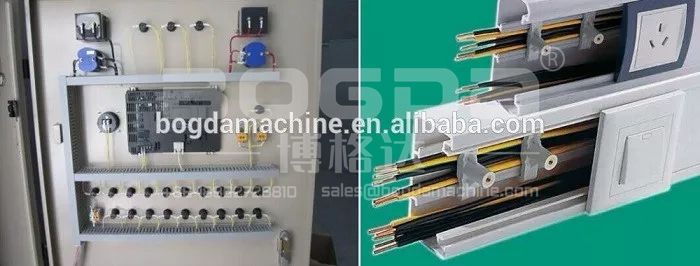

Plastic trunking after punching used in Electrical Cabinet, for electrial wires connection.
Machine Details

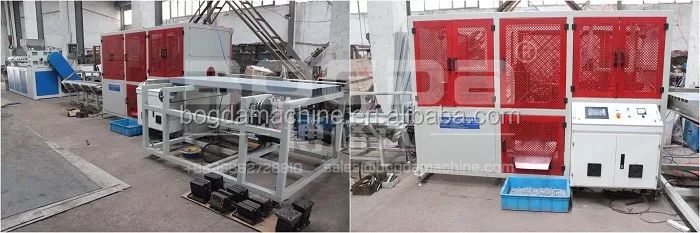

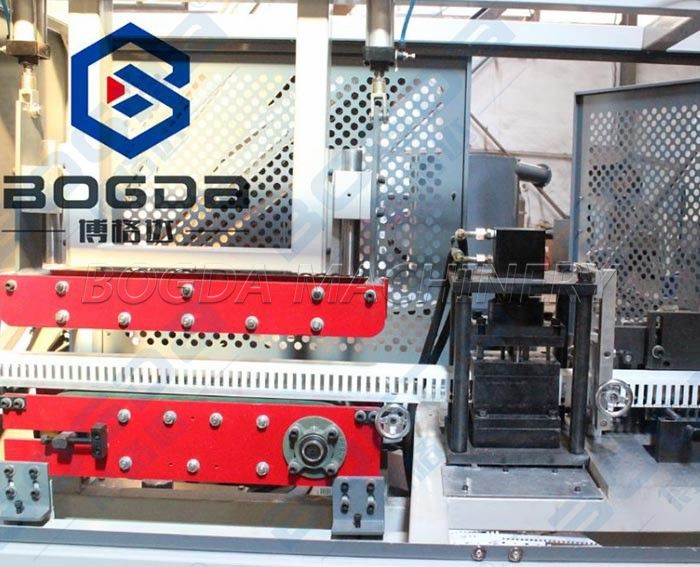

White color plastic cable duct PVC wire duct PVC trunking punching machine, 3 parts: Feeding + Punching + Stacker.

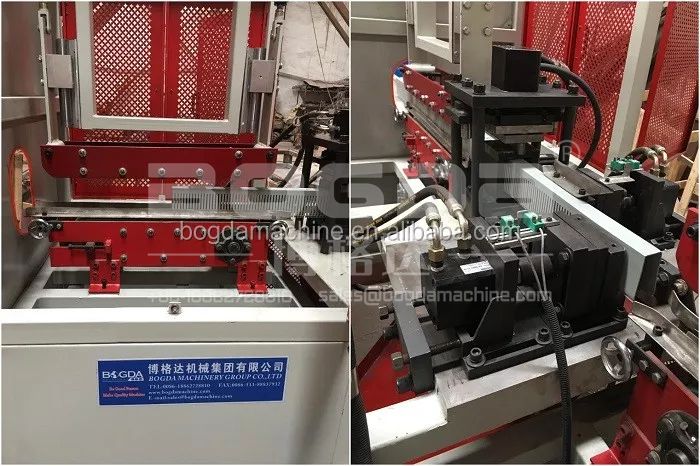

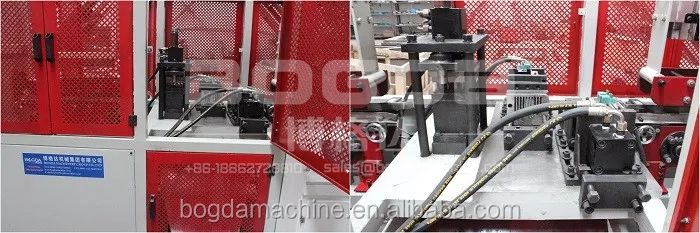

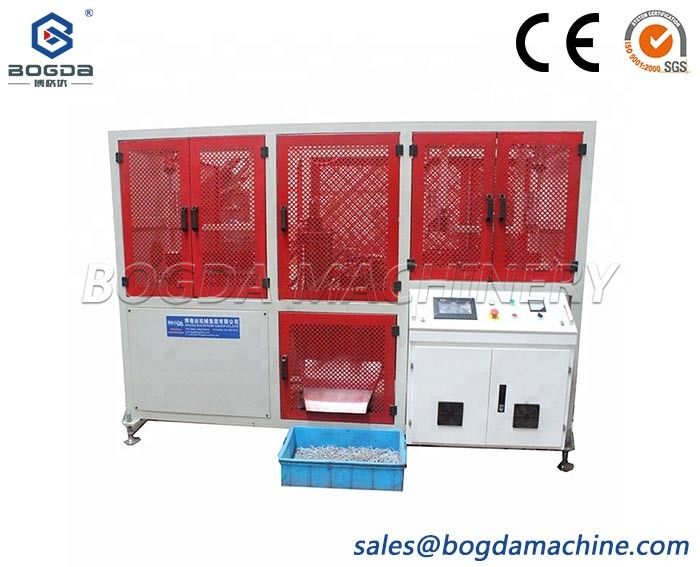

White color plastic cable duct PVC wire duct PVC trunking punching machine installed with inspecting window(Convenient for watching punching working progress, and safty protection for punching workers).

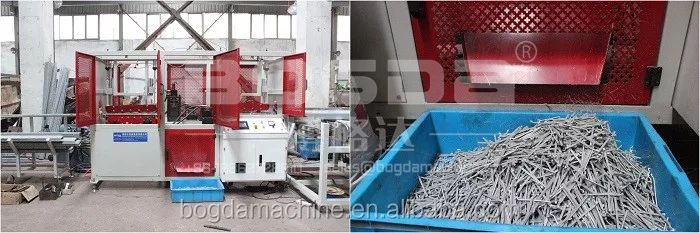

White color plastic cable duct PVC wire duct PVC trunking punching machine Waste material discharge + collection(keep workshop clean and tidy).

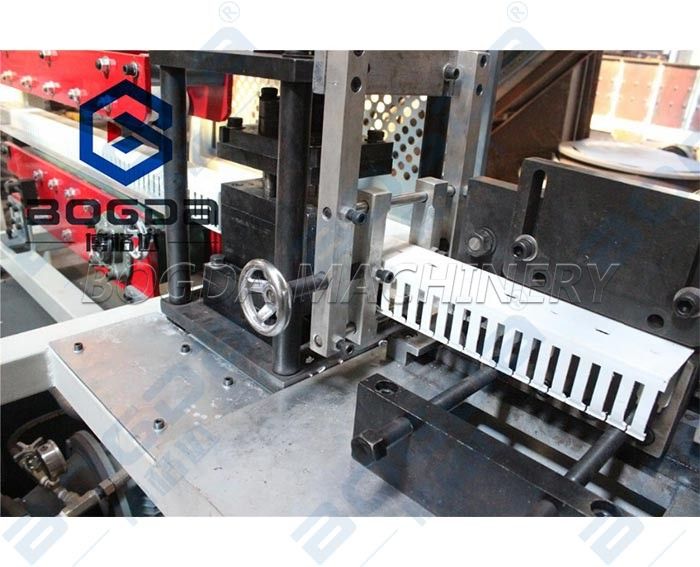

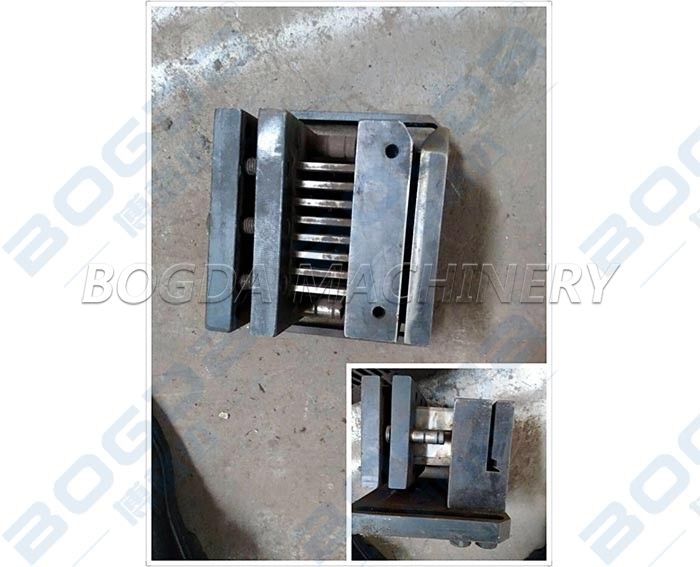

White color plastic cable duct PVC wire duct PVC trunking punching machine mould material: SKD-11, each mould is installed by modularization and convenient to disassemble.

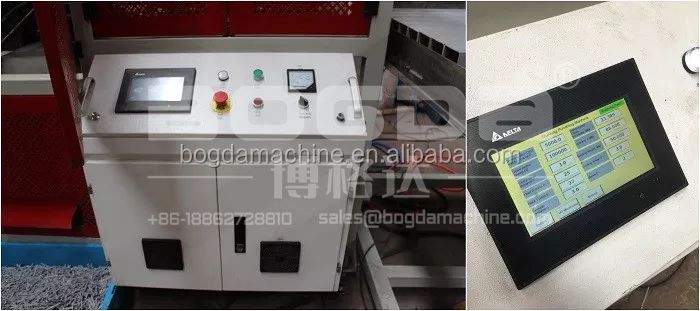

Electric Case for White color plastic cable duct PVC wire duct PVC trunking punching machine, PLC control and touch screen, SIEMENS or TEIDA brand. Can choose manual type or automaticaly punching with high precision.
Punching Process

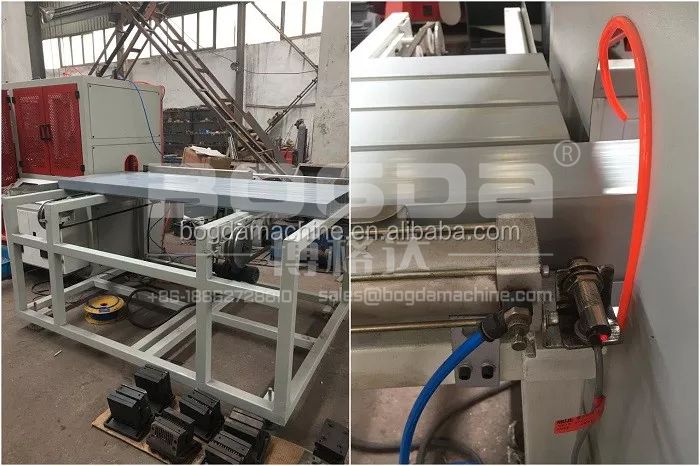

Step 1. Feeding plastic pvc trunking to punching, by pneumatic (with infrared sensor technology)

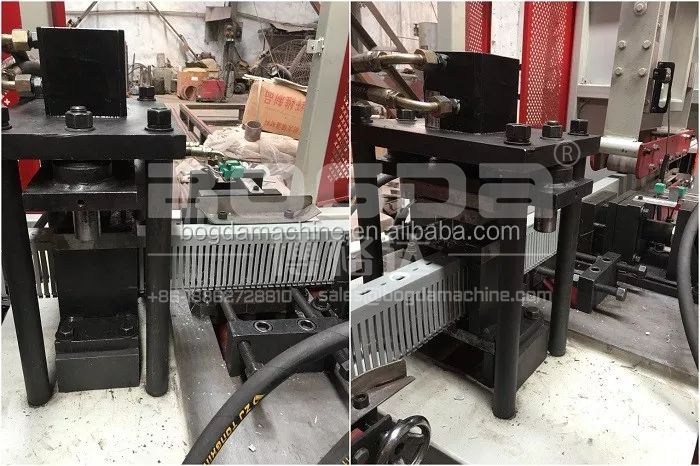

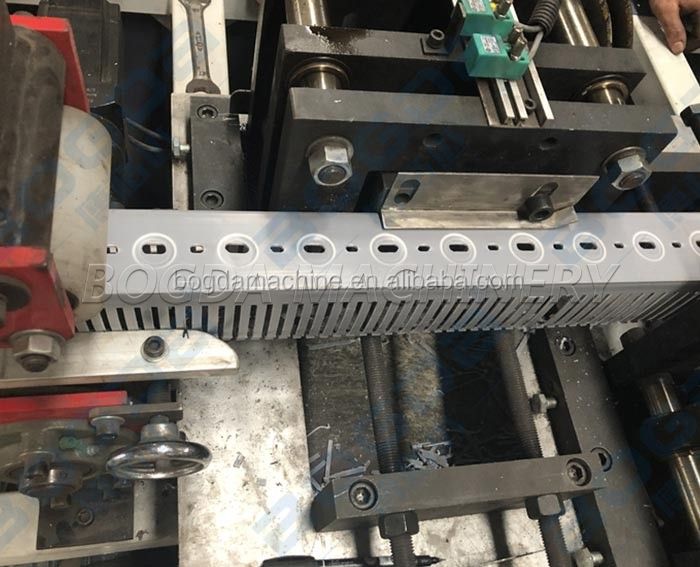

Step 2. Mould for Puching: 3 moulds for punching machine, 2 sides slotting punching moulds + 1 bottom hole punching mould.
Step 3. Haul-off, installed after punching moulds, working principle pull punched trunkings to stacker.

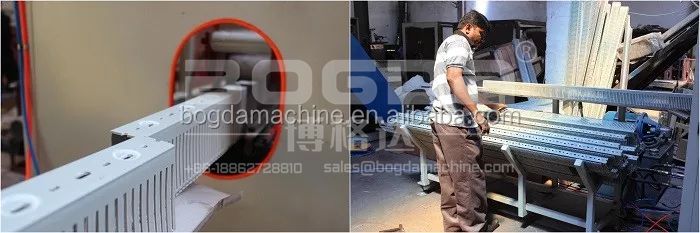

Step 4. Trunking Puching Stacker, to stacker discharged punched trunkings.
Technical Parameters
No. | Item | Parameters of Punching machine |
1 | Control type | Full-automatic (by PLC+Touch-screen) |
2 | Working speed | 4-5m/min |
3 | Height adjust range | 45mm |
4 | punching method | Hydraulic auto punching |
5 | Punch type | 3 moulds for punching machine2 sides slotting punching moulds + 1 bottom hole punching mould. |
6 | Power | 3kw |
7 | Working type | Off-line punching |
8 | Dimension | L6000*W800*H1700mm |
BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.
BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.
Fast response, good quality, best price and perfect service are our advantages and culture.
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
