1. Capacity: 120-150KG/H 2. Extrusion speed: 3-5m/min 3. Main motor: SIMO brand 4. Inverter: ABB or Huichuang brand 5. Raw material: pvc powder
Finished Product

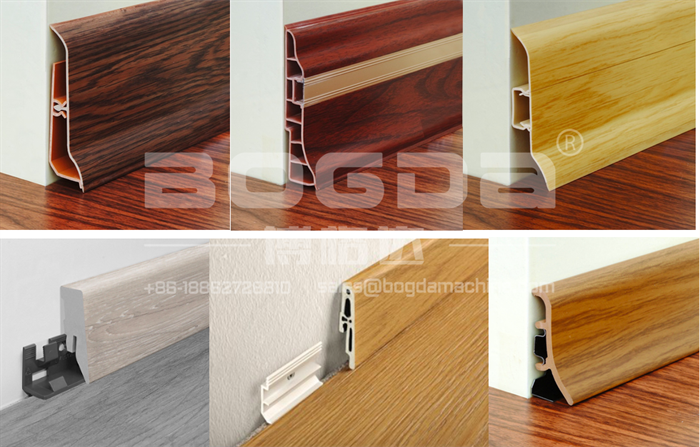

Application of PVC Floor Baseboard PVC Skirting Board
Plastic skirting boards, architraves and trims are a popular alternative to traditional wooden skirting. The plastic skirting boards, architraves and trim are available in either a plain white or a light oak wood effect, to blend seamlessly into the home.
Plastic skirting, architrave and trims do not need painting (but can be if you like), they do not swell with water spillages, do
not warp, or split or suffer from woodworm unlike the wooden alternative.
Specification
| NO. | PVC skirting baseboard extrusion line List |
| 1 | Screw Loader |
| 2 | SJSZ55 Conical Double Screw Extruder with or without Co-extruder |
| 3 | Calibration Cooling Table for PVC Skirting Board Plinth |
| 4 | Haul-off Machine for PVC Skirting Board Plinth |
| 5 | Cutting Machine for PVC Skirting Board Plinth |
| 6 | Stacker for PVC Skirting Board Plinth |
| 7 | Oil Printing Machine or Hot Stamping Machine or Laminating Machine |
Product Description

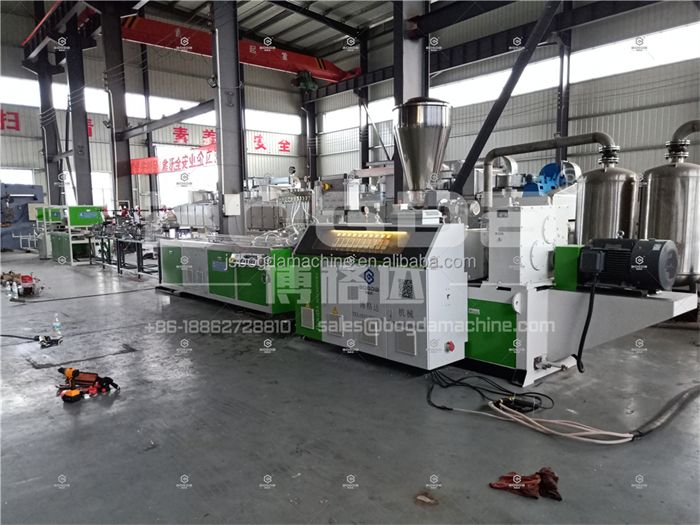

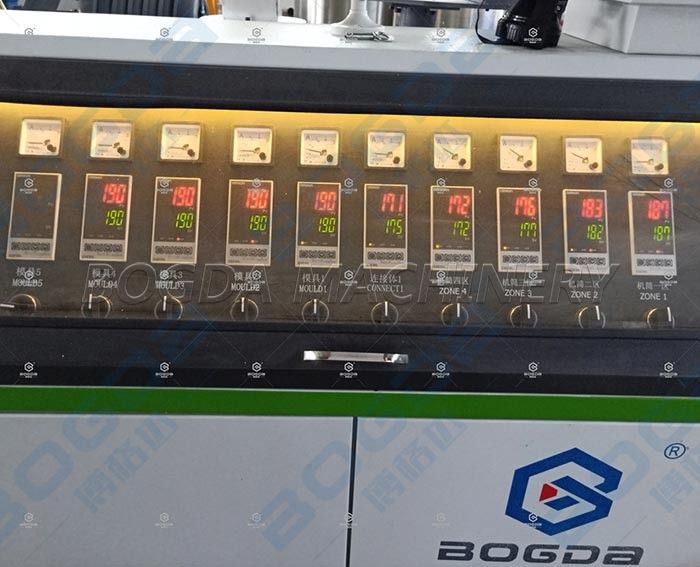

SJSZ55/110 Conical twin screw extruder for PVC Floor Baseboard PVC Skirting Board Making
1. Capacity: 120-150KG/H
2. Extrusion speed: 3-5m/min

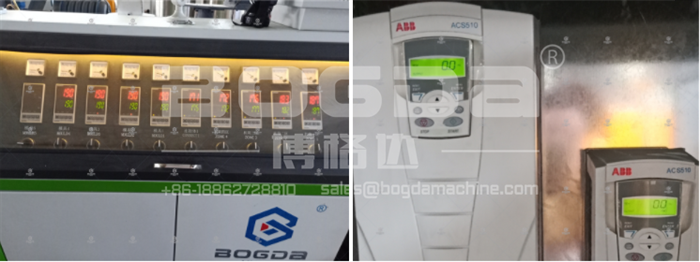

3. Main motor: SIMO brand
4. Inverter: ABB or Huichuang brand

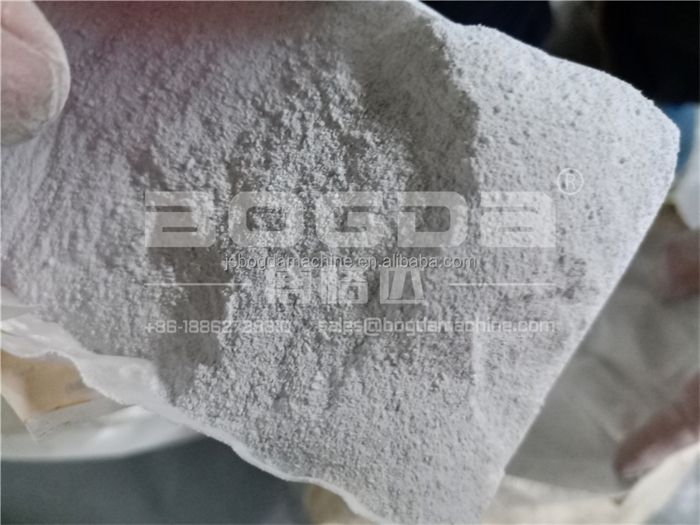

5. Raw material: pvc powder

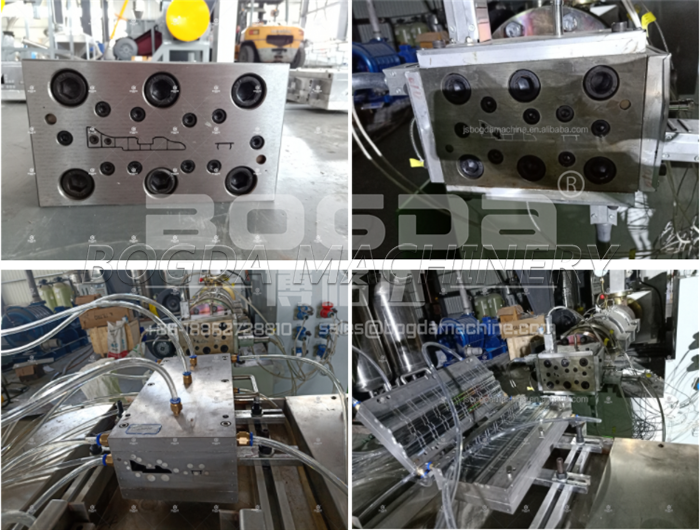

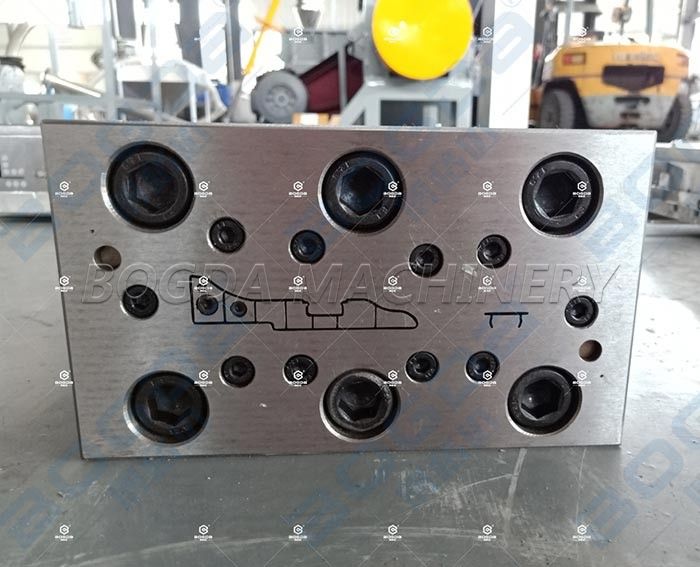

Extrusion mould
1. Material: 3Cr17
2. Cap with bottom extrusion together
3. Customized according to drawing

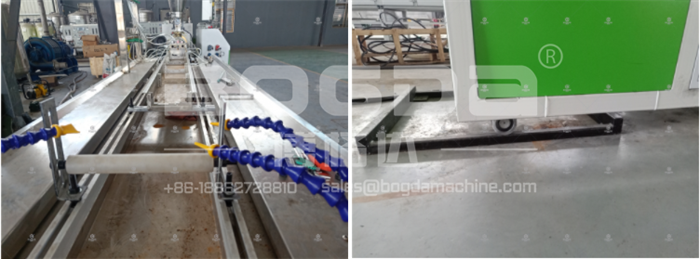

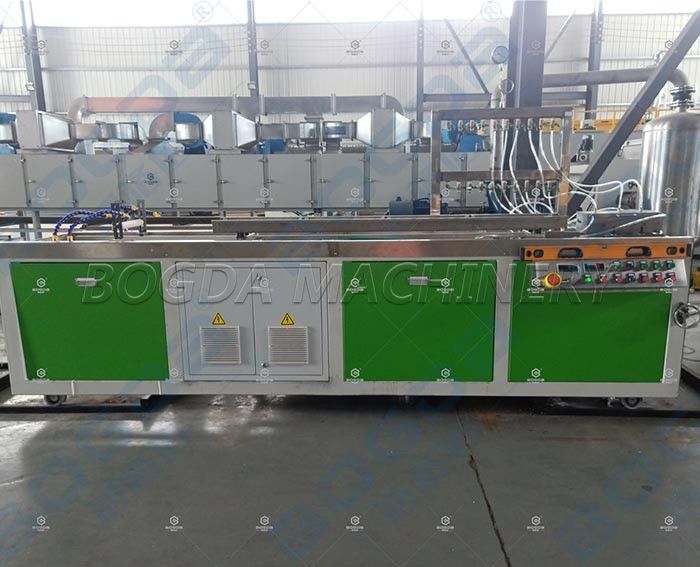

Vacuum calibrator and Water cooling tank
3 meters water tank
Stainless steel material water cooling tank

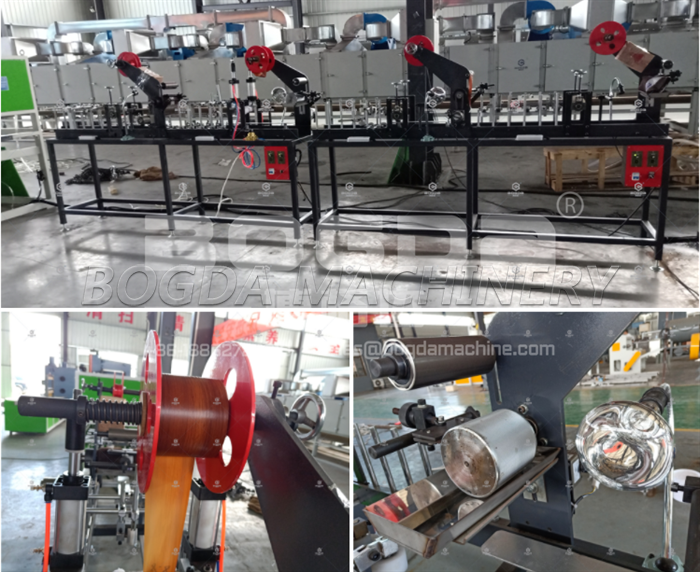

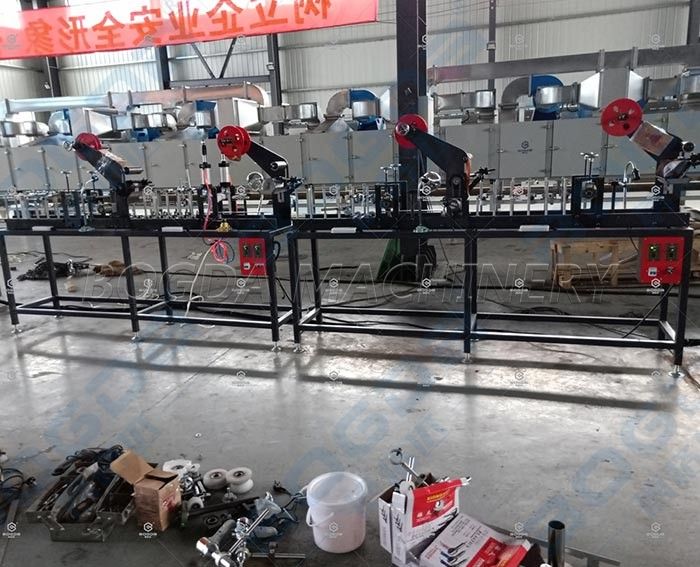

Surface treatment for pvc skirting board
Low temperature laminating or transfer printing process
Haul-off machine for pvc skirting board
Pulling Size: 200mm width
Motor Power:3KW
Total Length: 1800mm
Effective Length: 1500mm
Control Method: Frequency Conversion

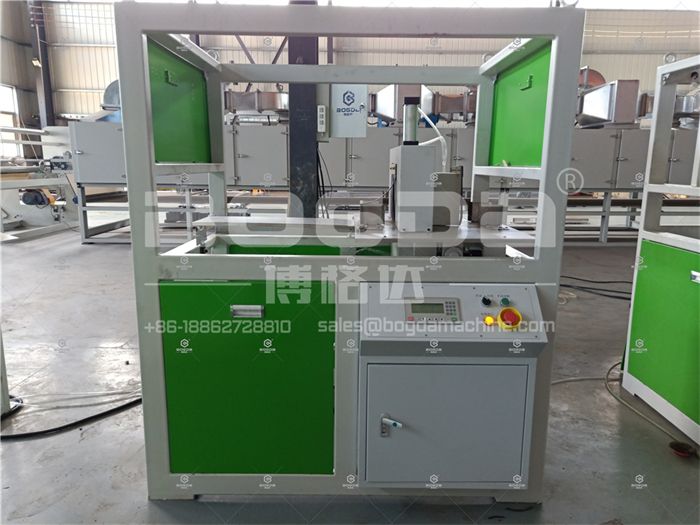

Saw cutting machine for plastic profiles
PLC control

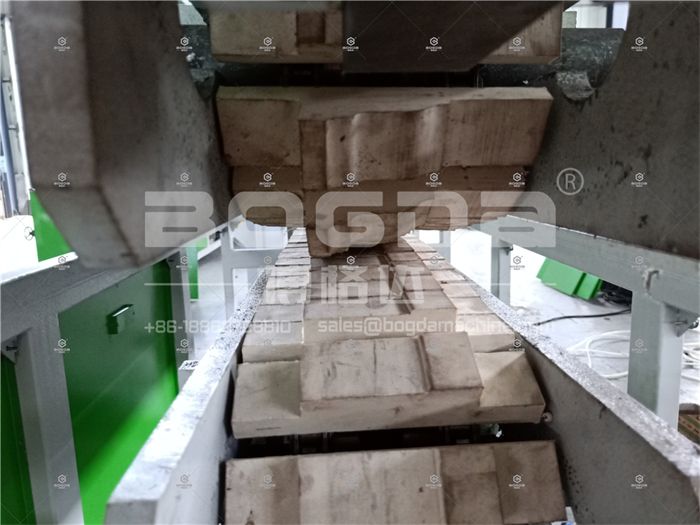

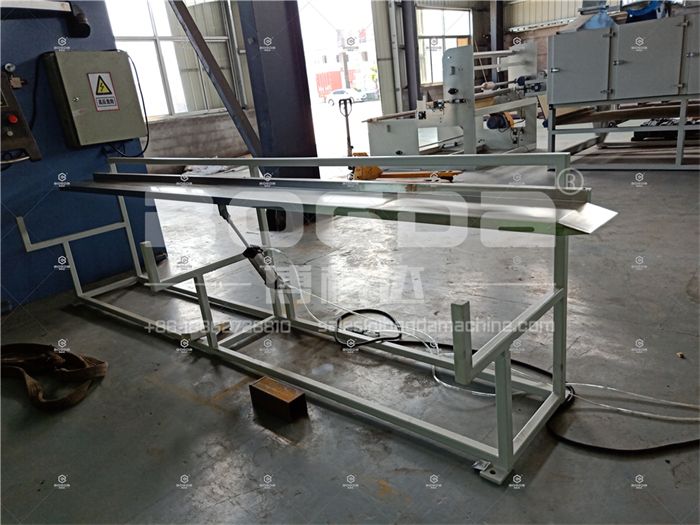

Stacker for plastic profiles
Stack Length: 3500mm
Material: Stainless steel
Working Method: Automatically
Clamping Type: Skirting Structure
PVC Floor Baseboard PVC Skirting Board
Customized pvc skirting size
BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.
BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.
Fast response, good quality, best price and perfect service are our advantages and culture.
Q: Where can we get spare part?
A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
