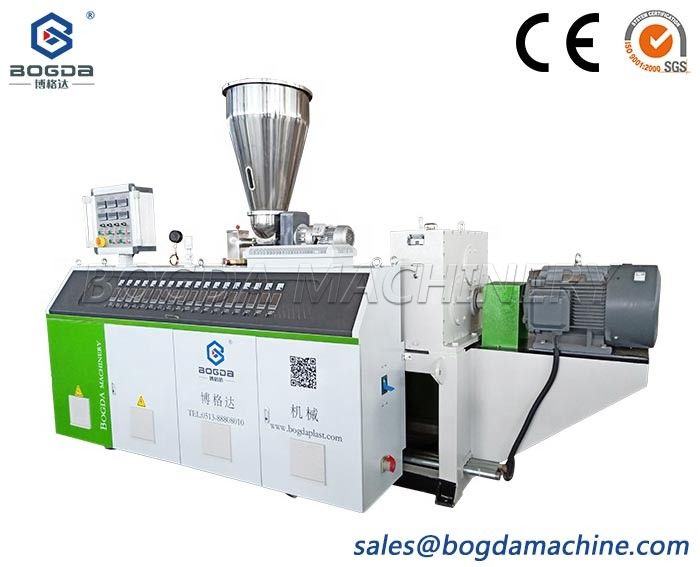

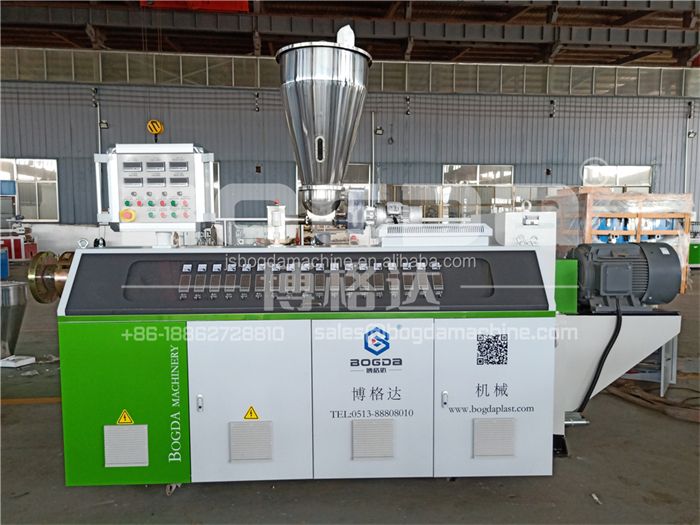

SJSZ Series PVC Window Wood Plastic Door Profiles Extruder Machine

The conical co-rotating twin screw means that the shape of the screw in the extruder is conical, and the rotation direction of the two screws is the same. The extruder adopting the conical co-rotating twin screw technology is called the conical co-rotating twin screw extruder.

Product Description

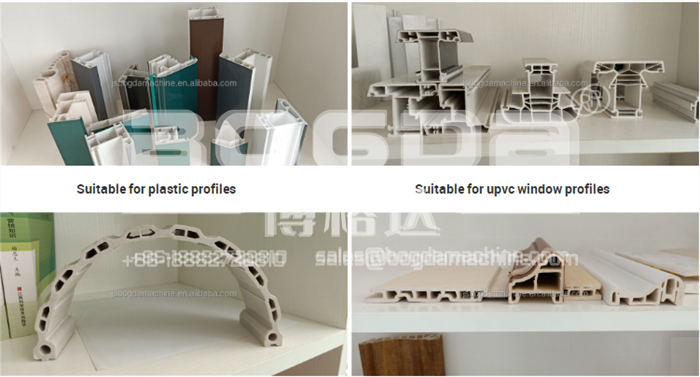

Production Application

SJSZ Series PVC Window Wood Plastic Door Profiles Extruder Machine

SJSZ Series PVC Window Wood Plastic Door Profiles Extruder Machine

SJSZ Series PVC Window Wood Plastic Door Profiles Extruder Machine

Product Description

SJSZ Series PVC Window Wood Plastic Door Profiles Extruder Machine

SJSZ Series PVC Window Wood Plastic Door Profiles Extruder Machine

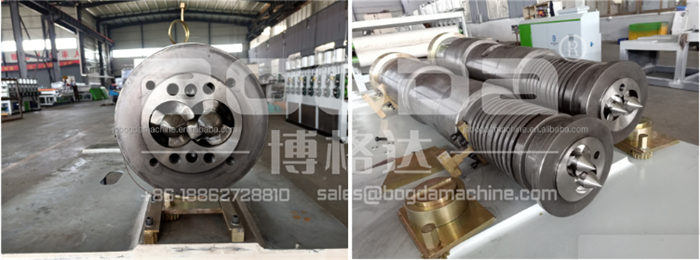

The conical co-rotating twin screw means that the shape of the screw in the extruder is conical, and the rotation direction of the two screws is the same. The extruder adopting the conical co-rotating twin screw technology is called the conical co-rotating twin screw extruder. The conical twin - screw extruder has both good plasticizing properties and good extrusion force. Conical twin screw extruder, the conical screw in the same direction of the rotation of the processed plastic into the barrel, in the barrel around the conical twin screw into shape 8 extrusion, increase the plasticizing time, reduce the friction between the plastic and the barrel screw, so as to ensure the plasticizing quality, reduce energy consumption; Because the screw is conical, it maintains the good extrusion force performance of the conical double screw granulator. Through the above technology, the conical coaxial twin-screw extruder has fully realized the characteristics of large extrusion force, good plasticizing performance, high output and low energy consumption. It has been proved that the conical coaxial twin-screw extruder can save more than 30%-50% energy and is a novel equipment suitable for all kinds of plastic or rubber extrusion and granulation forming.

SJSZ Series PVC Window Wood Plastic Door Profiles Extruder Machine

SJSZ Series PVC Window Wood Plastic Door Profiles Extruder Machine

SJSZ Series PVC Window Wood Plastic Door Profiles Extruder Machine

SJSZ Series PVC Window Wood Plastic Door Profiles Extruder Machine

SJSZ Series PVC Window Wood Plastic Door Profiles Extruder Machine

SJSZ Series PVC Window Wood Plastic Door Profiles Extruder Machine

Specification

SJSZ Series PVC Window Wood Plastic Door Profiles Extruder Machine
Extruder ModelSJSZ55SJSZ65SJSZ80SJSZ92SJSZ110
Screw Diameter (mm)55/12065/13280/15692/188110/220
Rotating Speed (r/min)454534.734.734.7
Capcity (kg/h)1803805008001400
Central height (mm)10501050105011001100
Motor Power (kw)22/303755110160
Weight (kg)35004000550080009000
LXWXH (m)3.6x1.1x2.14.2x1.5x2.44.7x1.5x2.46x1.6x2.56.5x1.6x2.5


Packaging and Shipping

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.

BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.

Fast response, good quality, best price and perfect service are our advantages and culture.

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

Customer Review

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

FAQ

Q: Where can we get spare part?

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

Q: How can I help you when face some technical problem?

A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

Q: How long is the guarantee?

A: 12 months since the first day customer operates (except wear parts).

Q: Any quality checking before shipment?

A: 100% confirm, run and test machines before shipment with quality certificate.

Q: Can I operate machine if don’t have experienced engineers?

A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements

Q: How many electric, water, air need for the machines?

A: Technical department supply the whole layout for workshop details.
