The conical co-rotating twin screw means that the shape of the screw in the extruder is conical, and the rotation direction of the two screws is the same. The extruder adopting the conical co-rotating twin screw technology is called the conical co-rotating twin screw extruder.

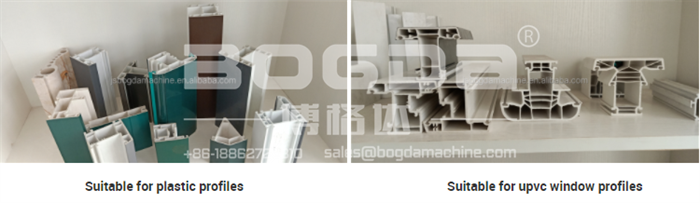

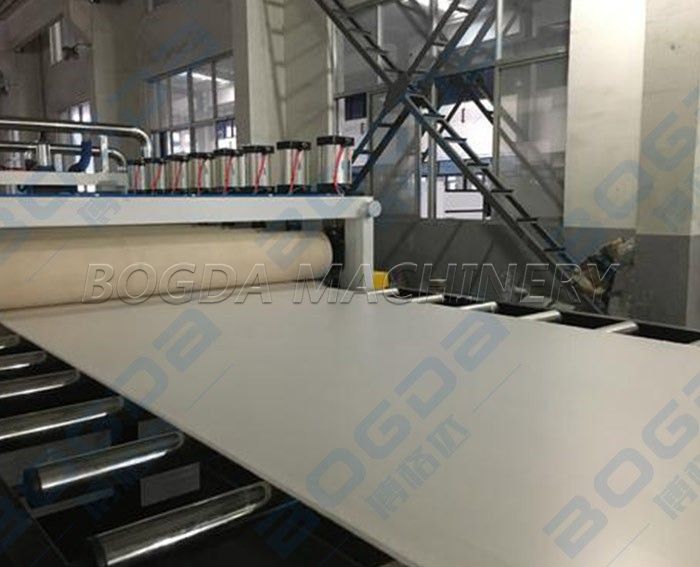

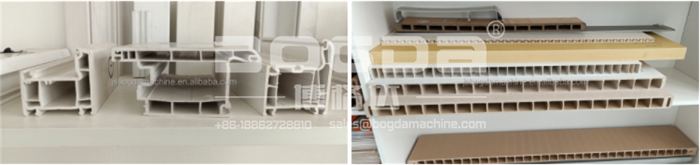

Production Application
Product Description

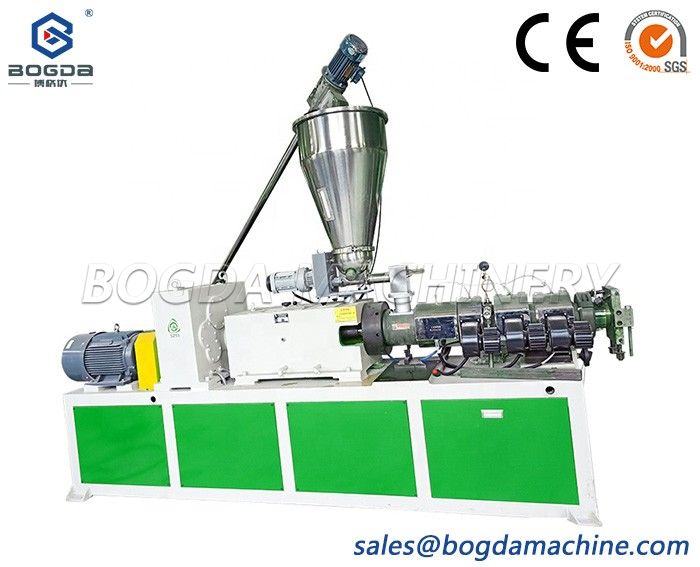

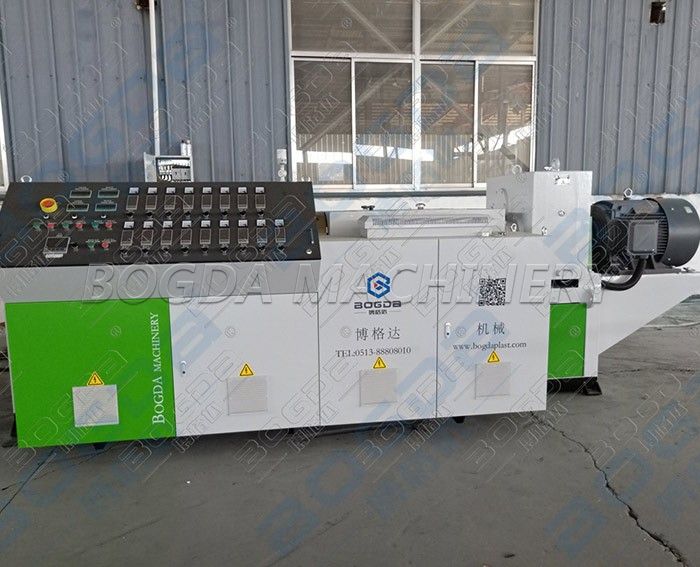

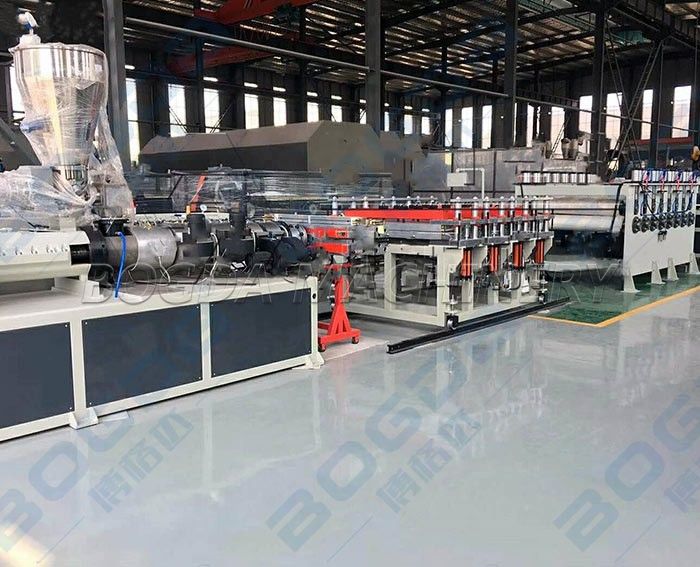

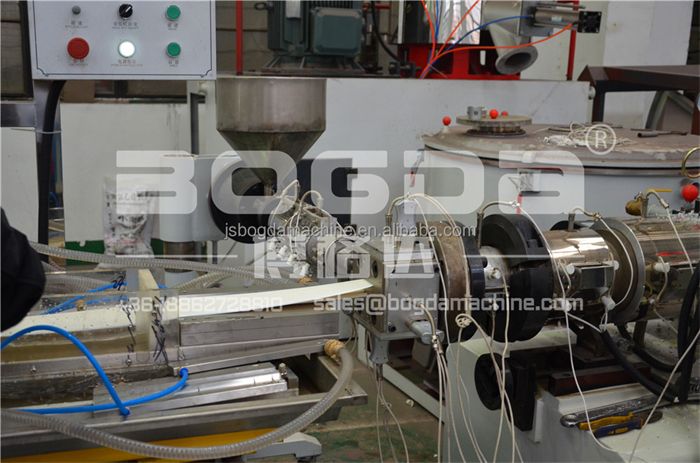

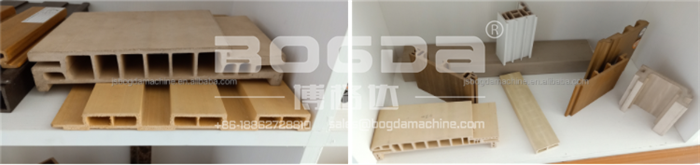

Factory Price Sale Double Screw Plastic Extruder Machine For PVC Ceiling Wall Panel

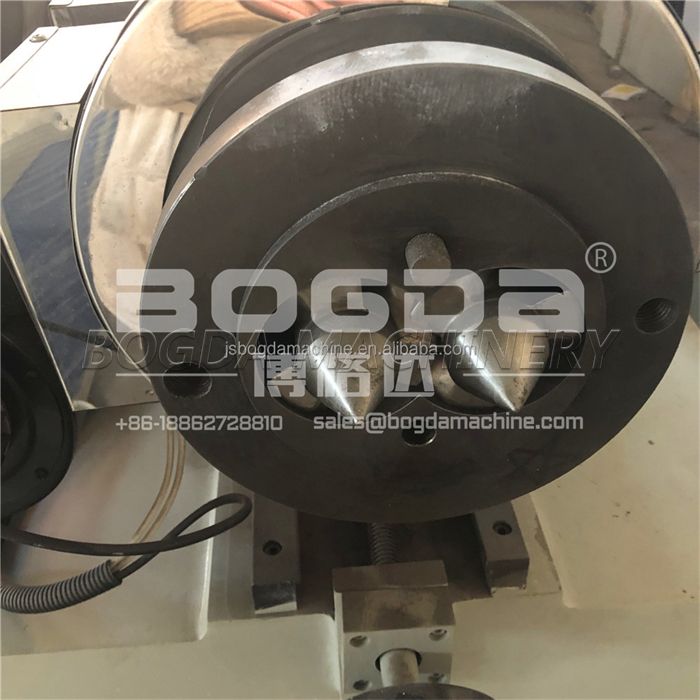

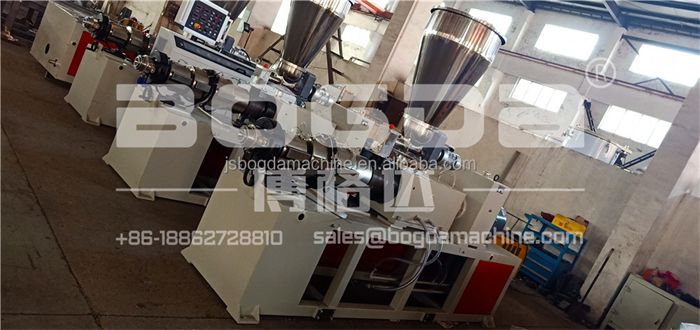

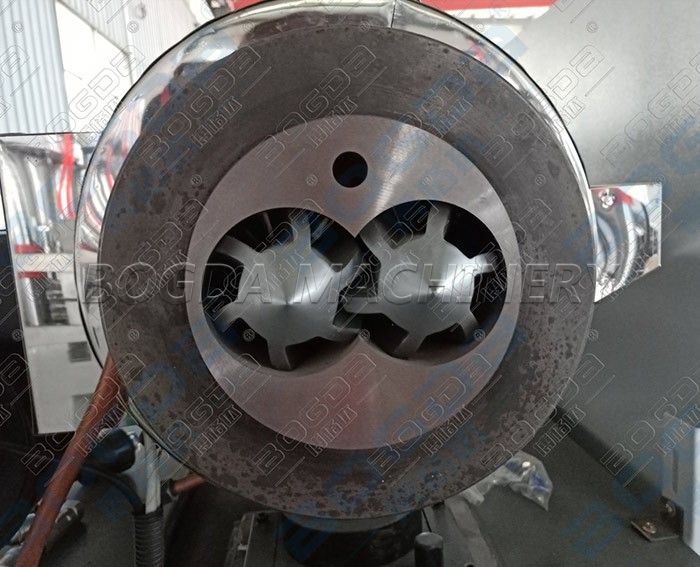

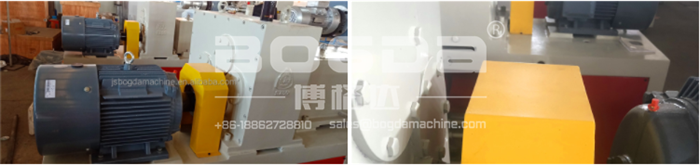

The conical co-rotating twin screw means that the shape of the screw in the extruder is conical, and the rotation direction of the two screws is the same. The extruder adopting the conical co-rotating twin screw technology is called the conical co-rotating twin screw extruder. The conical twin - screw extruder has both good plasticizing properties and good extrusion force. Conical twin screw extruder, the conical screw in the same direction of the rotation of the processed plastic into the barrel, in the barrel around the conical twin screw into shape 8 extrusion, increase the plasticizing time, reduce the friction between the plastic and the barrel screw, so as to ensure the plasticizing quality, reduce energy consumption; Because the screw is conical, it maintains the good extrusion force performance of the conical double screw granulator. Through the above technology, the conical coaxial twin-screw extruder has fully realized the characteristics of large extrusion force, good plasticizing performance, high output and low energy consumption. It has been proved that the conical coaxial twin-screw extruder can save more than 30%-50% energy and is a novel equipment suitable for all kinds of plastic or rubber extrusion and granulation forming.
Specification
Counter-rotating Conical Double Screw Extruder | |||||
Extruder Model | SJSZ55 | SJSZ65 | SJSZ80 | SJSZ92 | SJSZ110 |
Screw Diameter (mm) | 55/120 | 65/132 | 80/156 | 92/188 | 110/220 |
Rotating Speed (r/min) | 45 | 45 | 34.7 | 34.7 | 34.7 |
Capcity (kg/h) | 180 | 380 | 500 | 800 | 1400 |
Central height (mm) | 1050 | 1050 | 1050 | 1100 | 1100 |
Motor Power (kw) | 22/30 | 37 | 55 | 110 | 160 |
Weight (kg) | 3500 | 4000 | 5500 | 8000 | 9000 |
LXWXH (m) | 3.6x1.1x2.1 | 4.2x1.5x2.4 | 4.7x1.5x2.4 | 6x1.6x2.5 | 6.5x1.6x2.5 |

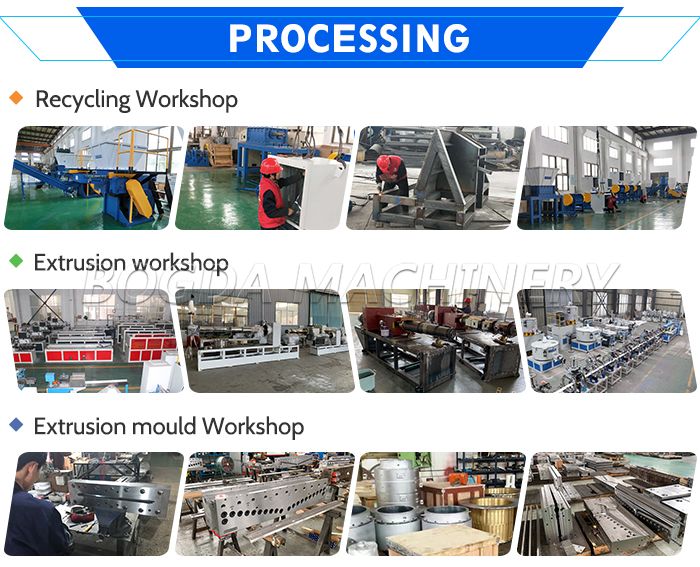

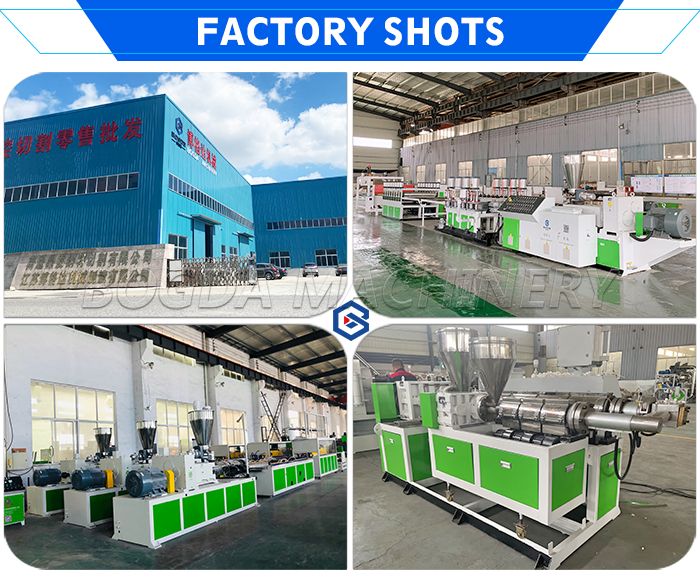

BOGDA Machinery Group is located in Europe and America (Hai'an) Industrial Park and Shanghai Fengxian (Hai'an) Industrial Park. It is a high-tech and innovative company dedicated to the research and development and manufacturing of plastic extrusion molding equipment. The company is people-oriented and innovative Development, with its unique corporate culture that has been brewing for many years, and the company’s eager attention to global economic development, it has continued to grow with its majestic momentum and quick response, making itself a large-scale and highly anticipated industry in this industry. Leading technology and excellent quality have been highly recognized by authoritative departments and markets. Products are exported to more than 110 countries and regions such as Europe, America, the Middle East, Southeast Asia, South America, Russia, Turkey, Italy, Poland, Brazil, Romania, etc. Deeply trusted and praised by customers, the company has many subsidiaries such as pipeline equipment, sheet film intelligent equipment, intelligent automation, and granulation equipment. The company has a high-quality talent R&D team and more than 20 years of experience in the industry. A team of mechanical and electrical commissioning engineers, as well as an advanced machining base and a standardized assembly workshop. More than 600 sets of high-end plastic extrusion lines are produced every year.
Q: Where can we get spare part?

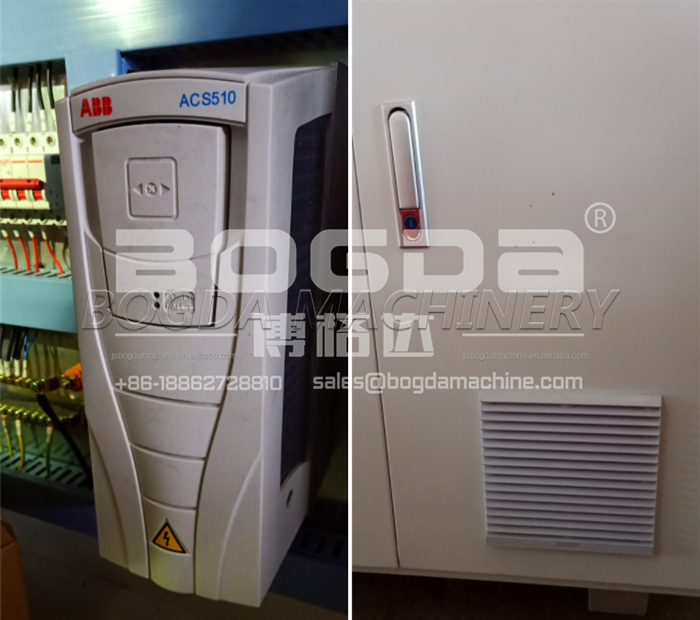

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Q: How can I help you when face some technical problem?
A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q: How long is the guarantee?
A: 12 months since the first day customer operates (except wear parts).
Q: Any quality checking before shipment?
A: 100% confirm, run and test machines before shipment with quality certificate.
Q: Can I operate machine if don’t have experienced engineers?
A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements
Q: How many electric, water, air need for the machines?
A: Technical department supply the whole layout for workshop details.
