PVC H Joint Corner /F Edge corner /U Edge Trim Ceiling Corner Line Profile Extrusion Line

Product Descirption

Project 1

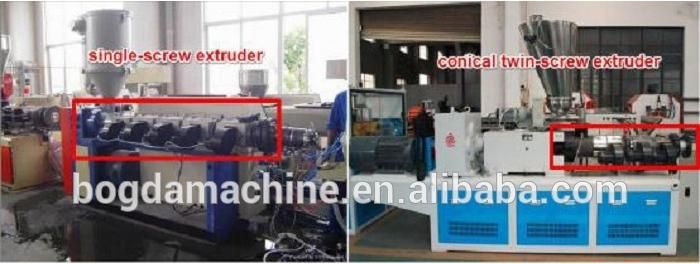

Single-screw extrusion line for pvc corner profile:feeding materials are pvc granules and can produce 1cavity,2cavities.

Project 2

Conical twin-screw extrusion line for pvc corner profile:Input materials are pvc powder to mix with stabilizer,caco3,CPE and can produce 1 cavity,2 cavities,4 cavities and so on.

PVC Corner Profile Production Line is used for produce pvc corner profile,such as "H Joint Corner" "F Edge Corner" "Internal/External Corner Trim" "Functional Corner".They are used in conjunction with pvc ceiling panels, for securing the panels.

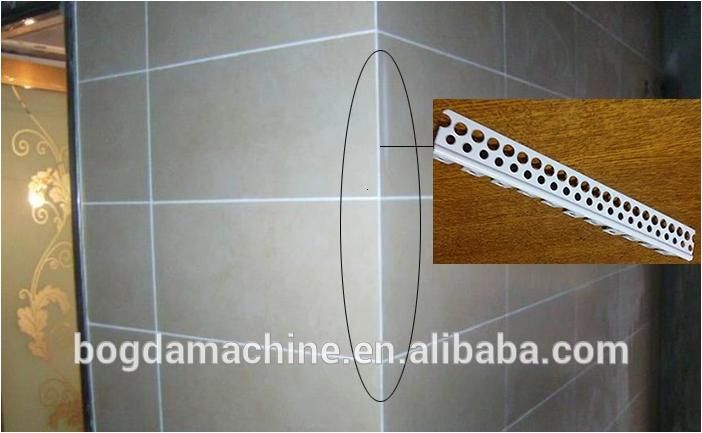

Also this production line can produce pvc angel bead

Technical Parameter

PVC corner profile production line consist of  Mixer→double-screw extruder→mould→vacuum calibration spraying platform→haul-off machine→blade cutter→stacker

Hot & cooling mixer	Body materila:stainless board
	Mixing time:15-20min
	Heating/cooling method:Electric heating /water cooling
	Main motor power:30/42kw &11kw

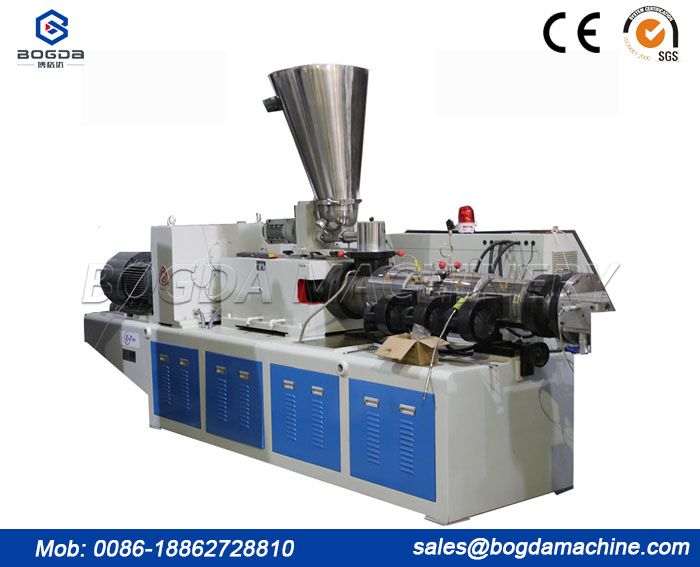

Conical twin screw extruder	Screw diameter:⌀51mm and ⌀105mm
	Screw barreel material:38CrMoALA
	Rotational speed:1-36r/min
	Main power powder:18.5kw
Corner profile molds	Mould include:mould-die+calibrator+water tank
Vacuum calibration & water tank	Center height:1000mm
	Vacuum pump:4kw*1set
	Water pump:3kw*1set
Haul off machine	Motor:1.1kw*2sets
	Clamping type:flat caterpillar
Cutting machine	Motor:3kw
	Cutting knife:saw knife structure
Stacker	Length:4000mm
	Material:stainless

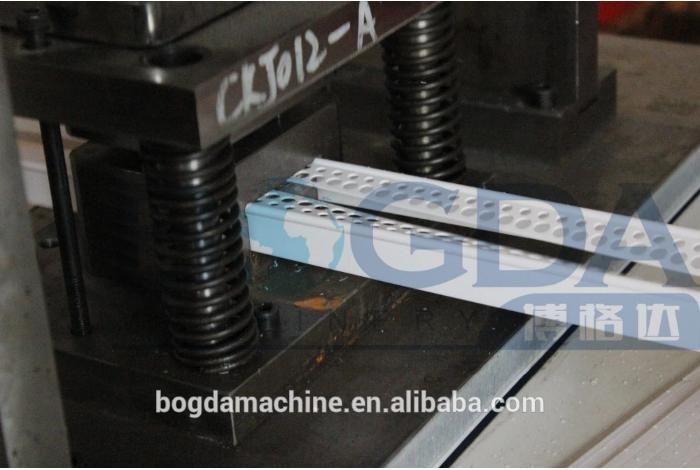

If you want pvc external angel bead,still need punching machine

BOGDA International Co, BOGDA Machinery Co, who is a leader of Plastic Machine and Raw Material. Such as Plastic Profile/Pipe/Sheet Extrution Equipment,Injection Machine and Waste PP/PE Film, PET Bottle Washing Recyce Machine, as well as Plastic Granulating Line, meanwhile we are familiar with kinds of raw material to help our customers choose the most suitable machine on best quality by economically.

In wooden cases, wooden splints, wrap film and other specialized packaging film, to ensure that the machine impact damage in the long time of land and sea transport, thus reaching the customer factory intact.

Q: Where can we get spare part?

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

Q: How can I help you when face some technical problem?

A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

Q: How long is the guarantee?

A: 12 months since the first day customer operates (except wear parts).

Q: Any quality checking before shipment?

A: 100% confirm, run and test machines before shipment with quality certificate.

Q: Can I operate machine if don’t have experienced engineers?

A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements

Q: How many electric, water, air need for the machines?

A: Technical department supply the whole layout for workshop details.
