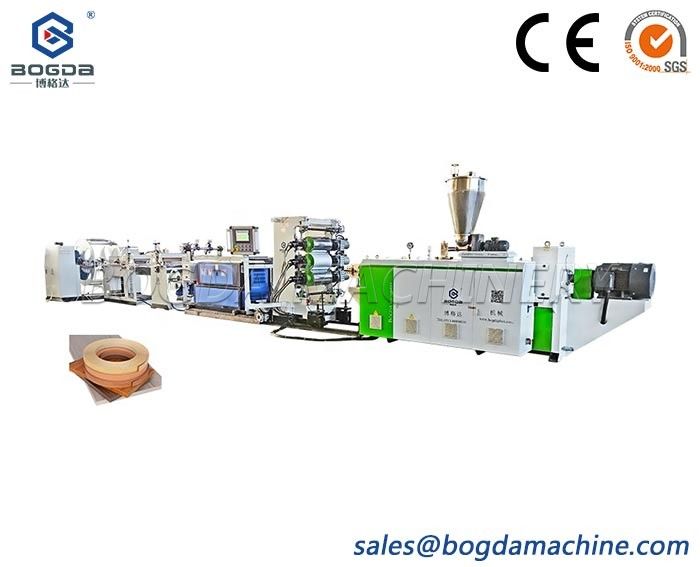

BOGDA Industry Machinery Plastic Edge Banding Tape Extruder Line Manufacturing Machine For PVC Sheets

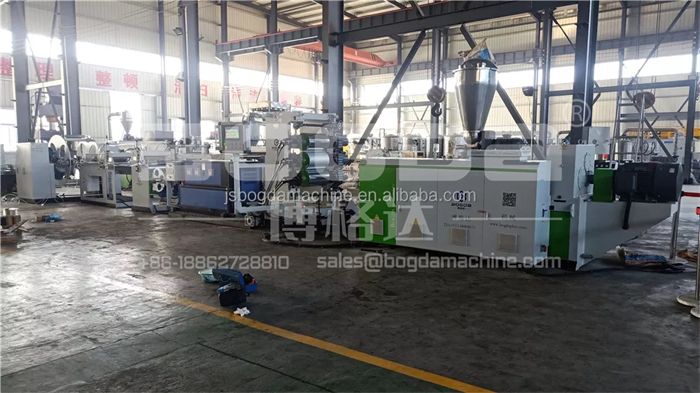

1. SJSZ65/132 extruder 2. Sheet extrusion mould 3. Three roller embossing machine 4. Temperature control machine 5. Edge cutting machine 6. Cooling device 7. Haul off machine 8. Double station winding machine

Product Description

Production Application

Application for PVC Edge Banding

Furniture sealing edge is the material that undertakes protection, adornment, beautification to the section of furniture plank, it can make a furniture shows the integral effect with clear grain, profusion of color.


The main component of PVC edge sealing strip is polyvinyl chloride, which is made by mixing, calendering, vacuum plastic and other processes. Products are widely used in furniture, office, kitchenware, teaching equipment, civil laboratory, etc. Thickness from 0.3 to 3mm, width from 12mm to 80mm. Product has the following main features: surface smooth, no bubbles, no grain, glossiness is moderate, front and back surfaces smooth, uniform thickness, width is consistent, reasonable hardness, high elasticity, good quality, high resistance to wear, sealing side of the side after trimming color and surface color close to, not white, good gloss, finished product furniture color coordinate as a whole. The main function of the edge sealing strip is to seal the section of the plate, so as to avoid the damage of the environment and the adverse factors in the process of use (mainly water) to the plate and prevent the formaldehyde volatilization inside the plate, and achieve the effect of beautiful decoration.

BOGDA Industry Machinery Plastic Edge Banding Tape Extruder Line Manufacturing Machine For PVC Sheets

Product Description

BOGDA Industry Machinery Plastic Edge Banding Tape Extruder Line Manufacturing Machine For PVC Sheets

1. SJSZ65/132 extruder

2. Sheet extrusion mould

3. Three roller embossing machine

4. Temperature control machine

5. Edge cutting machine

6. Cooling device

7. Haul off machine

8. Double station winding machine

BOGDA Industry Machinery Plastic Edge Banding Tape Extruder Line Manufacturing Machine For PVC Sheets

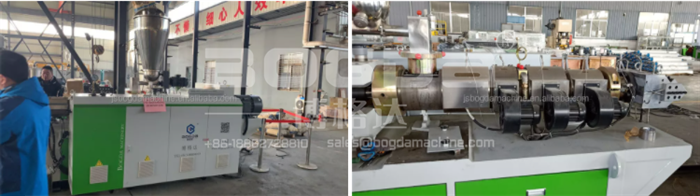

About PVC edge banding sheet extruder:
1. Vertical type or Horizontal type Optional, high quality gearbox

2. Motor rotation speed: 10-1500r/min

3. Speed-adjusting method: governed by AC transducer

4. Material of barrel: 38CrMoALA under nitrogen treatment

5. Machine color can be our strandard or customised according to customer's requirement.

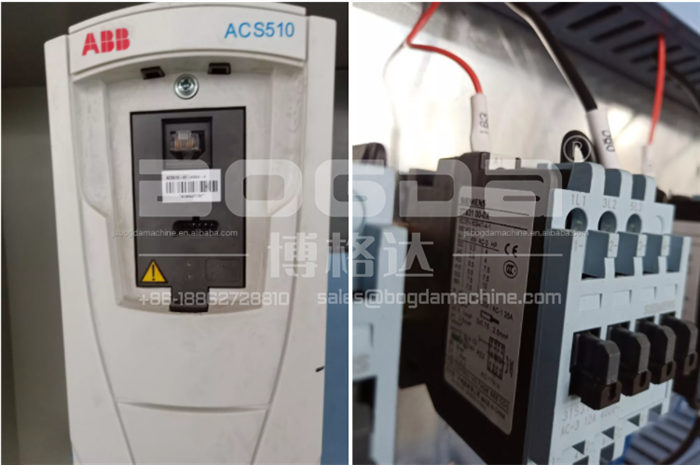

6. Equipped with ABB inverter, Omnron, Schneider, Simens......

BOGDA Industry Machinery Plastic Edge Banding Tape Extruder Line Manufacturing Machine For PVC Sheets

BOGDA Industry Machinery Plastic Edge Banding Tape Extruder Line Manufacturing Machine For PVC Sheets

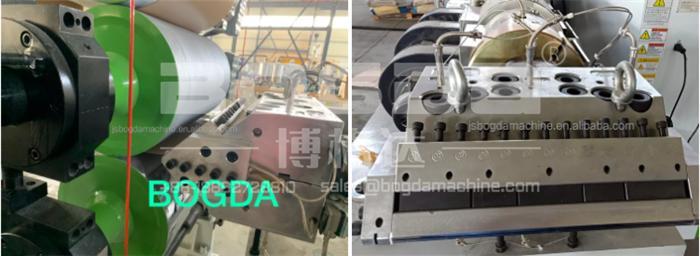

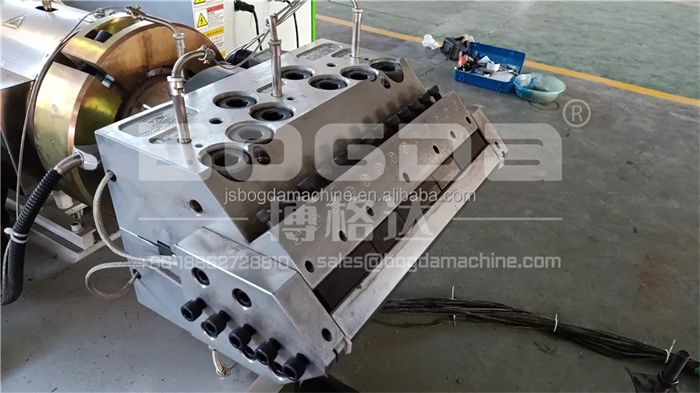

About PVC sheet extrusion mould:

1. T-type hanger type extrusion mould

BOGDA Industry Machinery Plastic Edge Banding Tape Extruder Line Manufacturing Machine For PVC Sheets

BOGDA Industry Machinery Plastic Edge Banding Tape Extruder Line Manufacturing Machine For PVC Sheets

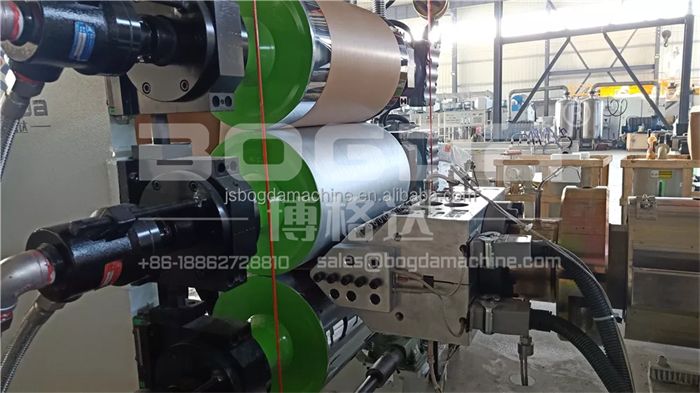

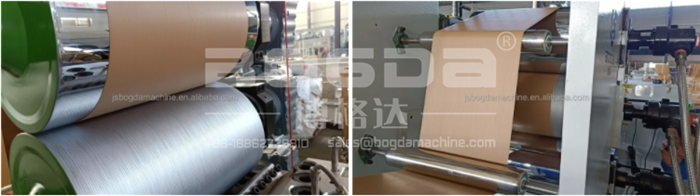

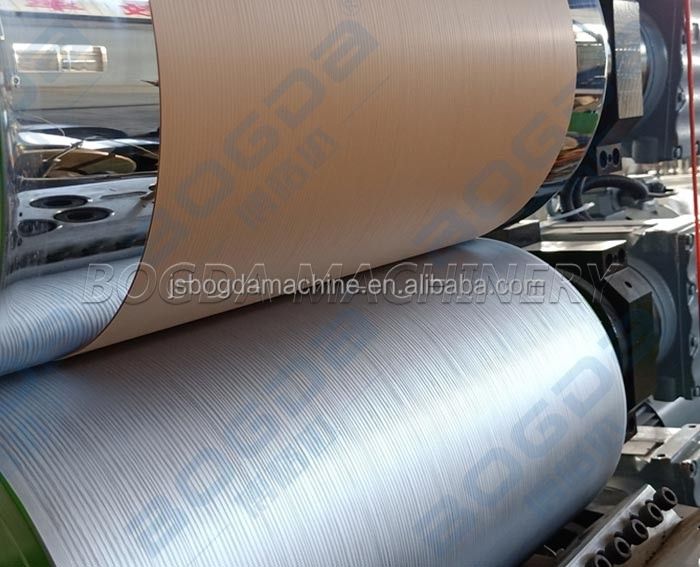

About three rollers embossing machine:

1. Three roller calendaring machine: 400x850mm for each roller, equipped with three smooth rollers, high quality high strength alloy steel.
2. Roller surface is under intermediate frequency quenching treatment
3. Two rollers with mirror surface, one roller with matte smooth surface
4. Special designed embossing roller can be equipped to the machine to make surface with embossing design.

BOGDA Industry Machinery Plastic Edge Banding Tape Extruder Line Manufacturing Machine For PVC Sheets

BOGDA Industry Machinery Plastic Edge Banding Tape Extruder Line Manufacturing Machine For PVC Sheets

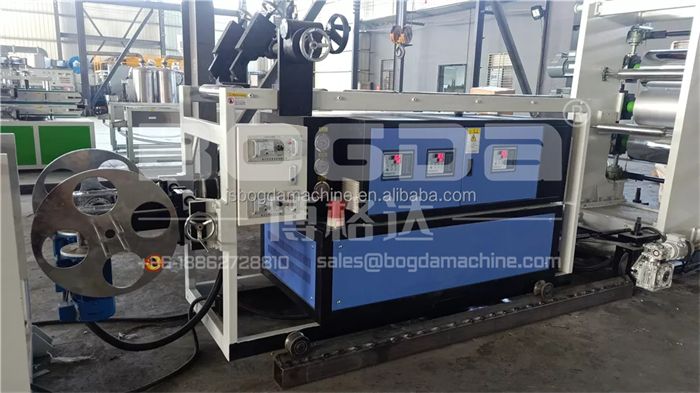

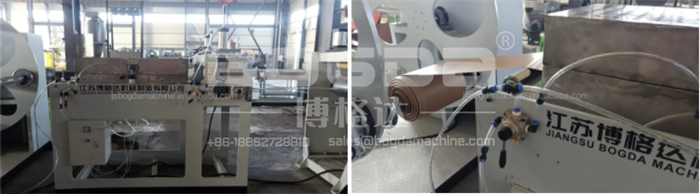

About cooling system:

1. 5m long cooling stacker

2. Width of cooling rollers: 850mm

3. Stainless steel material roller, surface is under polish treatment

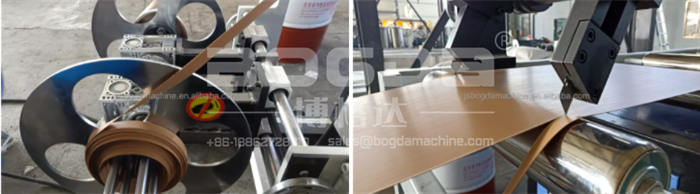

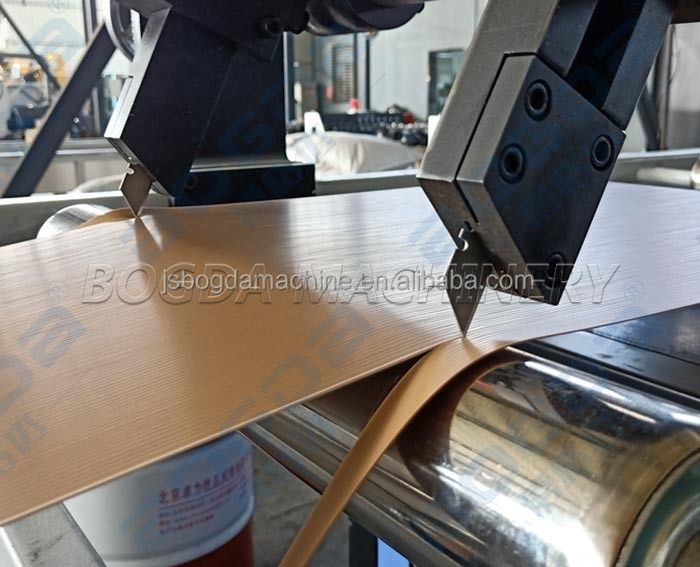

About edge cutting device:
1. Double side edge cutting, the width of edge can be adjustable.
2. Waste edge auto winding device: two sets, online winding

BOGDA Industry Machinery Plastic Edge Banding Tape Extruder Line Manufacturing Machine For PVC Sheets

BOGDA Industry Machinery Plastic Edge Banding Tape Extruder Line Manufacturing Machine For PVC Sheets

About BOGDA haul off machine and oven :

1. Rubber roller and air cylinder clamping
2. Rubber roller specification: φ150x400mm
3. Counting device: shaft code and pulse counting


About pvc sheet cutting machine:

1. Cutting length: encoder fixing length cutting
2. Automatic cutting
3. Cutting type: online shearing
4. Cutting width:600mm

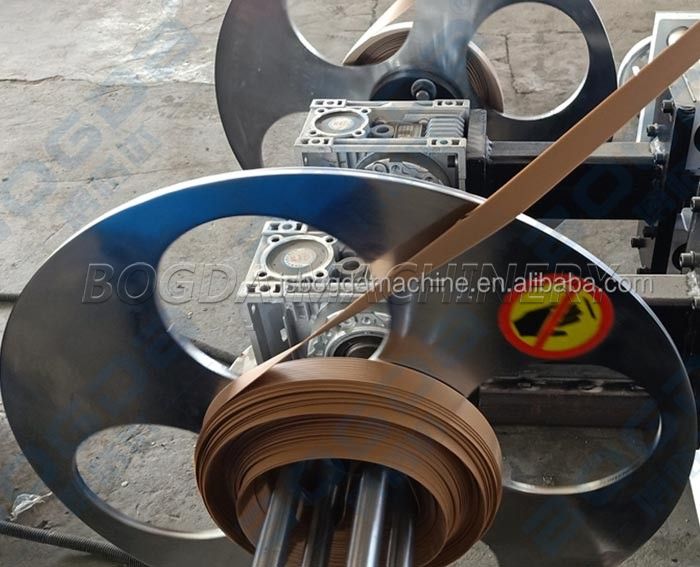

About double station rewinding machine:

1. Coiling type: automatic double station
2. With metering and alarming device: when the set length rolled , the machine shall give alarming to inform workers.

BOGDA Industry Machinery Plastic Edge Banding Tape Extruder Line Manufacturing Machine For PVC Sheets

BOGDA Industry Machinery Plastic Edge Banding Tape Extruder Line Manufacturing Machine For PVC Sheets

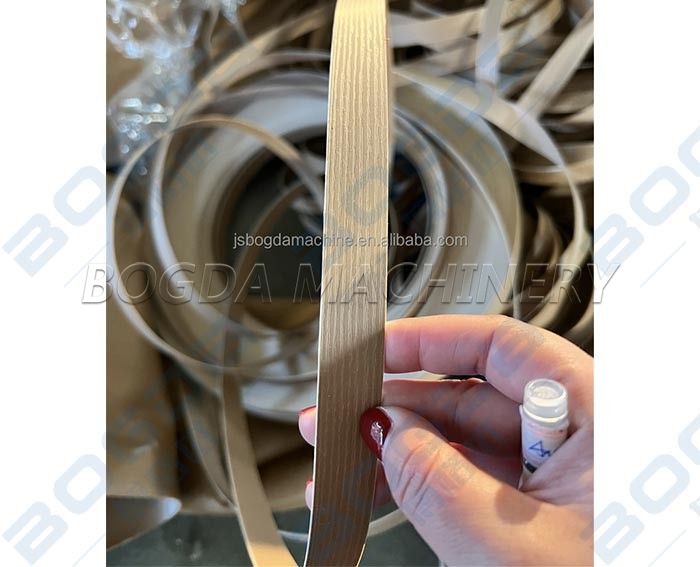

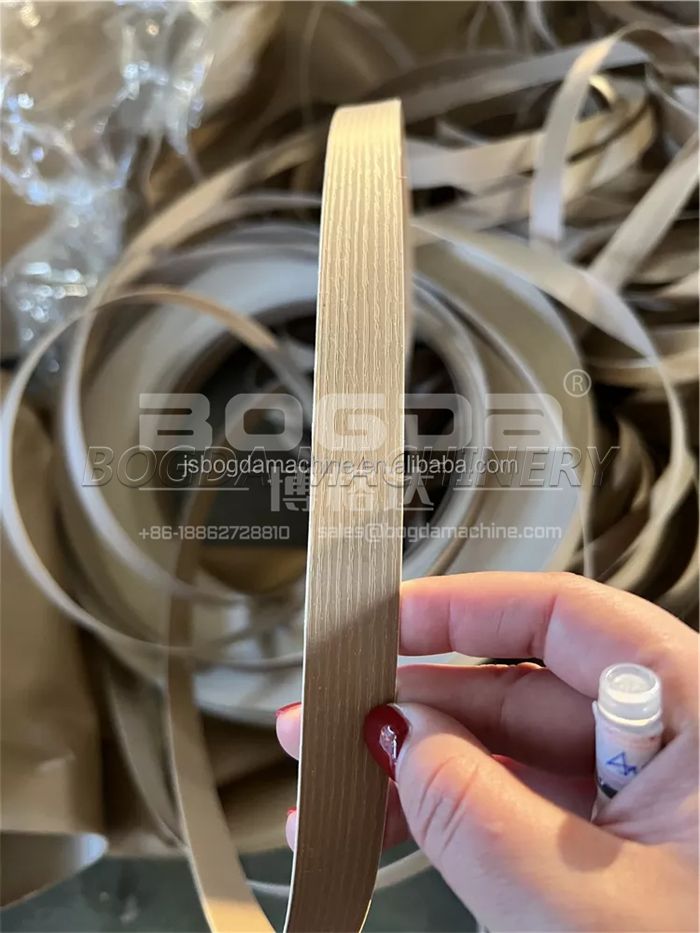

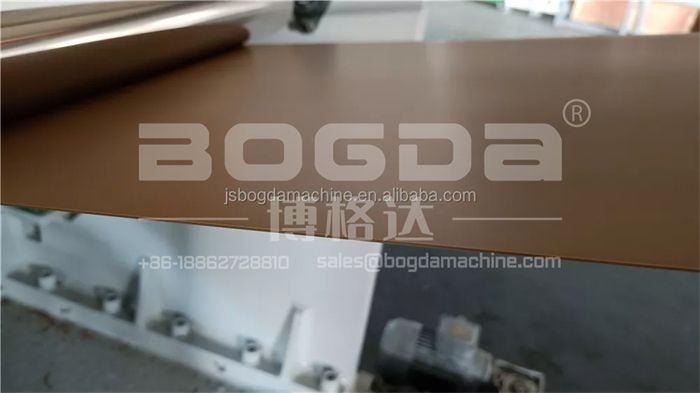

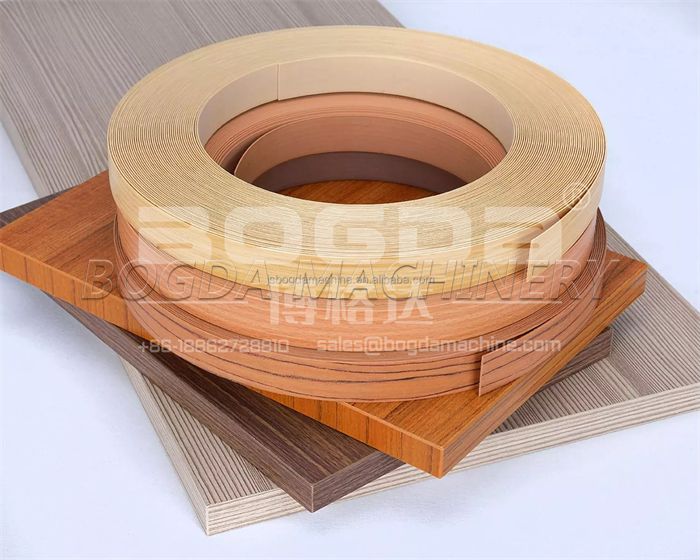

Final PVC Edge Banding

BOGDA Industry Machinery Plastic Edge Banding Tape Extruder Line Manufacturing Machine For PVC Sheets

Product Paramenters

Model Product thicknessProduct widthOther Size (mm)
SJSZ65/1320.35-3mm360mm250/280/300/400/600


Packaging and Shipping

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet/board extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.

BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.

Fast response, good quality, best price and perfect service are our advantages and culture.

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

Customer Review

One Cavity HDPE PP PPR Pipe Pipe Extrusion Production Machine Making Machinery Manufacturer

FAQ

Q: Where can we get spare part?

A: We choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

Q: How can I help you when face some technical problem?

A: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

Q: How long is the guarantee?

A: 12 months since the first day customer operates (except wear parts).

Q: Any quality checking before shipment?

A: 100% confirm, run and test machines before shipment with quality certificate.

Q: Can I operate machine if don’t have experienced engineers?

A: (1) Short-time engineers to customer company (5-15days) (2) Year-time working as requirements

Q: How many electric, water, air need for the machines?

A: Technical department supply the whole layout for workshop details.
