Brand Name: BOGDA; Floor thickness: 4-6mm; Raw material:PVC powder,Caco3,CPE,ACR,etc; Production speed: 0-6m/min; Mould width: 1320mm and 1050mm; Type: Plastic sheet extrusion line
Product Descirption

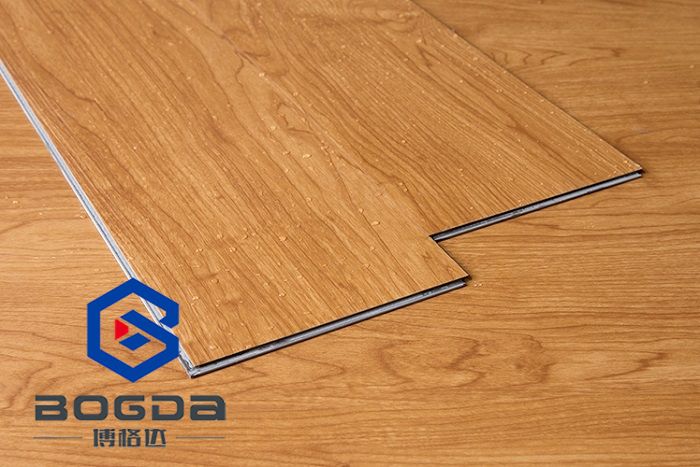

PVC plastic floor also named Rigid vinyl plank, which is new environment-friendly flooring, with zero formaldehyde, mildew, moisture, fire, pest control, simple installation.

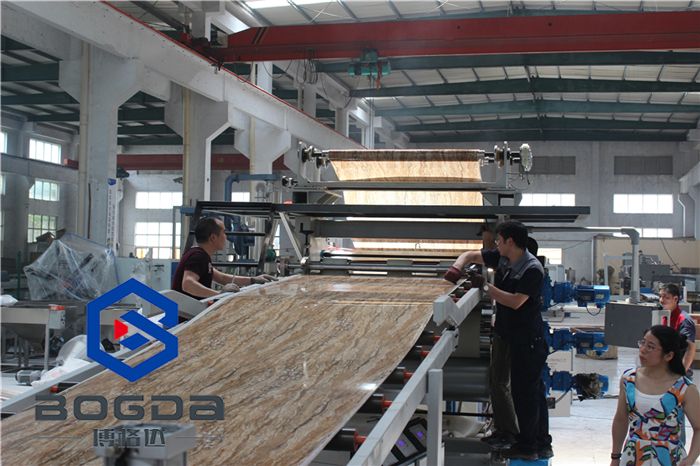

PVC plastic floor is extruded by extruder and T-die extrusion PVC substrate, with three-roll or four-roll calender, respectively, PVC wear layer, PVC color film and PVC substrate, one-time heating paste, embossed products , The process is simple, close by heat to complete, do not need glue.
Machine List
Double layer 0.5-2mm thick PVC floor production line
NO. | Machine Name | Qty. |
1 | SJSZ92/188 Conical twin screw extruder | 1 set |

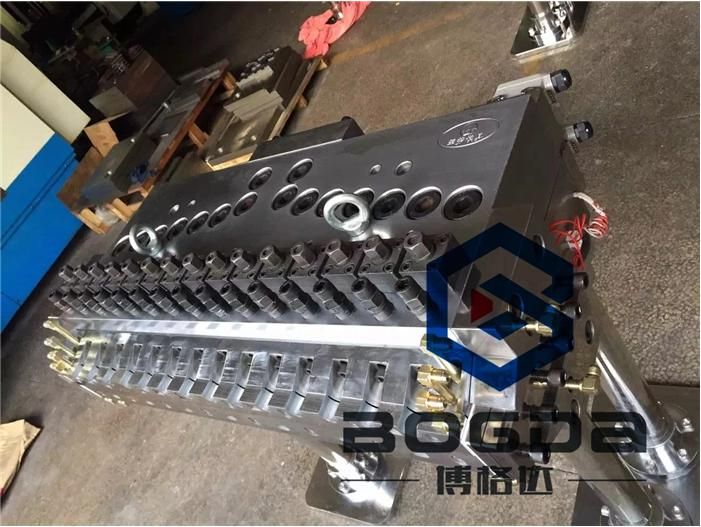

2 | Hanger plate mold | 1 set |

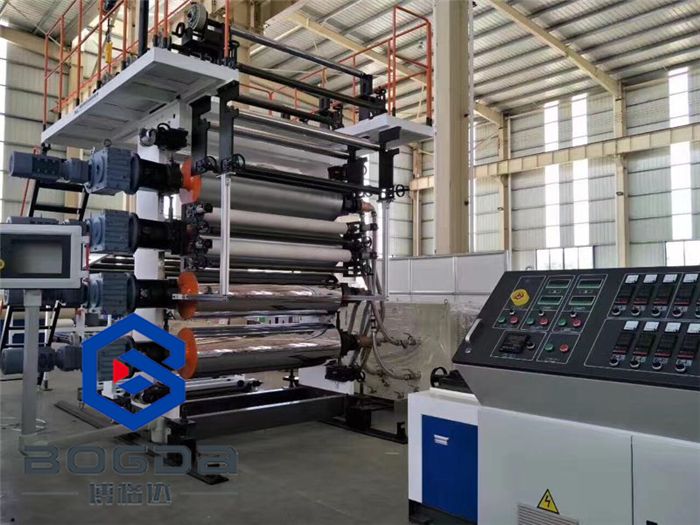

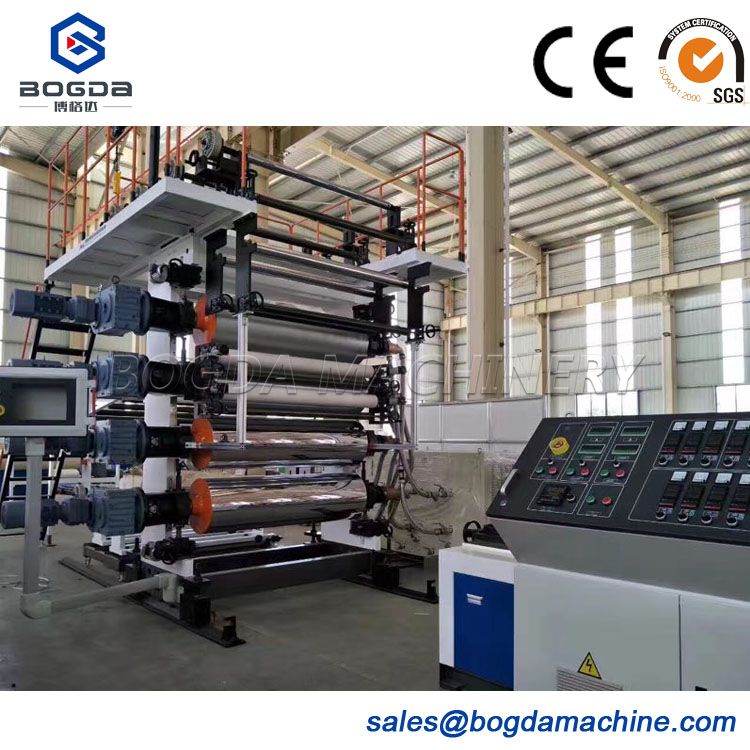

3 | Four-roll calender | 1 set |
4 | Cooling bracket + trimming device | 1 set |
5 | Four-site coating + correction device | 1 set |
6 | Traction machine | 1 set |
7 | Precision cutting plate machine | 1 set |
8 | Feeding device | 1 set |
Specifications for double layer 0.5-2mm thick PVC floor production line
1 | Use raw materials | PVC plus accessories |
2 | Production line speed | 0-6m / min |
3 | Maximum yield | 600-800kg / h |
4 | Total installed power | 200kw |
5 | Actual energy consumption | 140kw |
6 | Air consumption | 0.4m3 / min |
7 | Air pressure | 0.6mpa |
8 | Water circulation | 0.3m3 / min |
9 | Working temperature | 0-40°C |

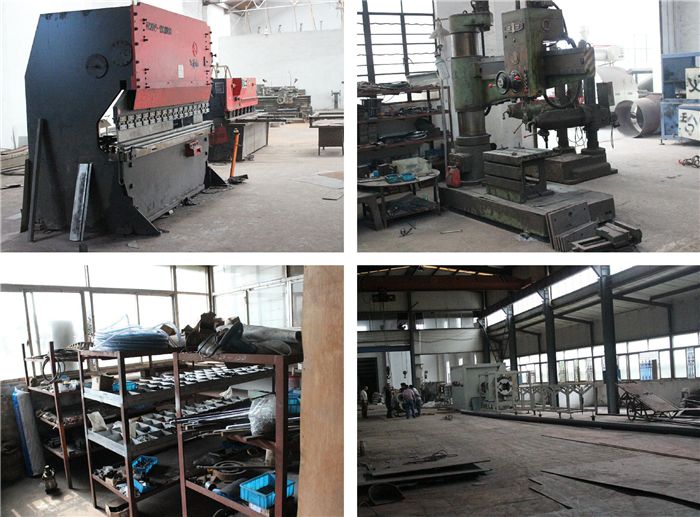

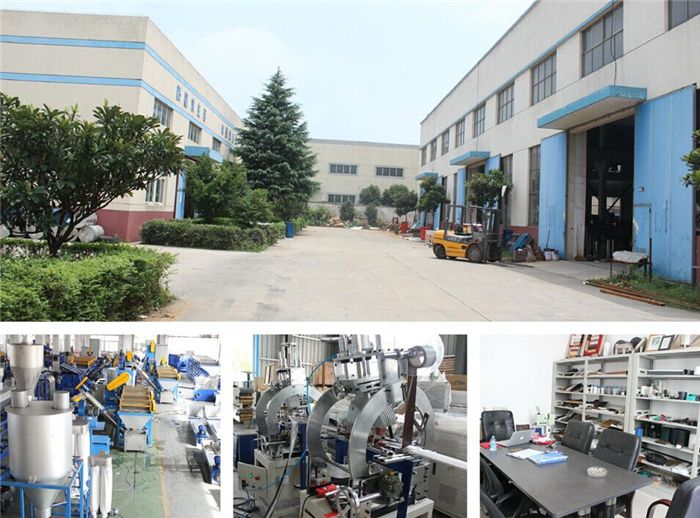

BOGDA International Co, BOGDA Machinery Co, who is a leader of Plastic Machine and Raw Material. Such as Plastic Profile/Pipe/Sheet Extrution Equipment,Injection Machine and Waste PP/PE Film, PET Bottle Washing Recyce Machine, as well as Plastic Granulating Line, meanwhile we are familiar with kinds of raw material to help our customers choose the most suitable machine on best quality by economically.

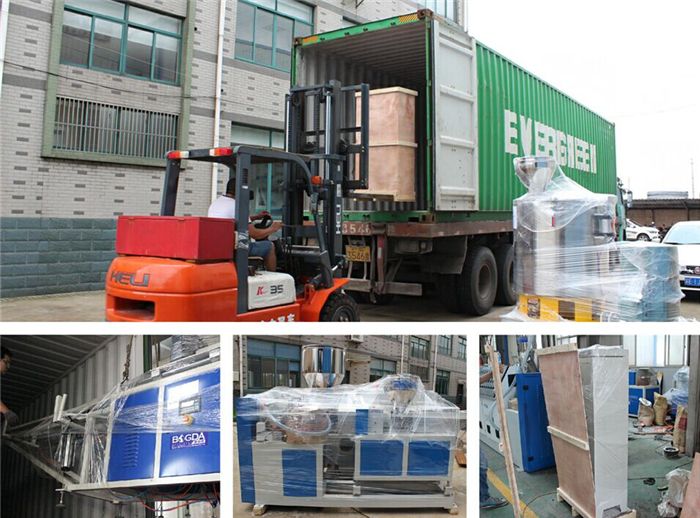

In wooden cases, wooden splints, wrap film and other specialized packaging film, to ensure that the machine impact damage in the long time of land and sea transport, thus reaching the customer factory intact.
